Rsx Full Fuel System with Return Line

IN STOCK

Please allow 3/5 business for your order to process and ship.


Fuel kit parts are NOT sold separately!! Please do NOT forward any inquires.

Fits 02/06 Rsx, Em2 k-swap & 01/05 Honda Ep3

Fuel Line Kit Information

Our kit is available exclusively with PTFE braided lines. This ensures full compatibility with pump gas (91 & 93 octane) as well as E85 fuel.

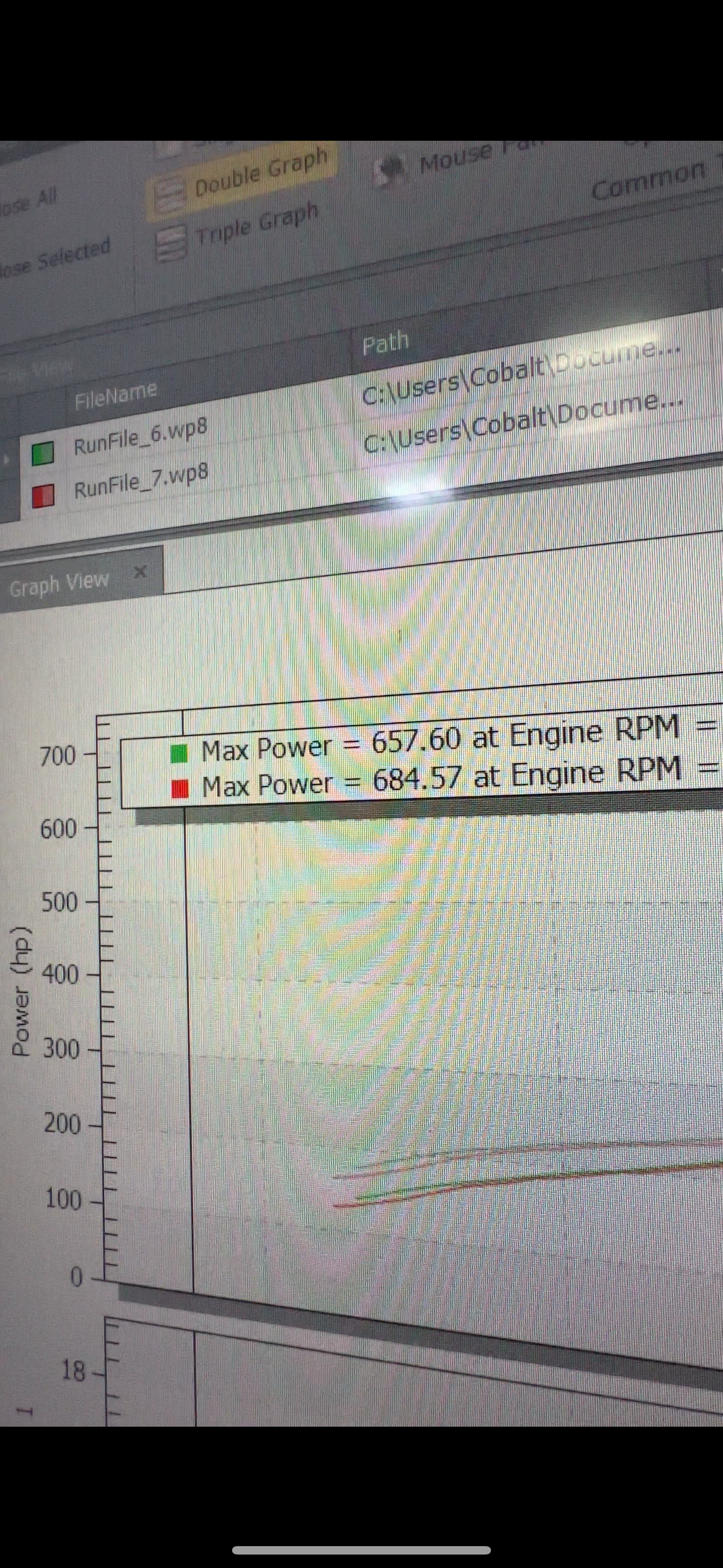

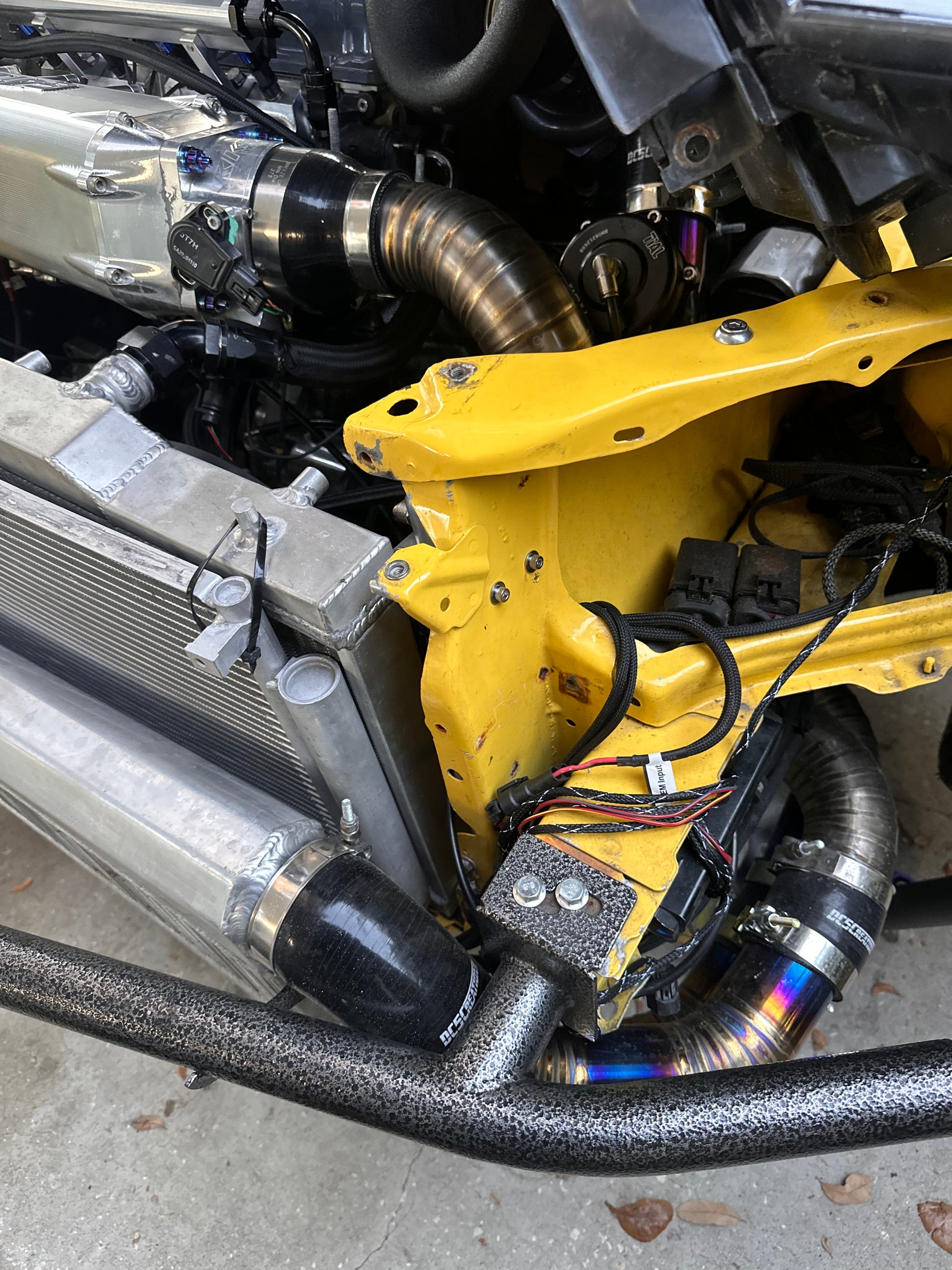

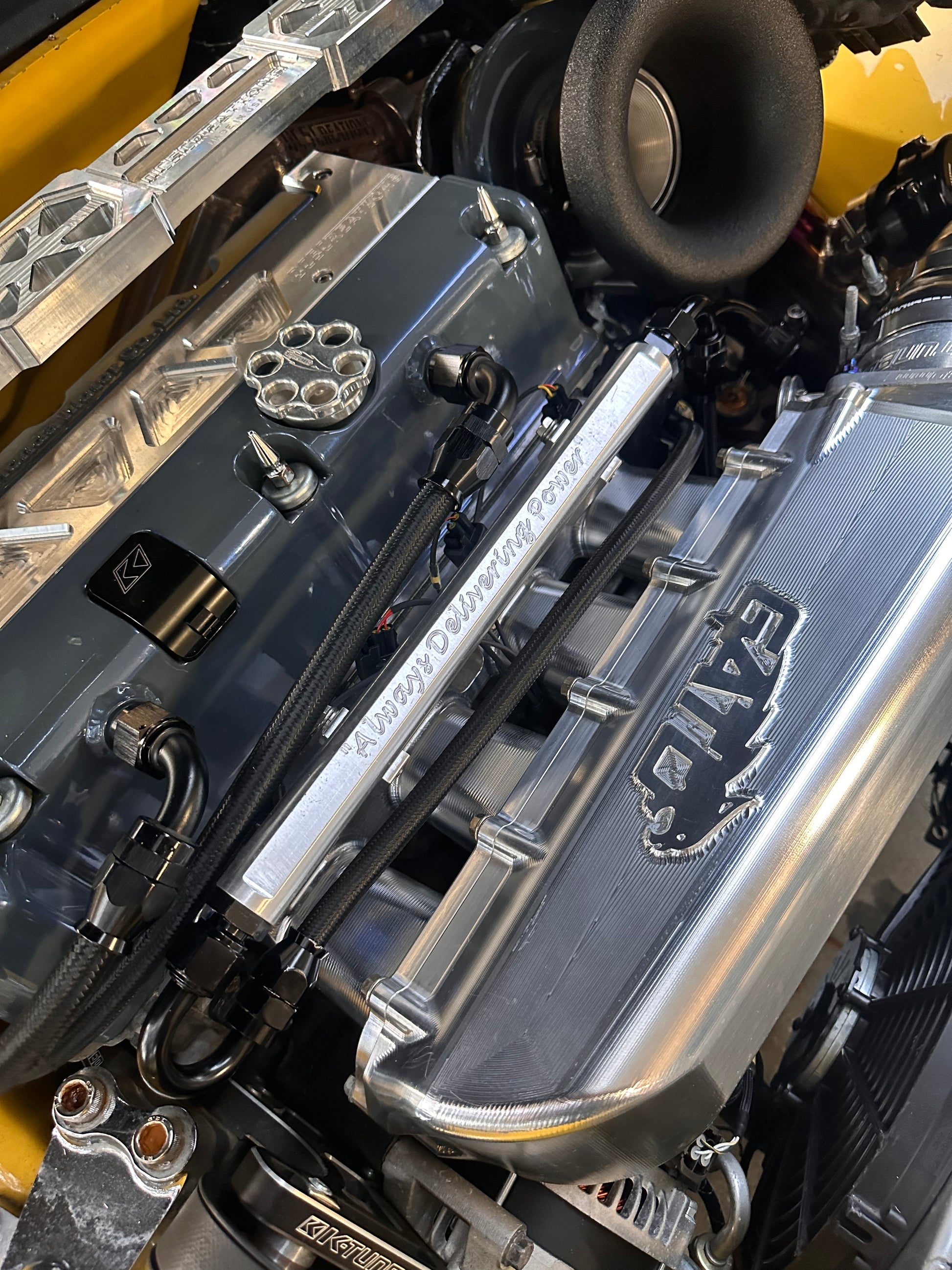

Our Flex Fuel Line Kit has been proven to perform at the highest level — producing 799 HP on our yellow RSX at 85% duty cycle, with 60 PSI of fuel pressure, utilizing a Walbro 525 pump and FIC 2150cc injectors. On pump 93, the setup produced 523 HP.

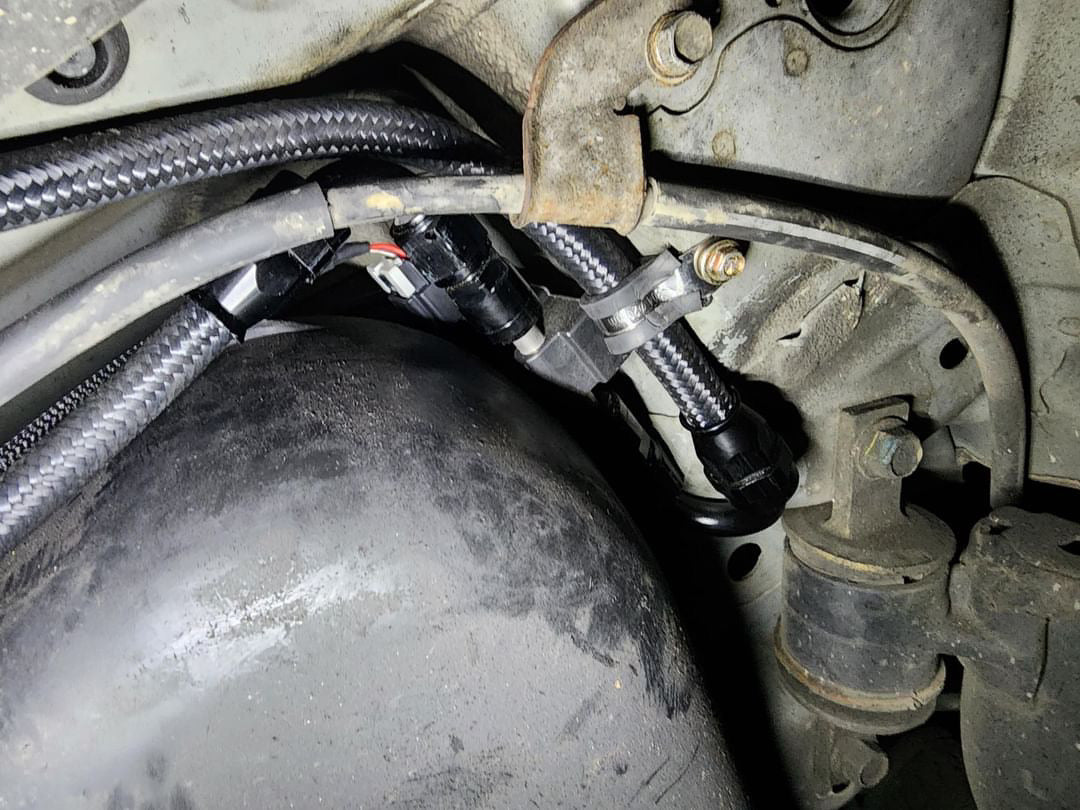

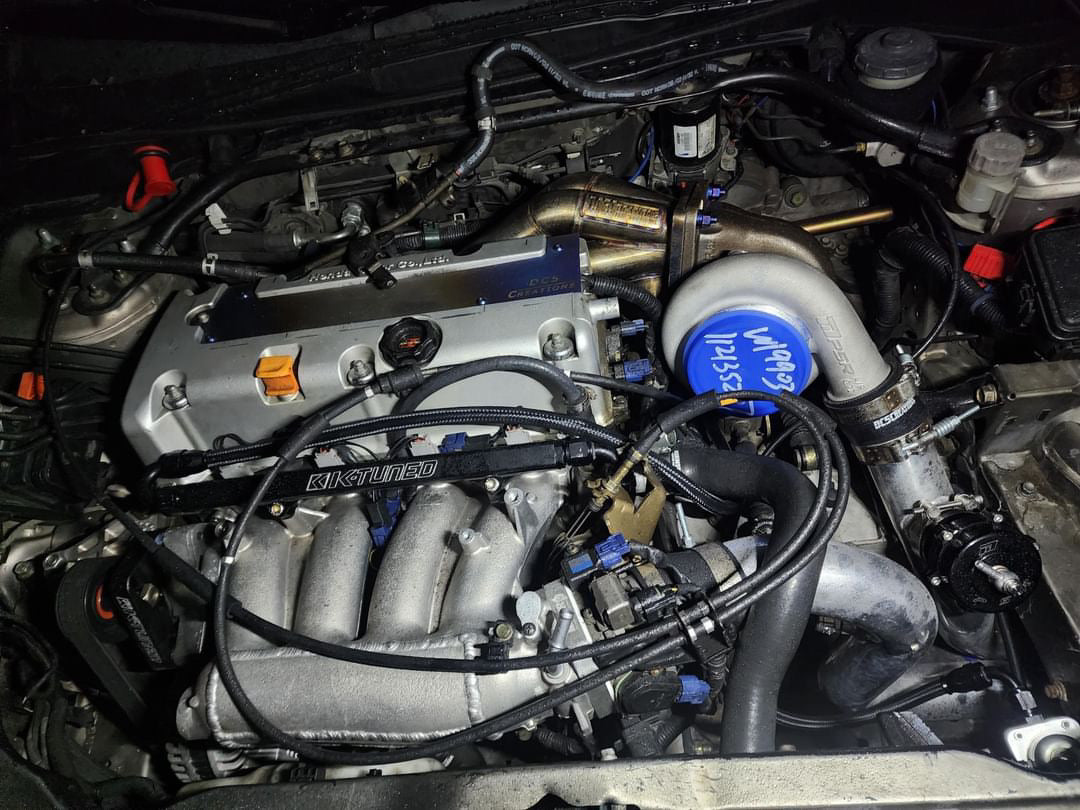

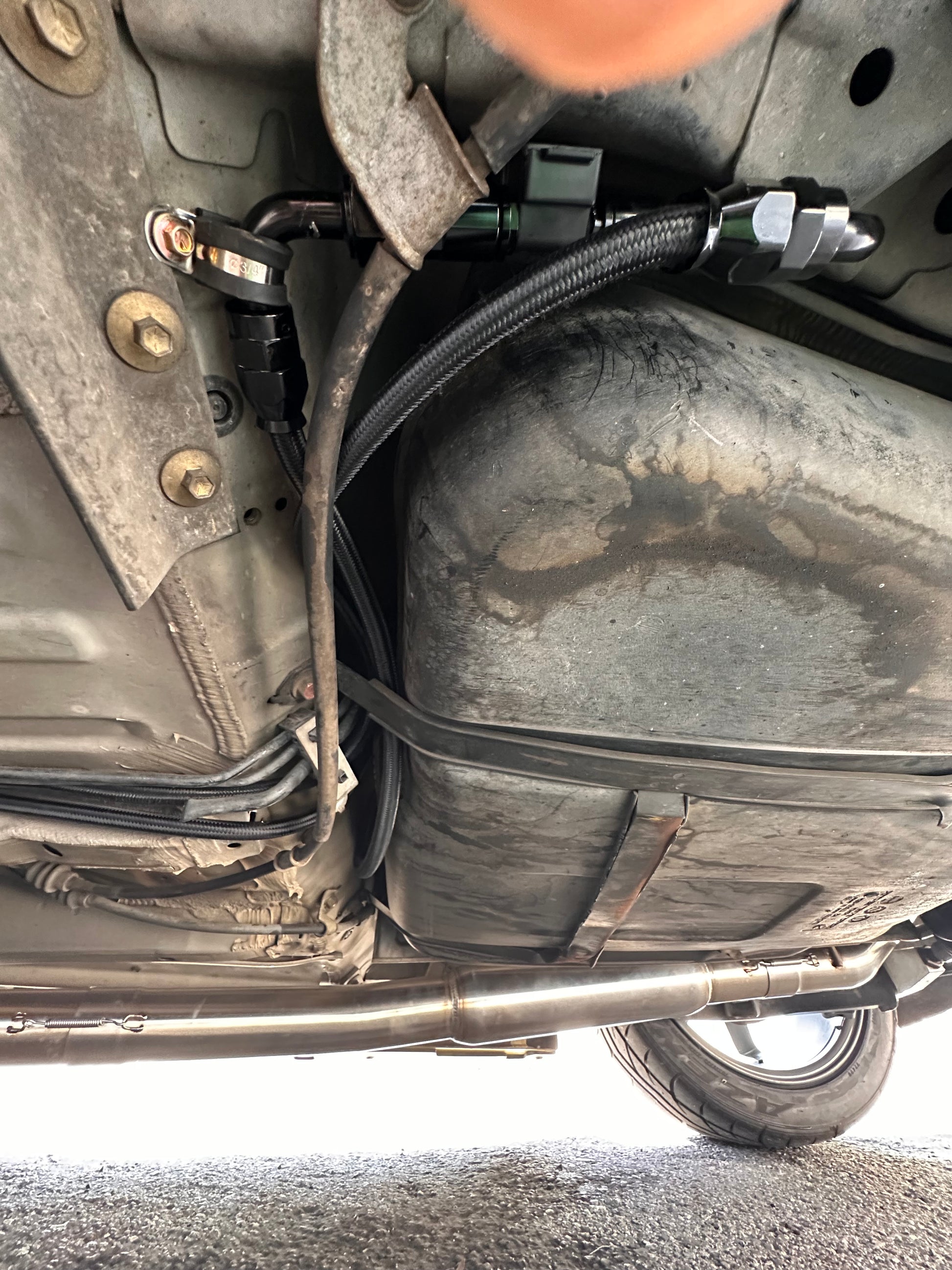

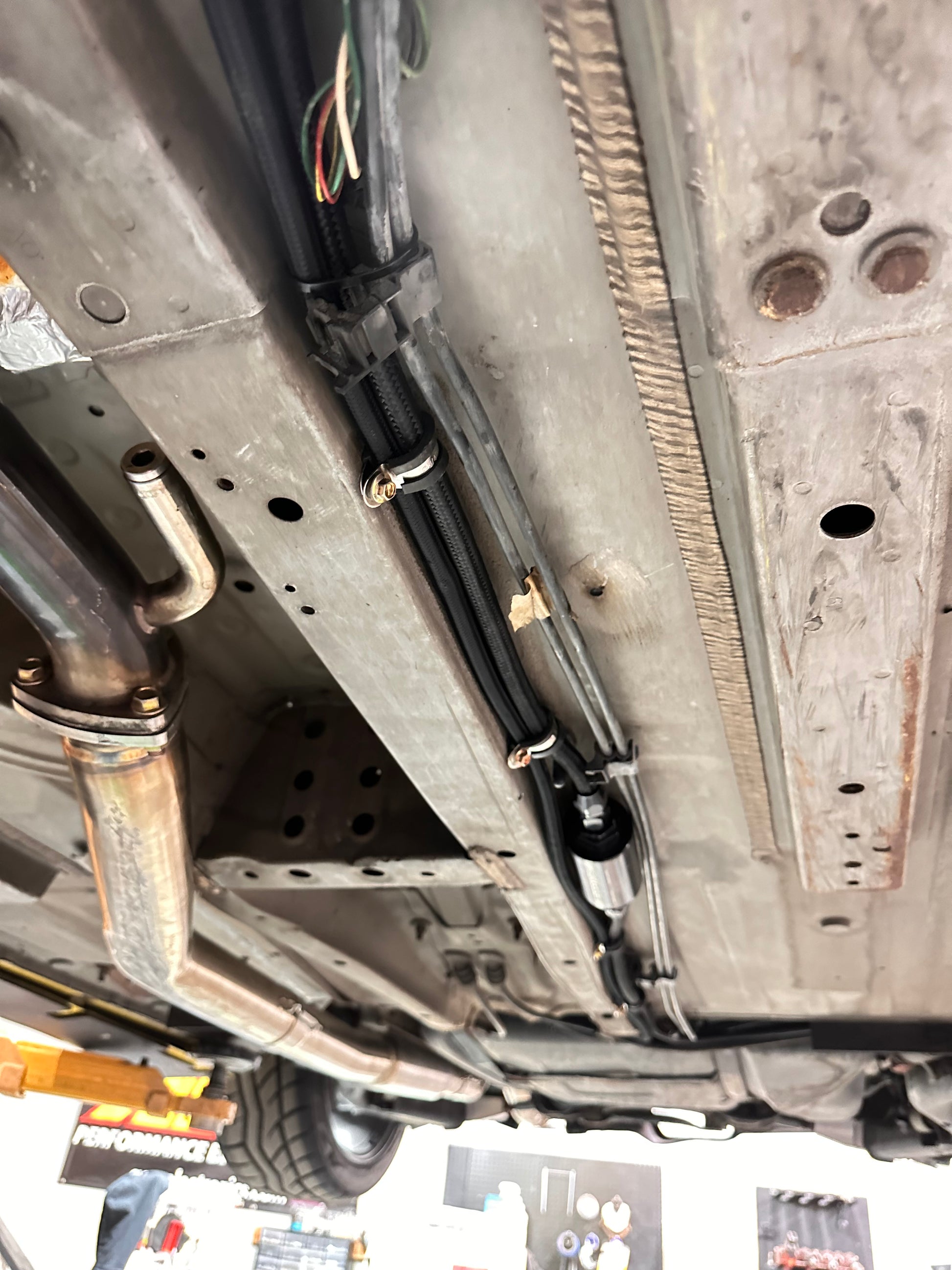

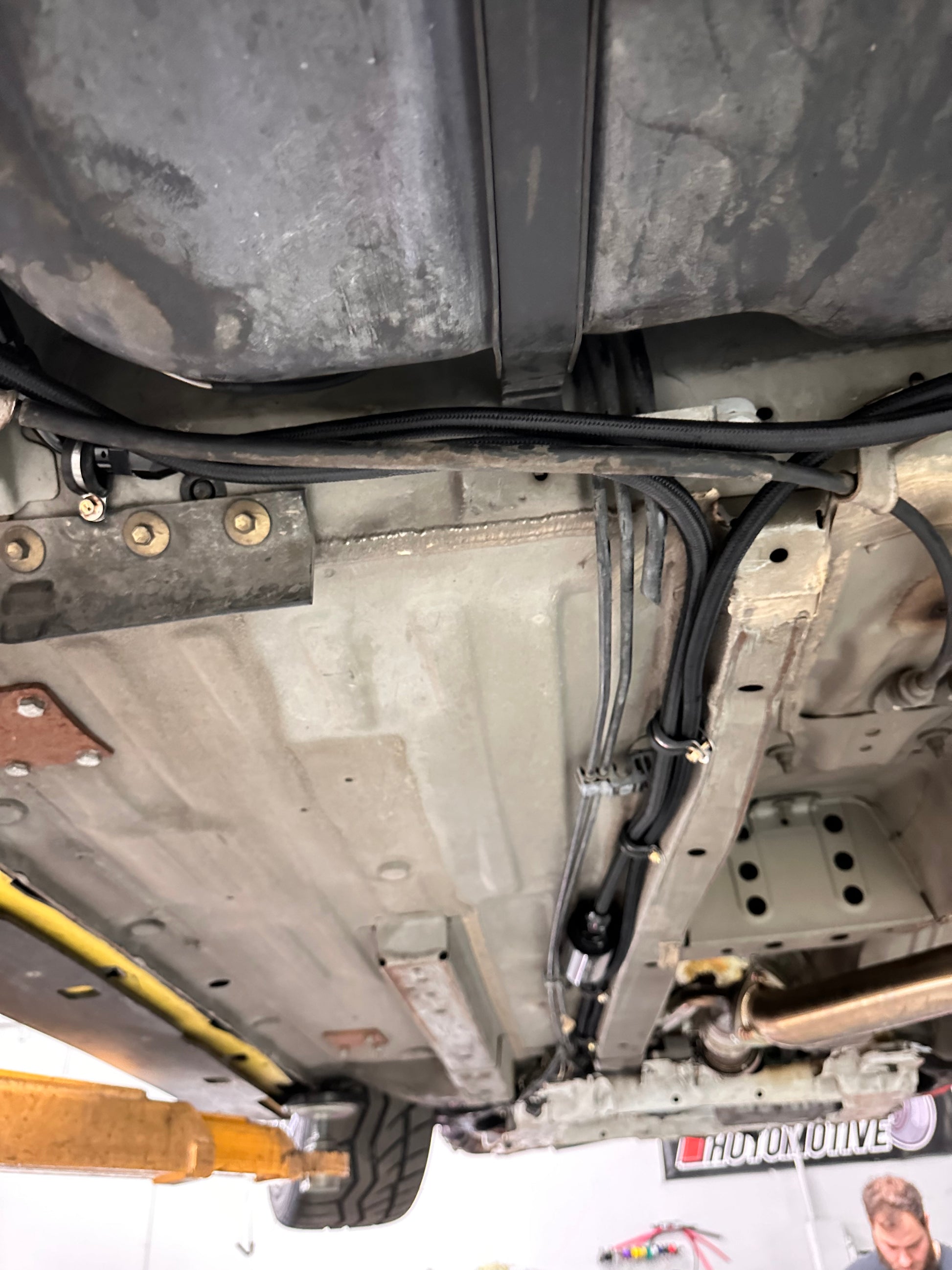

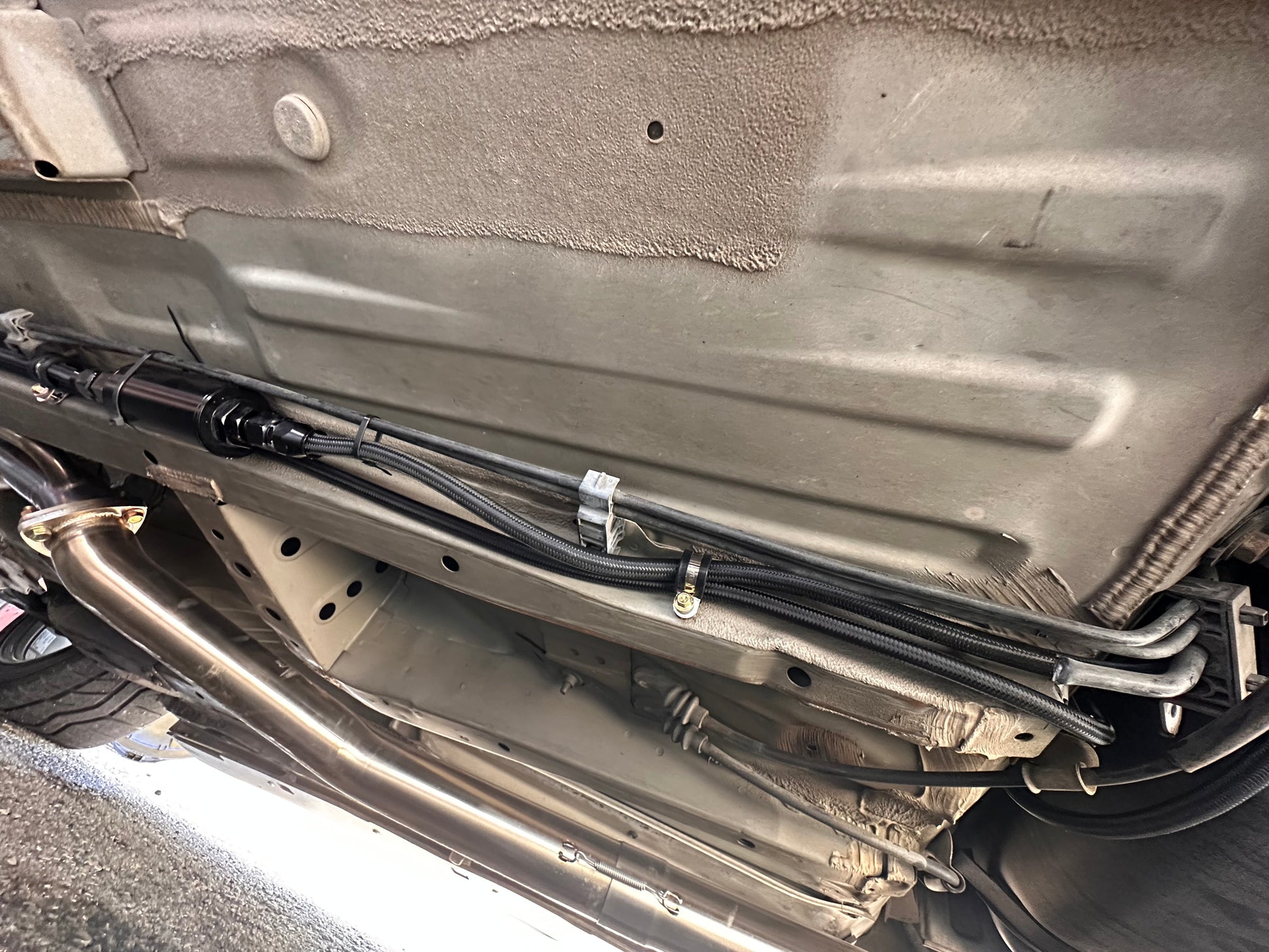

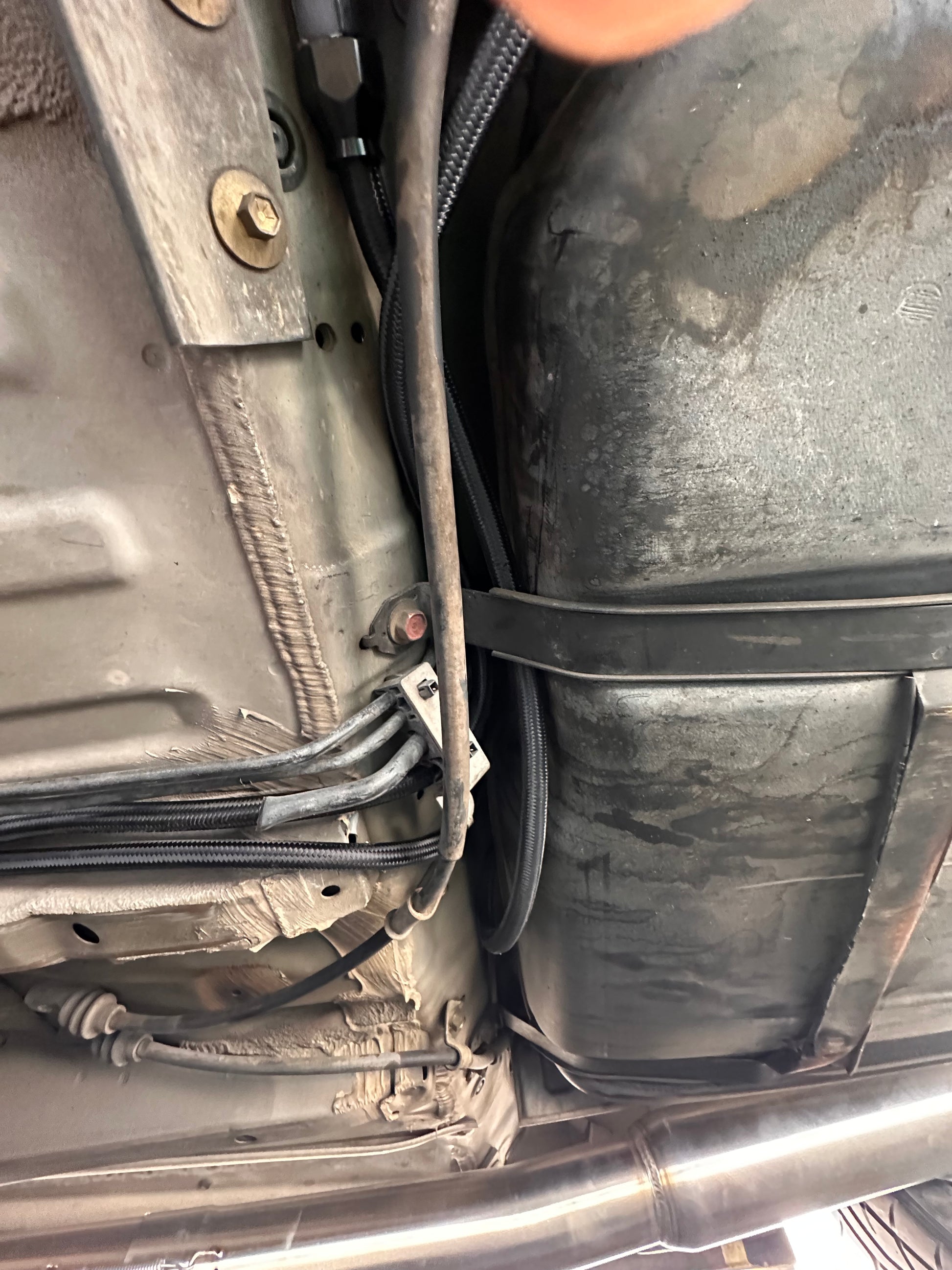

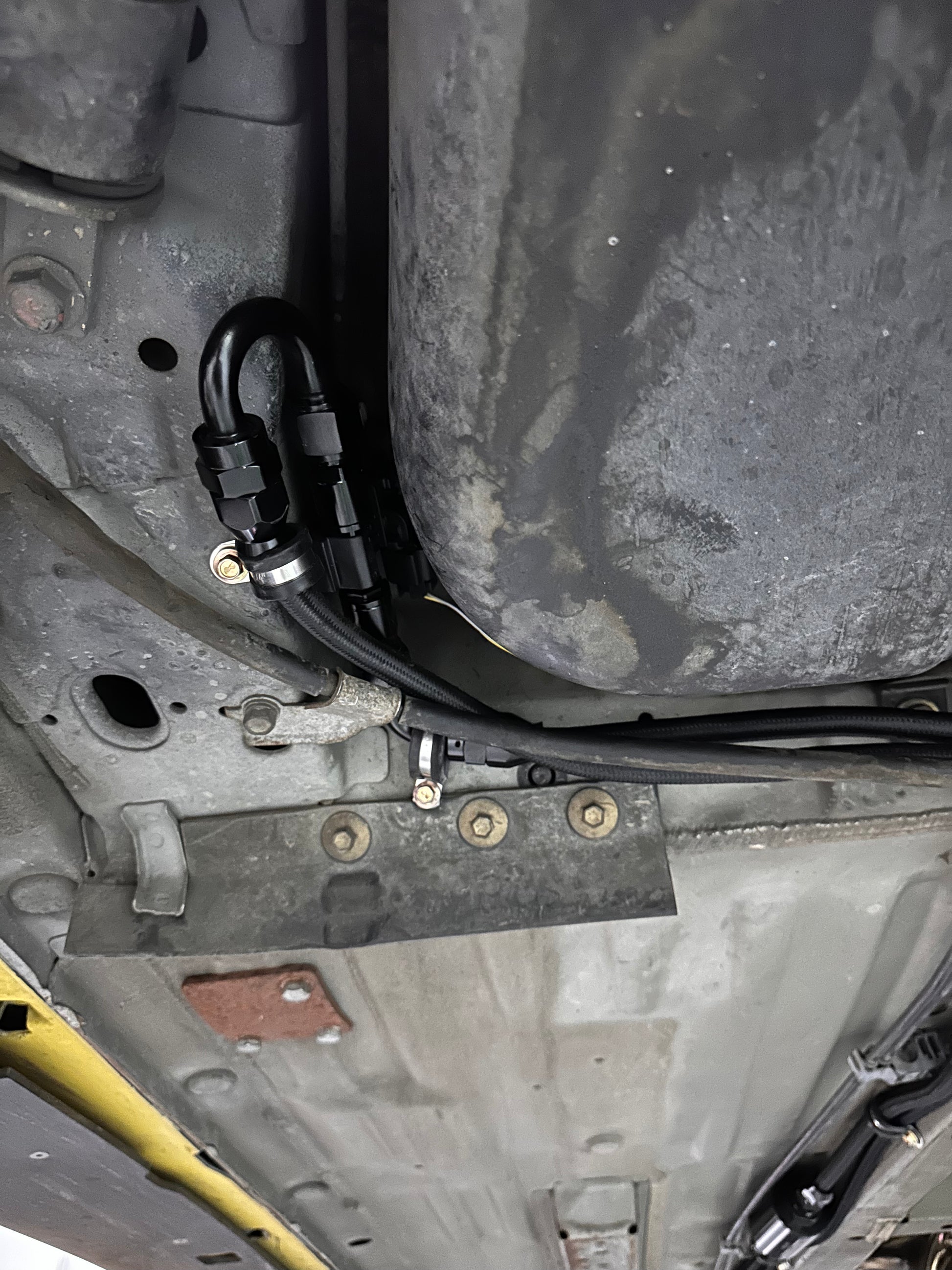

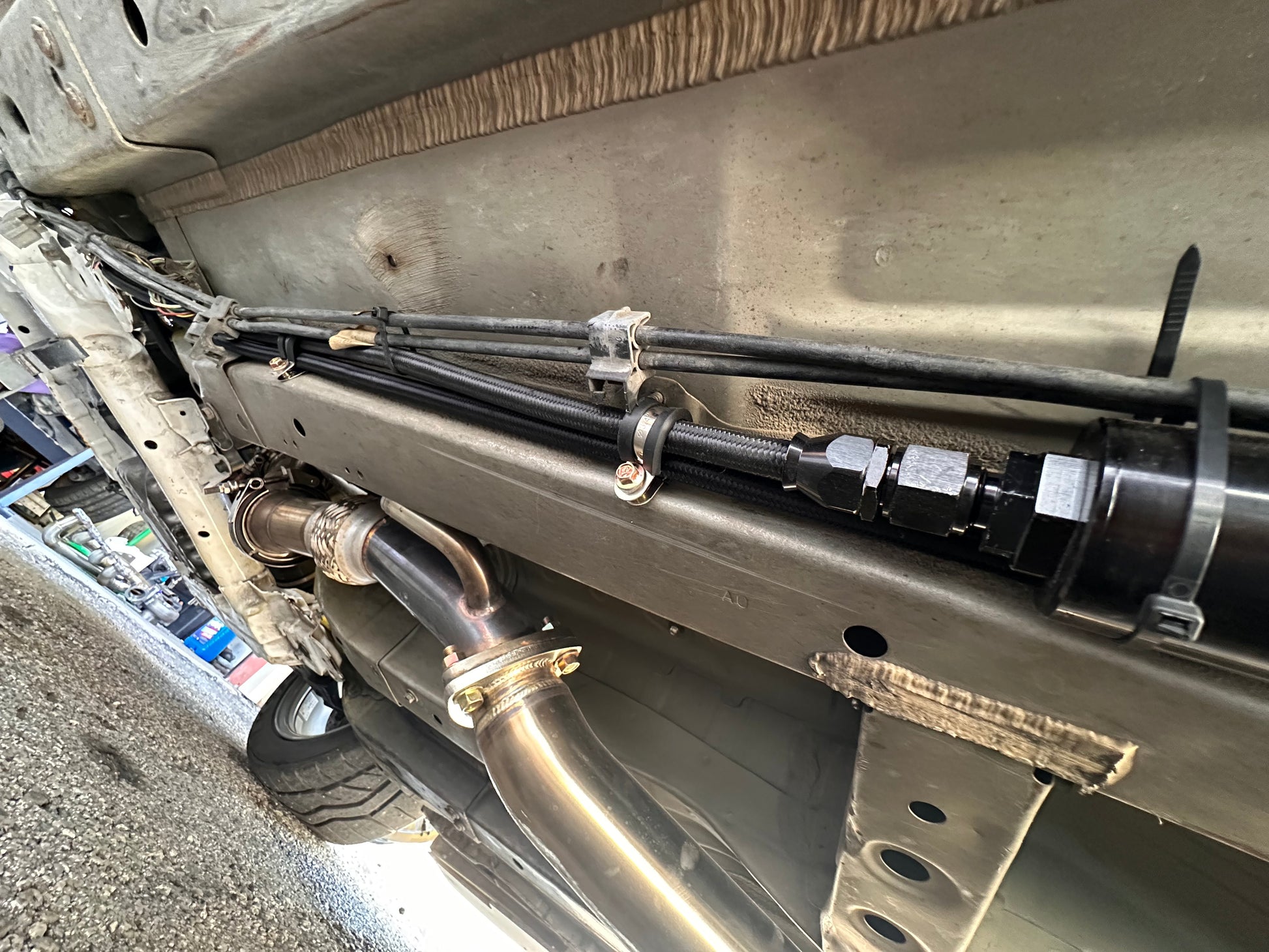

Our kit replaces all of your OEM factory hardline from the gas tank to the fuel rail.  8AN feed line and adds a 6AN return Line from the fuel rail back to the tank.

Add Fuel Injector Clinic injectors; CLICK HERE

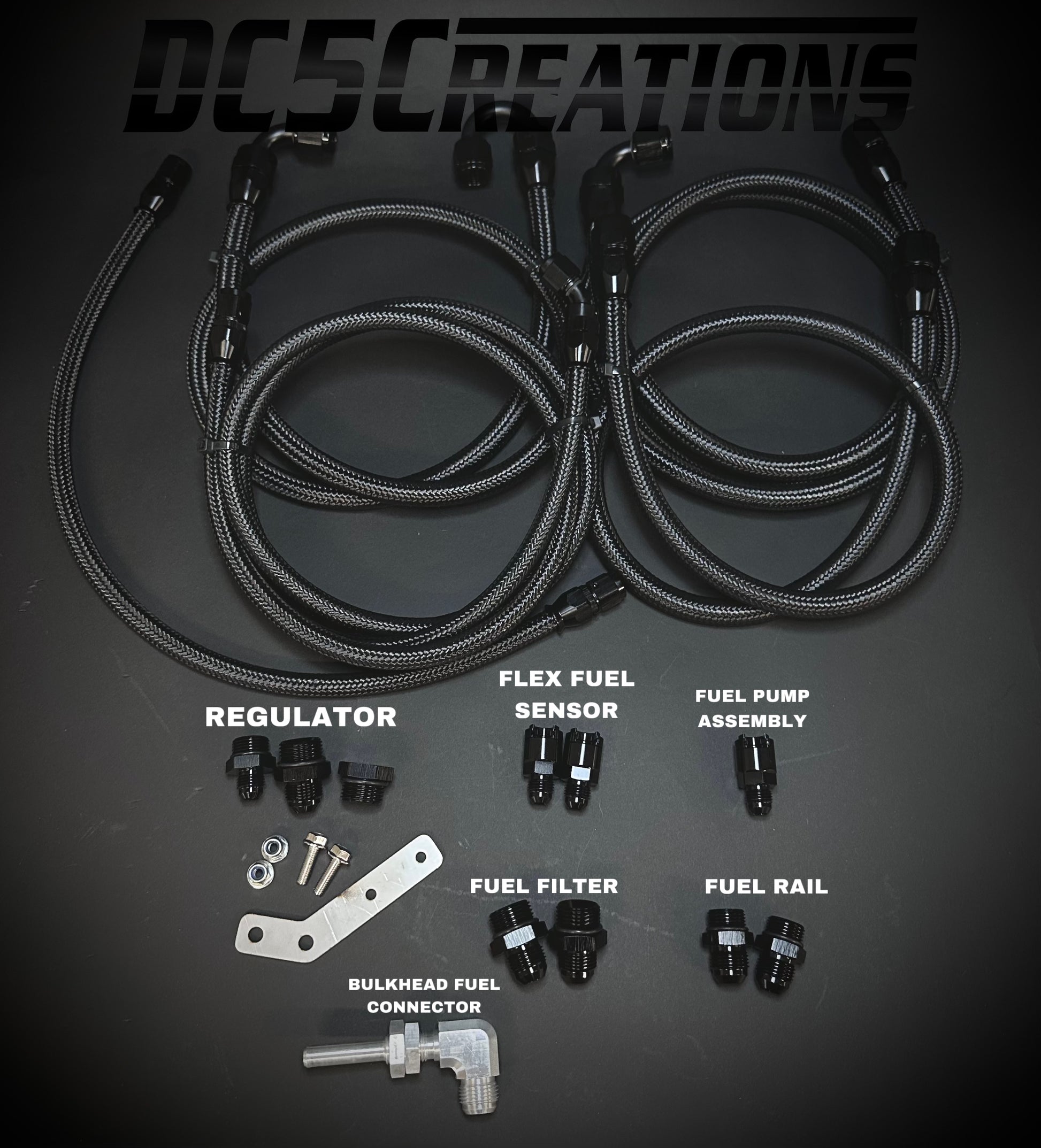

what’s all included

• 5 Custom Fuel Lines all pre-assembled

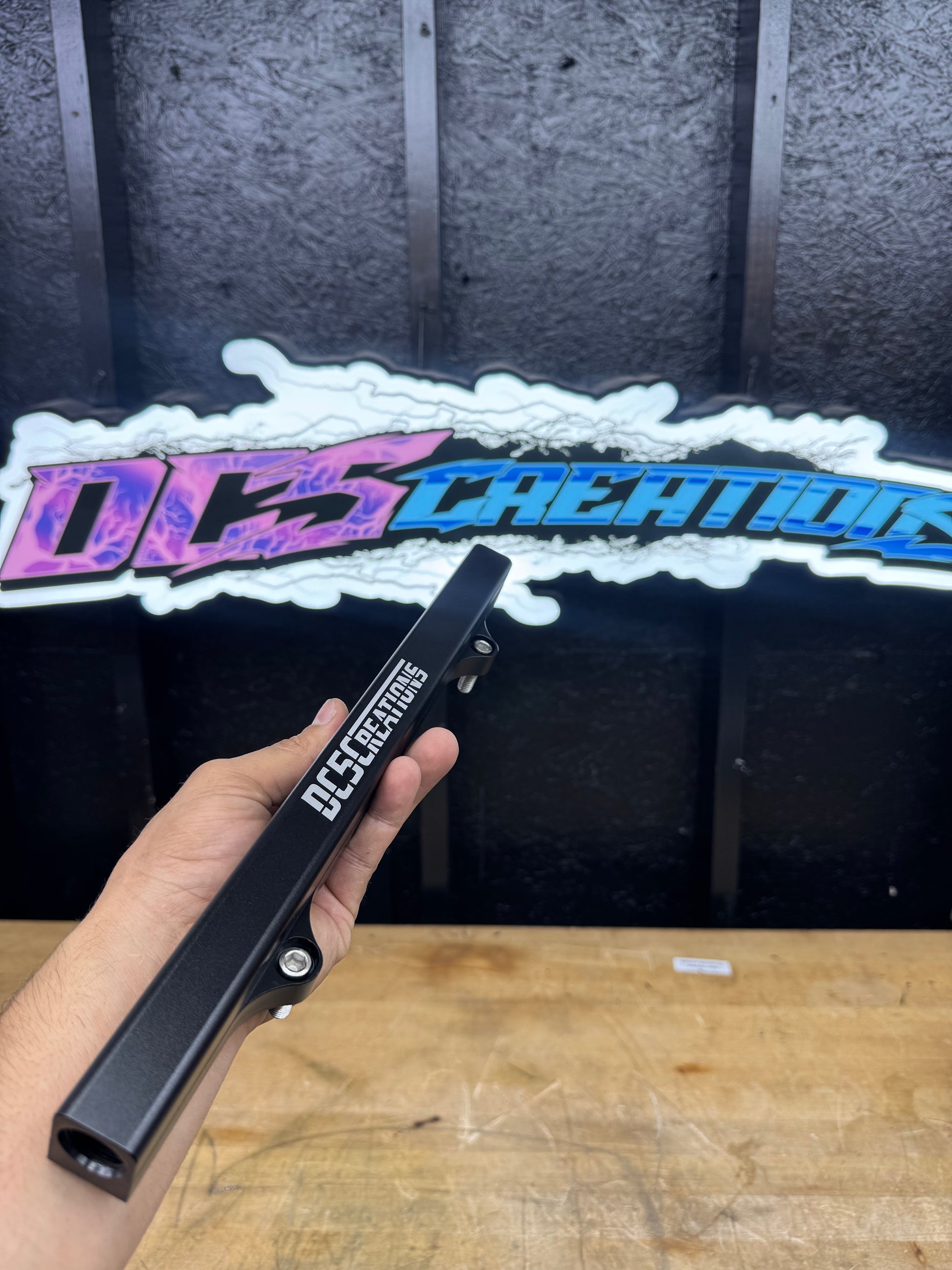

• Fuel rail fittings

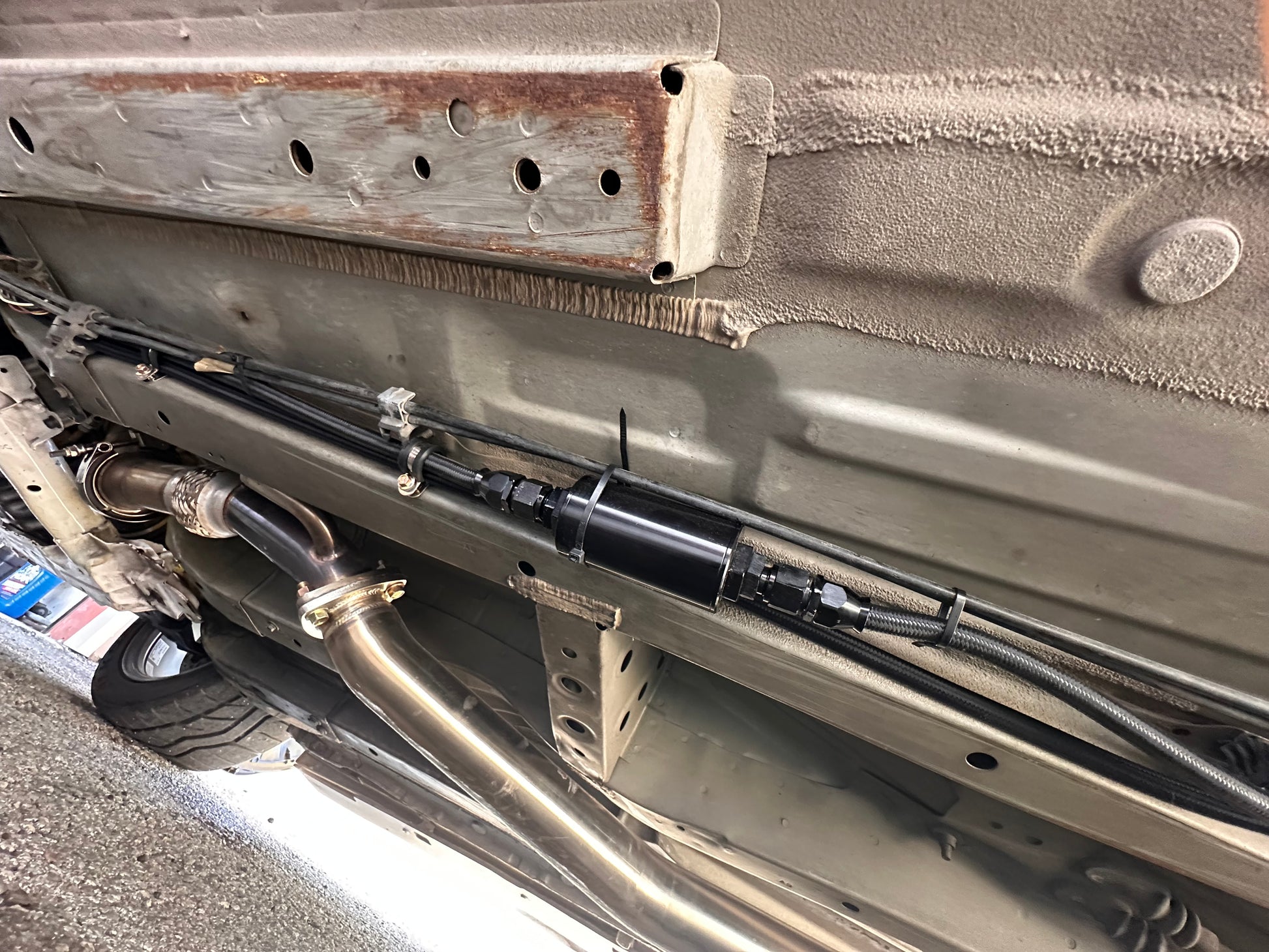

• Fuel filter fittings

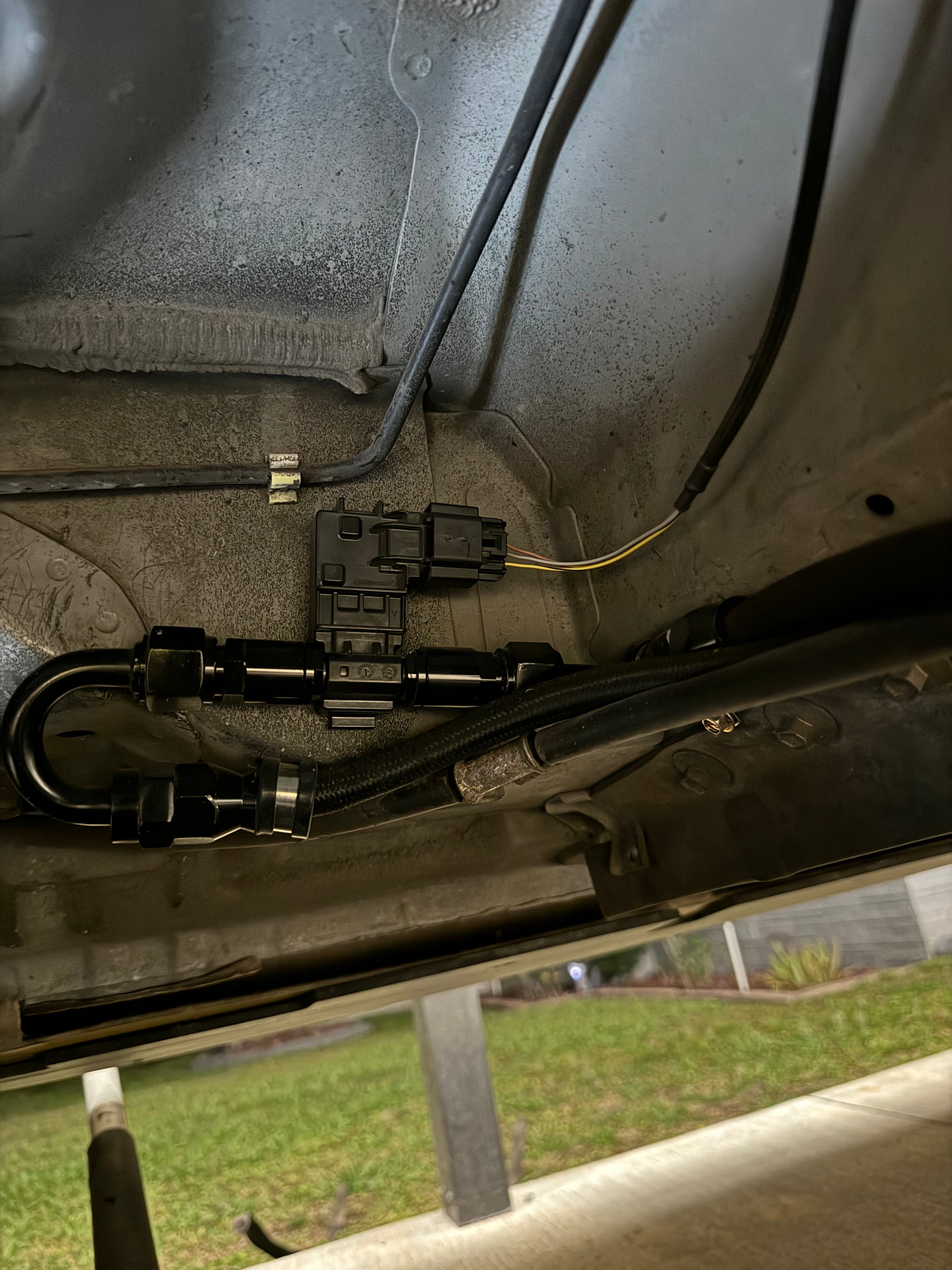

• Flex fuel fittings
• Fuel Regular fittings

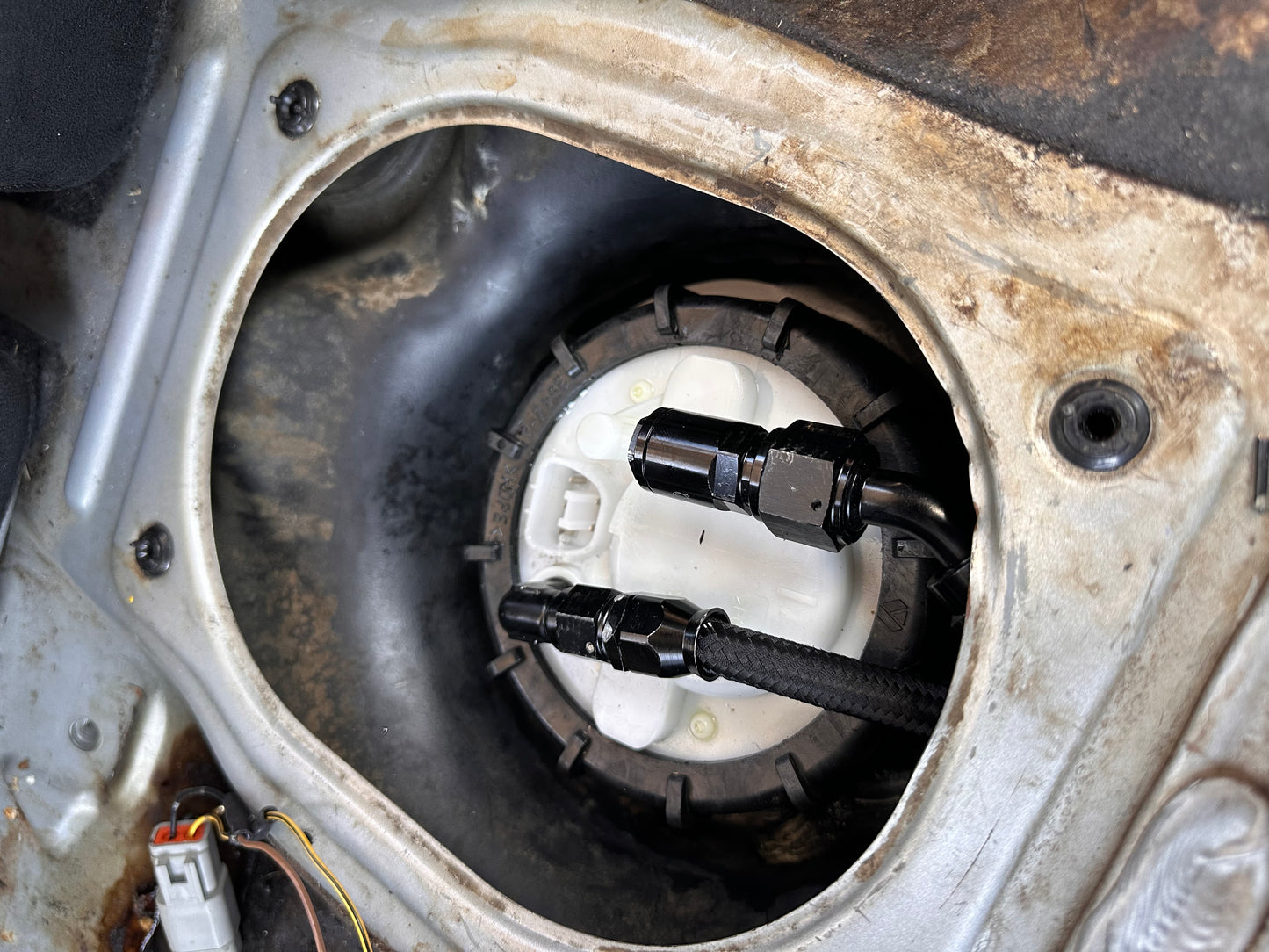

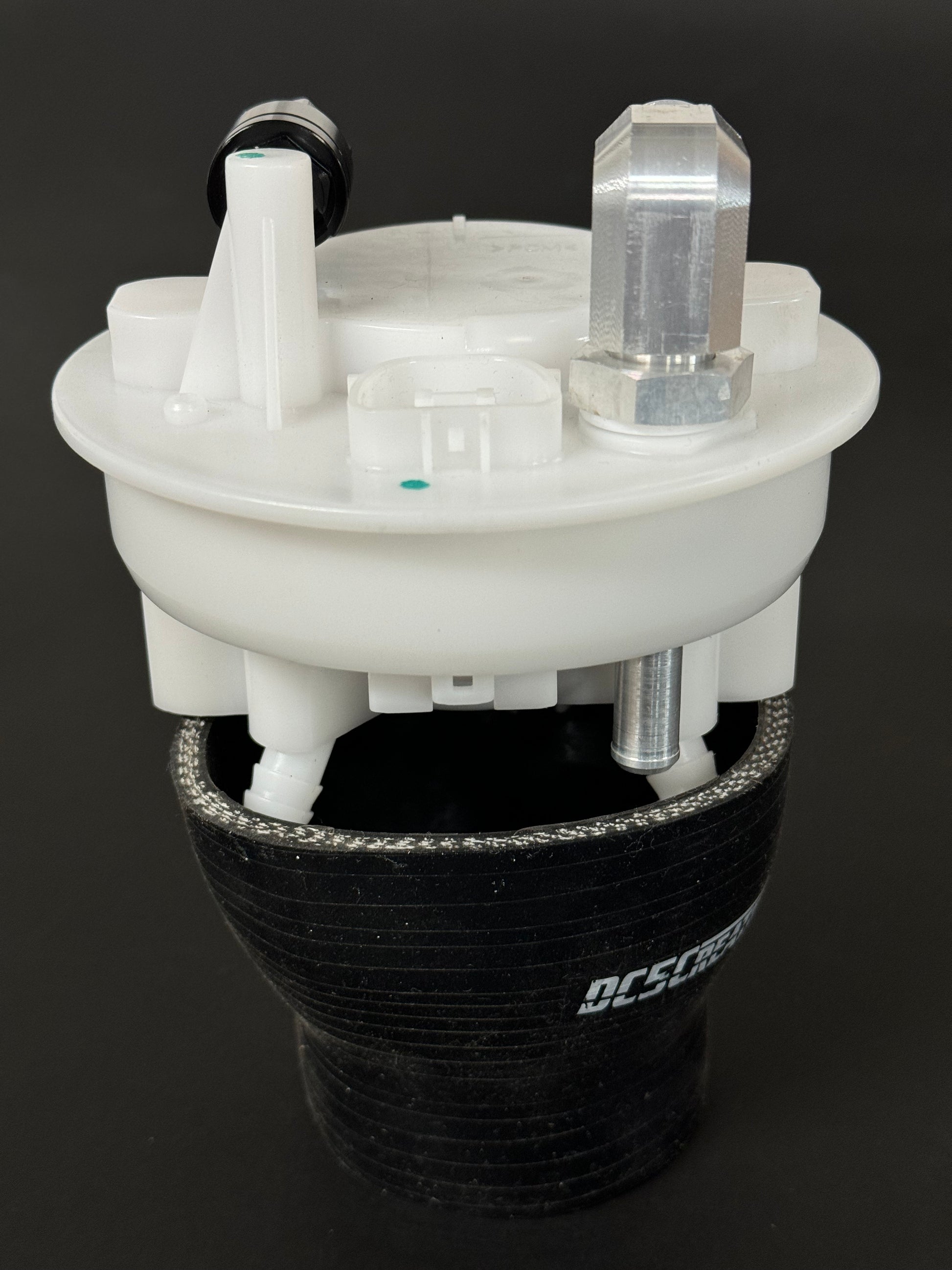

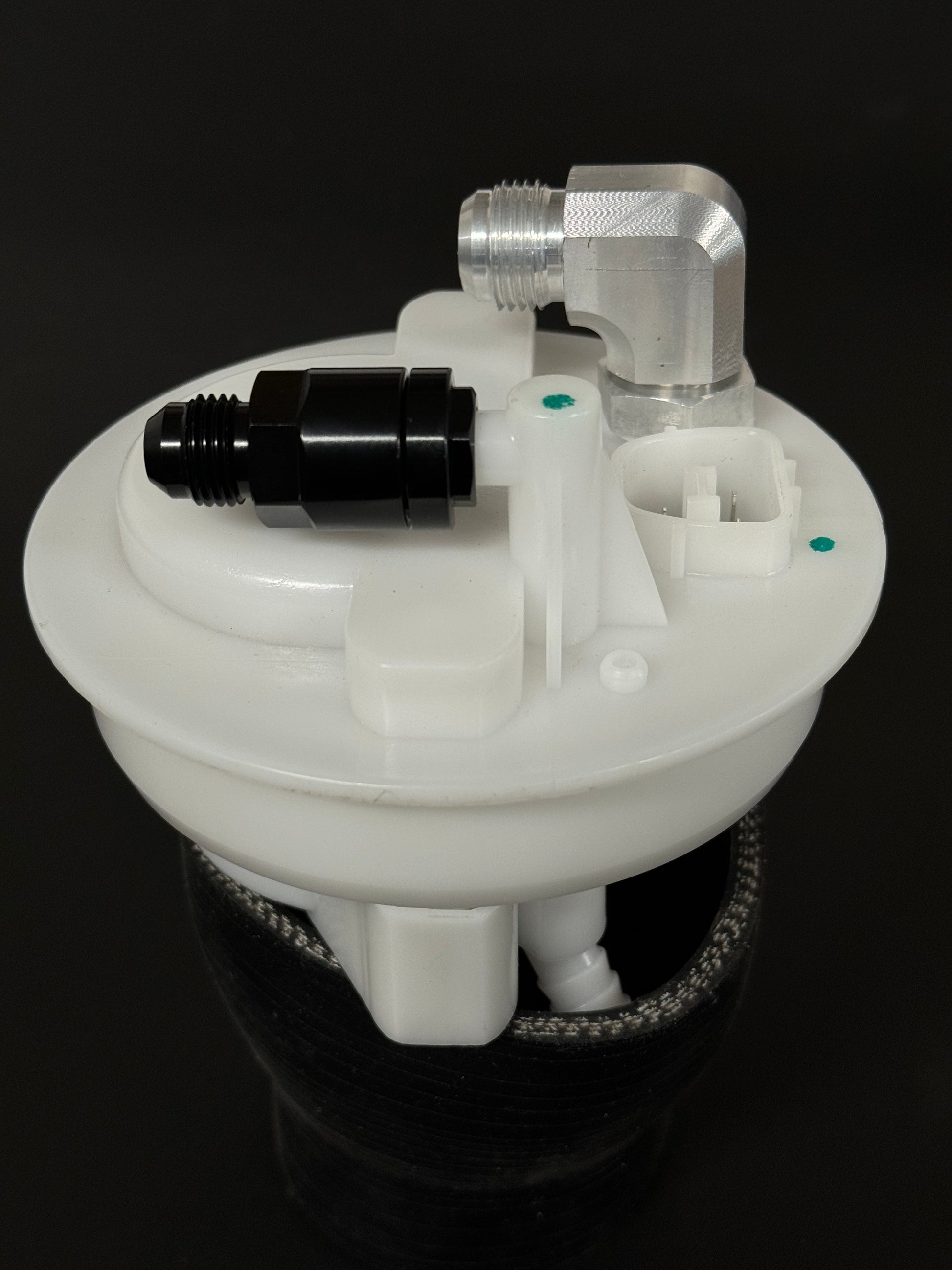

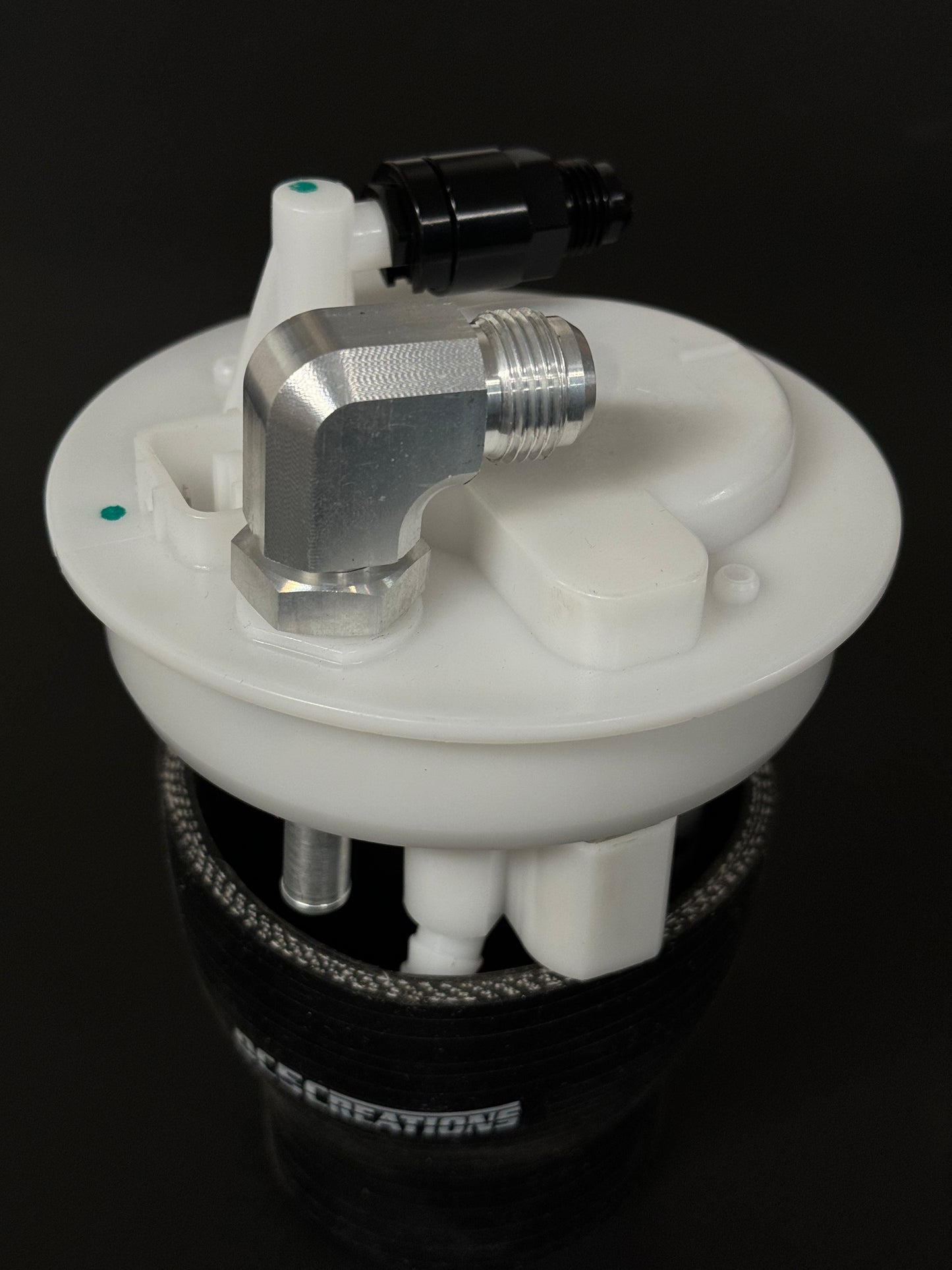

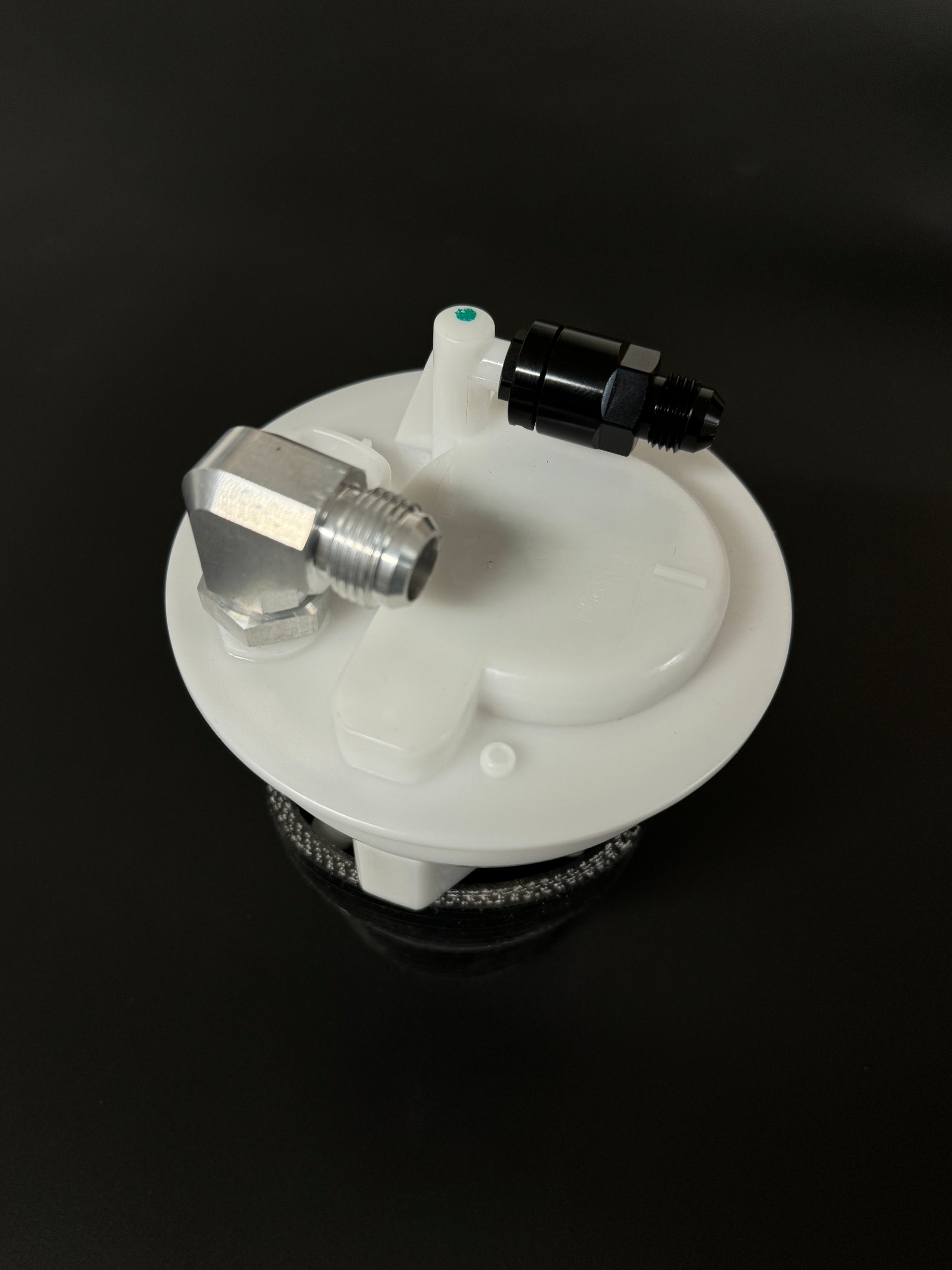

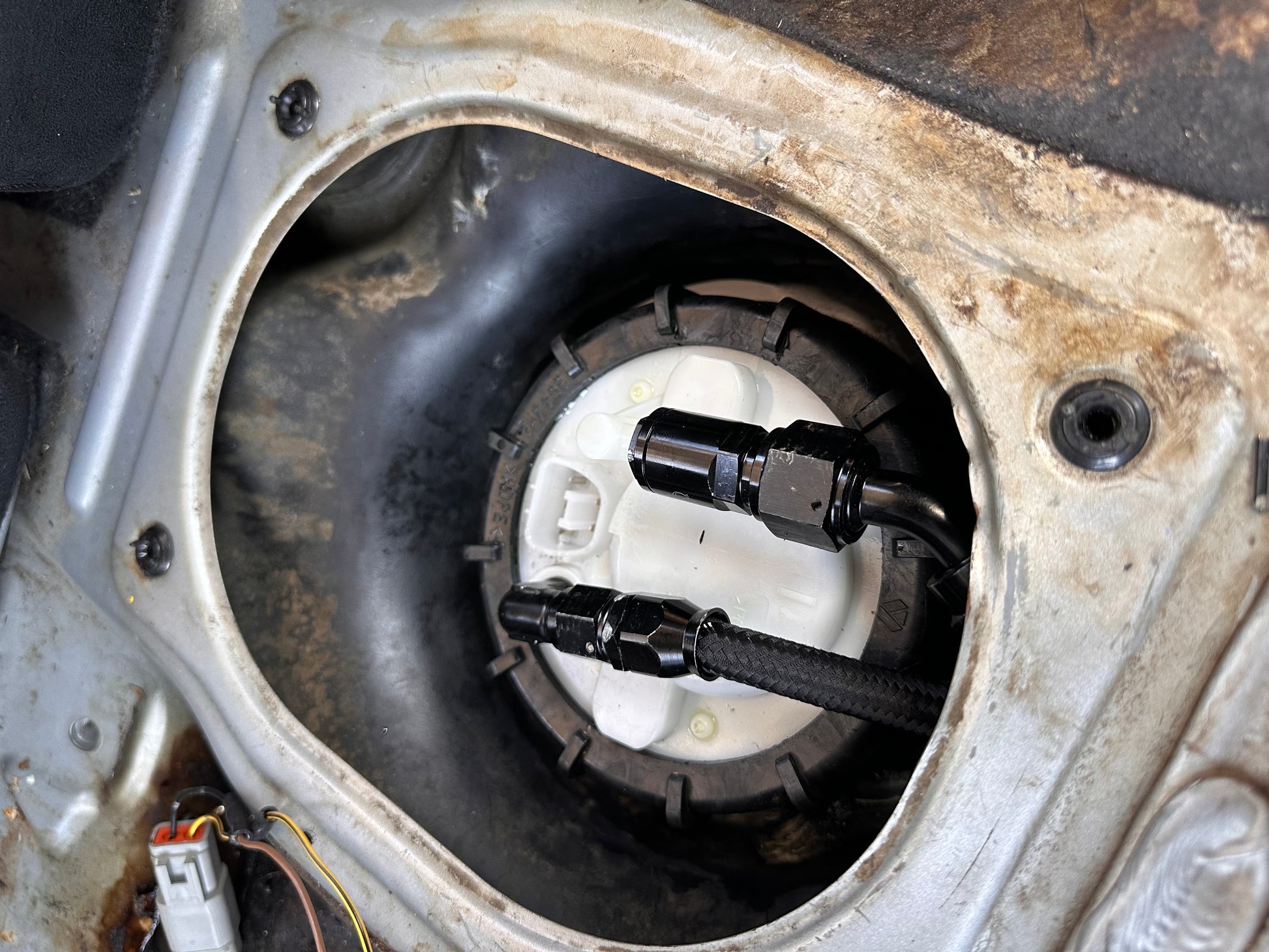

• Custom Billet Bulkhead fuel tank billet fitting

Items NOT Included in our kits that you need:

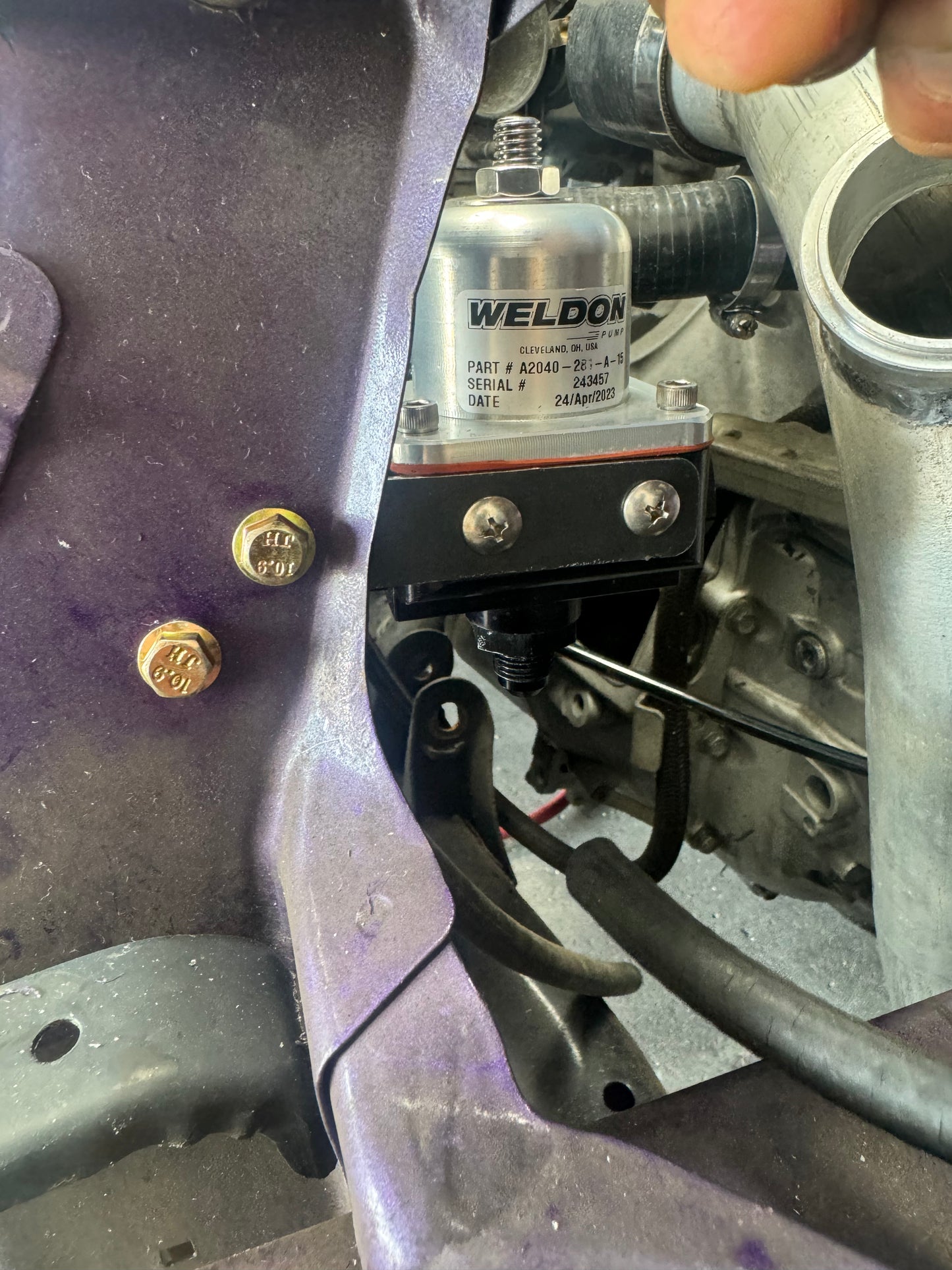

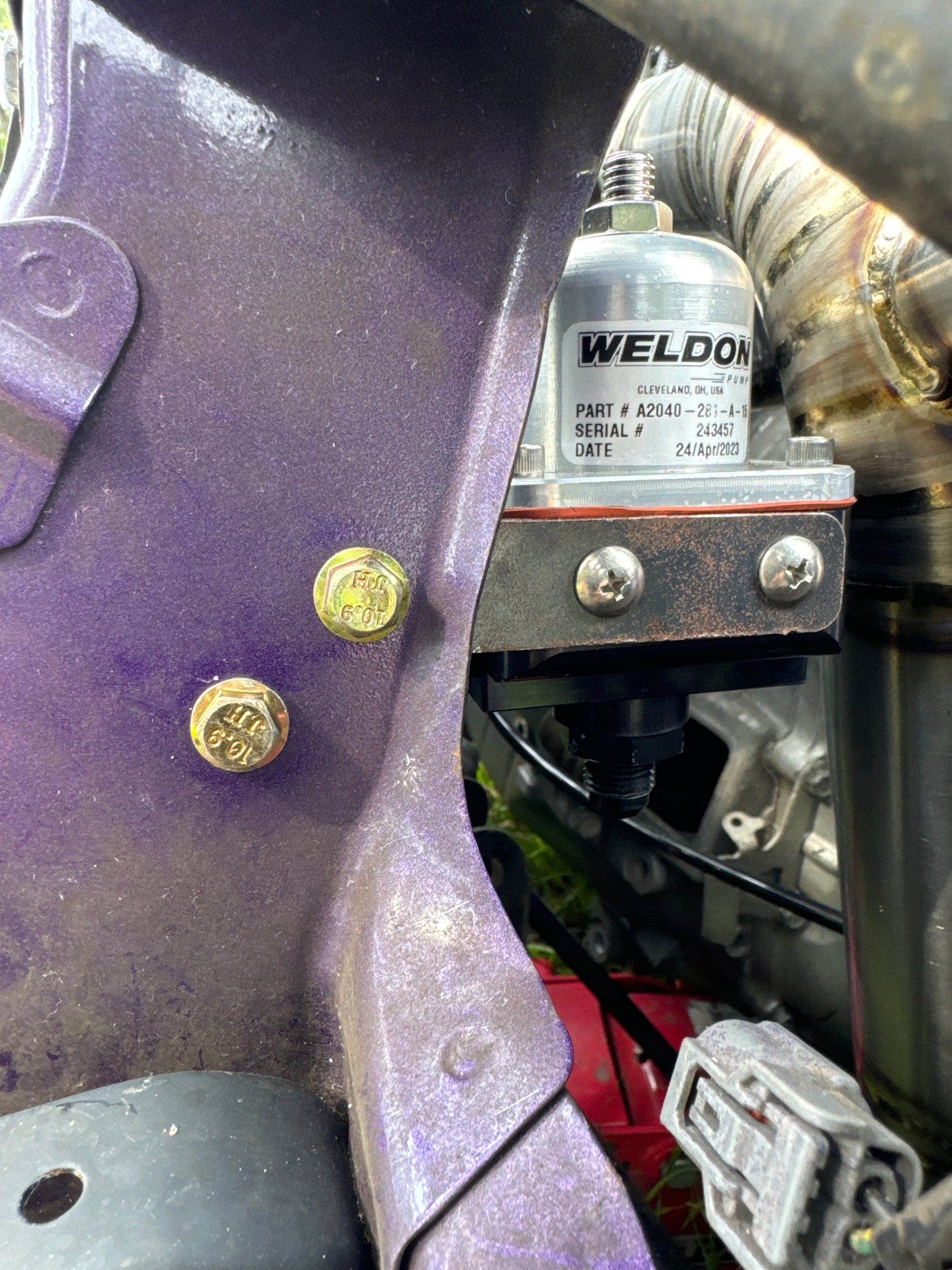

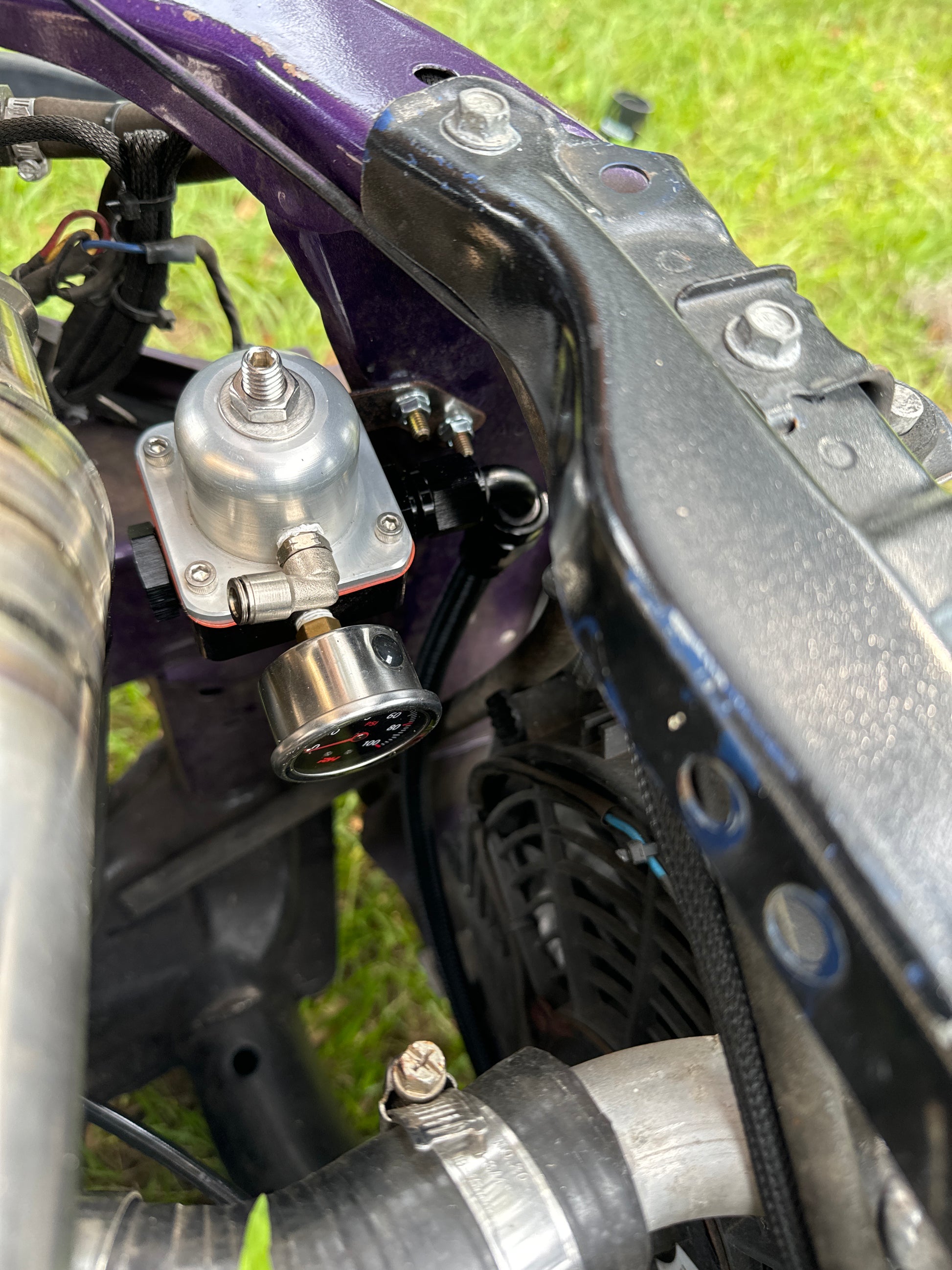

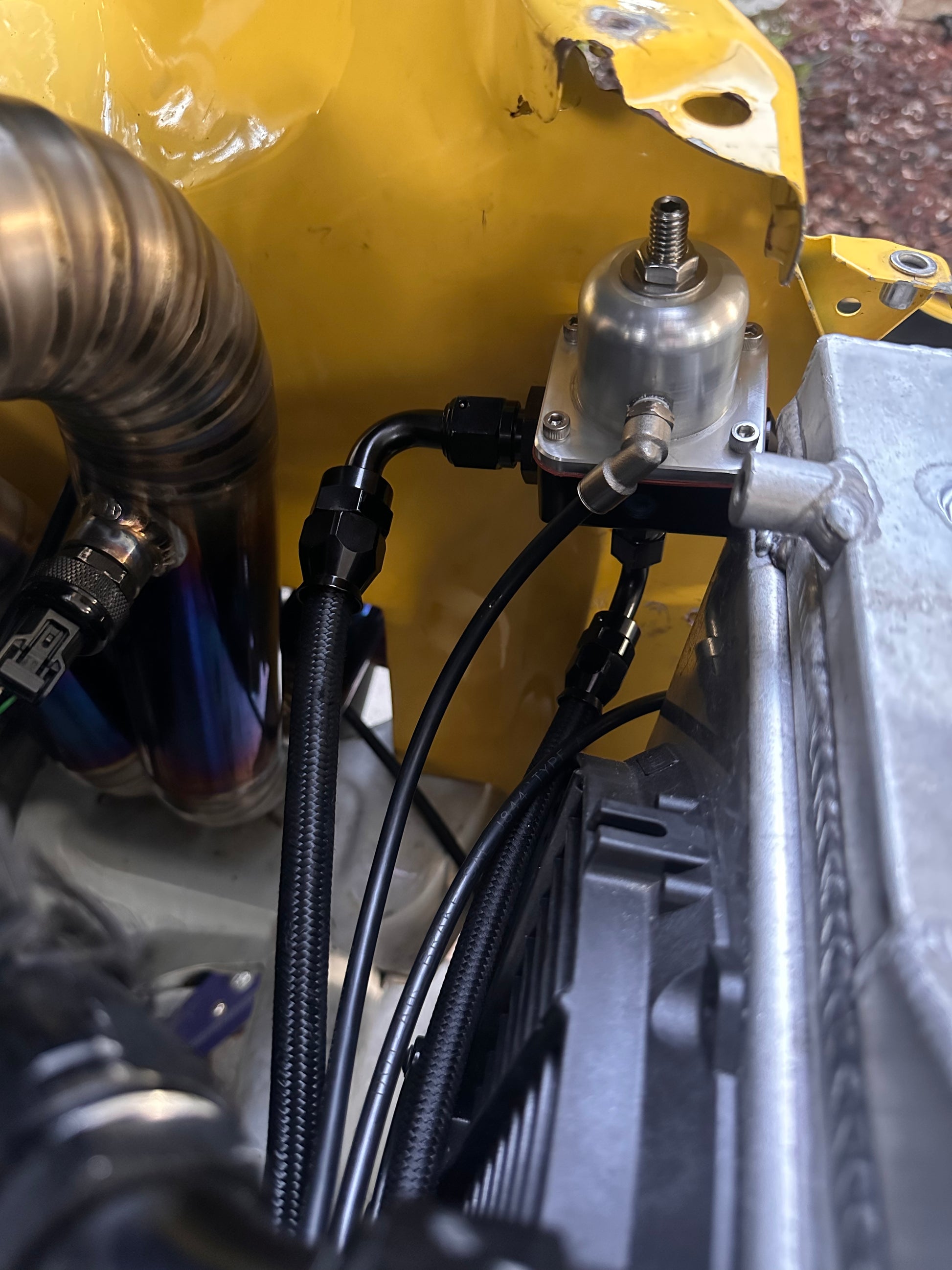

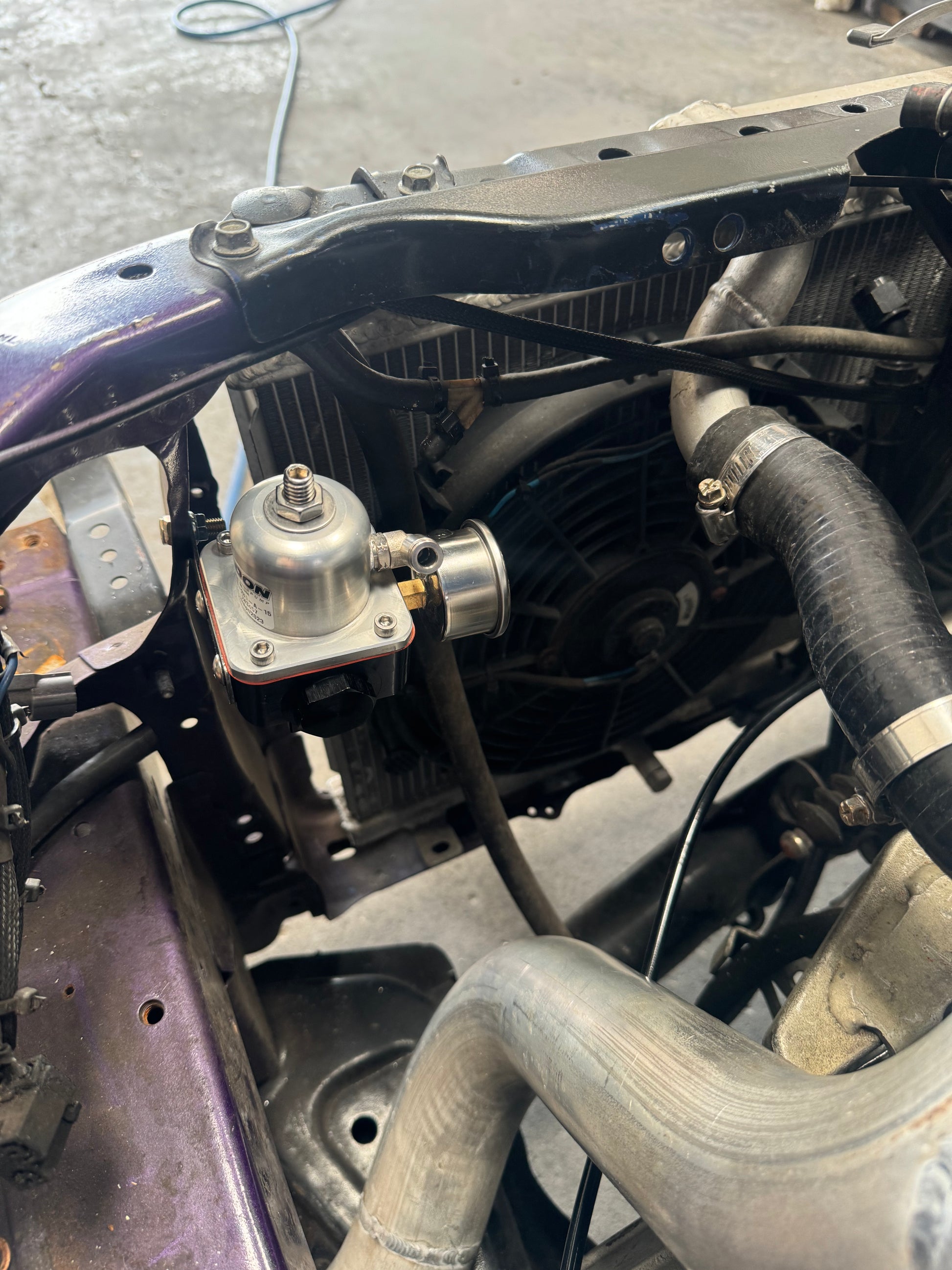

• Fuel pressure regulator  Weldon regular # WEL A2040-281-A-120 or Ktuned # KTD-FPR-10B

• Flex fuel sensor- Part number 13507129

• Fuel Filter-  Part number Magna 7009
• Fuel pump - Walbro 450 #f90000267 or walbro 525 f90000295
• Injectors
