This kit is only for the EK K series swap. Will work on eg but only 1993-1995.
This kit will not work for RHD vehicles.
Complete Kit Includes :

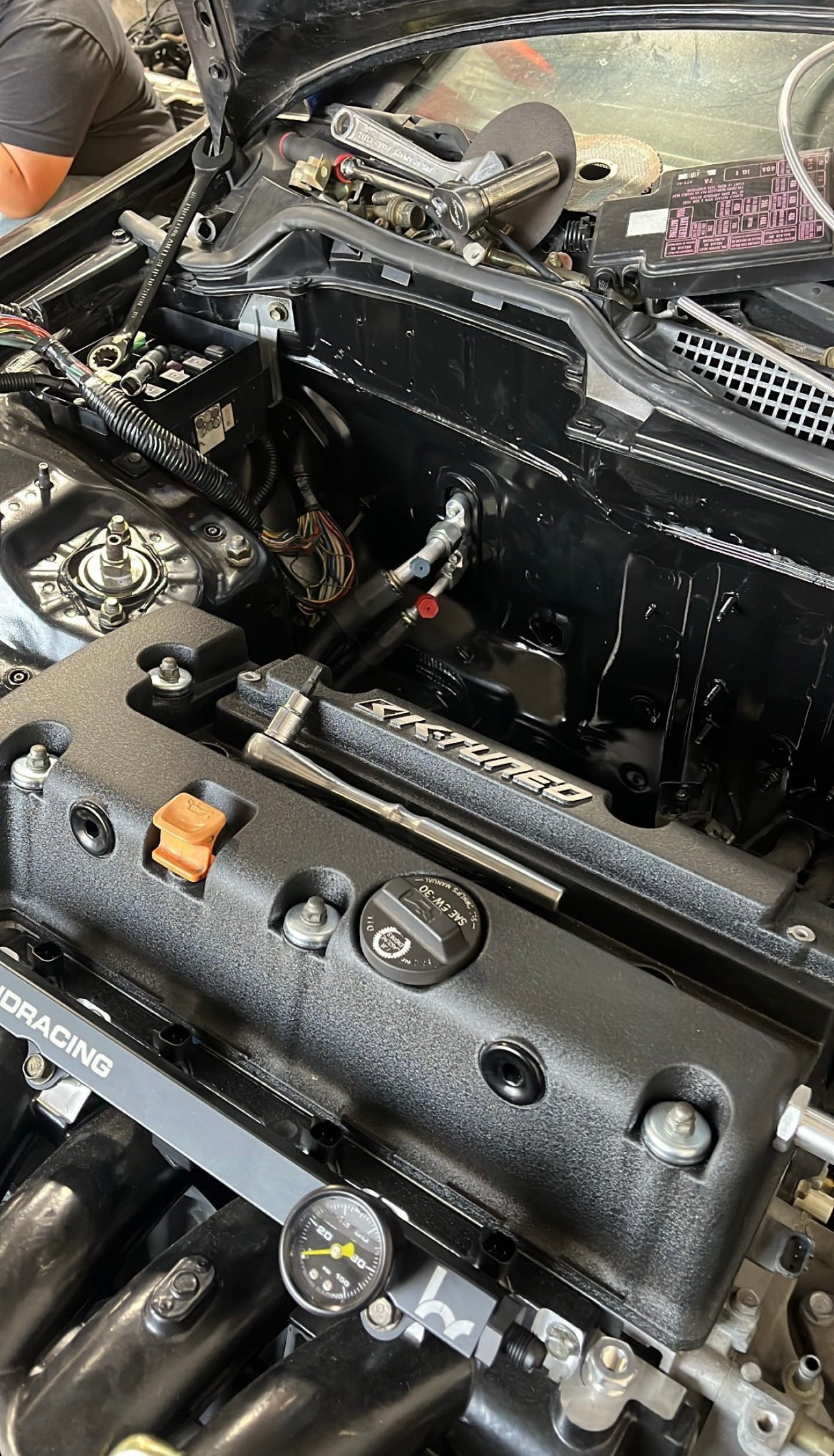

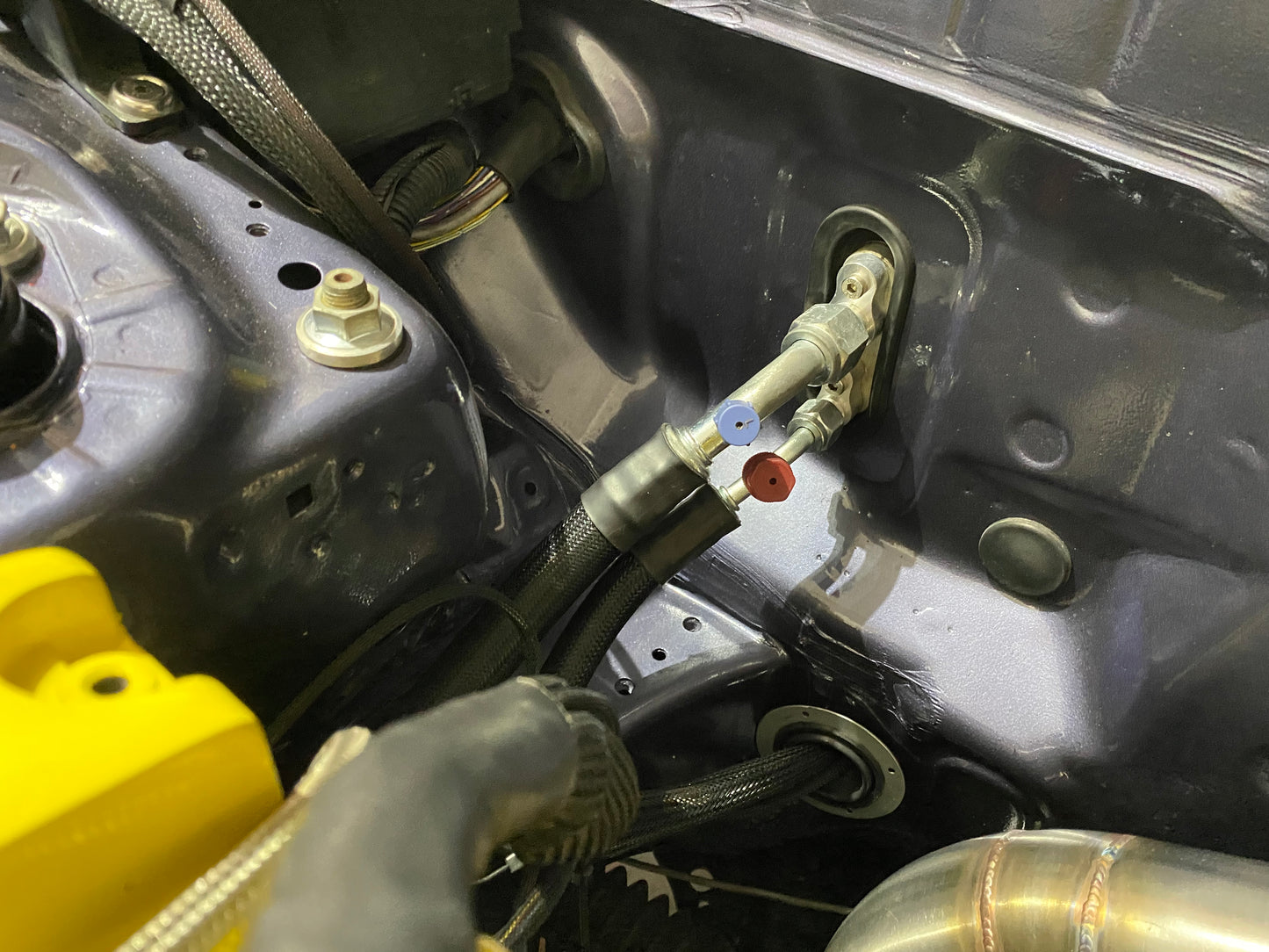

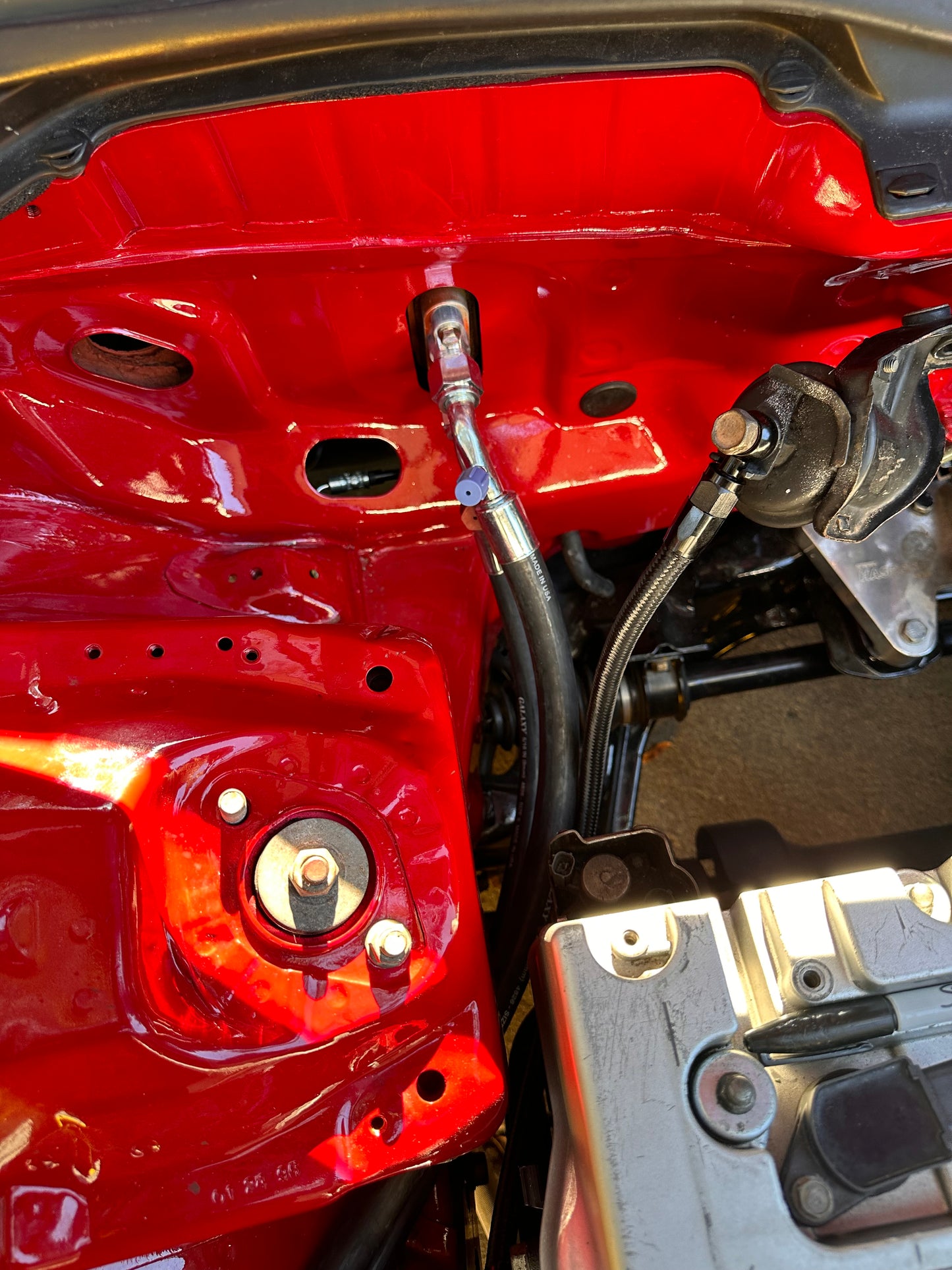

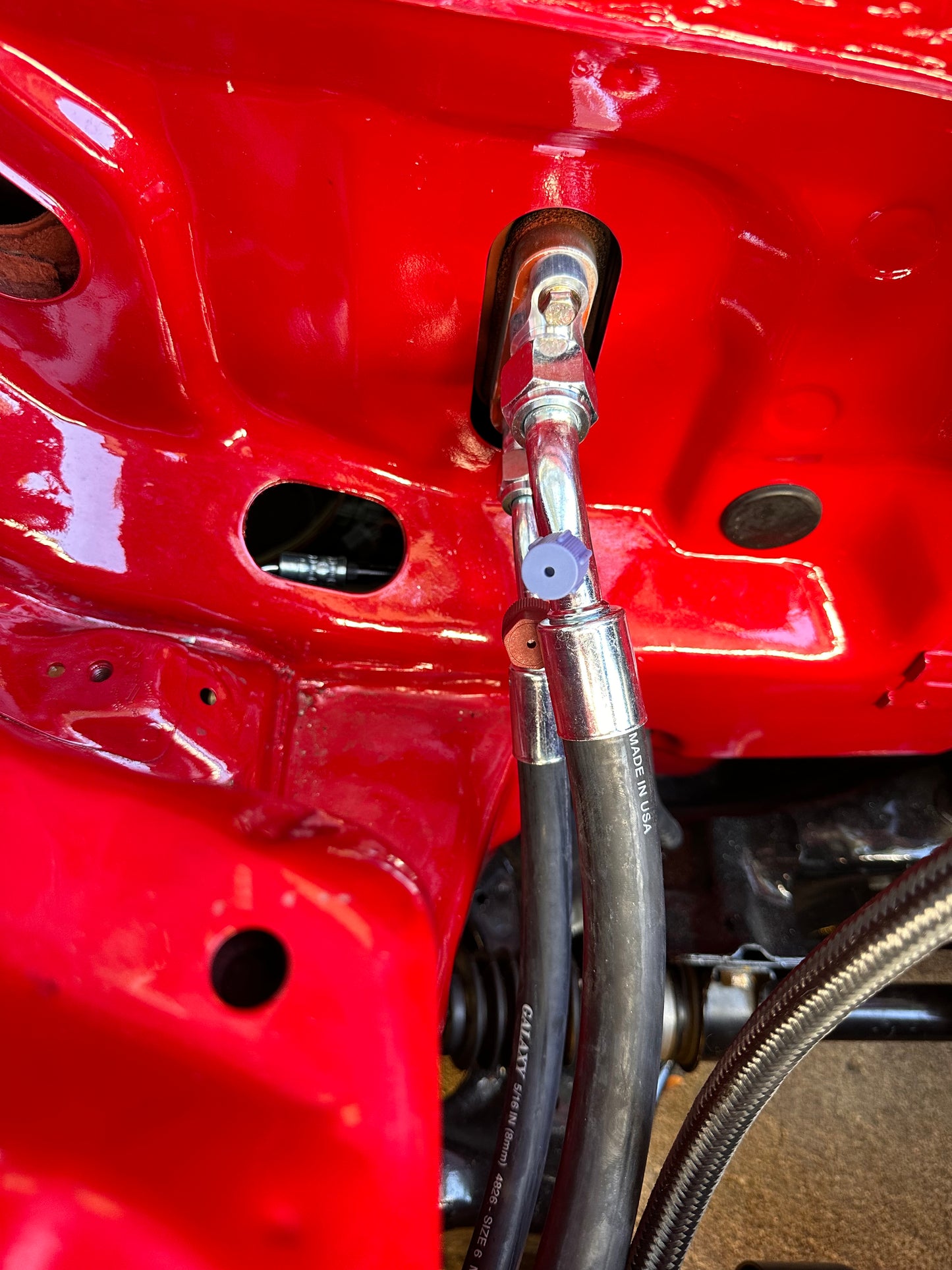

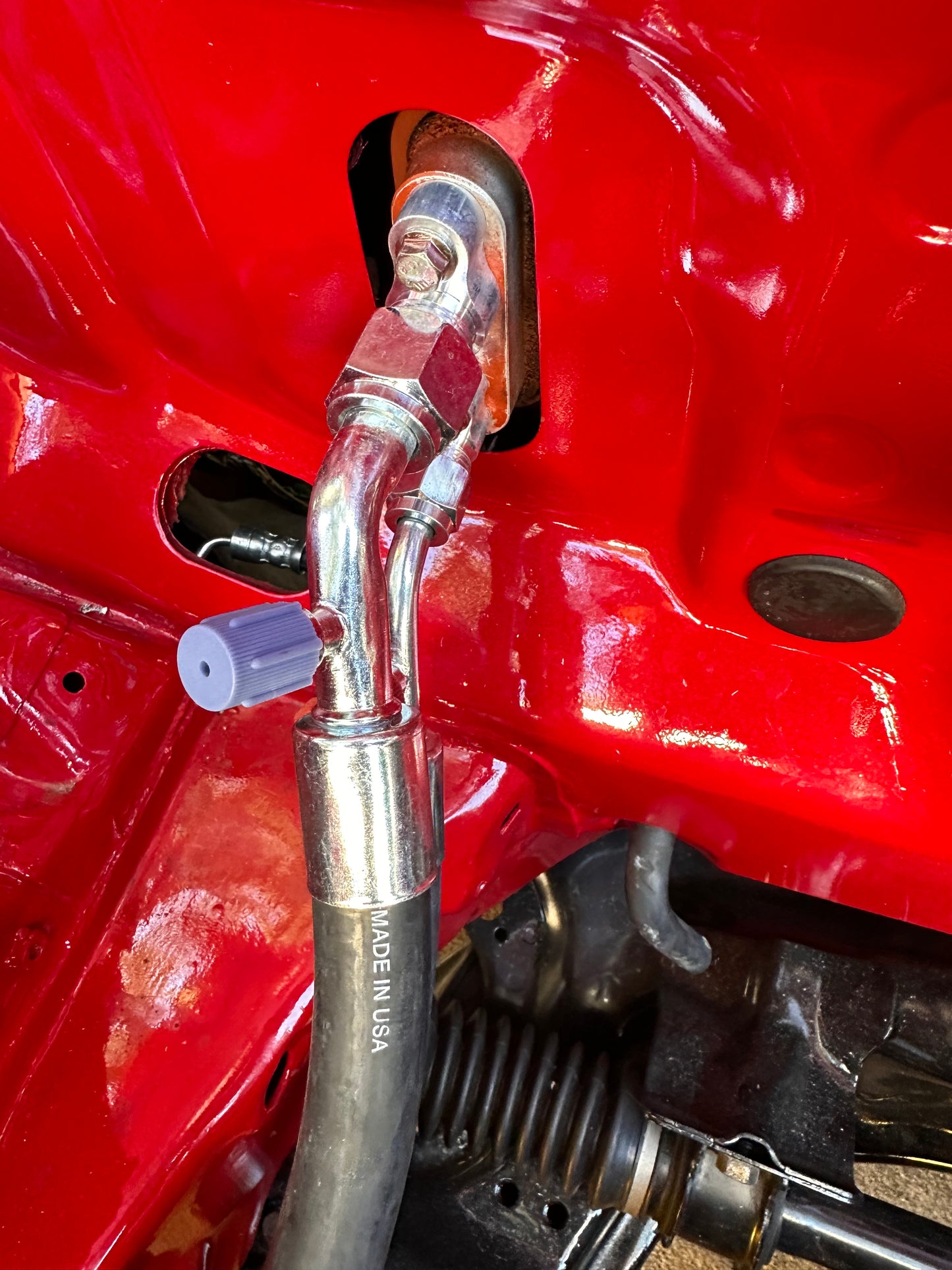

-2x Firewall ac adapter fittings
-2x Ac compressor fittings
-2x Ac drier fittings
-6x Allen bolts
-4 tapping screws

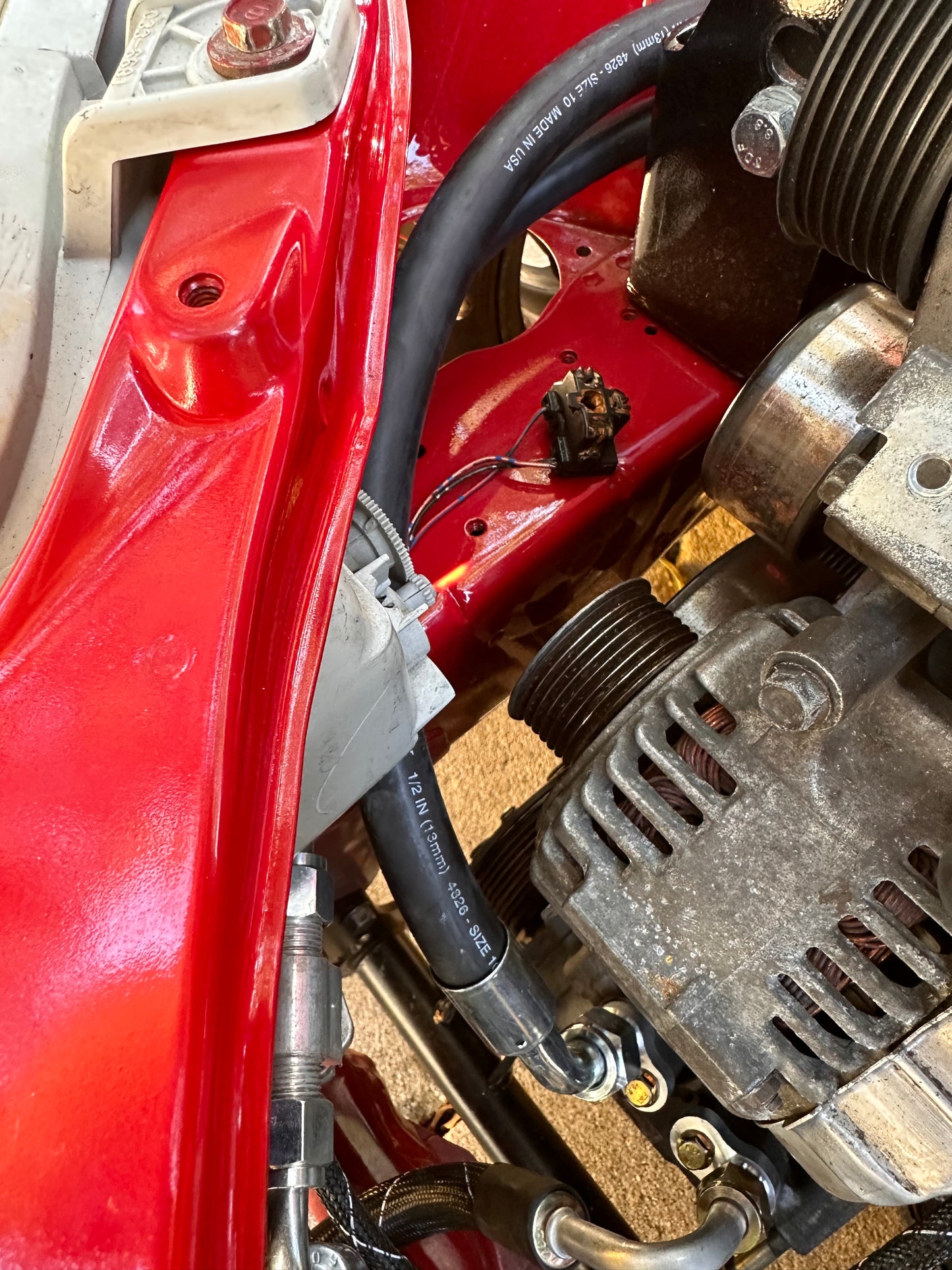

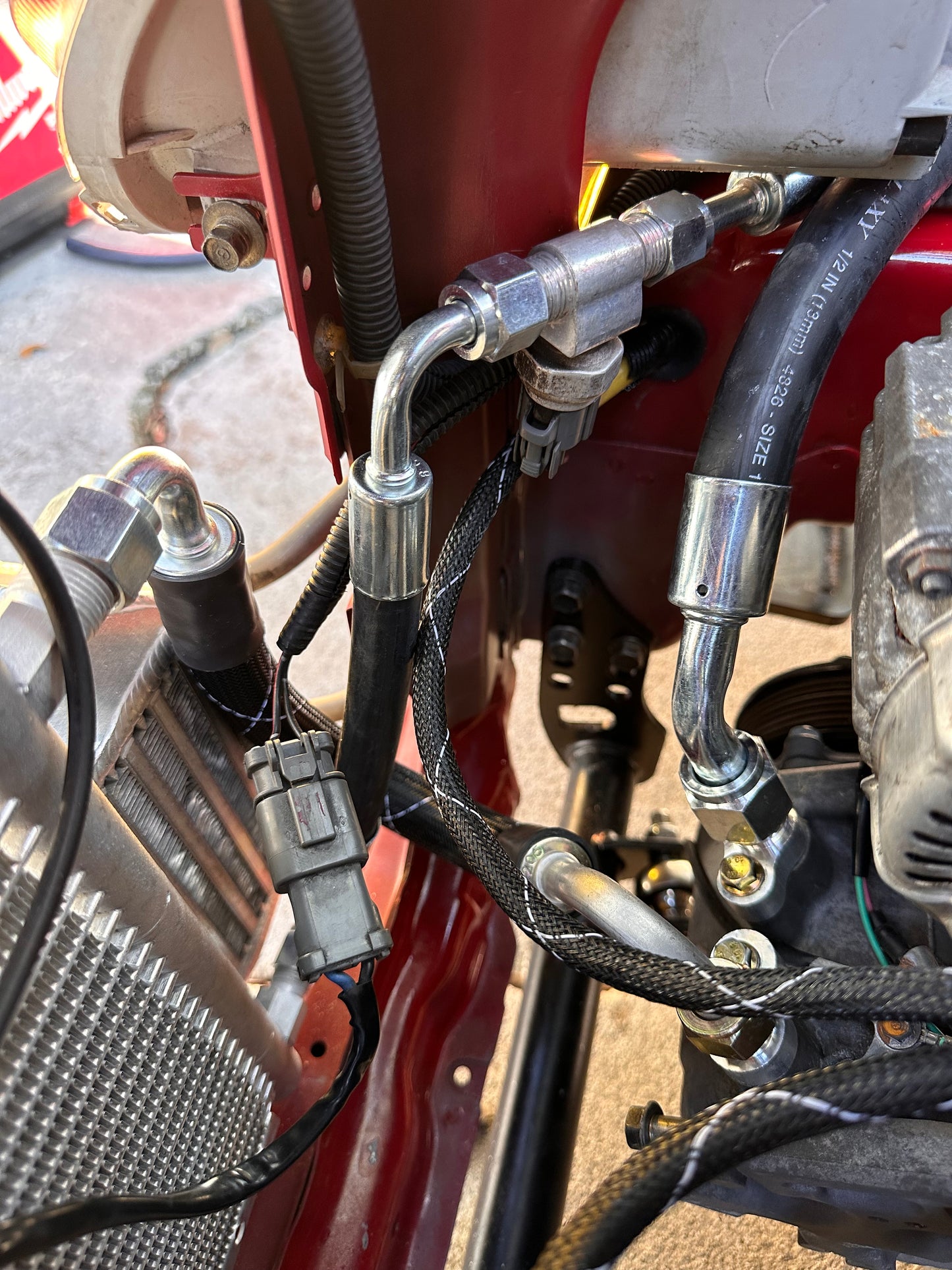

-4x Ac high-pressure flexible lines with fittings
: All brand new O-rings

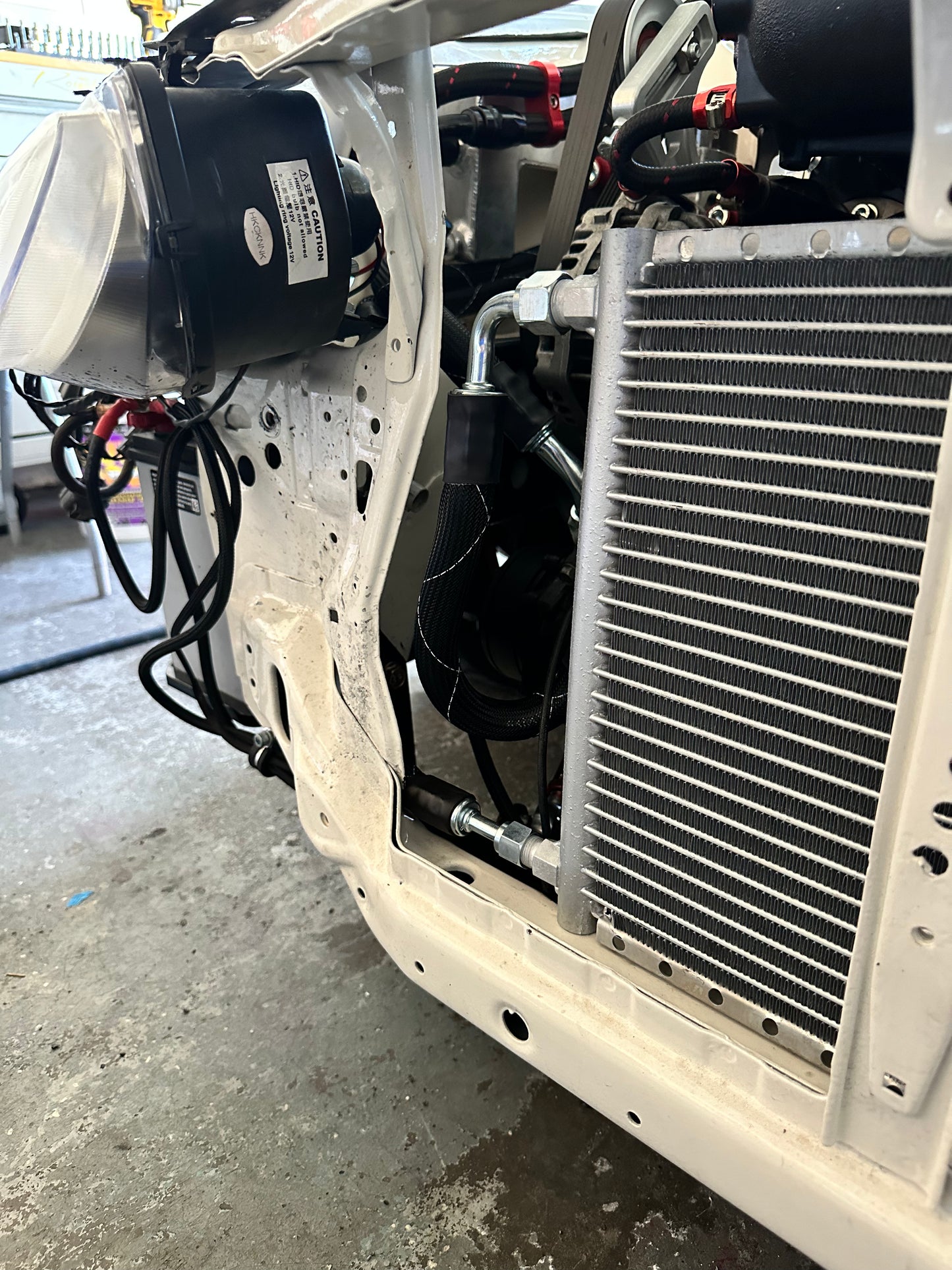

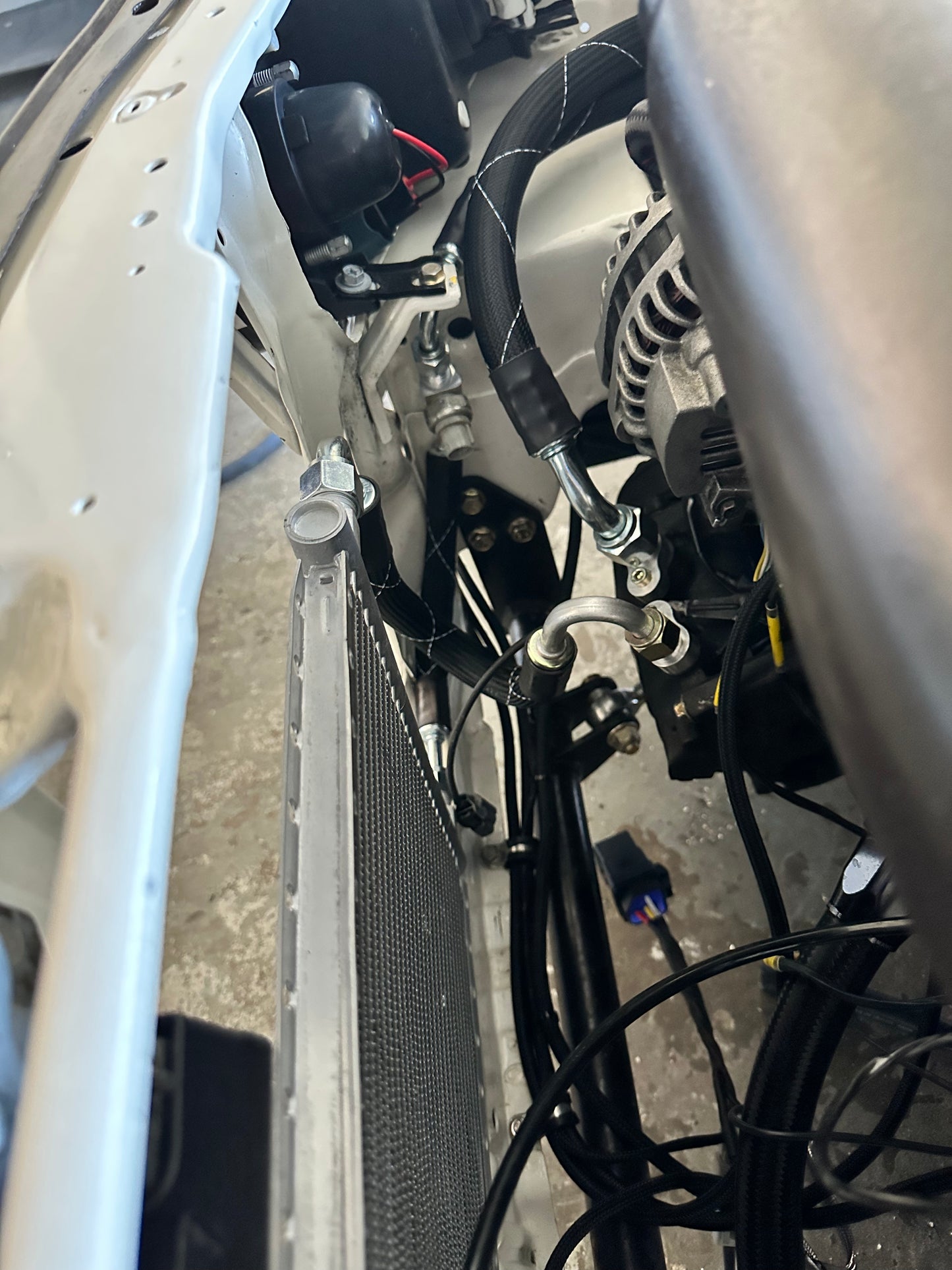

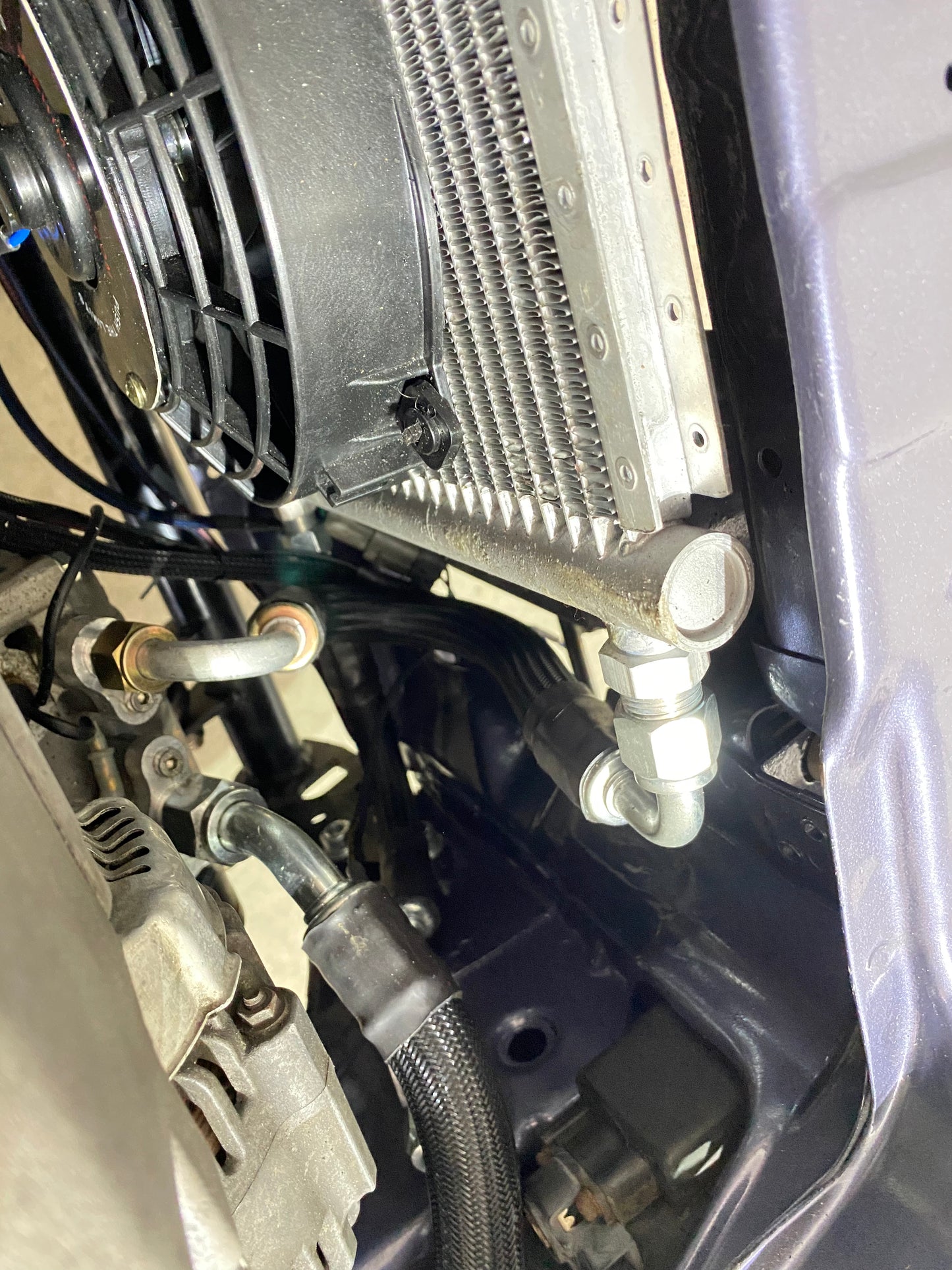

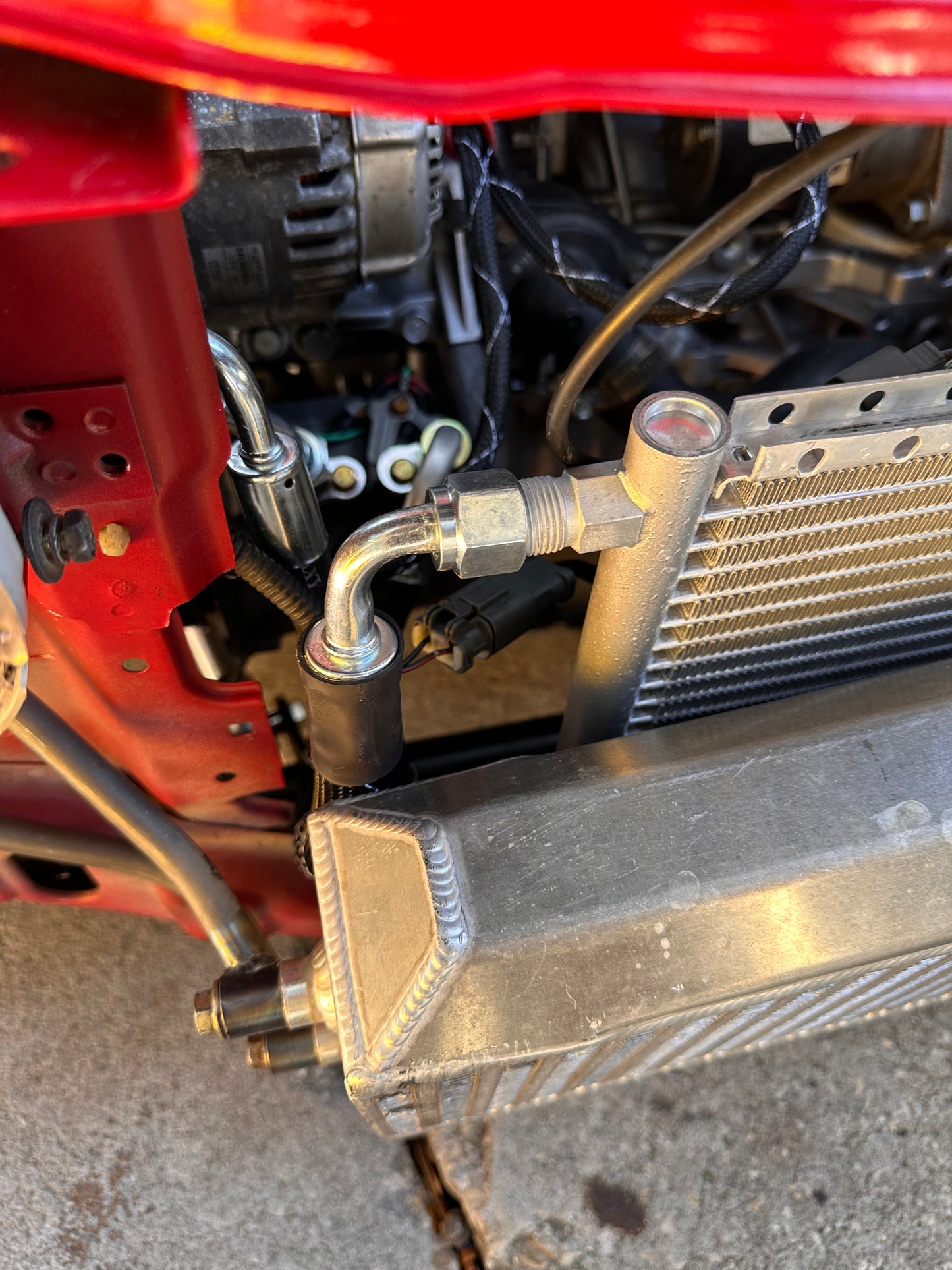

-1x Brand new condenser 11inches High by Length 21 inches.
The condenser will be shipped separately will not come with the ac lines & fittings. In most cases, the condenser will arrive last if it doesn’t show up 4-7 business after 1 or other please send us an email.
✳️ Important information.

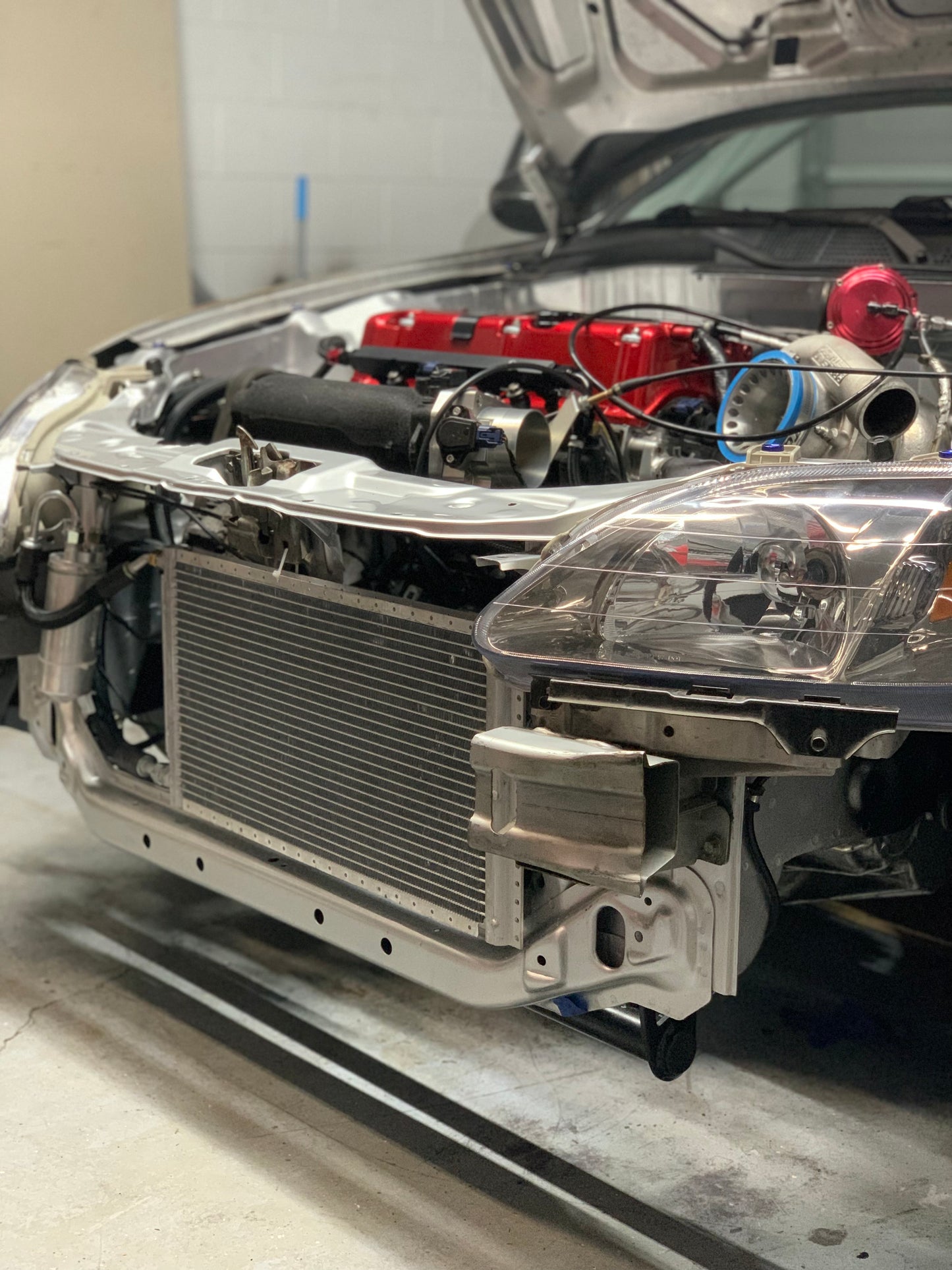

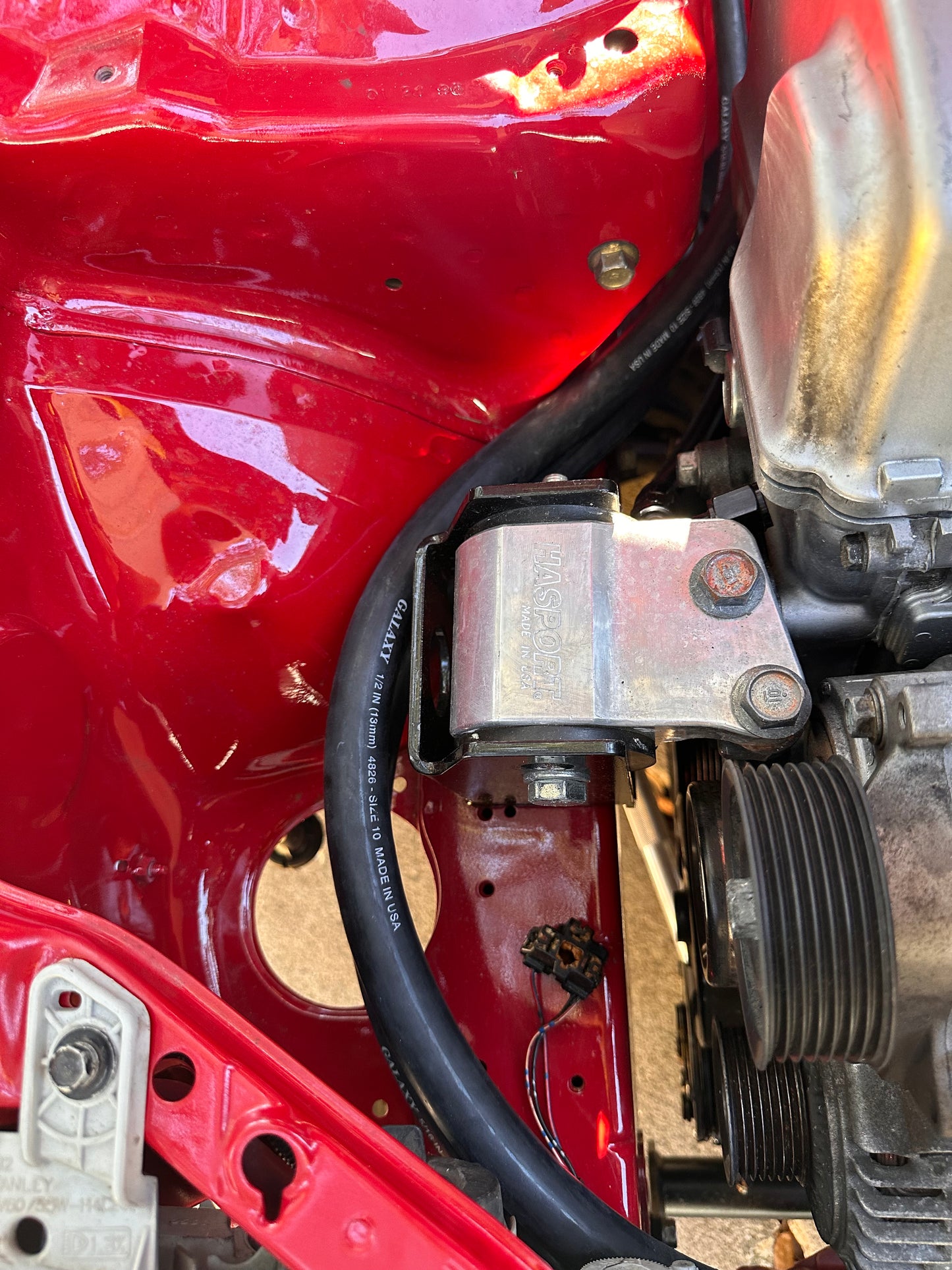

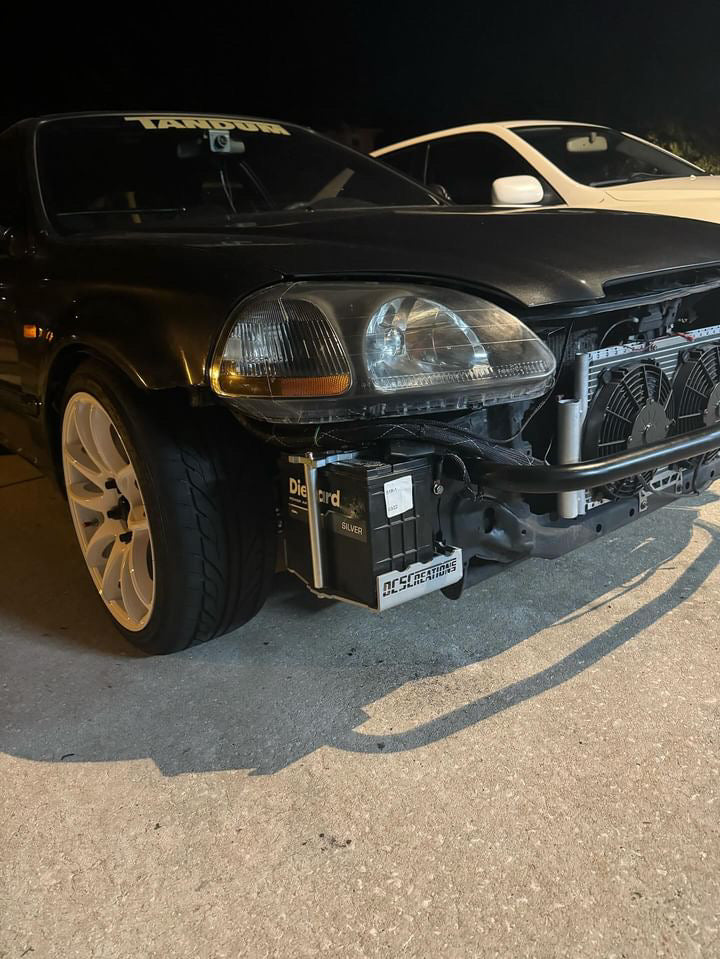

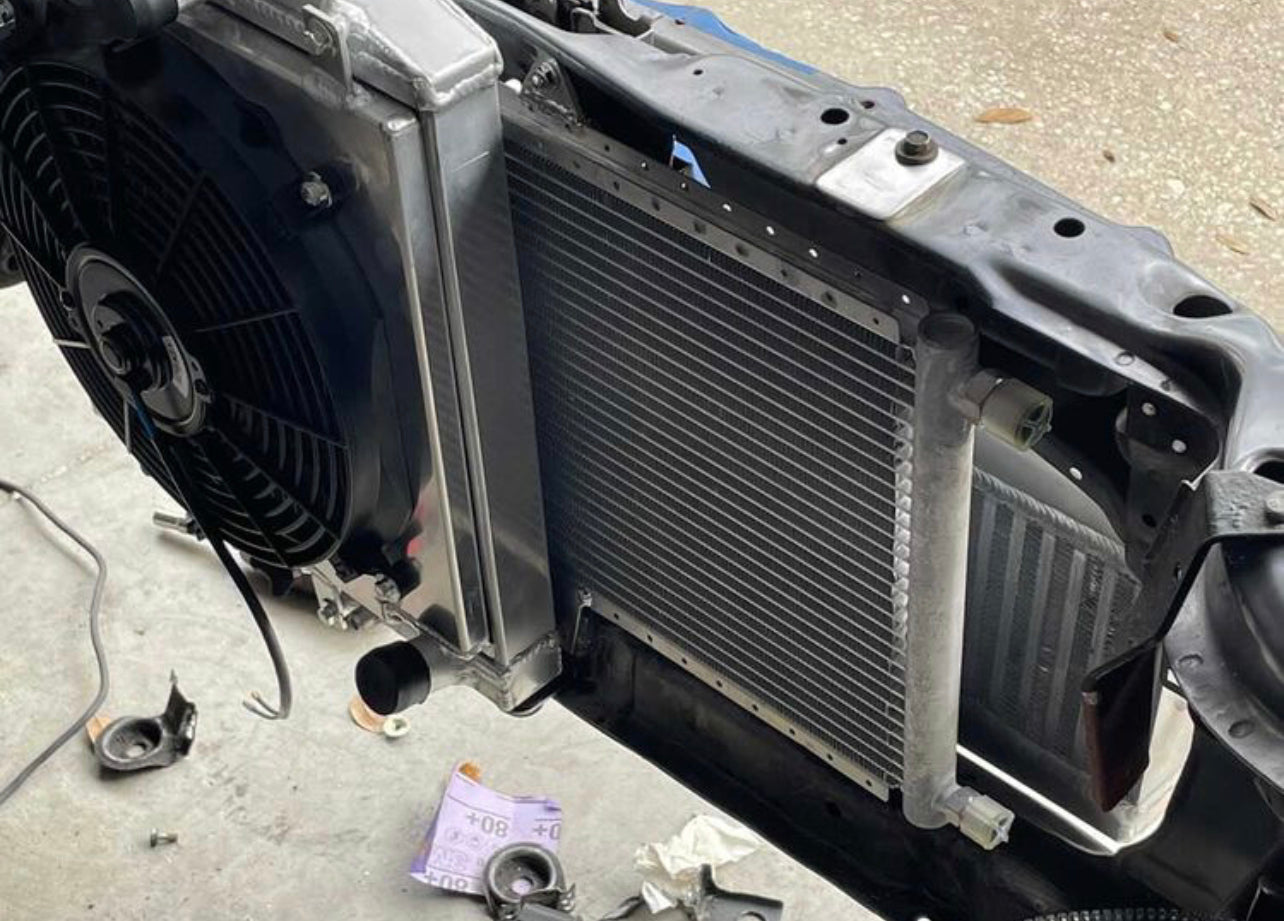

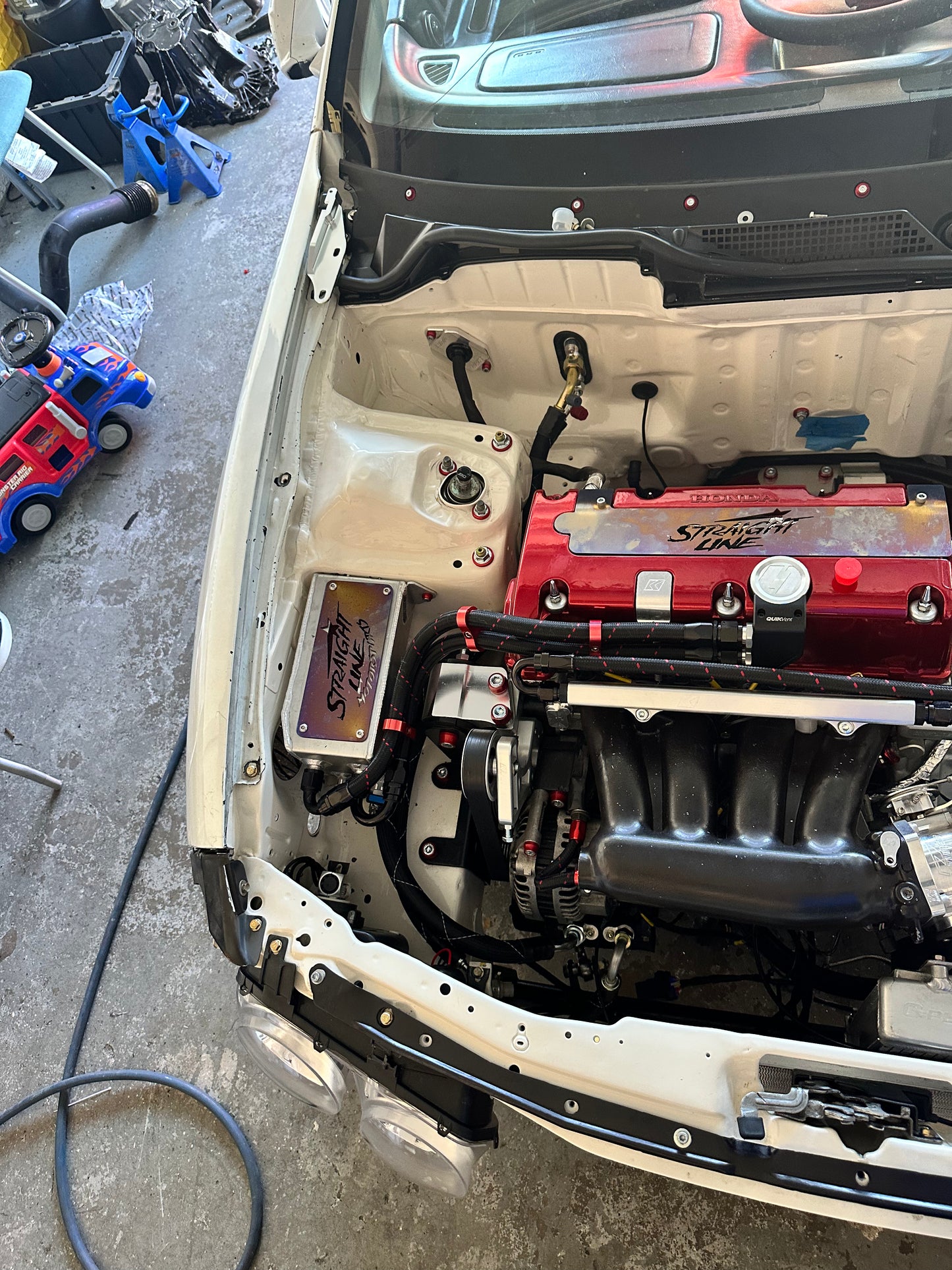

If you have a full-size radiator and still would like a kit. Leave a note on the check and we will make you a kit just like the last picture up top. Was custom build for a customer with a full-size radiator. Please look over the pictures closely. No additional cost. please leave a note on check out what motor mounts you currently running if not information is left kit will not be made. The reason we need this information the angle in the compressor fitting could change depending on the mounts you have. Since some mounts make the engine sit low and others don’t we need this information.

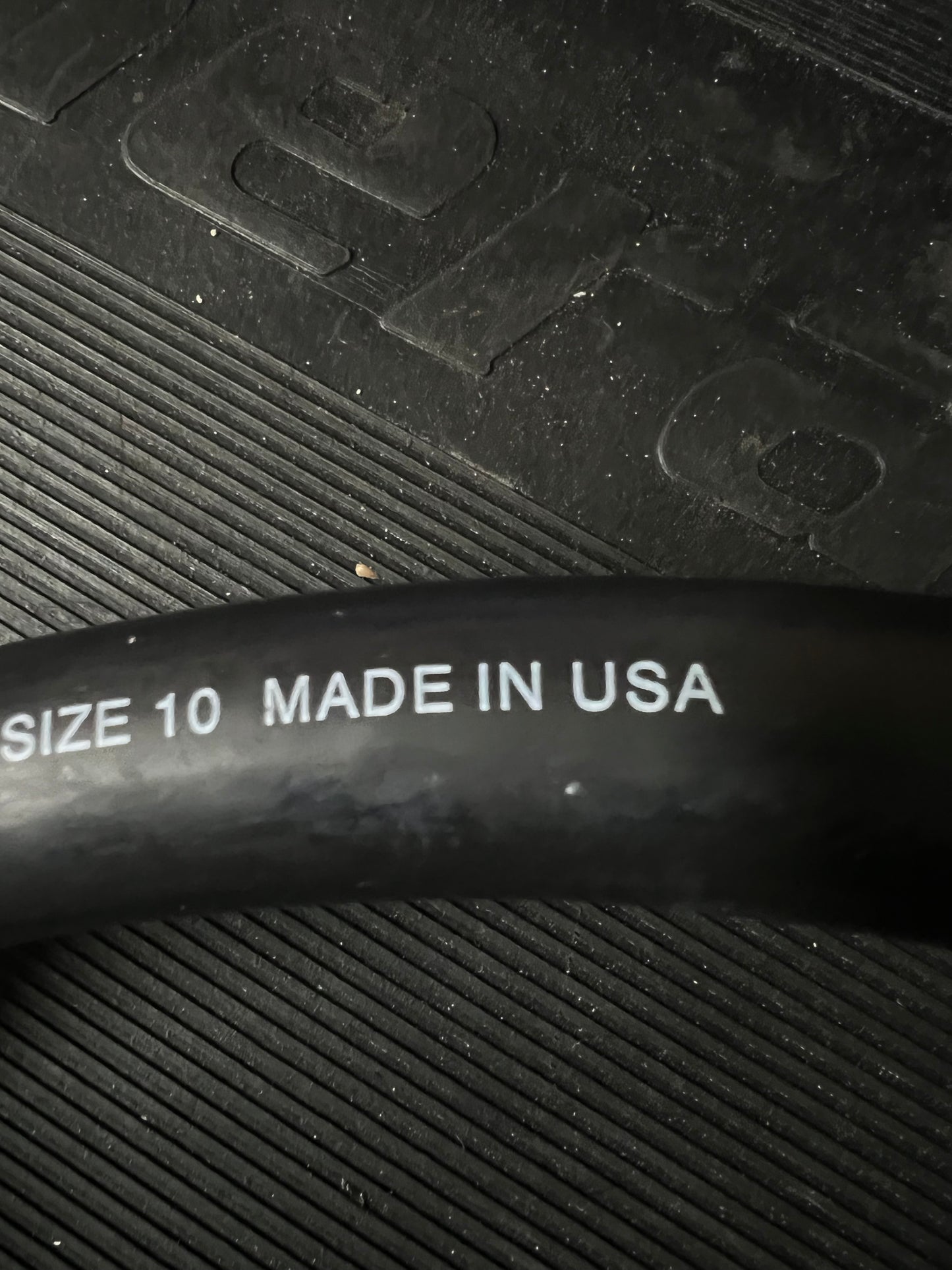

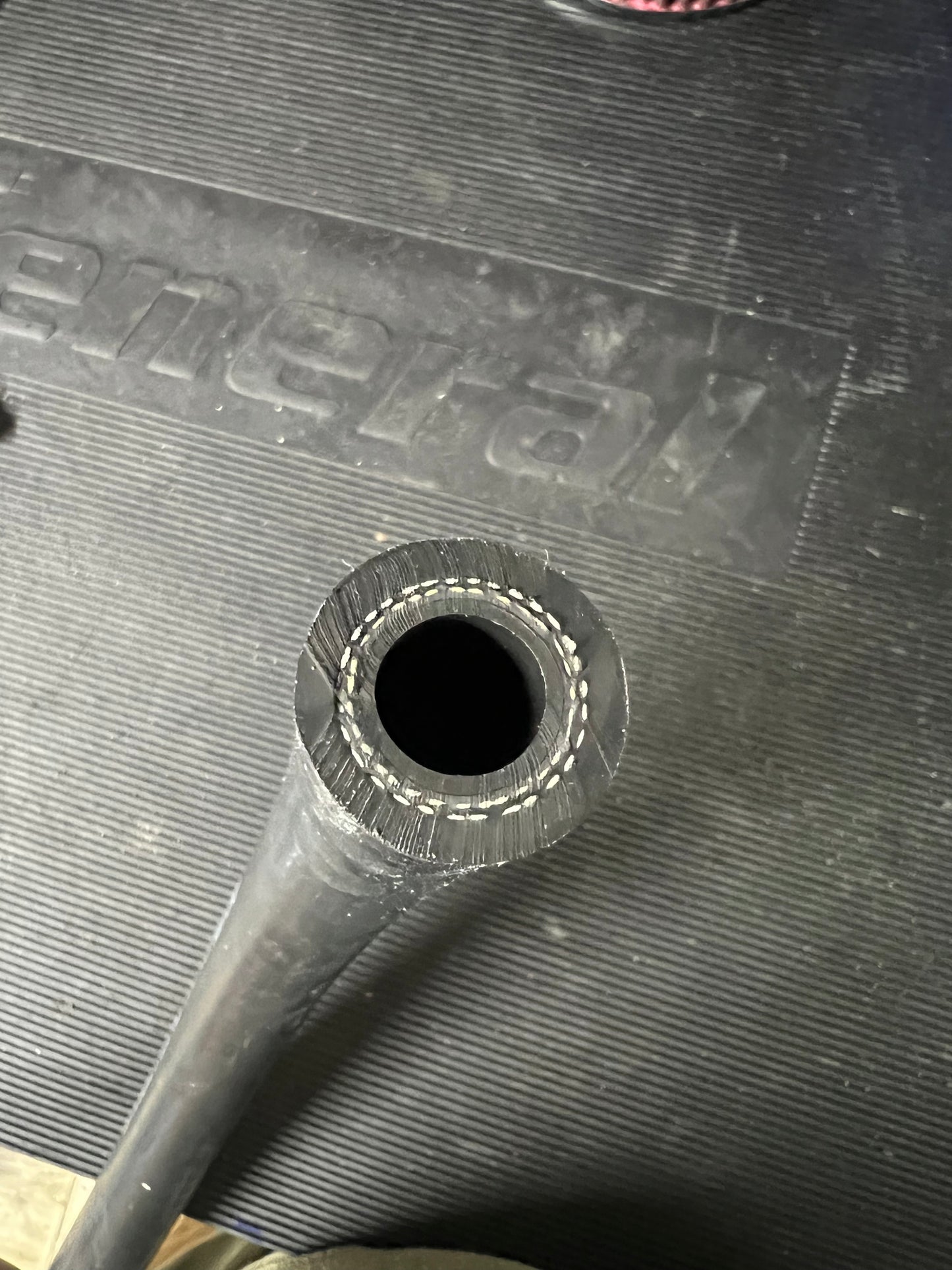

The new ac lines hoses are rated for 500psi. TEMPERATURE: -22°F to 257°F (-30°C to 125°C) If you would like to have the ac hoses wrap by the loom is only $15 extra otherwise they will come no wrap. The only thing the kit does not include is ac drier, an ac compressor k20/k24 and a fan for the condenser but you can use your OEM dryer or Honda s2000 or Acura rsx 02-06. Note that you will have to wire the ac drier and compressor. You will need to run a 12x12 inch fan behind or in front of the condenser. In order to Installed the ac lines you just have the battery relocated.
What belt do I use with this setup? If you do not plan on keeping power steering you will need to purchase a K20A3 02-05 Civic Si K20A3 pulley setup and belt. If you plan on running PS you can use a stock K20A/A2/Z1 belt.
Shipping is $15 anywhere in the USA, please Shipping to Puerto Rico is $65.
3-5 days before any tracking number is available. The condenser will be shipped separately will not come with the ac lines & fittings. In most cases, the condenser will arrive last if it doesn’t show up 4-7 business after 1 or other please send us an email. Be patient everything is made to order. Please watch the full video as I explain how to install the kit step by step. Copy and paste the link to your internet browser.

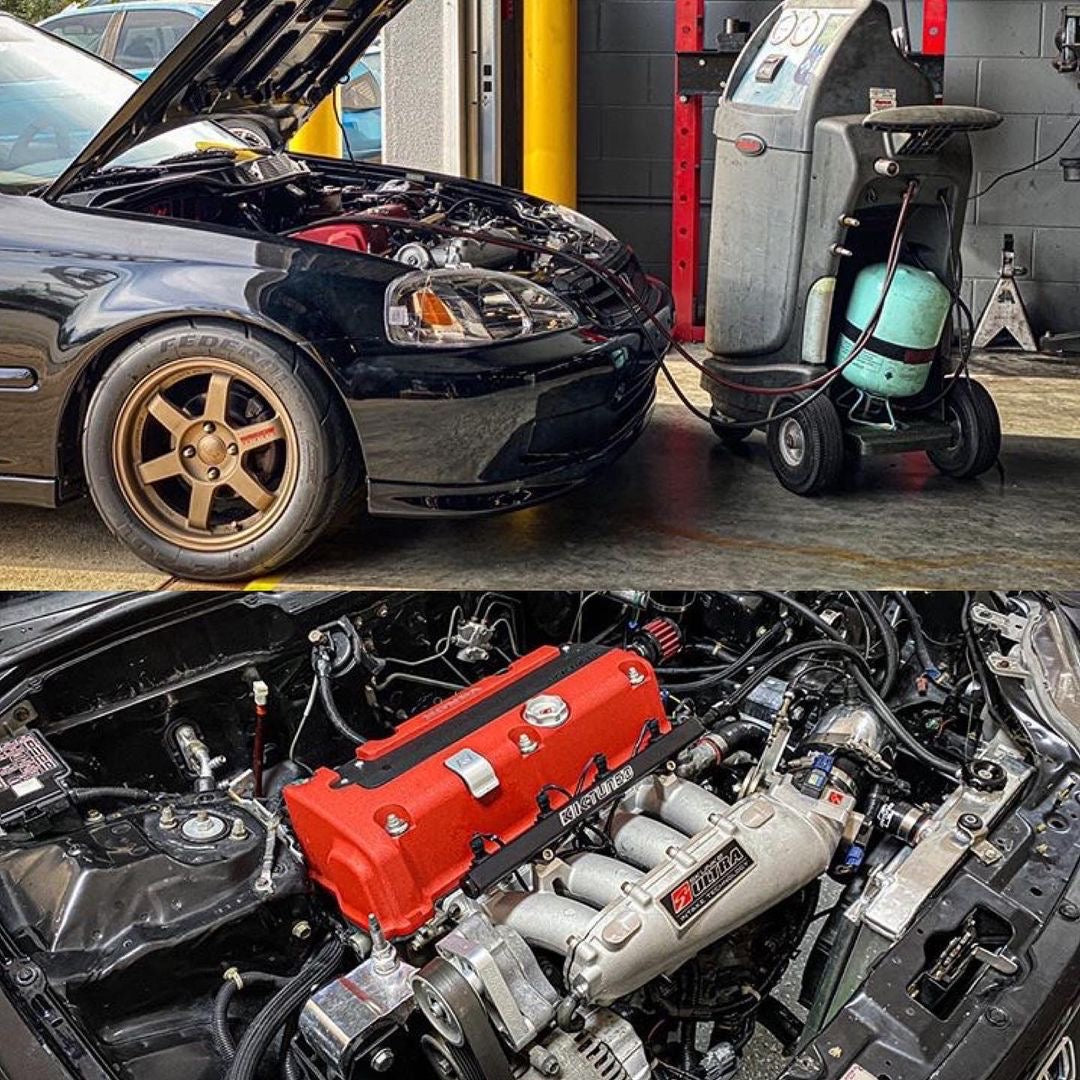

Yes: You do need to get the Ac system recharge and vacuum after the kits have been installed. If the Ac system isn’t vacuumed your ac system will not stay cold for long. Please have it professionally done as they will be able to know how much freon.
