Dc5creations K-Series Engine Harness

  • Sale
  • Regular price $650.00


  • K-Swap Cars
  • 02-04 RSX Type S
  • 02-04 RSX Base
  • 01-05 Civic EP3 (Type S or K24 Swap)

 1 IN STOCK

No core required.

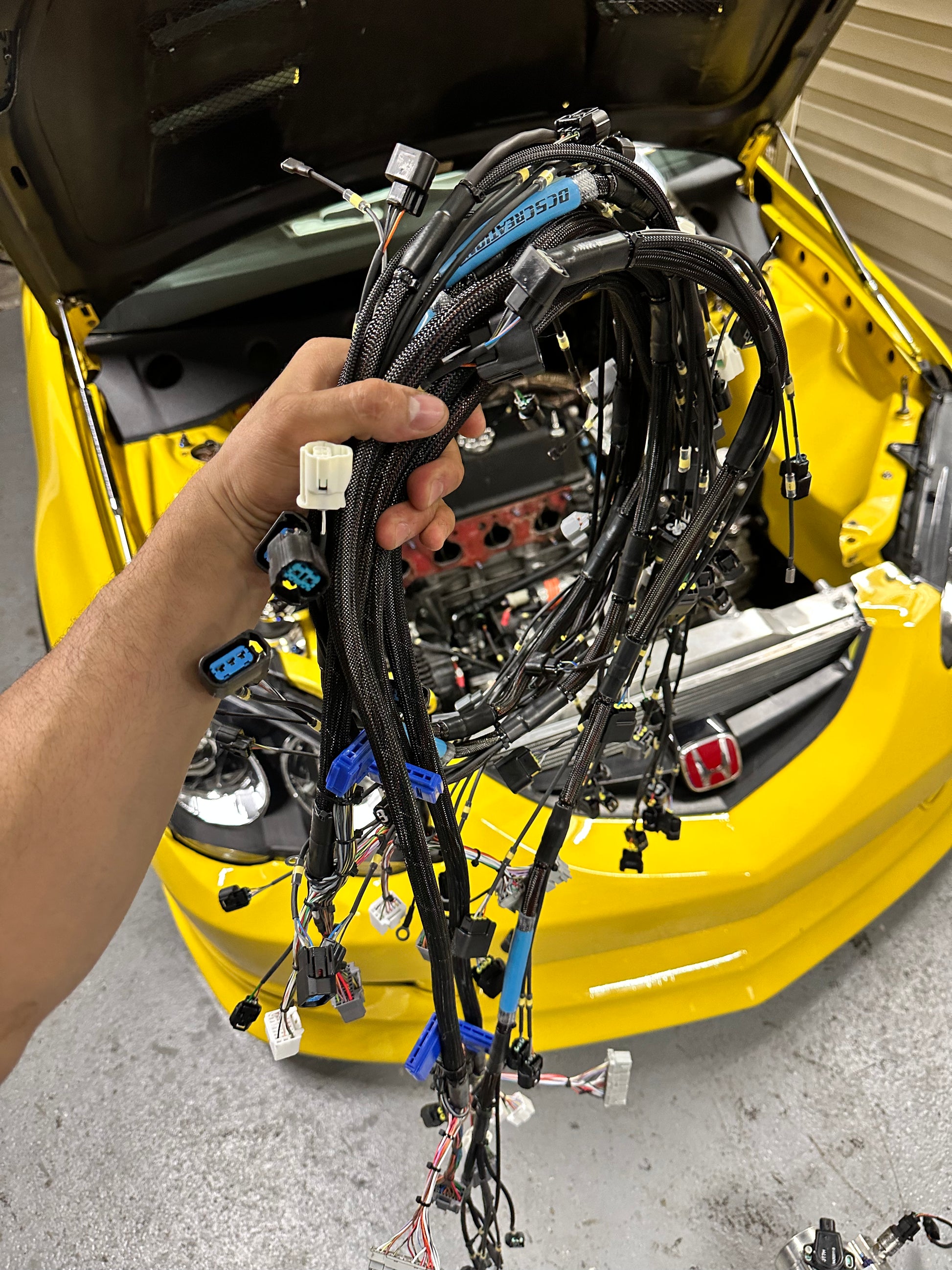

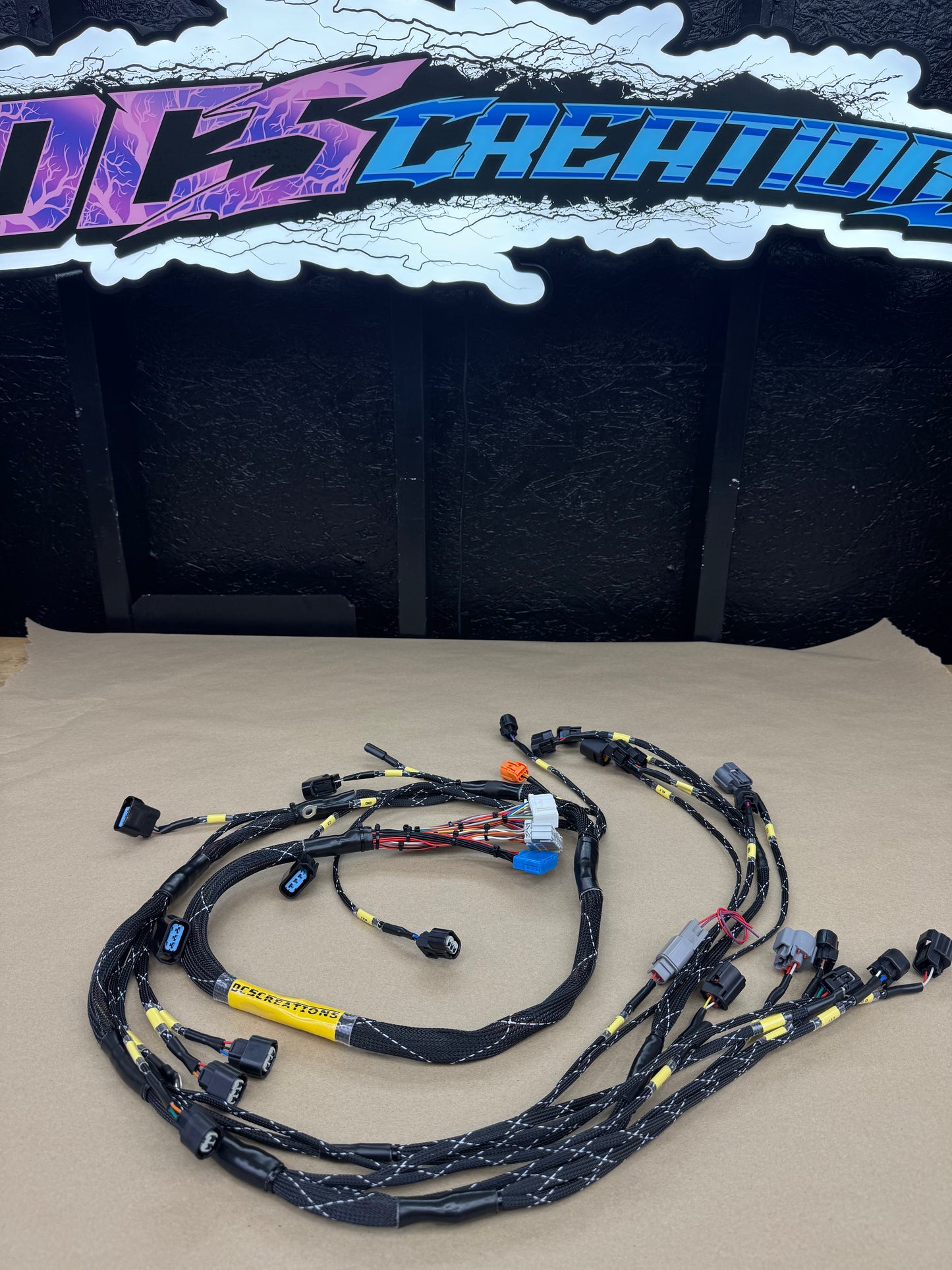

The Dc5creations Tucked Engine Harness is designed as a high quality replacement 02-04 RSX Type-S harness that offers a super clean look. We have made the harness with lots of features so it will work with nearly all K-Series engine swaps and the 02-04 RSX Type S. Our K-series engine harness was created to facilitate a more universal chassis, and harness routing preference. This style can be routed more like the OEM k-series engine harness through the center or more to the right on the firewall. This routing method is ideal for our (RHD) Right Hand Drive however NOT exclusive to RHD chassis and does work fine on a LHD chassis



Features:

  • SAE Certified Automotive Grade Wiring
  • All plugs are labeled
  • Tucked design
  • Injector wiring runs from under manifold between middle runners.
  • Ground wire relocated to stud under coil pack cover (instead of front of the valve cover)
  • Wiring long enough for both VSS low frequency or high frequency (High Frequency transmissions will require repining plug and slight modification to VSS
  • RSX injectors plugs come standard (RDX injectors can be easily switched)



HARNESS CONNECTOR LIST:
VTEC solenoid
VTC
Oil pressure sending unit
Crank Sensor (CKP)(02-04 K20 style)
Coils 1-4
Cam (CPS) Exhaust Side
Top Dead Center sensor (TDC) Intake Side
Engine Coolant Temp (ECT) (02-04 K20 style)
Knock Sensor (KS)(02-04 K20 style)
Intake Air Temperature (IAT)
Alternator (02-04 K20 style)
Manifold Air Pressure (MAP)
Throttle Position Sensor (TPS)
Idle control motor
Electronic speed sensor (VSS)
Injectors 1-4
h20 sending unit (for gauge cluster)
Reverse Lights
Reverse Lockout solenoid
Starter signal
ECU plugs A and B
Power distribution cap
Ground
