K-SWAP EG/EK/DC AC TUCK KIT V2
K-SWAP EG/EK/DC AC TUCK KIT V2
Couldn't load pickup availability
IN STOCK
Please allow 4/7 business days for your order to process and ship.
- 1992–1993 EG Civics → Factory R12
- 1994–1995 EG Civics → Factory R134a

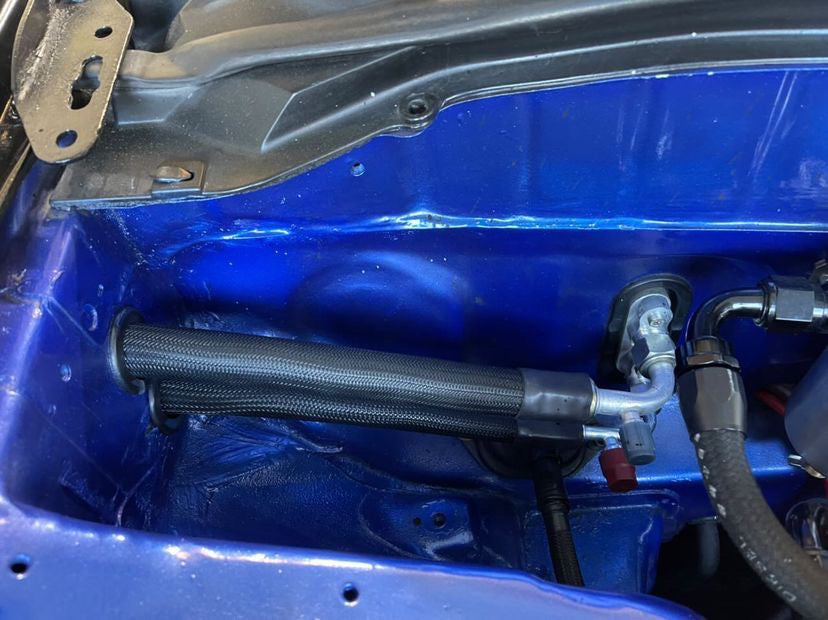

Requires r34 compressor ! Fittings for r12 system are ONLY for the firewall!
Please choose your vehicle correctly to give you the right ac harness.
Made here in USA 🇺🇸

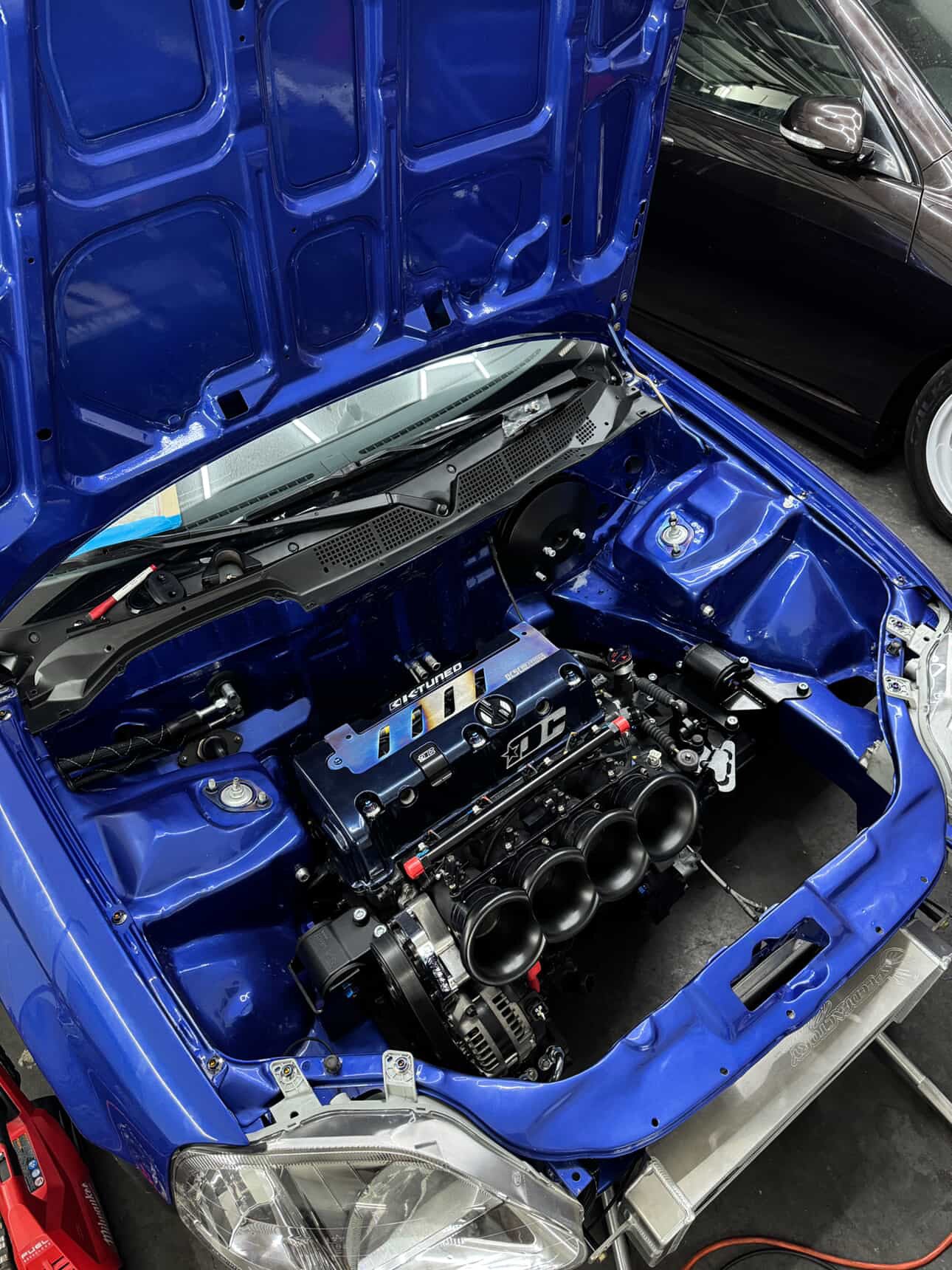

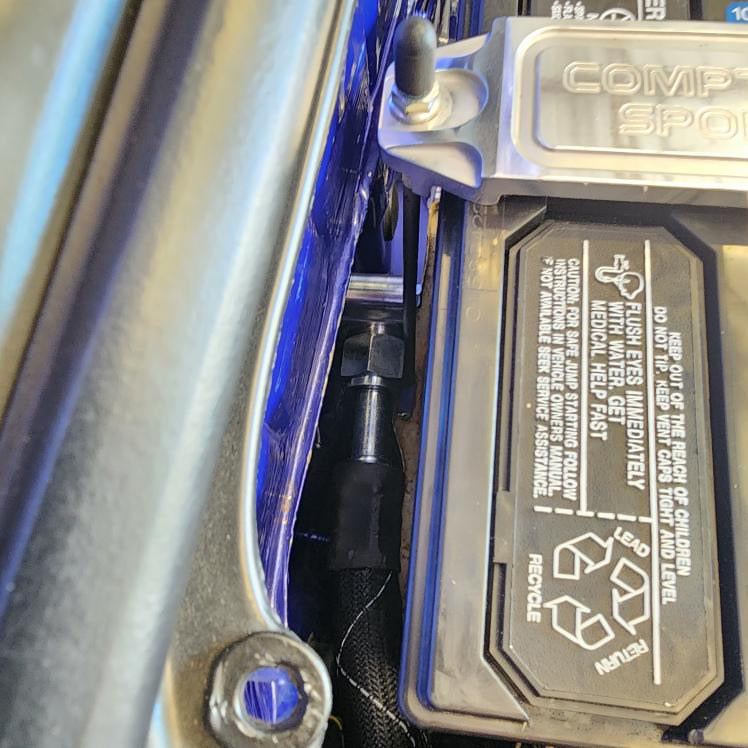

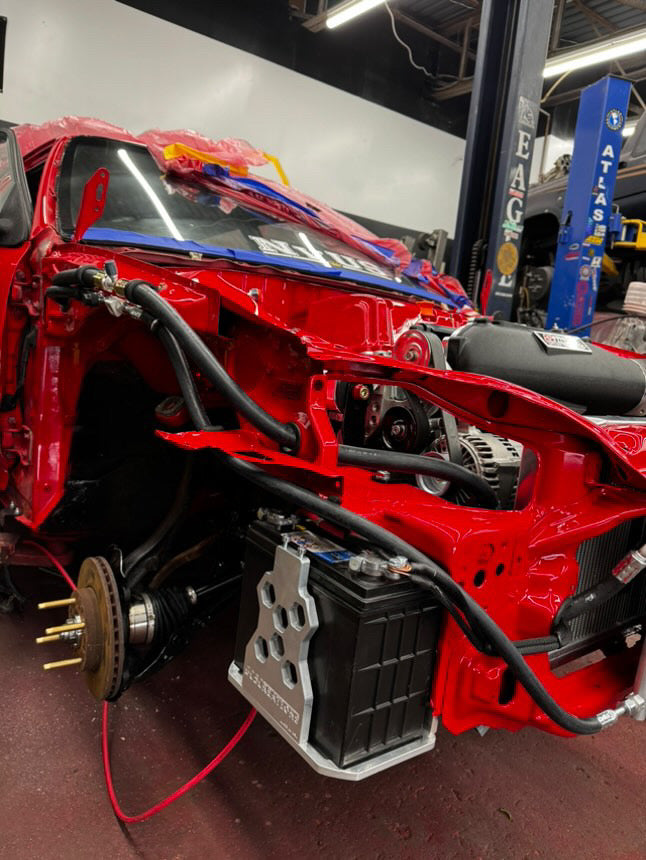

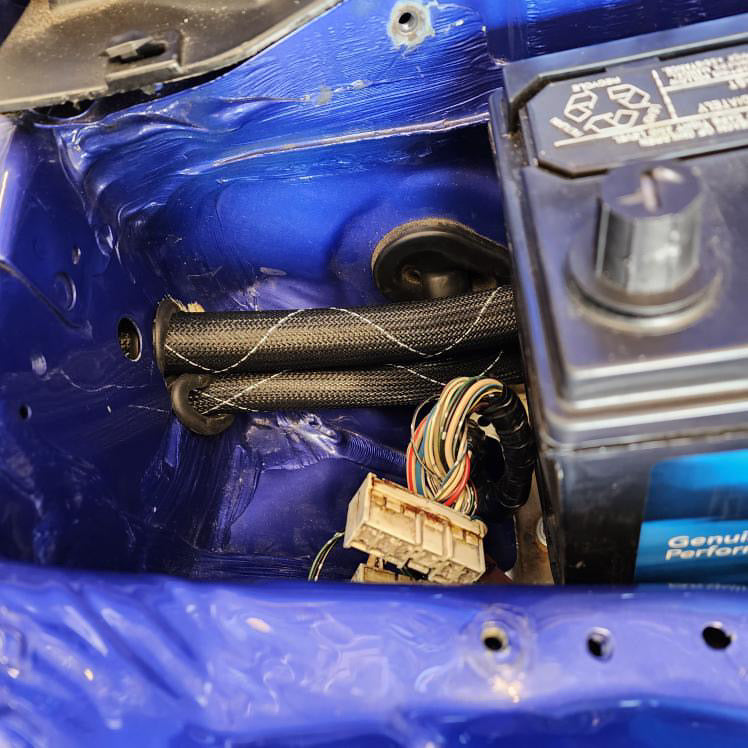

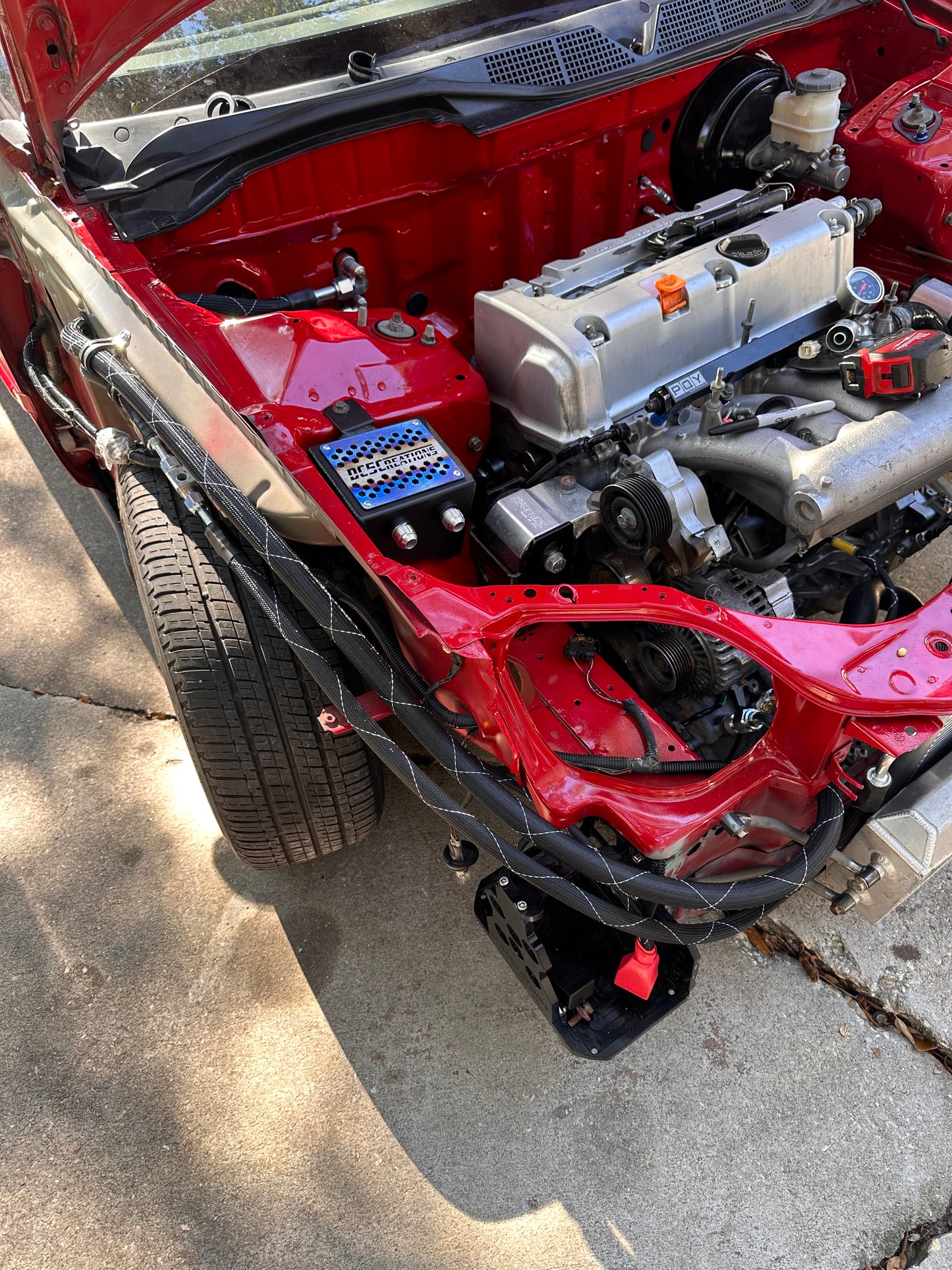

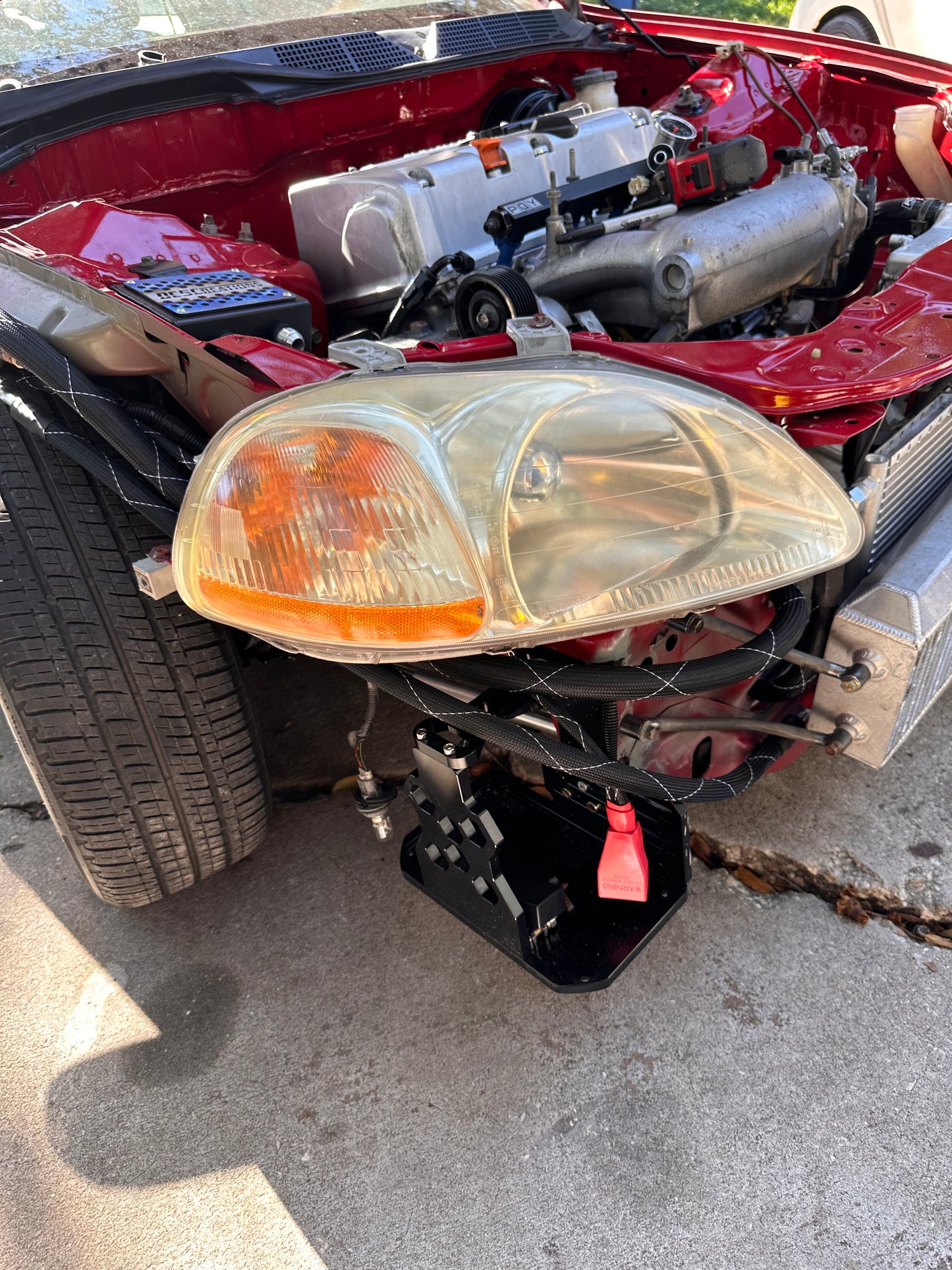

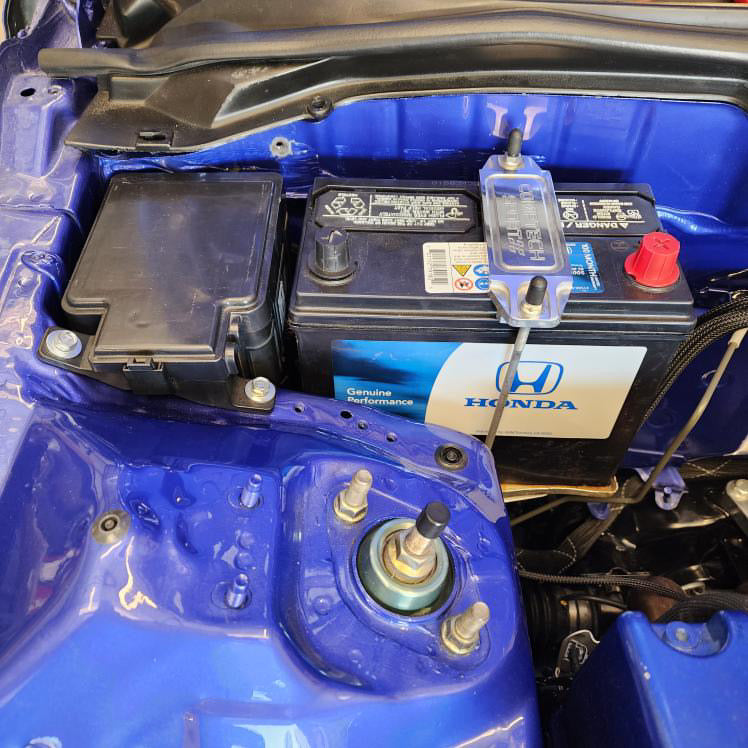

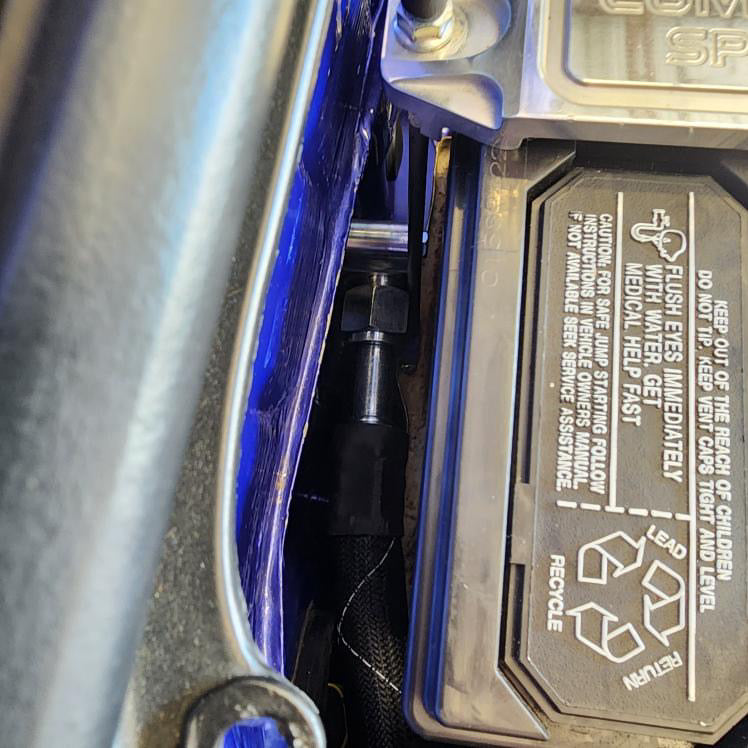

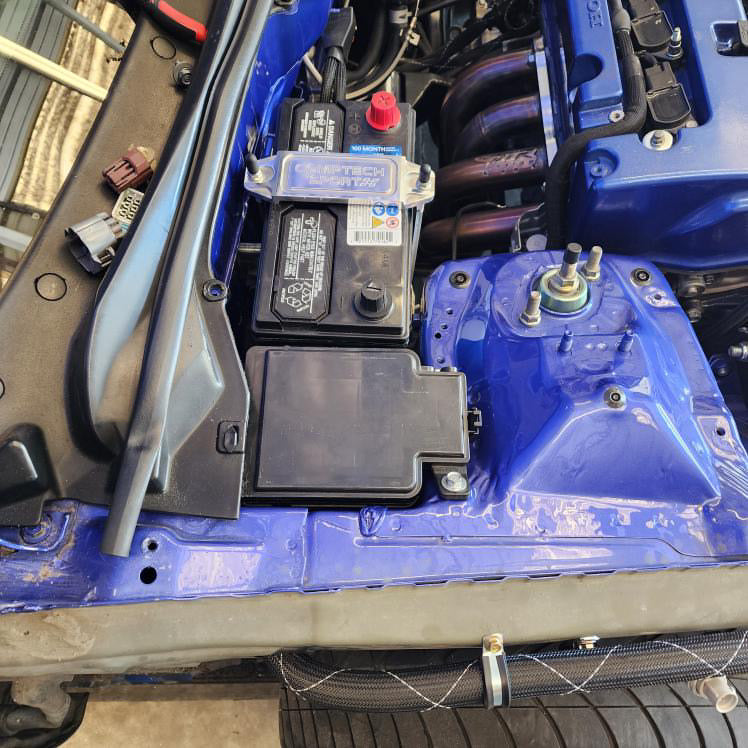

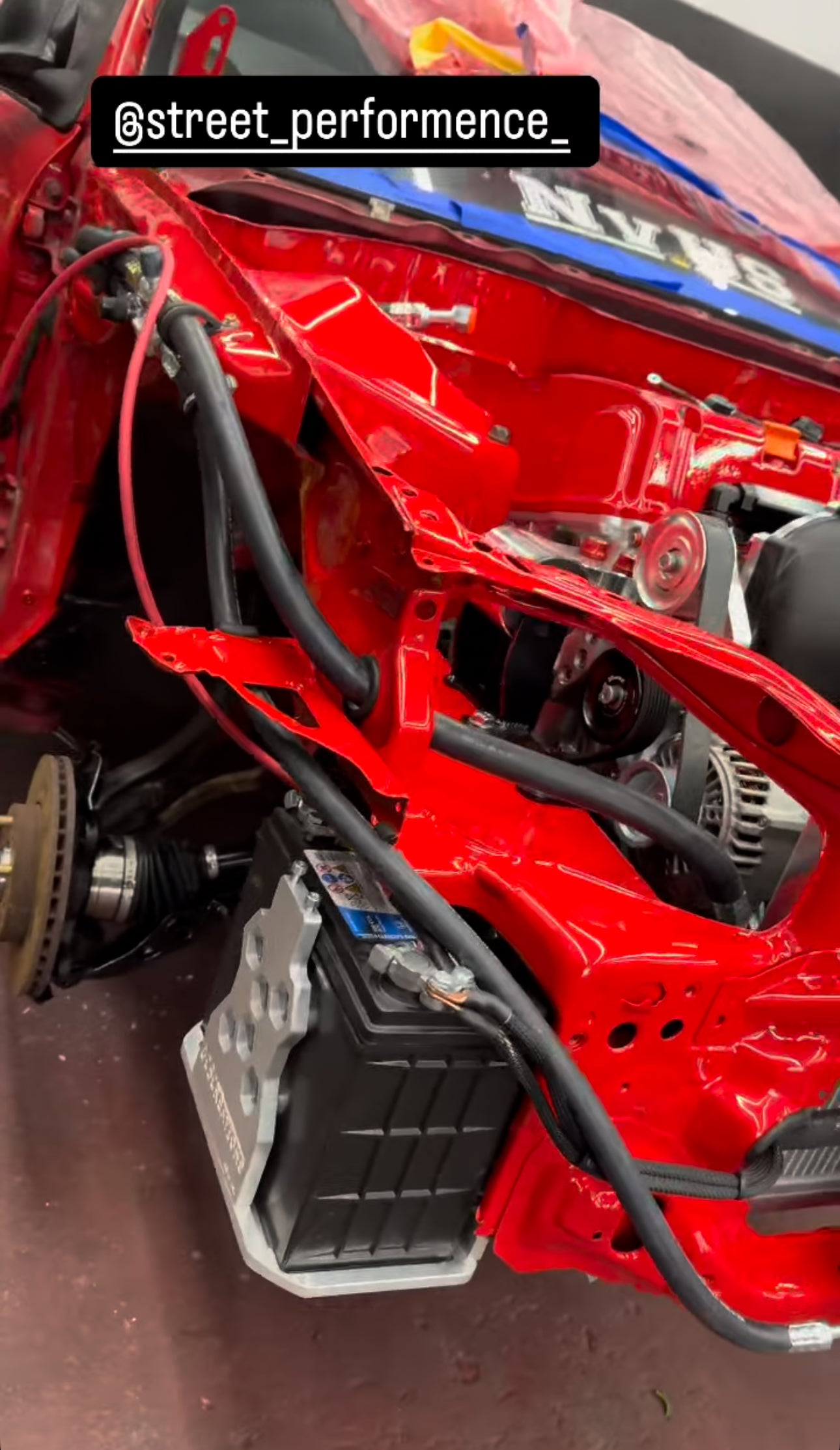

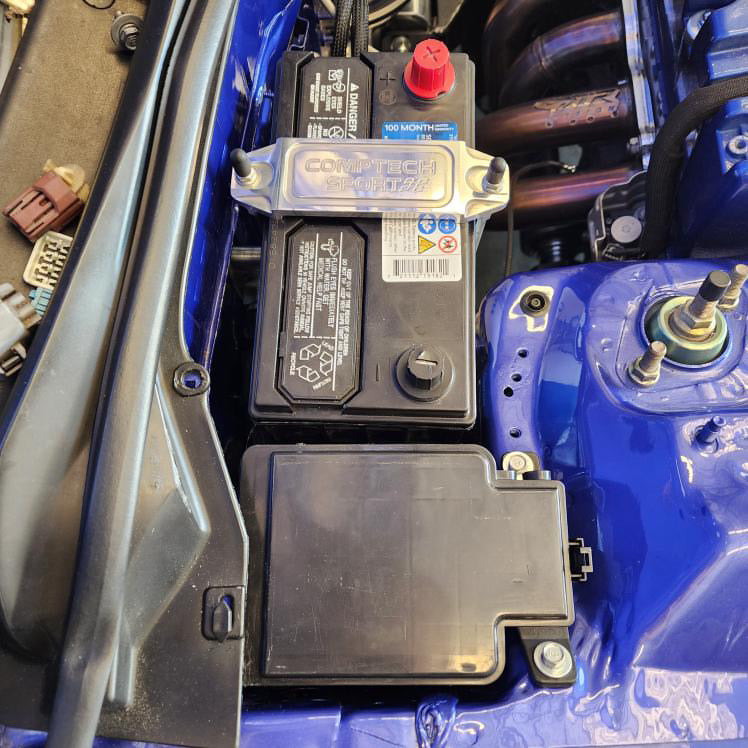

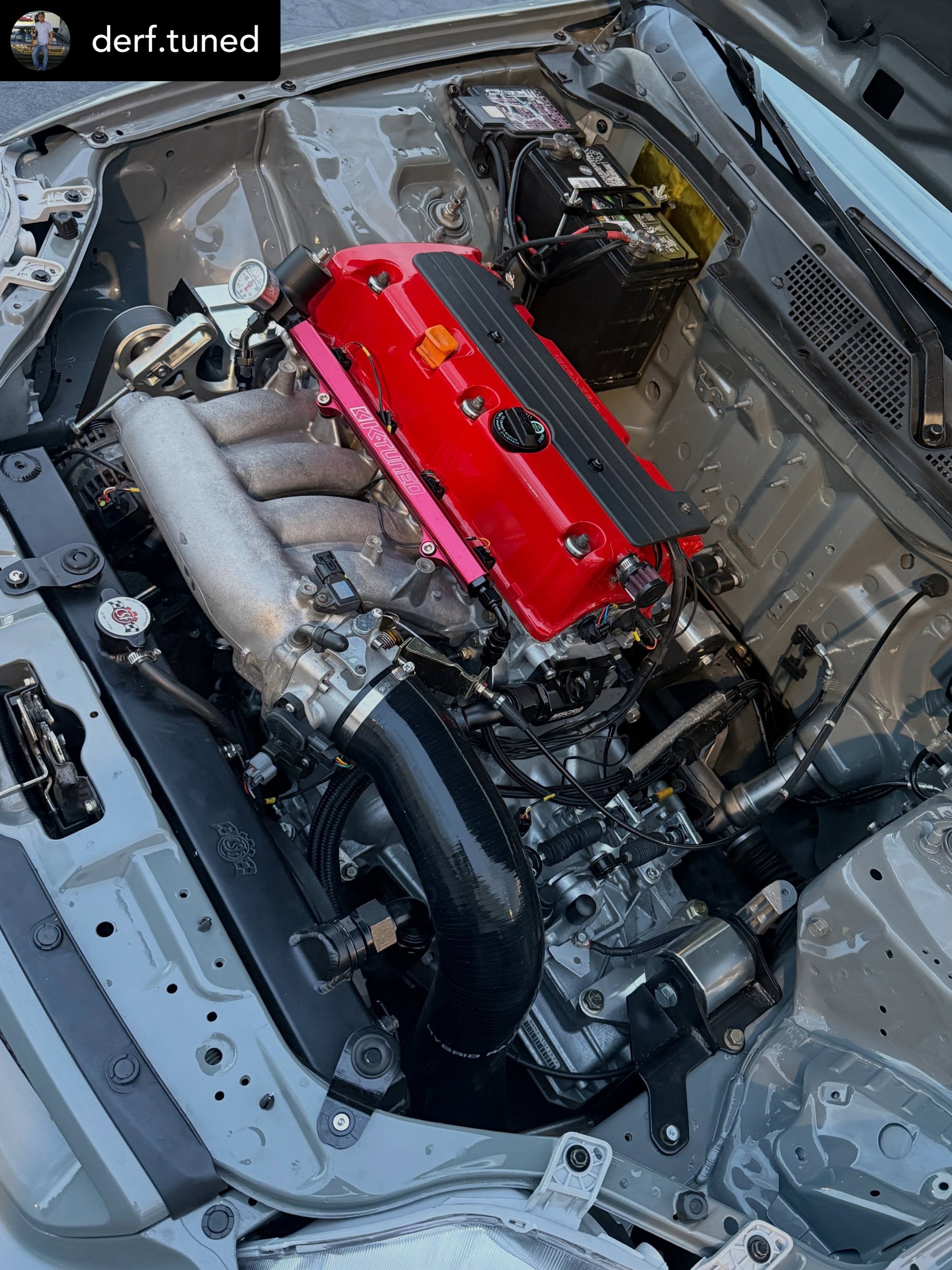

The battery no longer needs to be relocated when using our new kit.

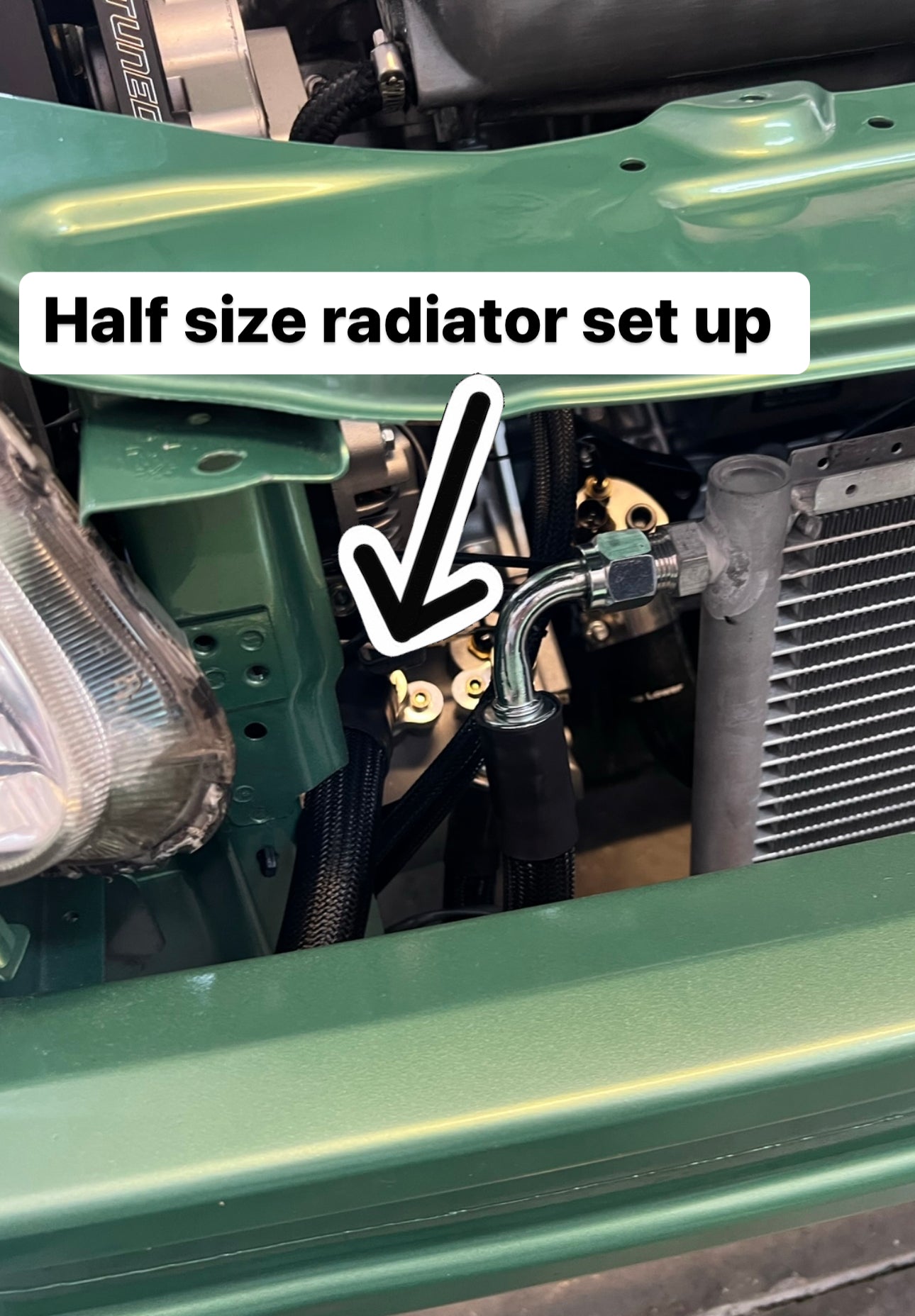

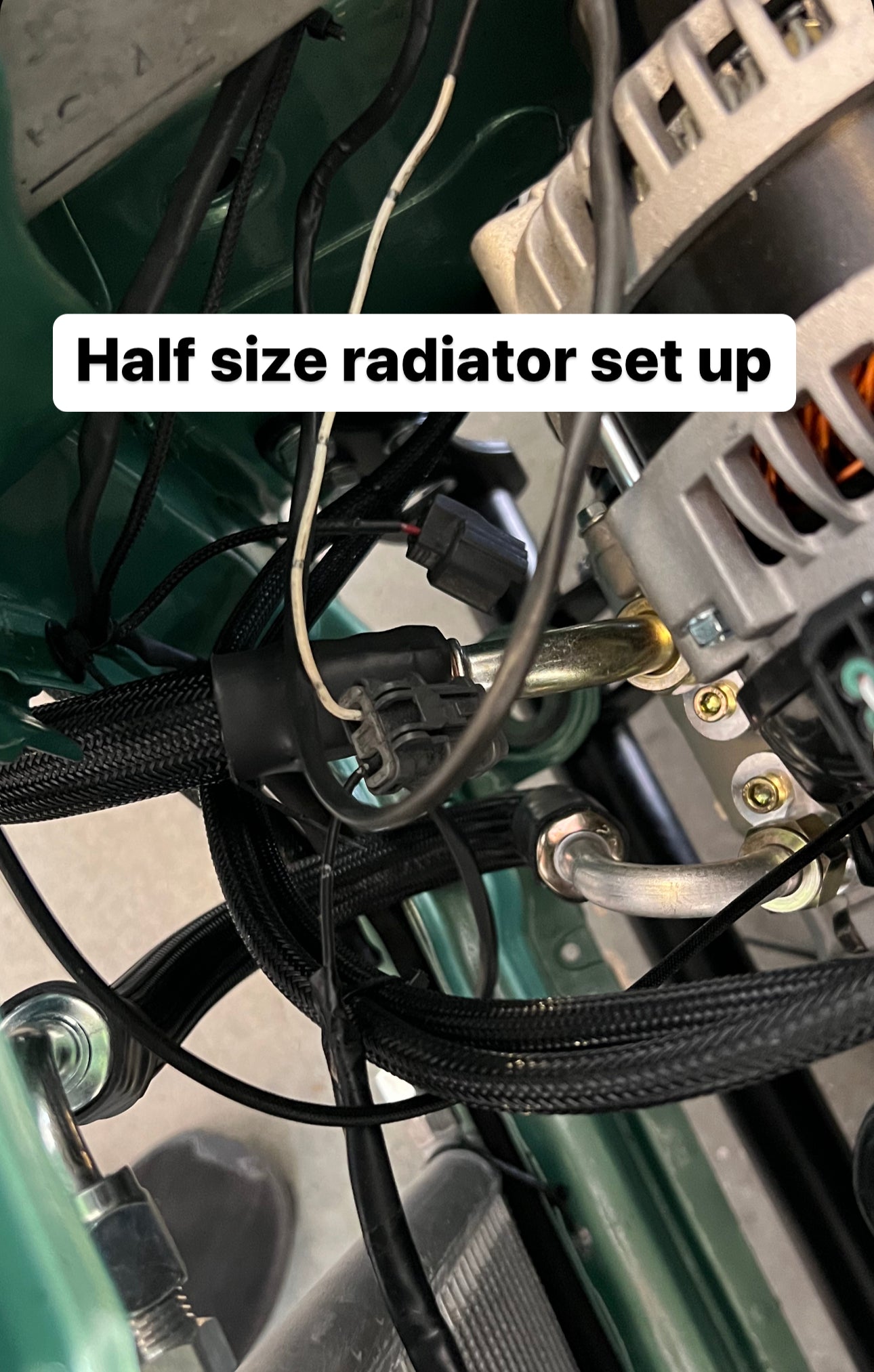

Minor trimming of the OEM battery tray may be required. Both OEM and aftermarket compressors designed for your engine are fully compatible with this setup. Please note that full-size radiator kits create a very tight fit, so ensure compatibility before purchasing.

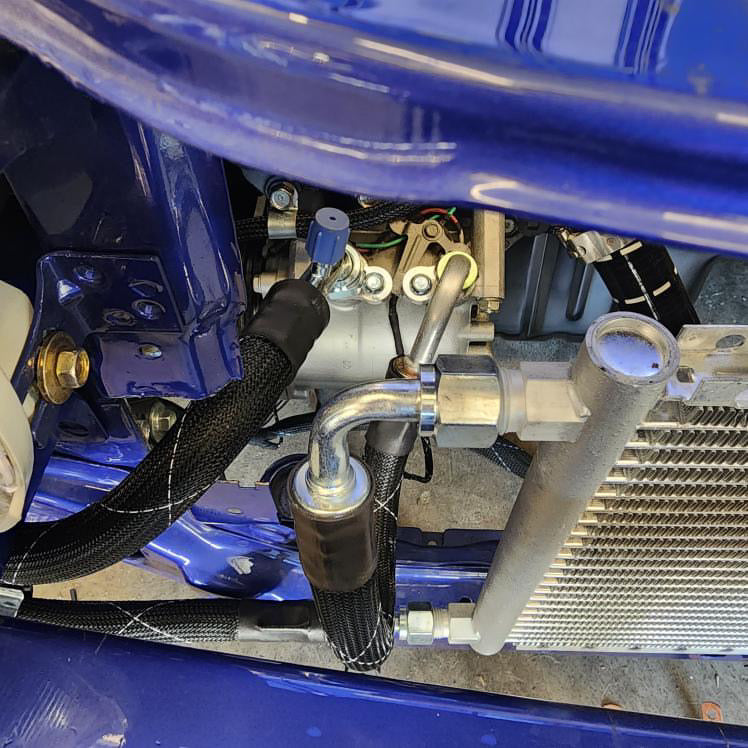

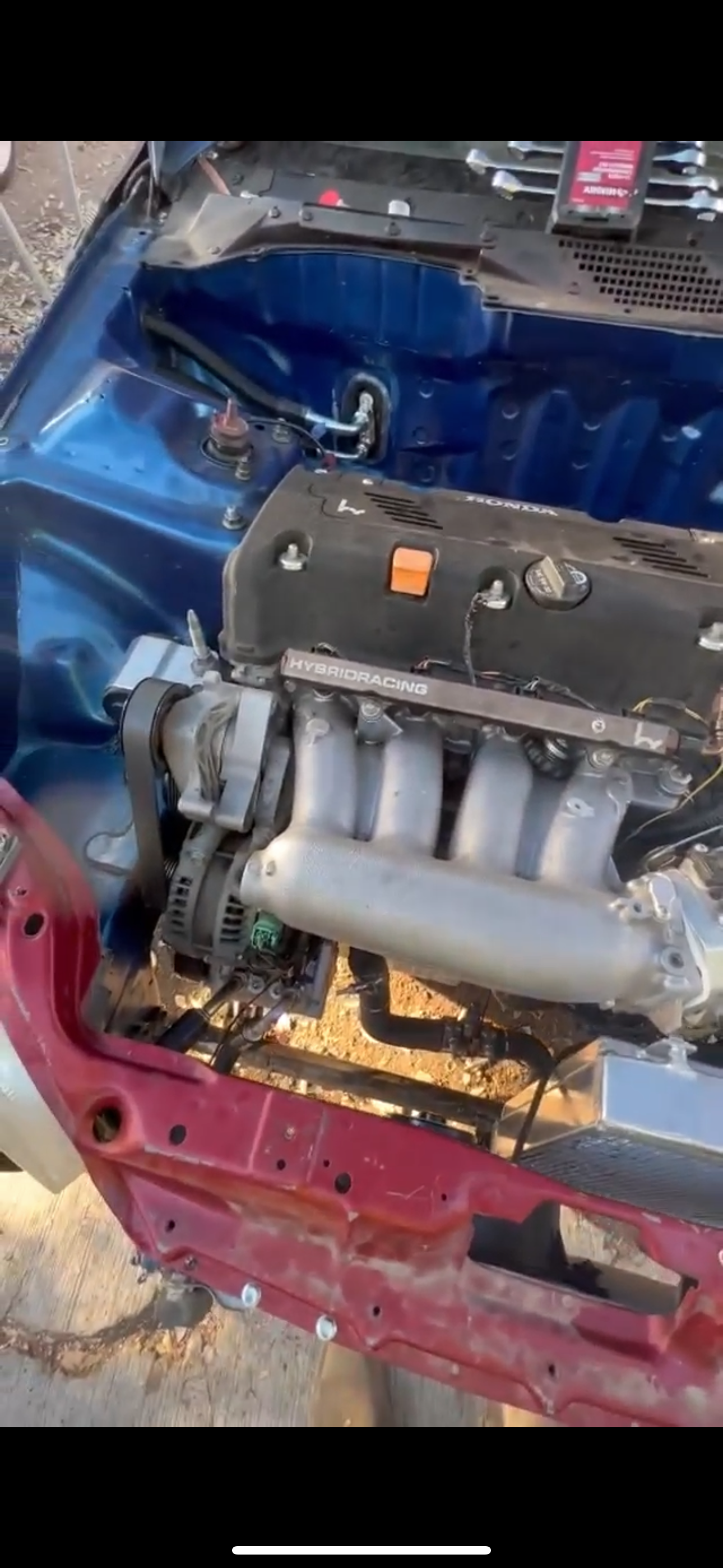

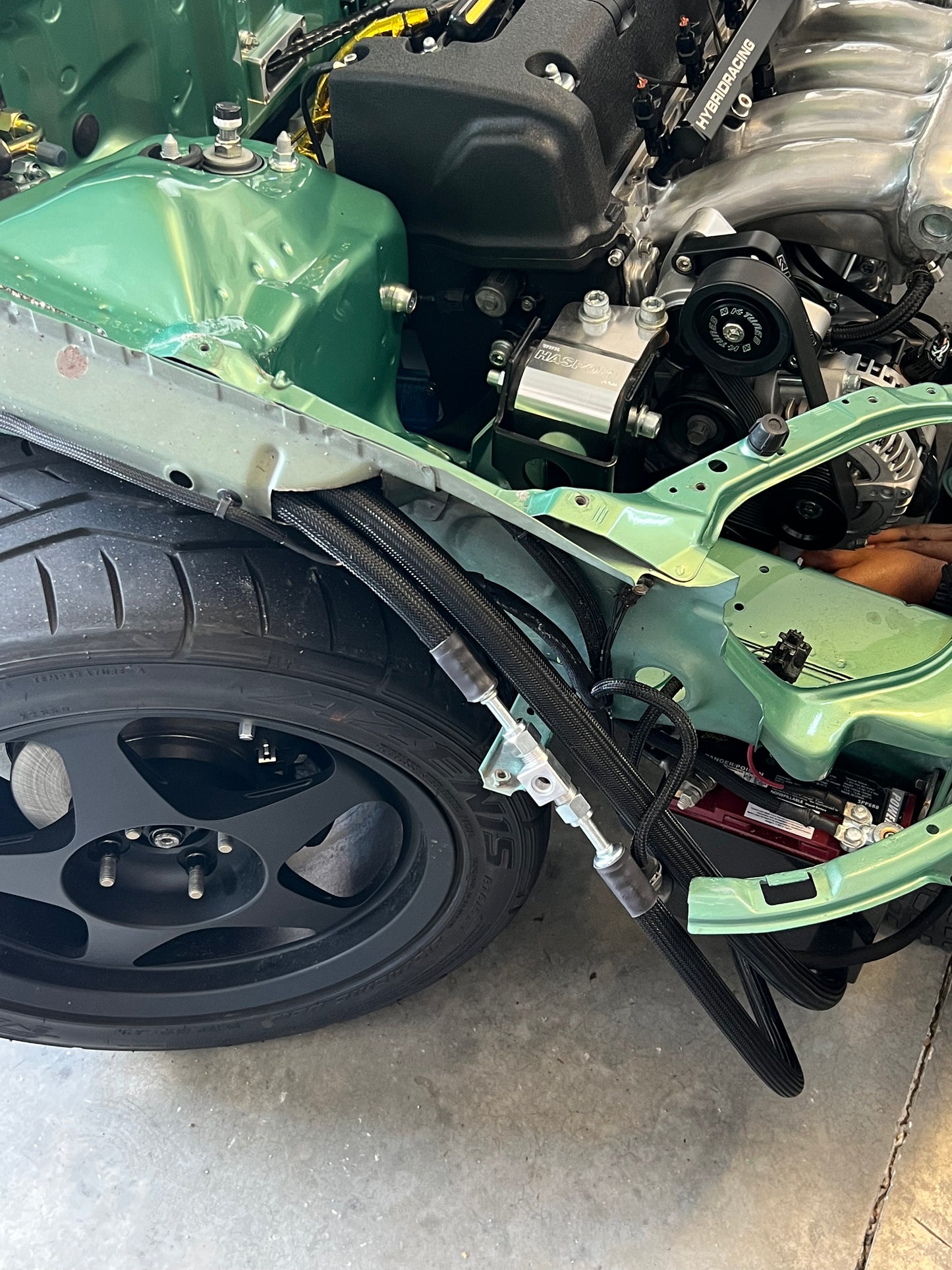

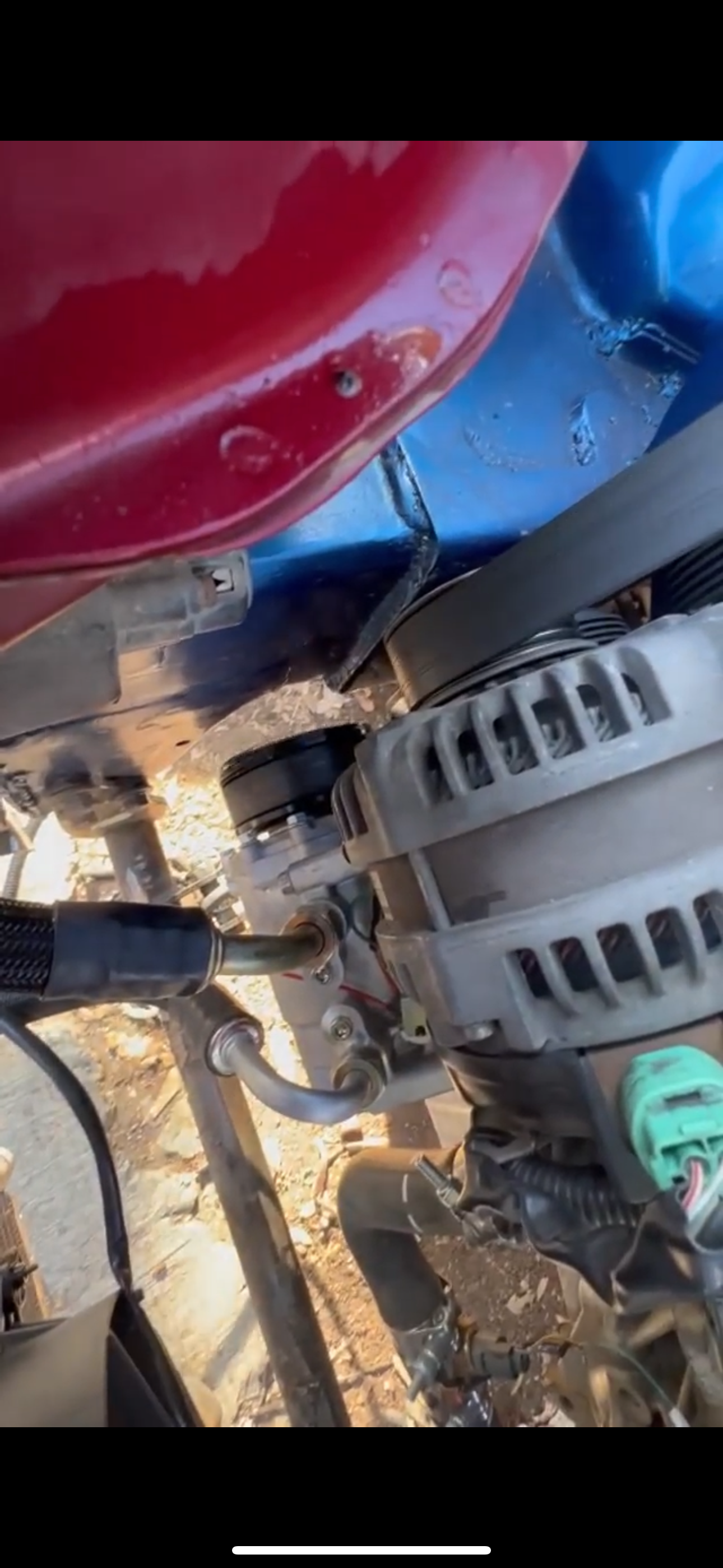

This kit is designed to work with a compressor from a K20A, A2, A3 or K20Z1 engine.(same mentioned compressor must be used if you have a K24A swap). 2002-2006 Acura Rsx base or Type S.
FANS

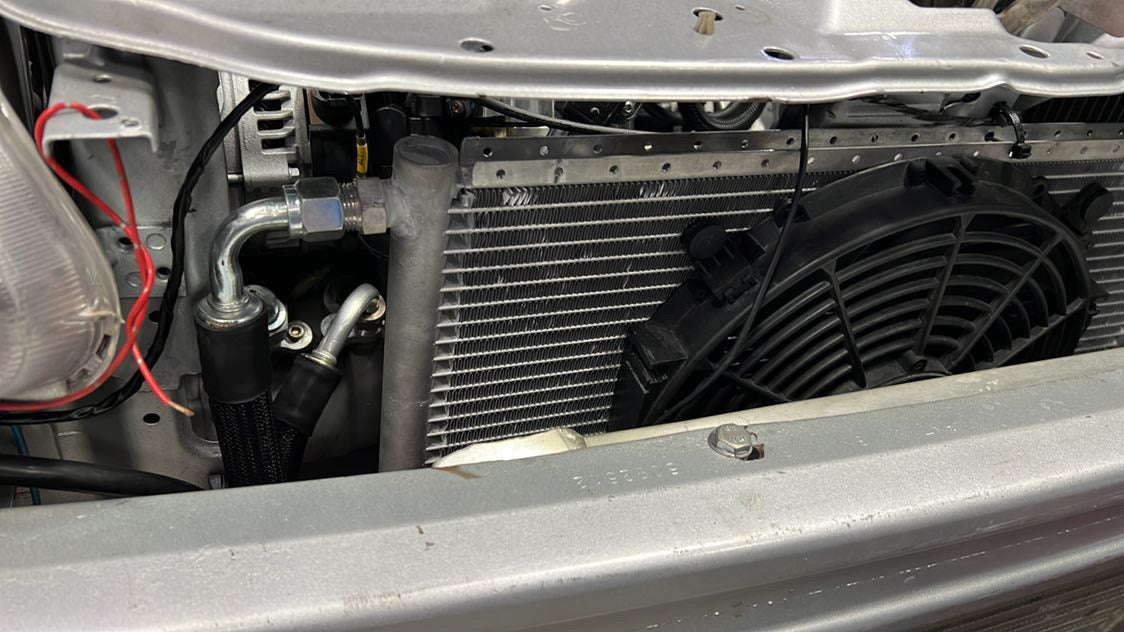

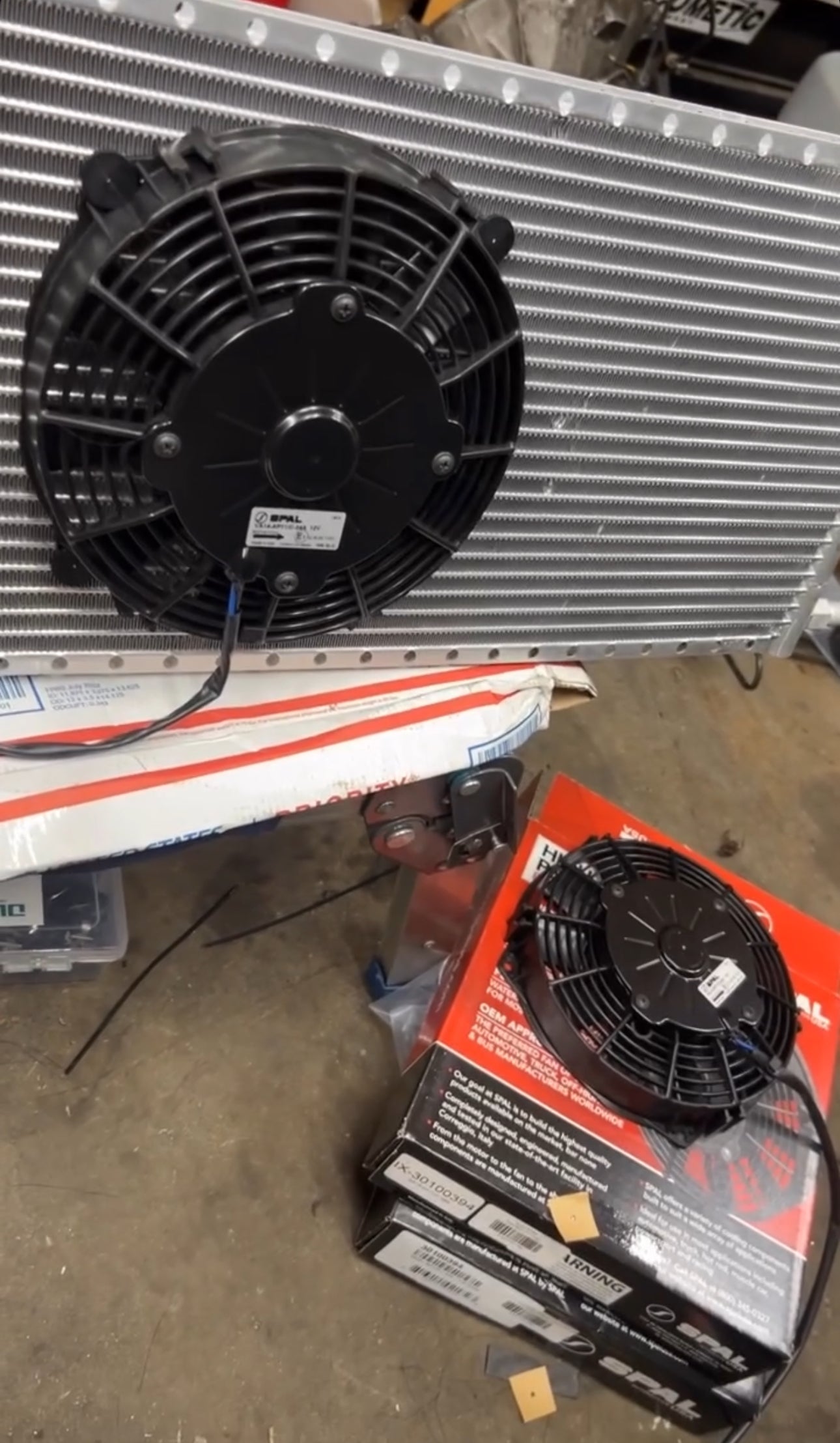

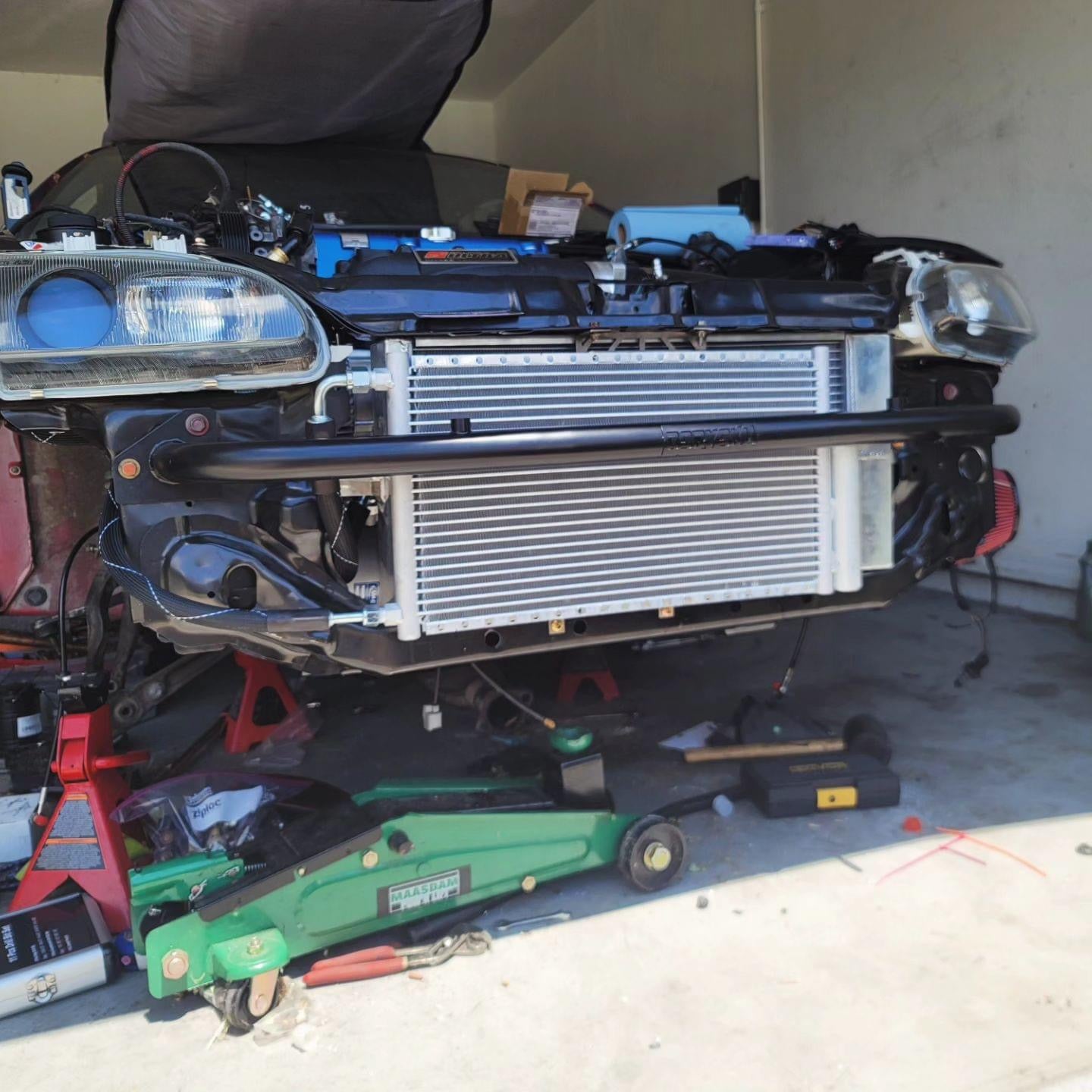

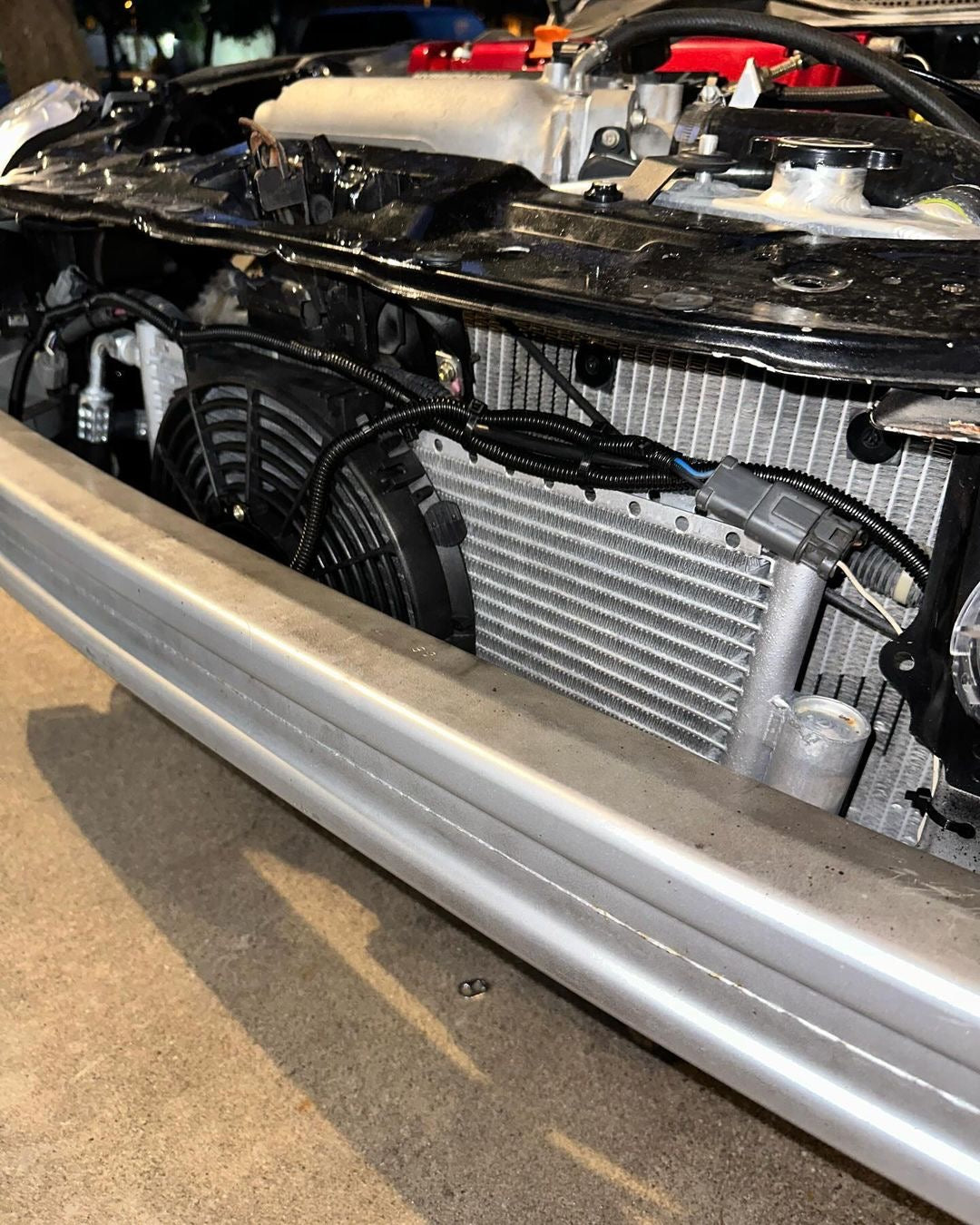

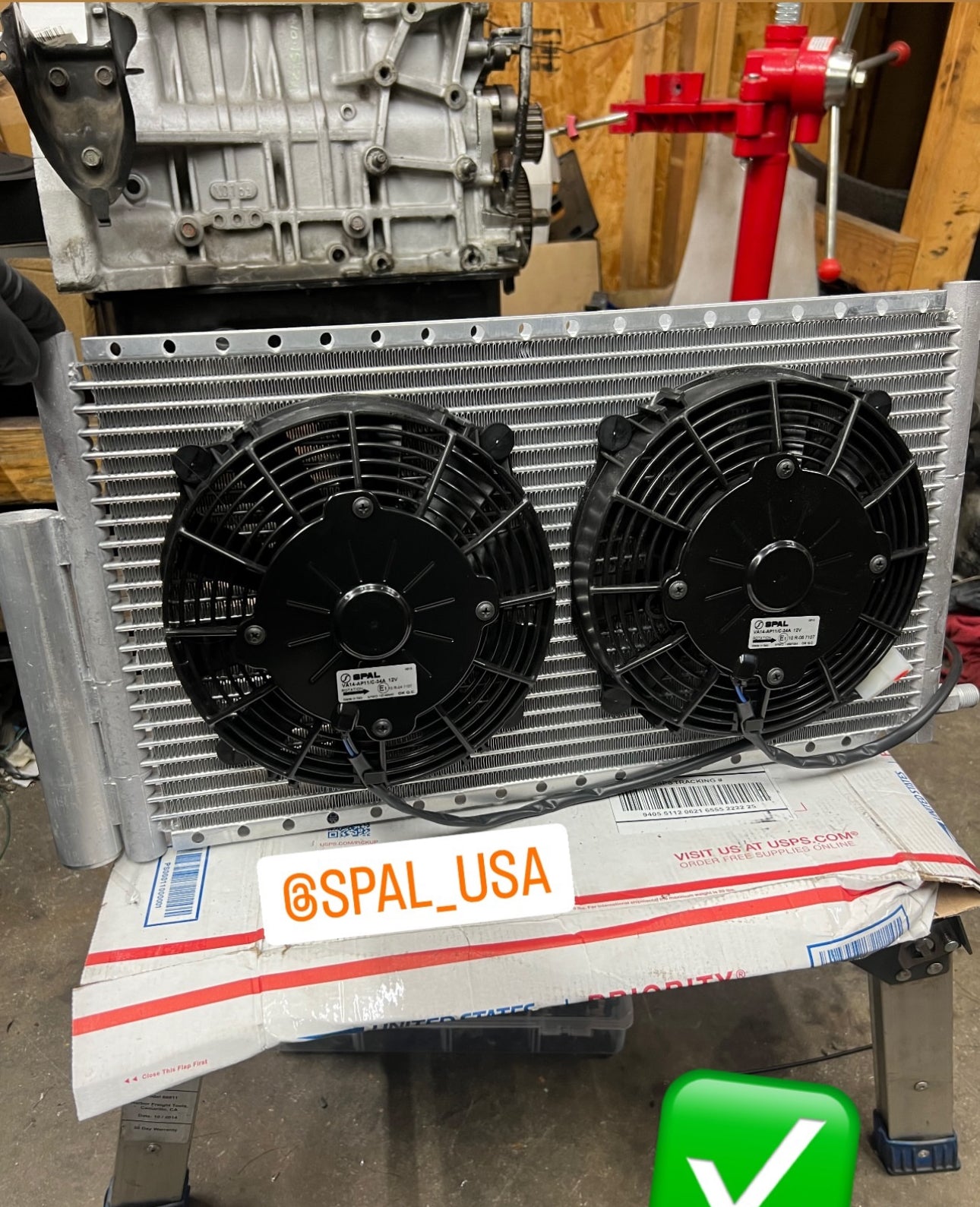

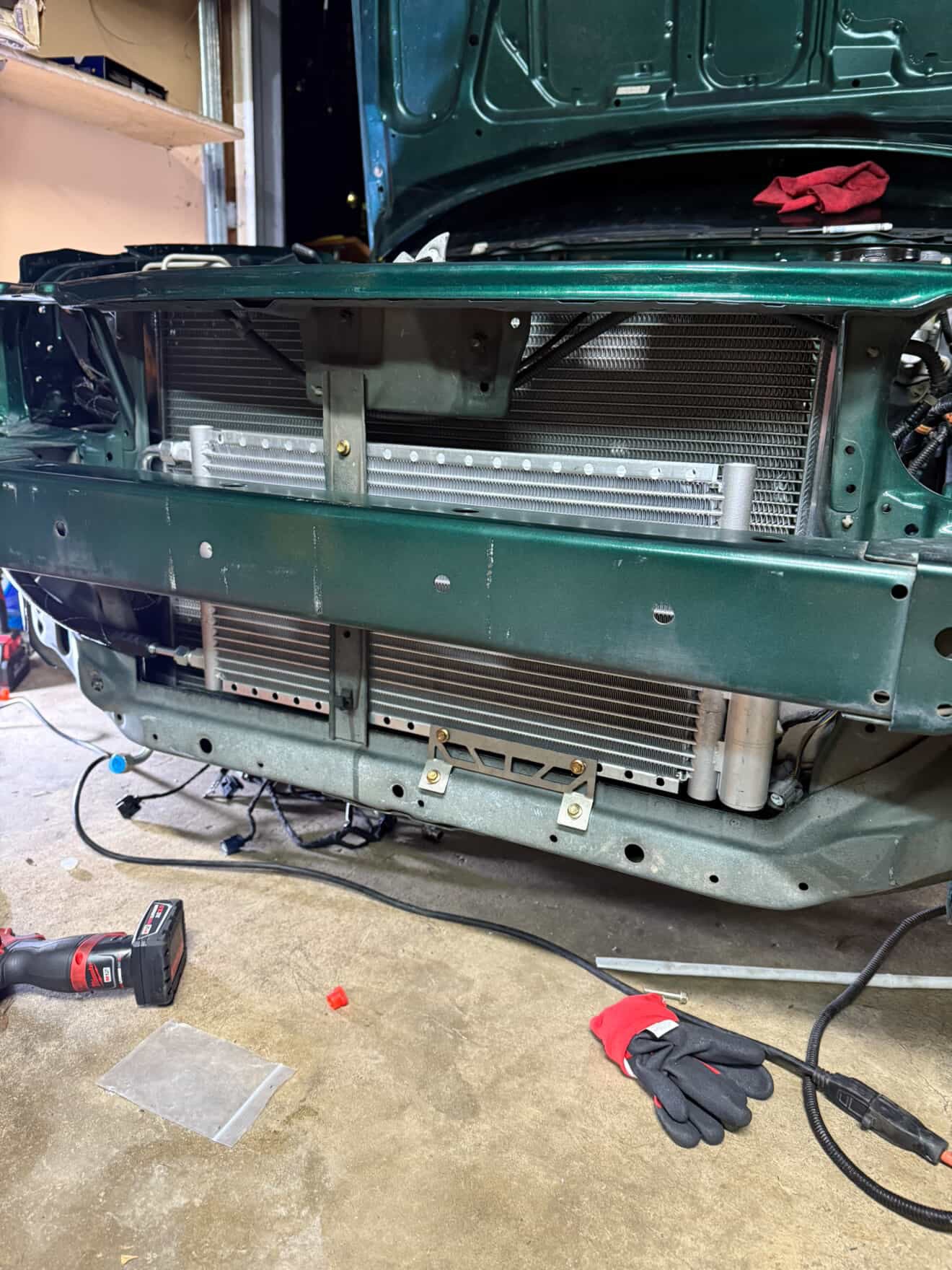

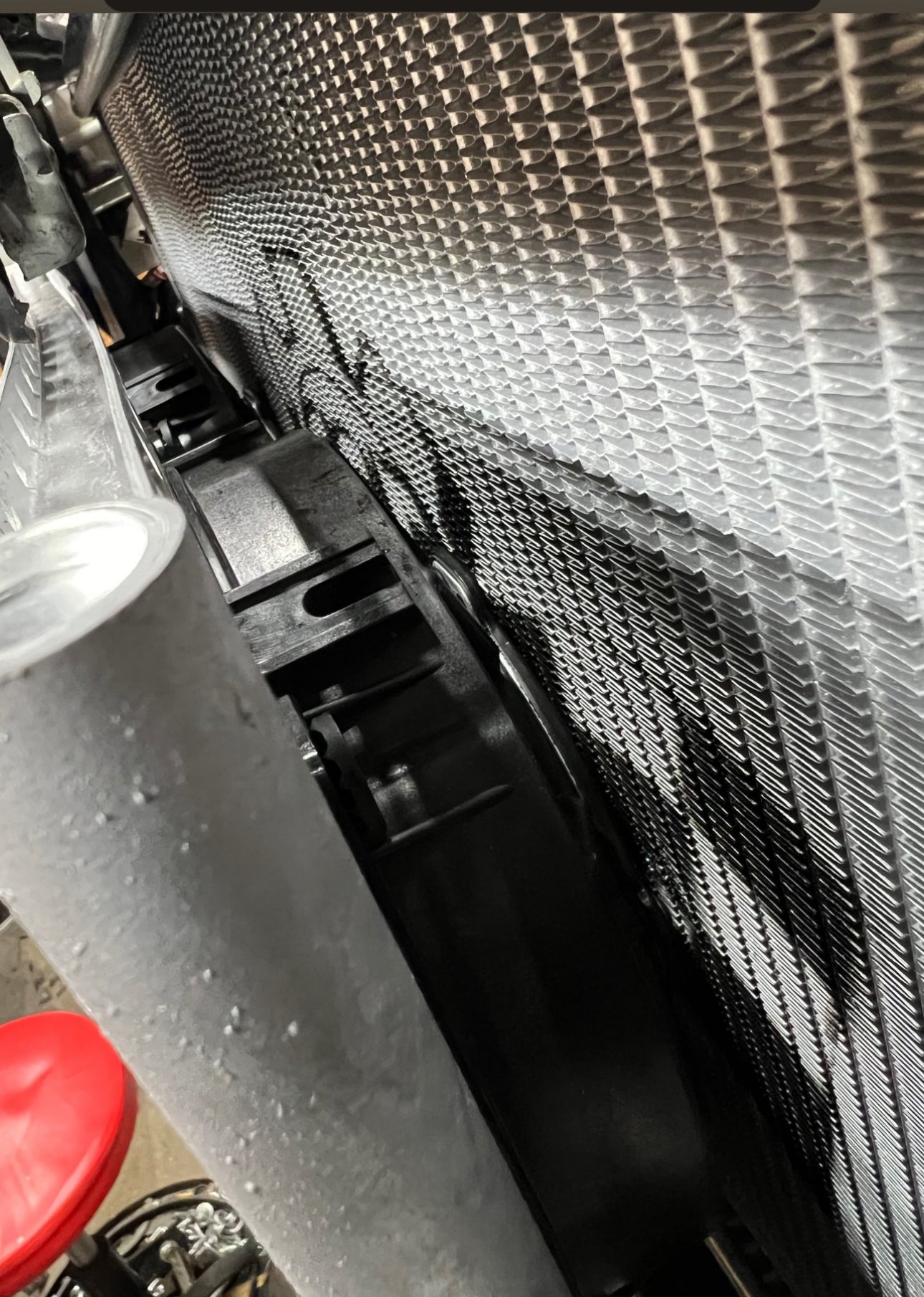

Our condenser does require 2 fans to keep the temperatures down. Please only run spal part number IX-30100394 we don’t supply fans with our kit.
What belt do I use with this setup?
If you do not plan on keeping power steering you will need to purchase a K20A3 02-05 Civic Si K20A3 pulley setup and belt. If you plan on running P/S you can use a stock K20A/A2/Z1 belt.

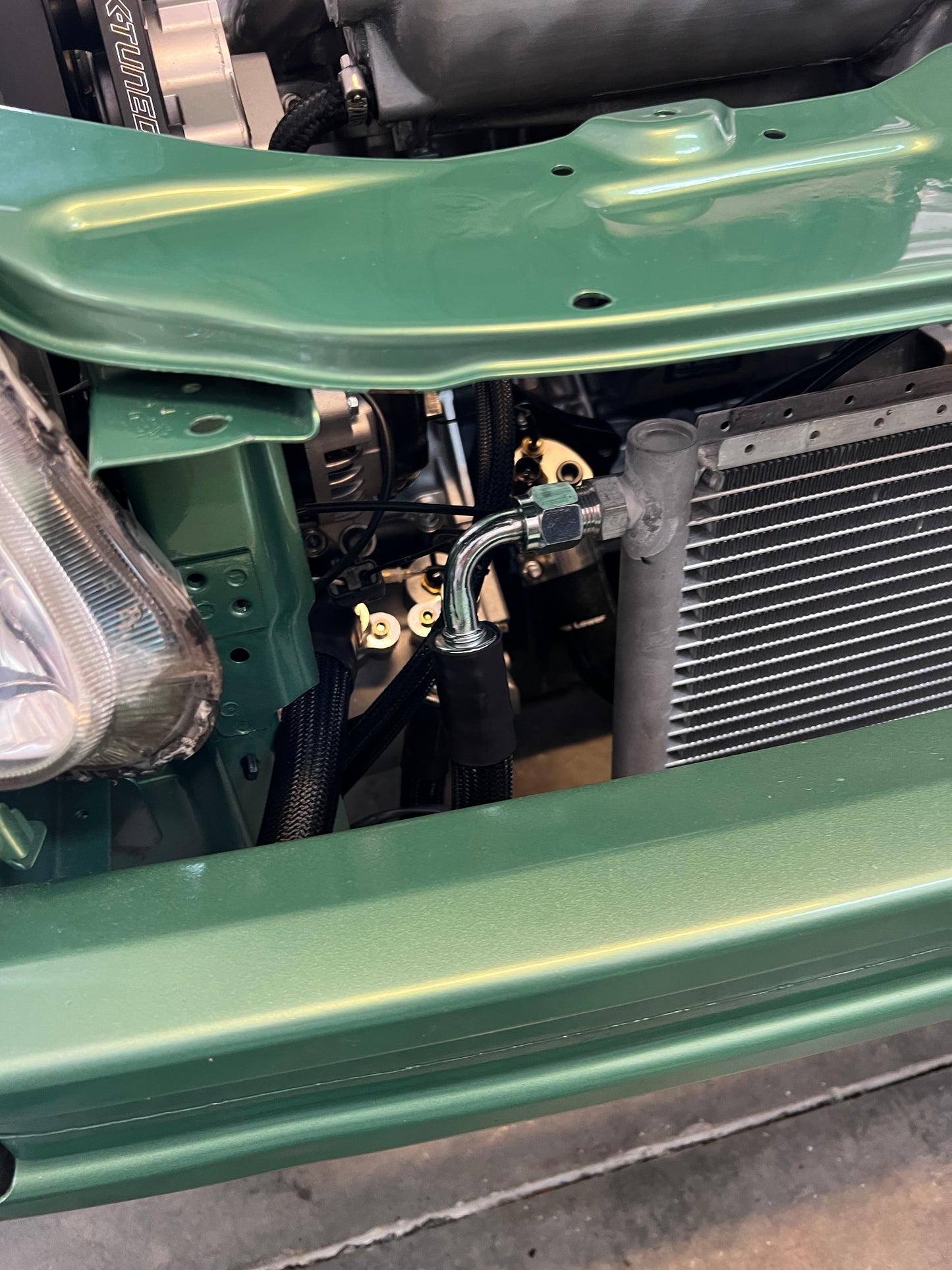

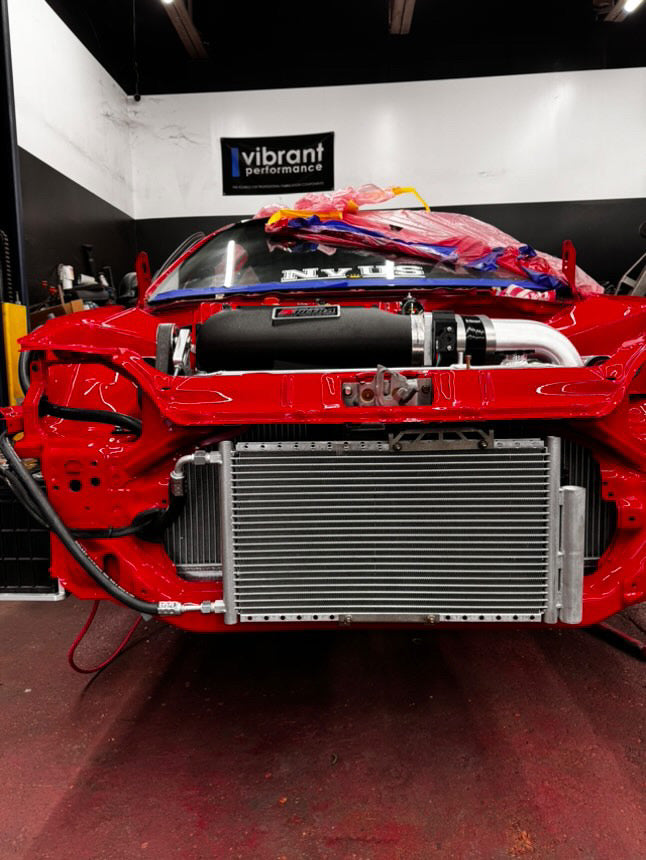

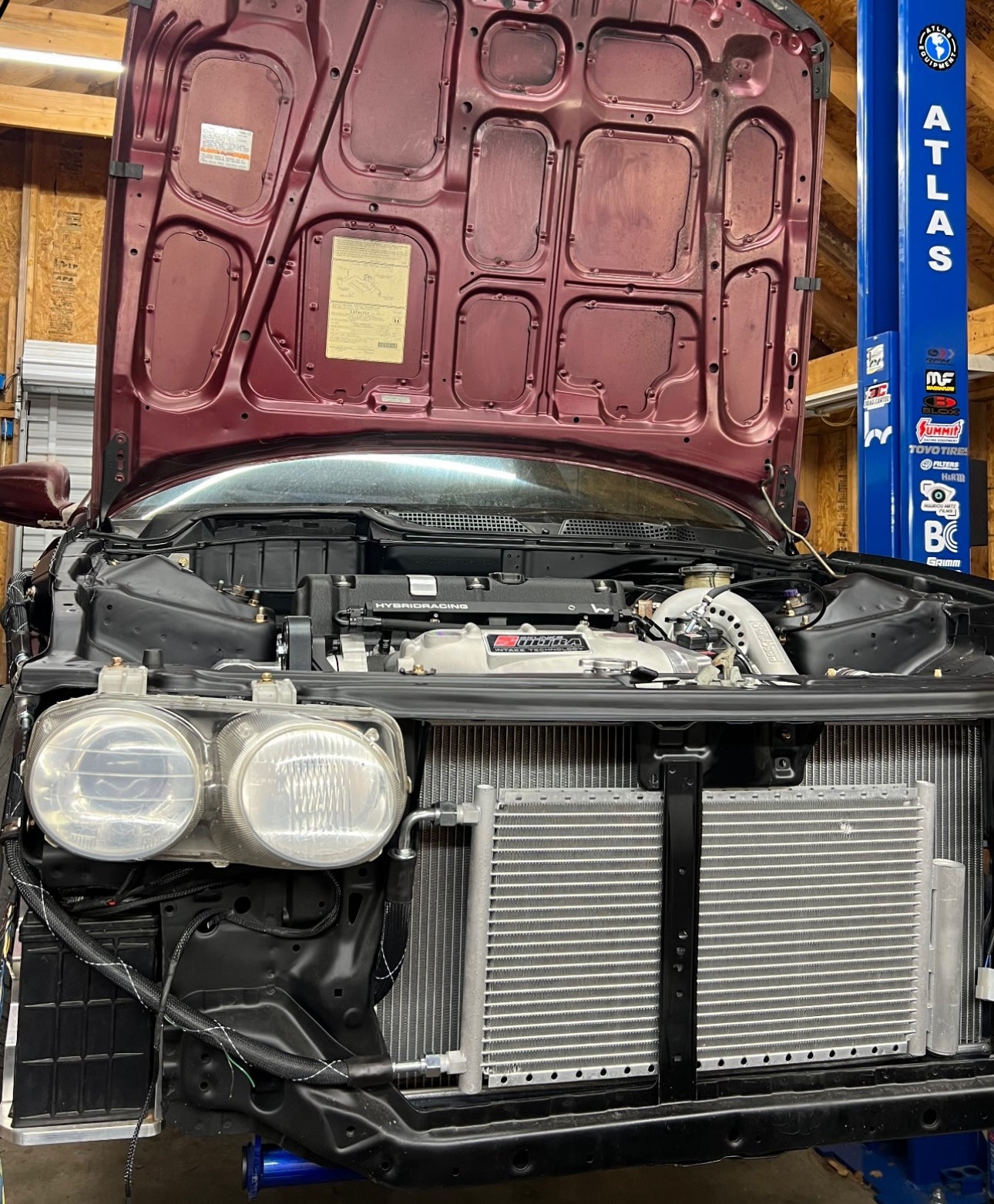

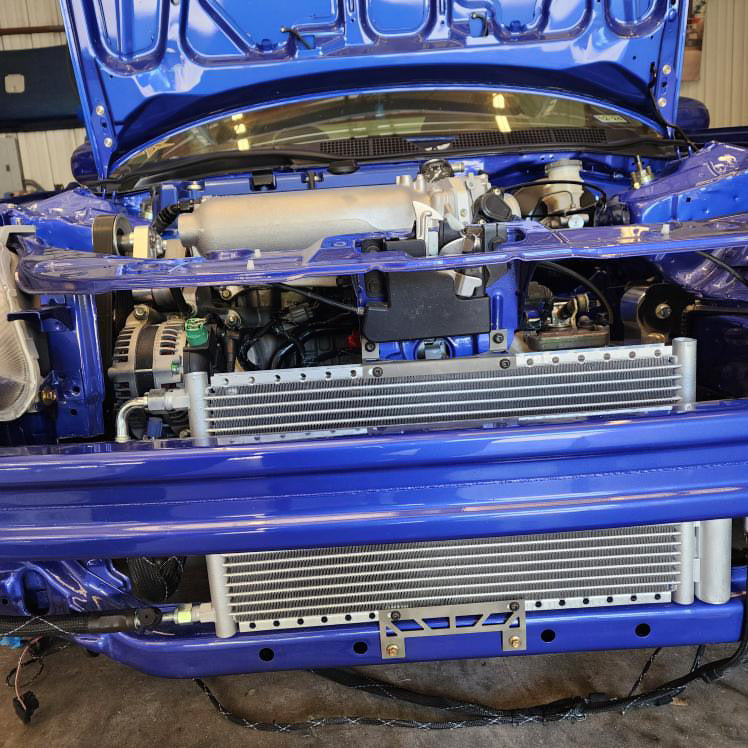

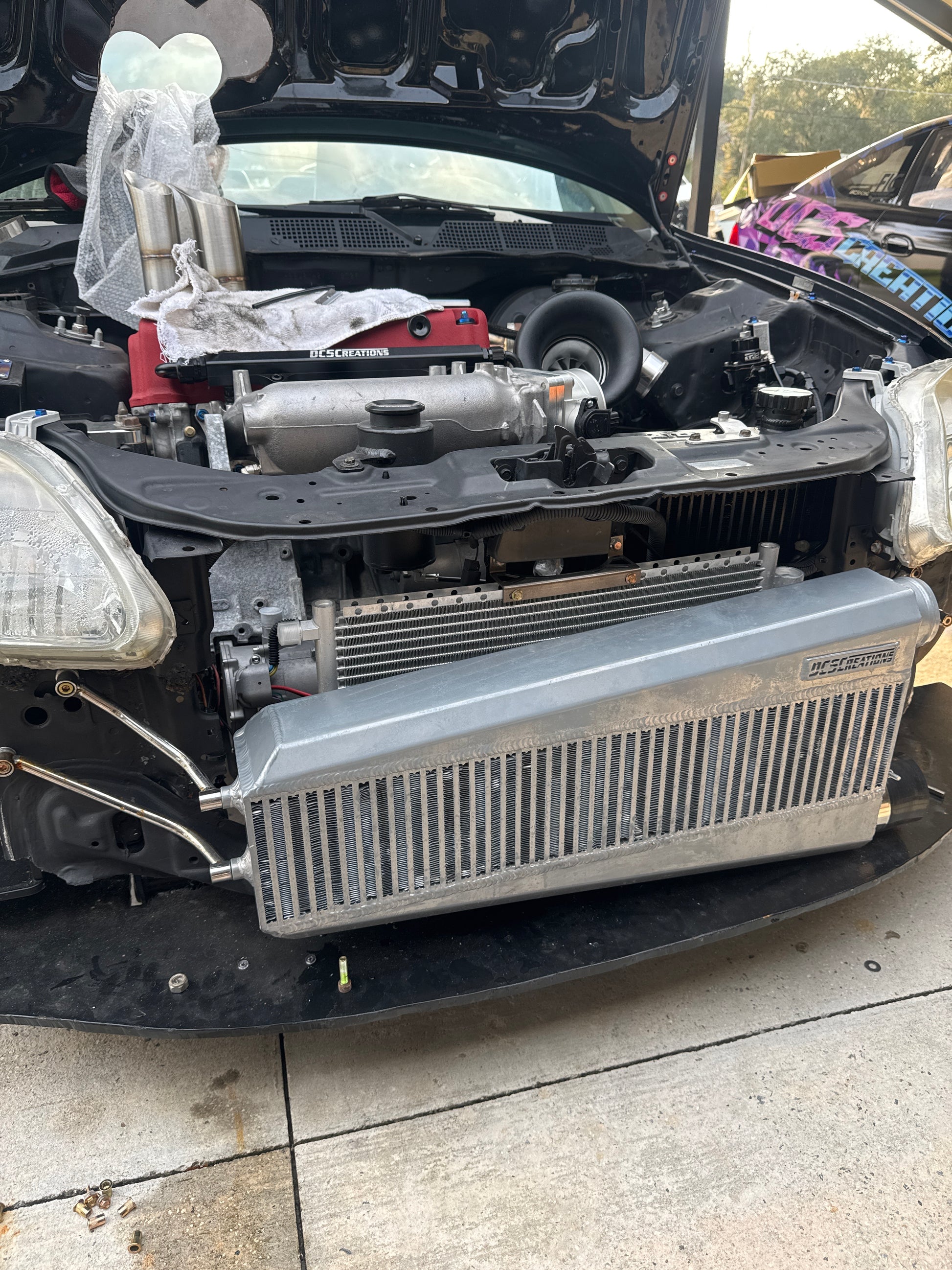

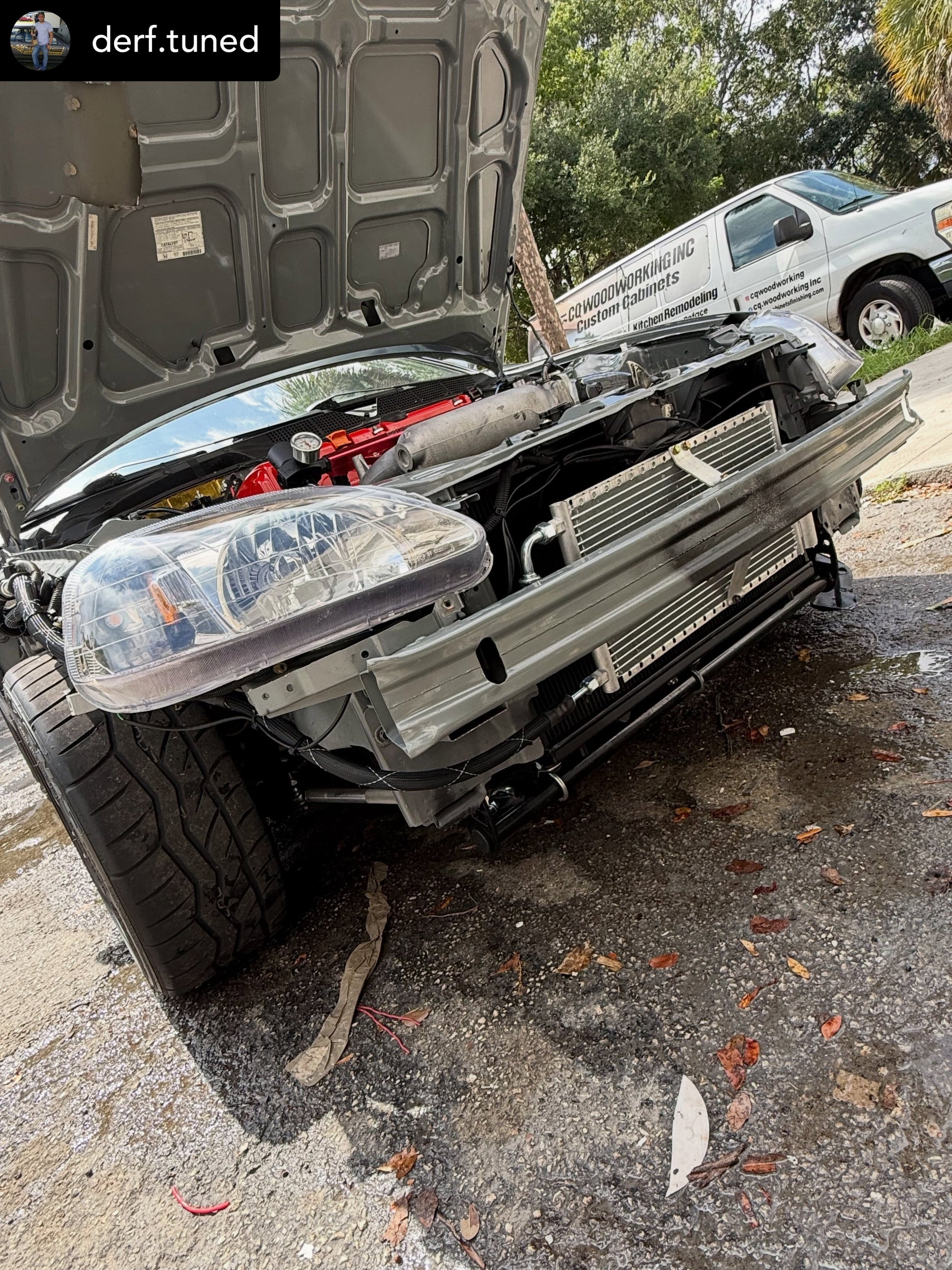

What condenser do I use?

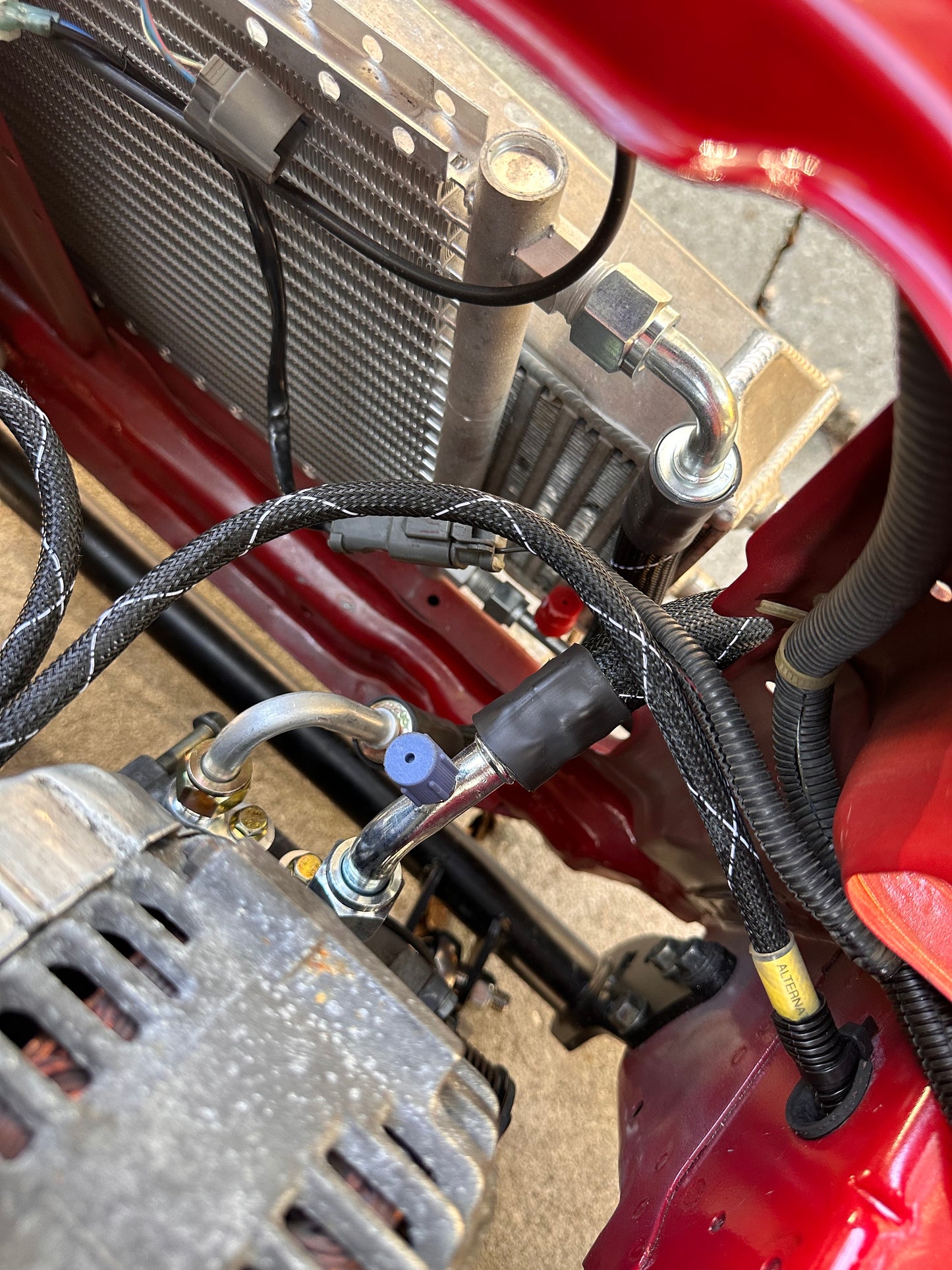

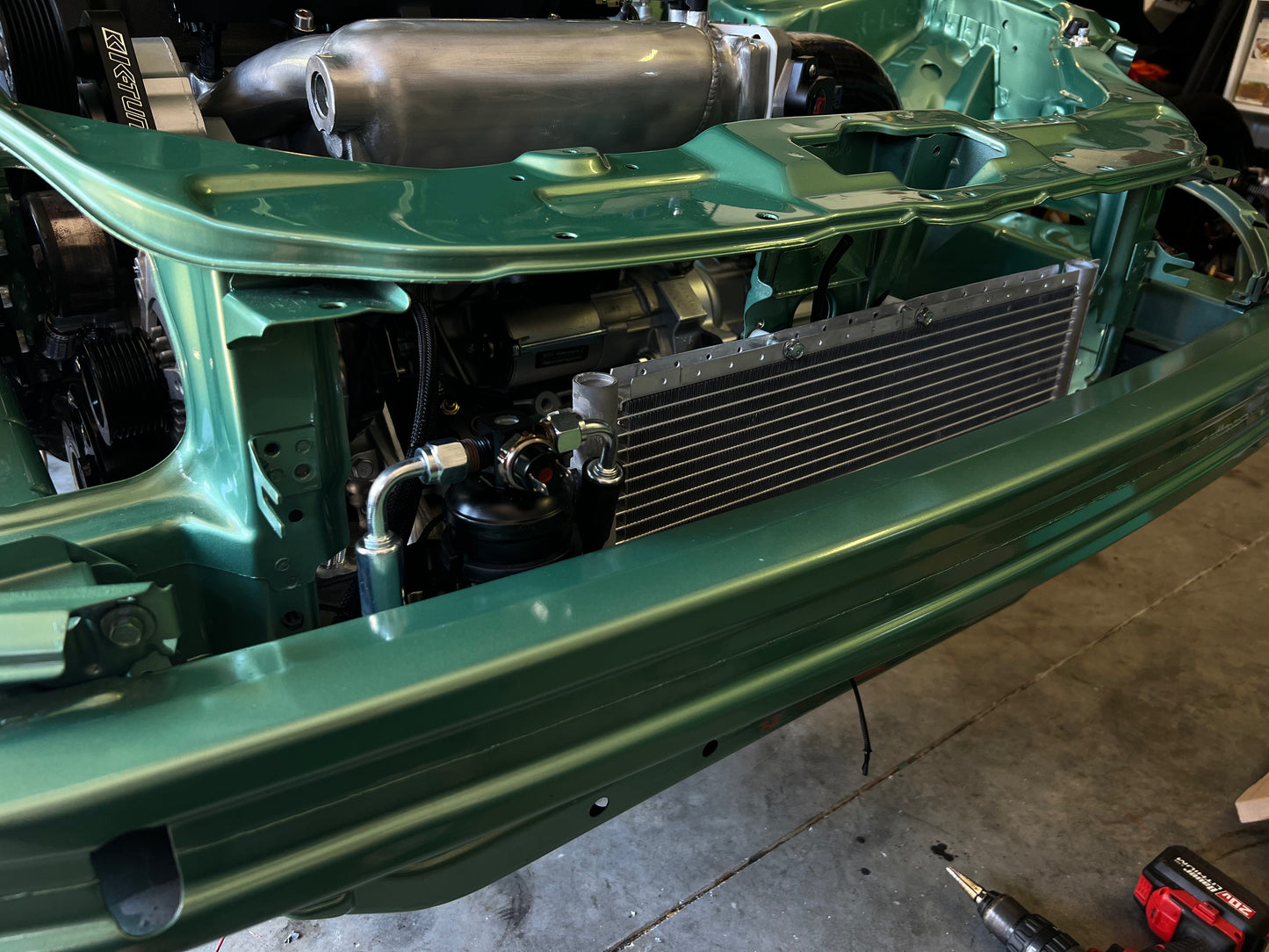

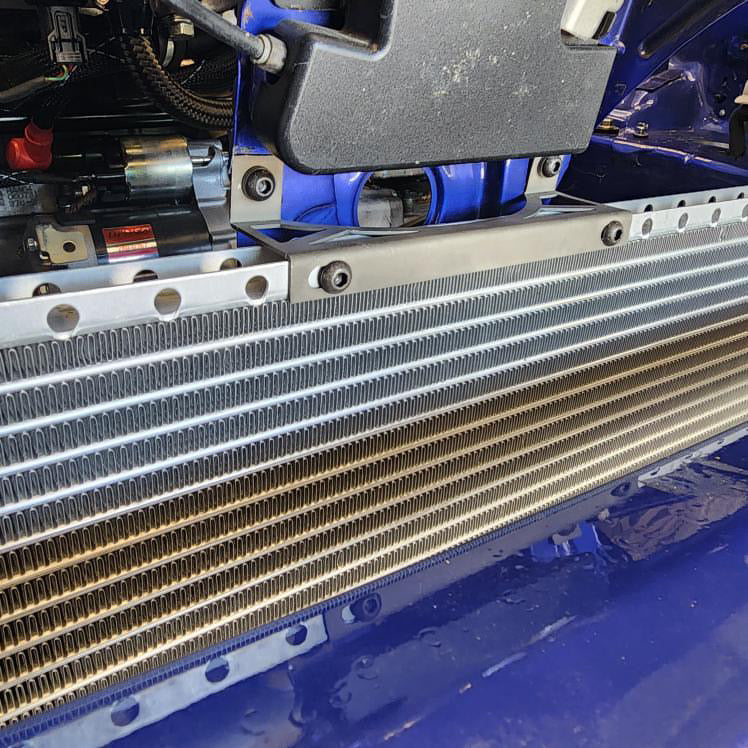

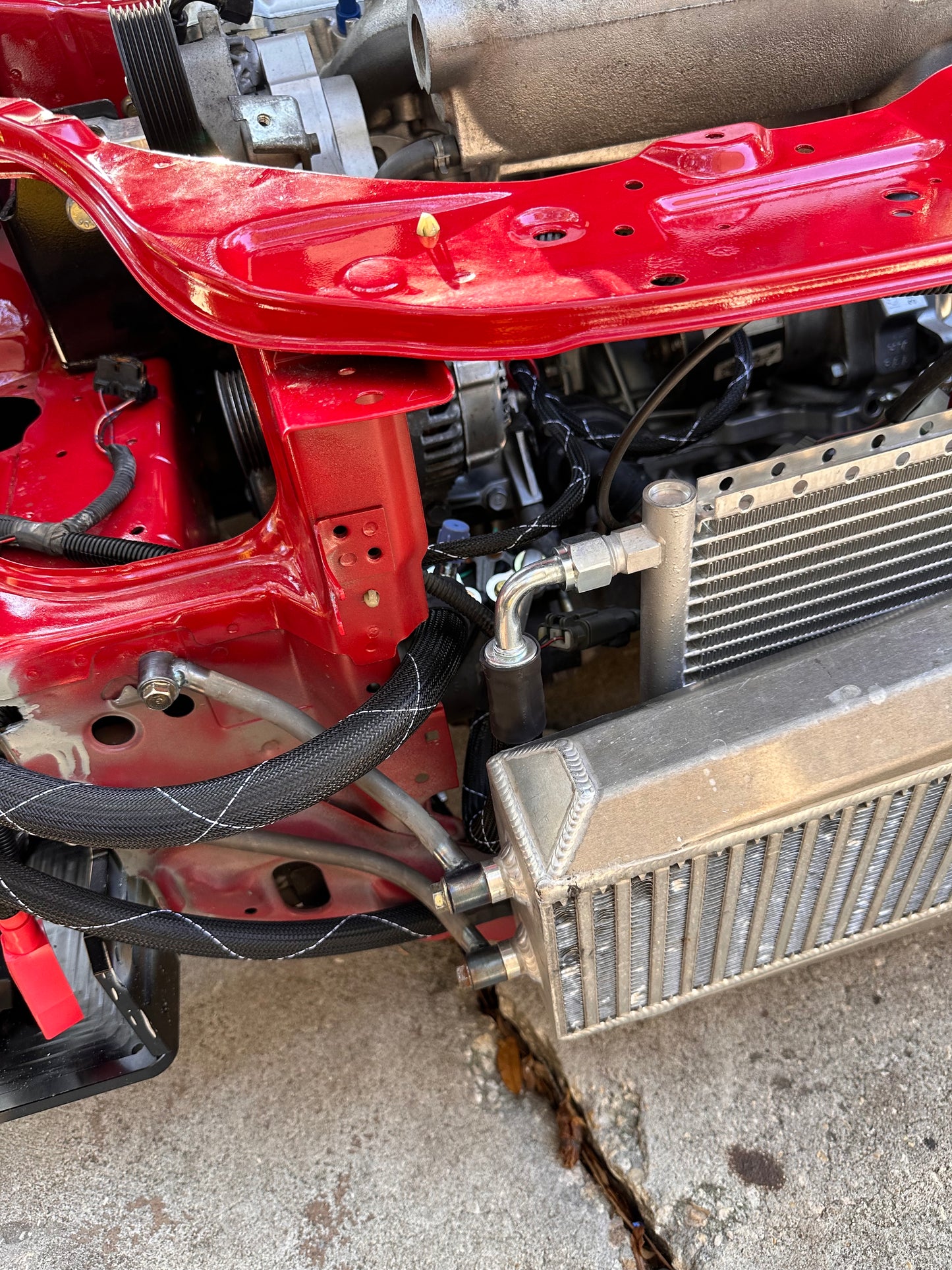

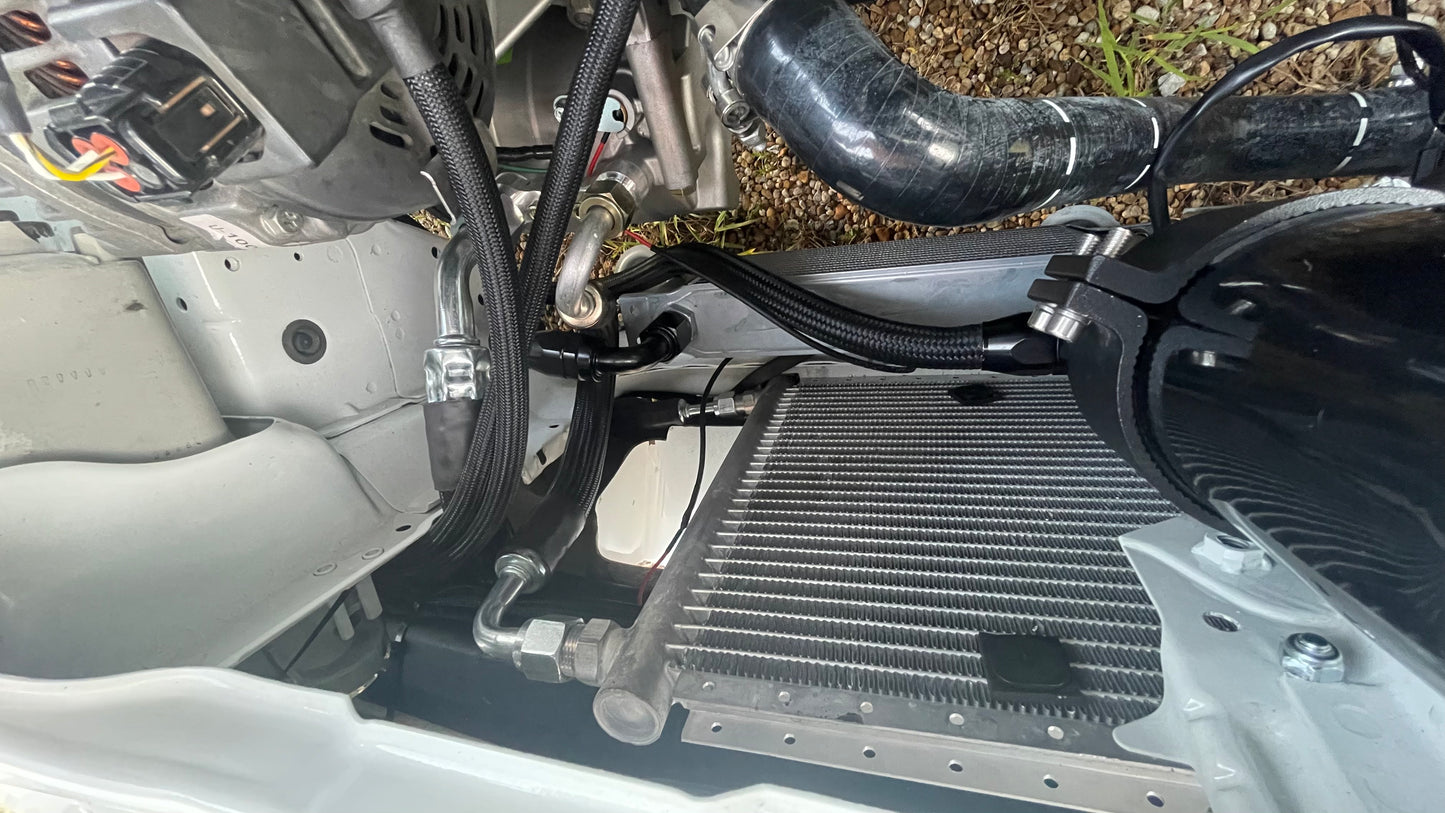

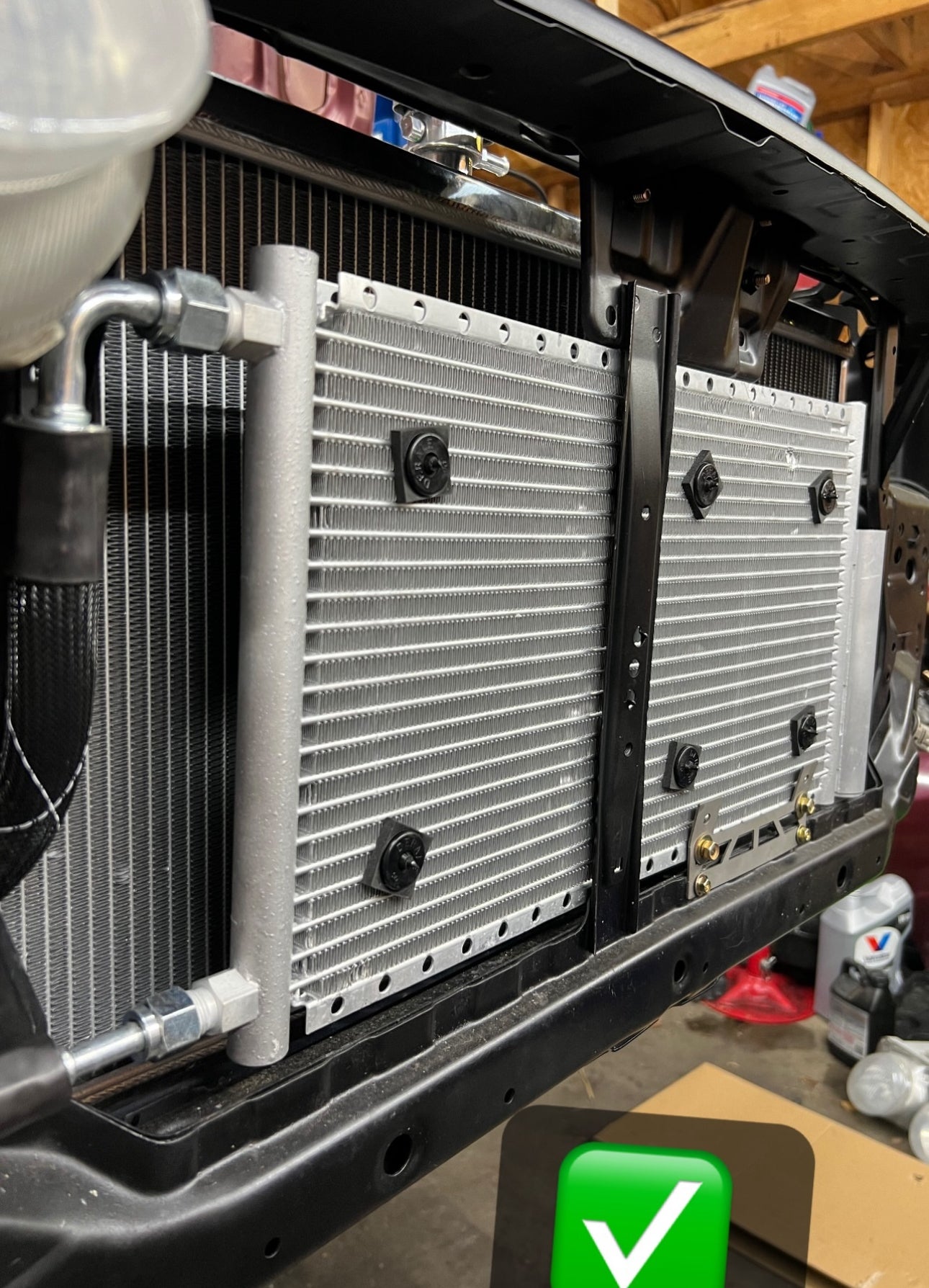

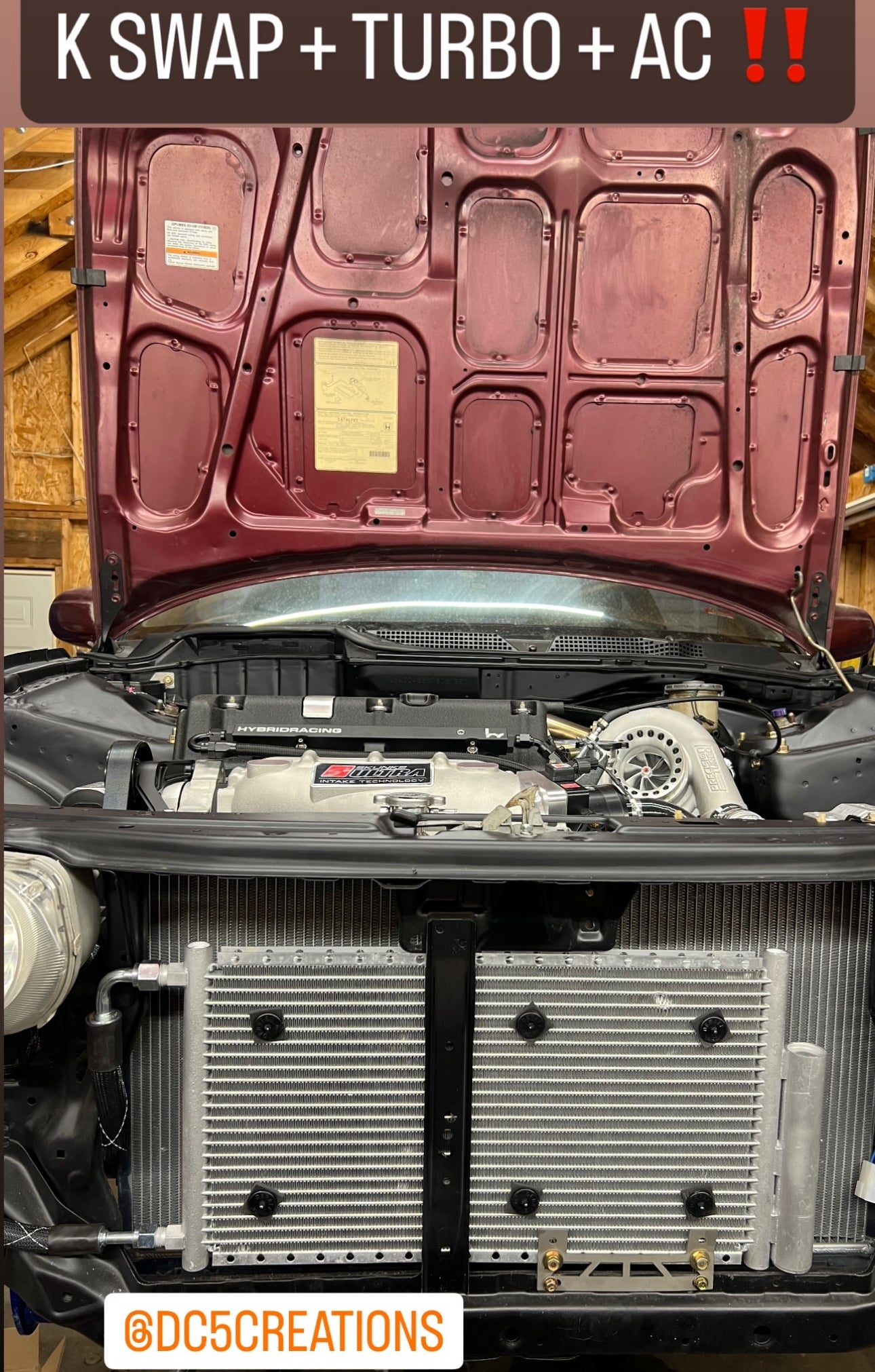

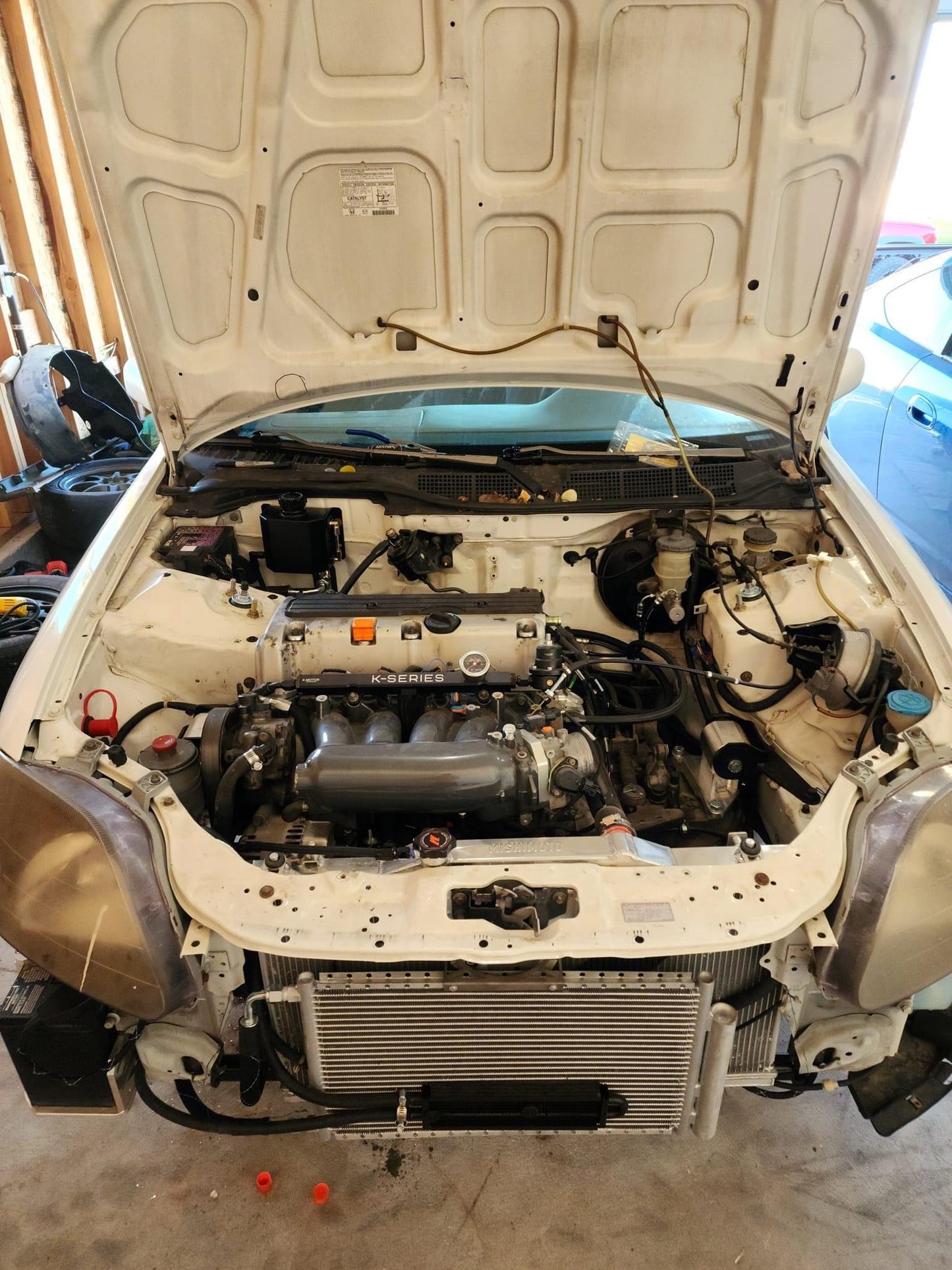

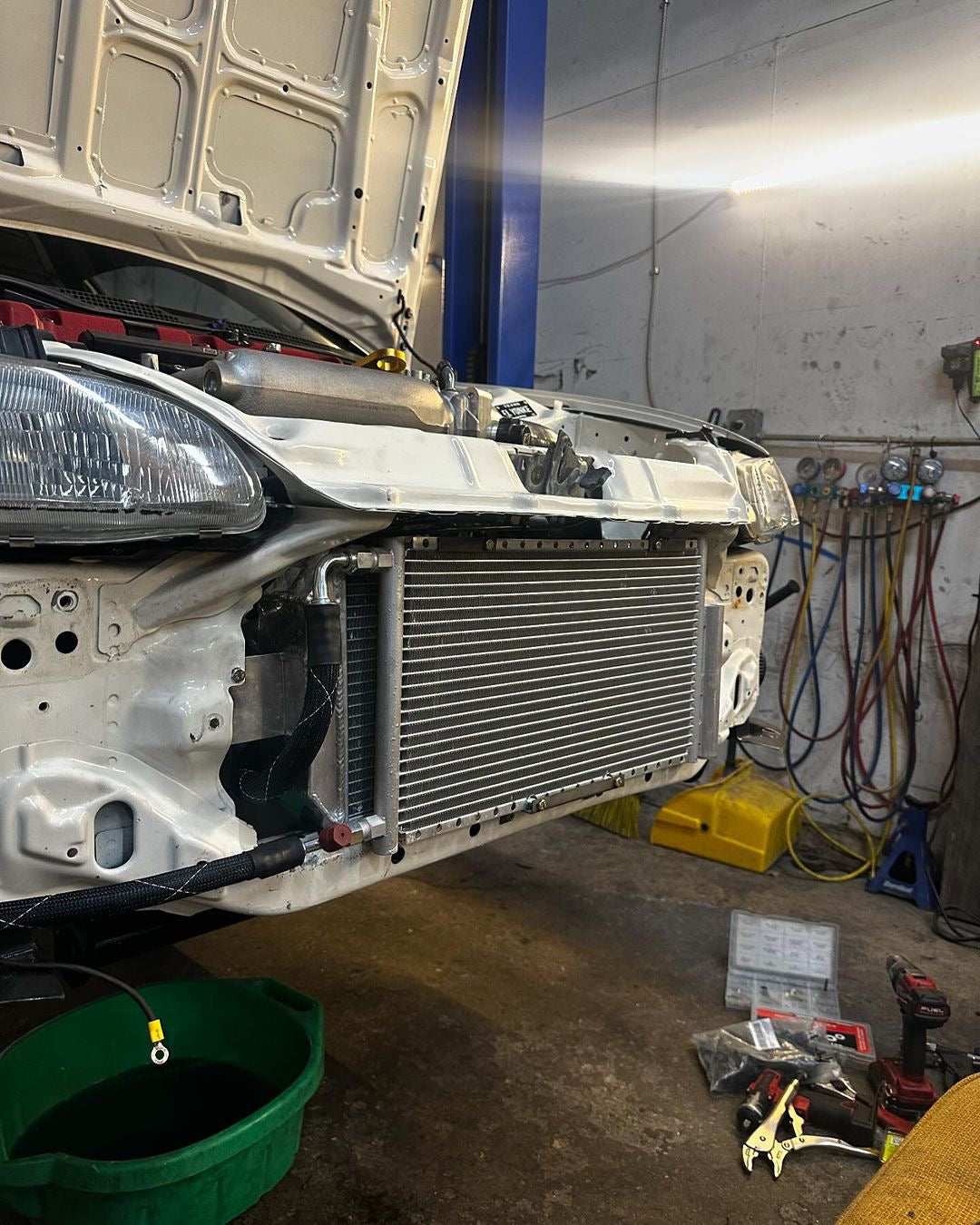

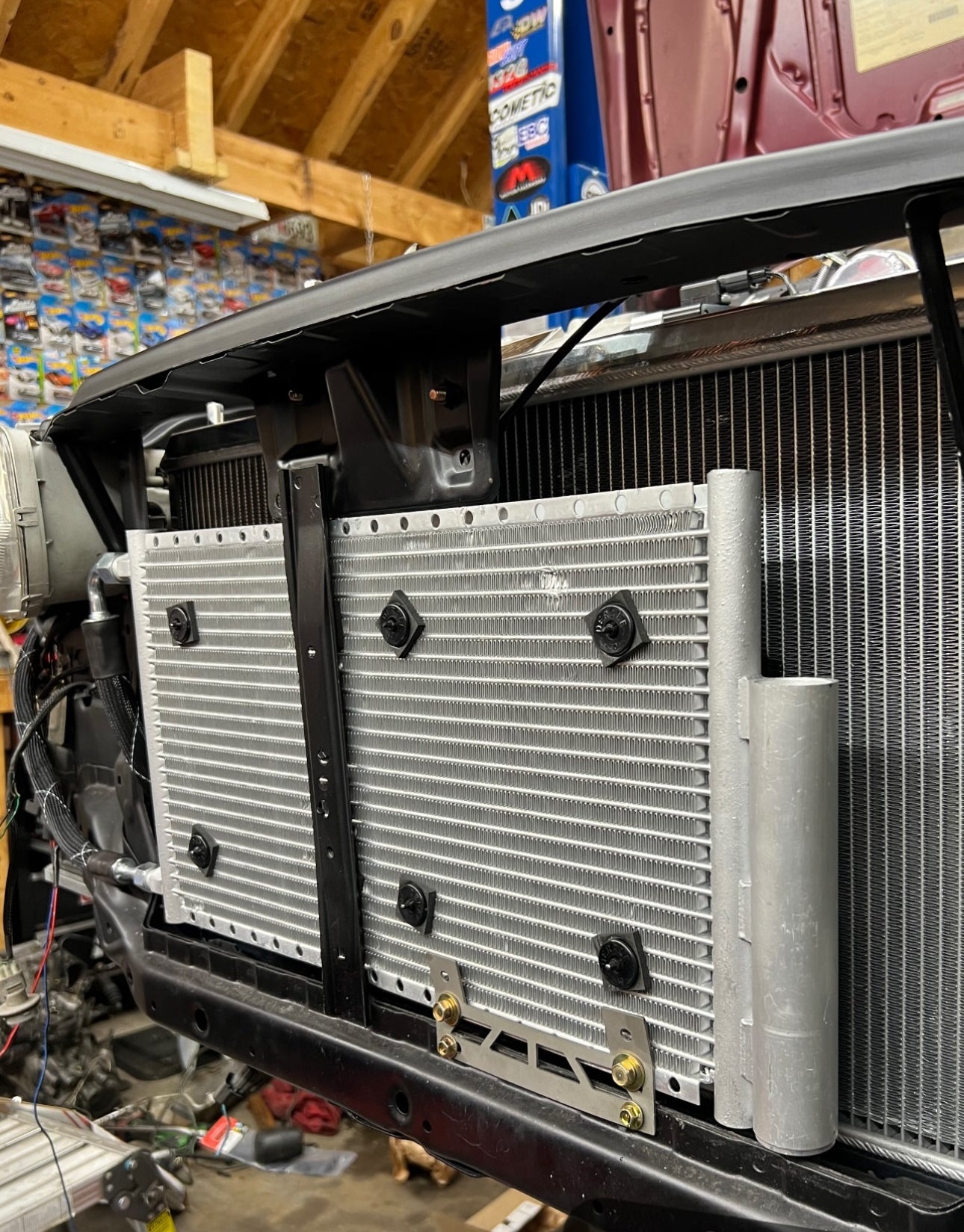

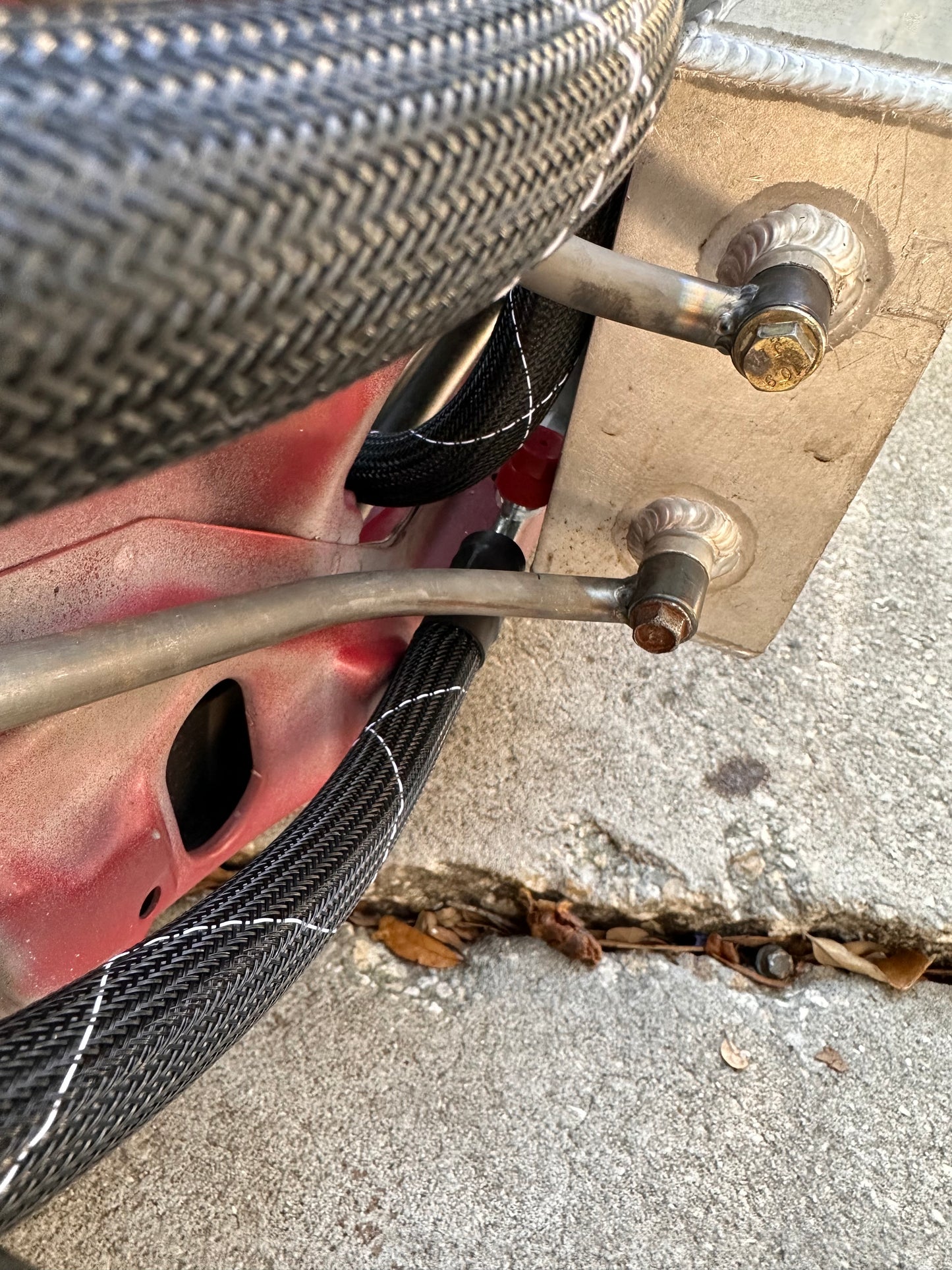

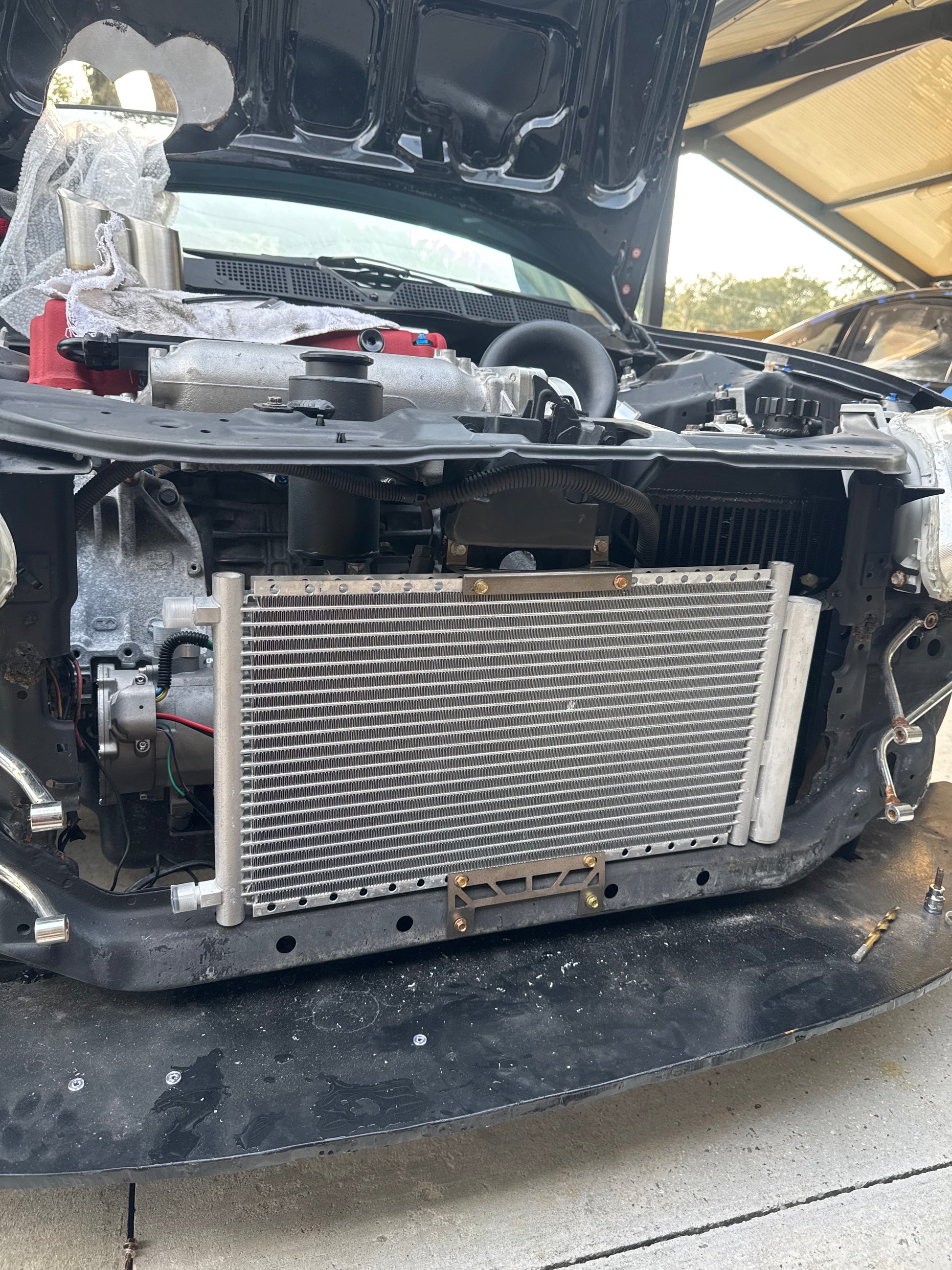

We supply you with our custom spec condenser with built in drier.
EG (92–95 Civic) ~20–22 oz (0.6–0.65 kg)
EK (96–00 Civic)~20–24 oz (0.6–0.7 kg)
DC2 Integra (94–01 ~24–26 oz (0.7–0.75 kg)
Please watch our video before placing an order.

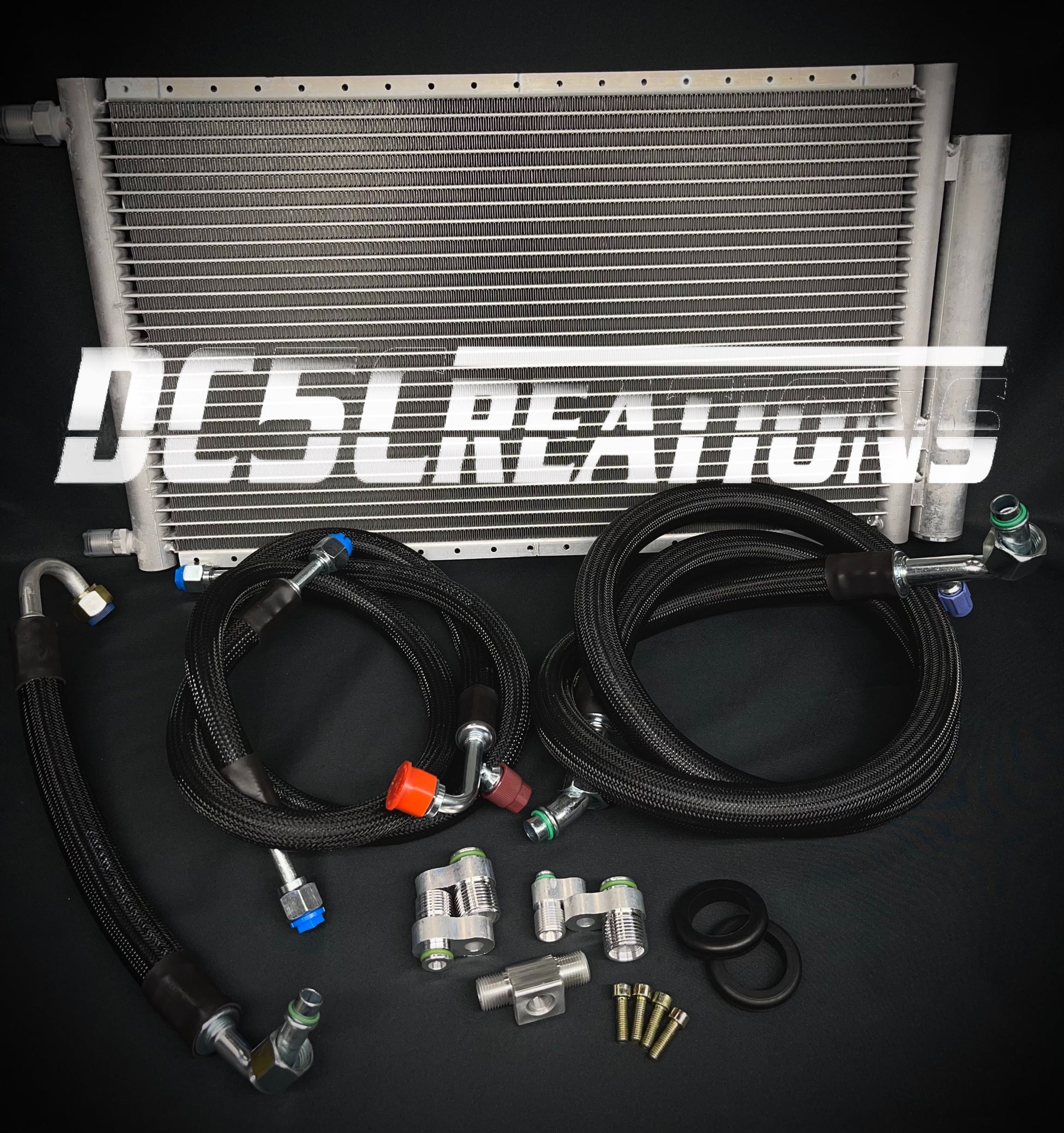

Complete kit includes
1x- Custom condenser with built in drier

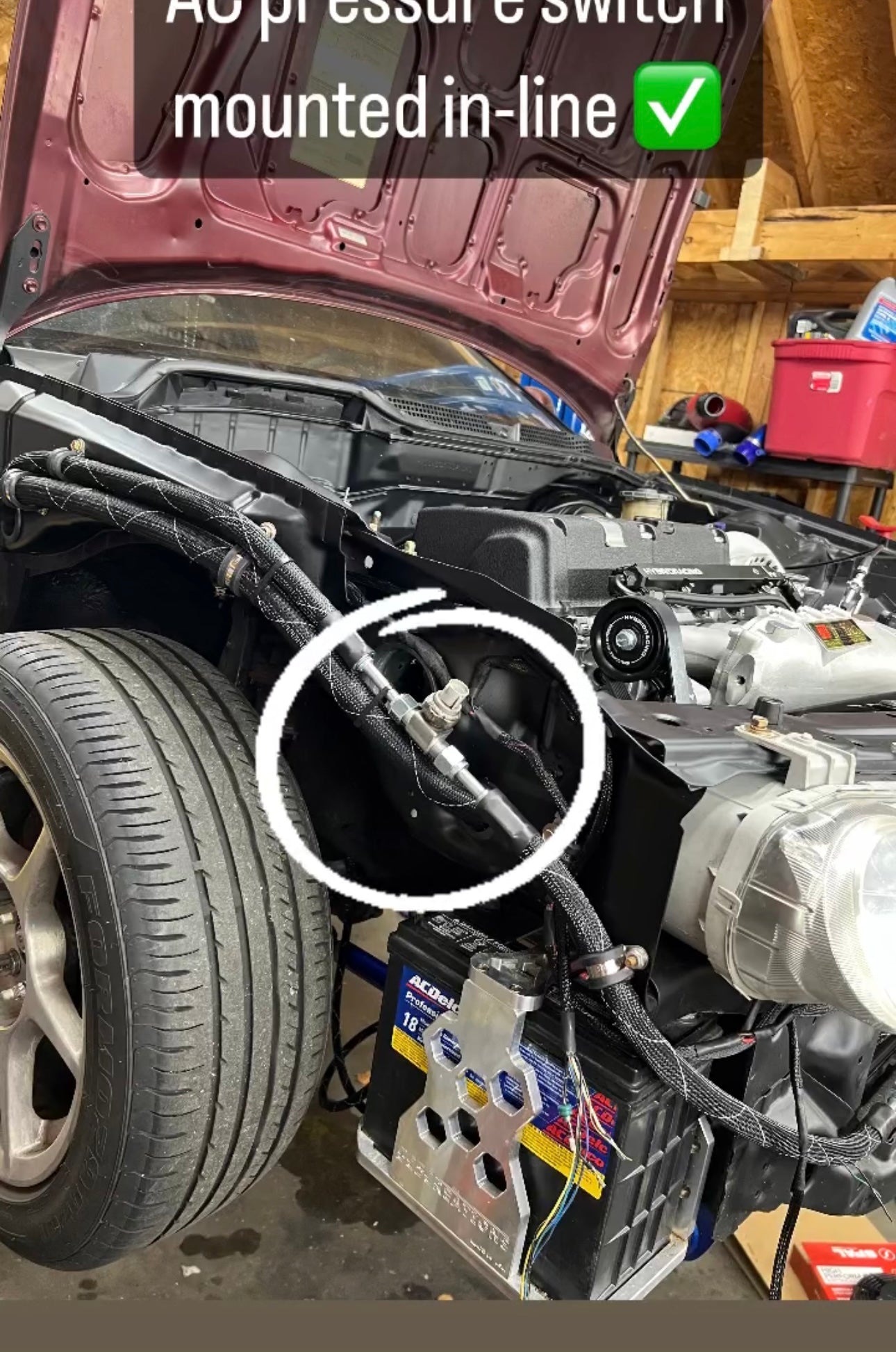

1x Billet ac pressure switch

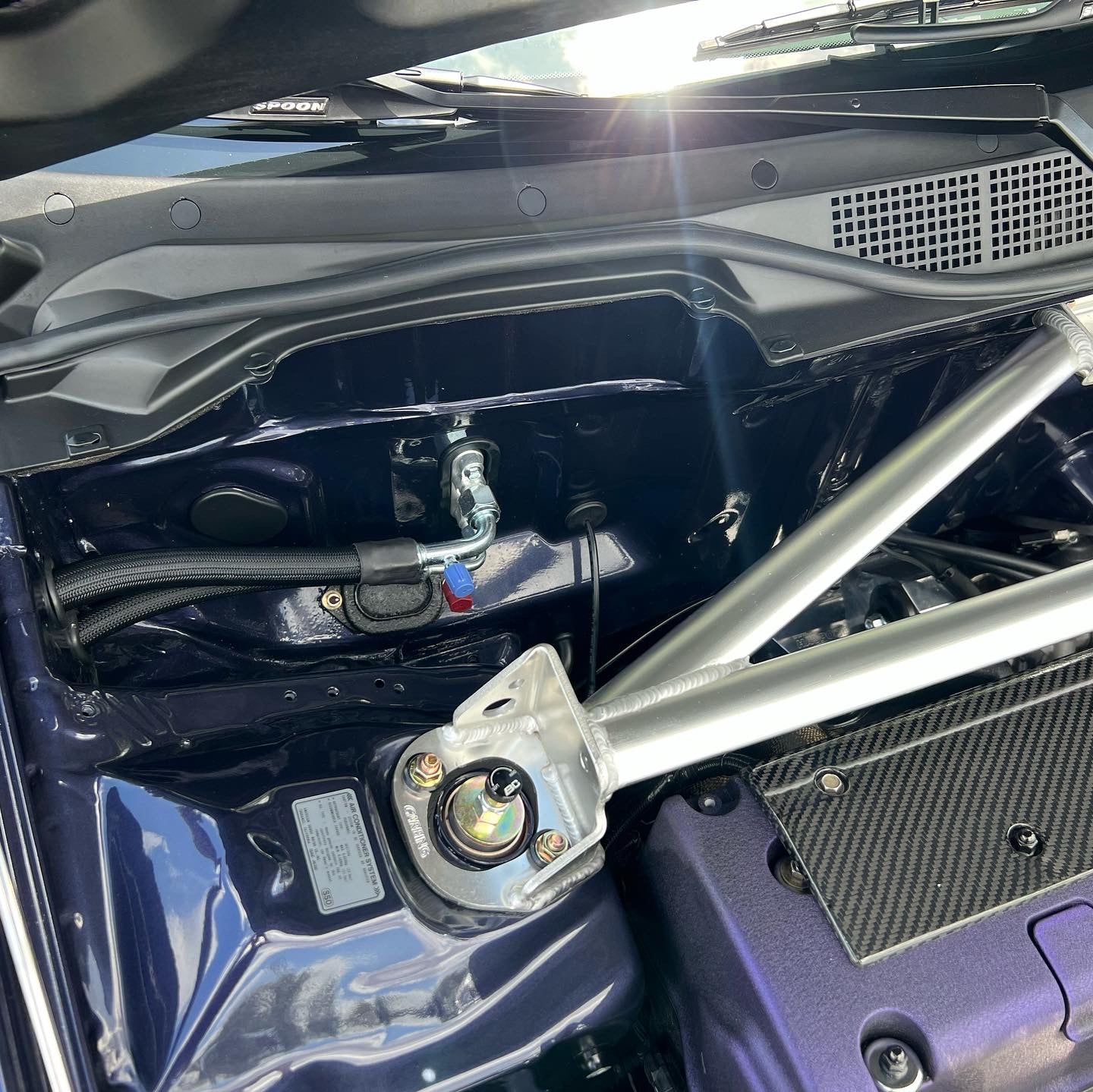

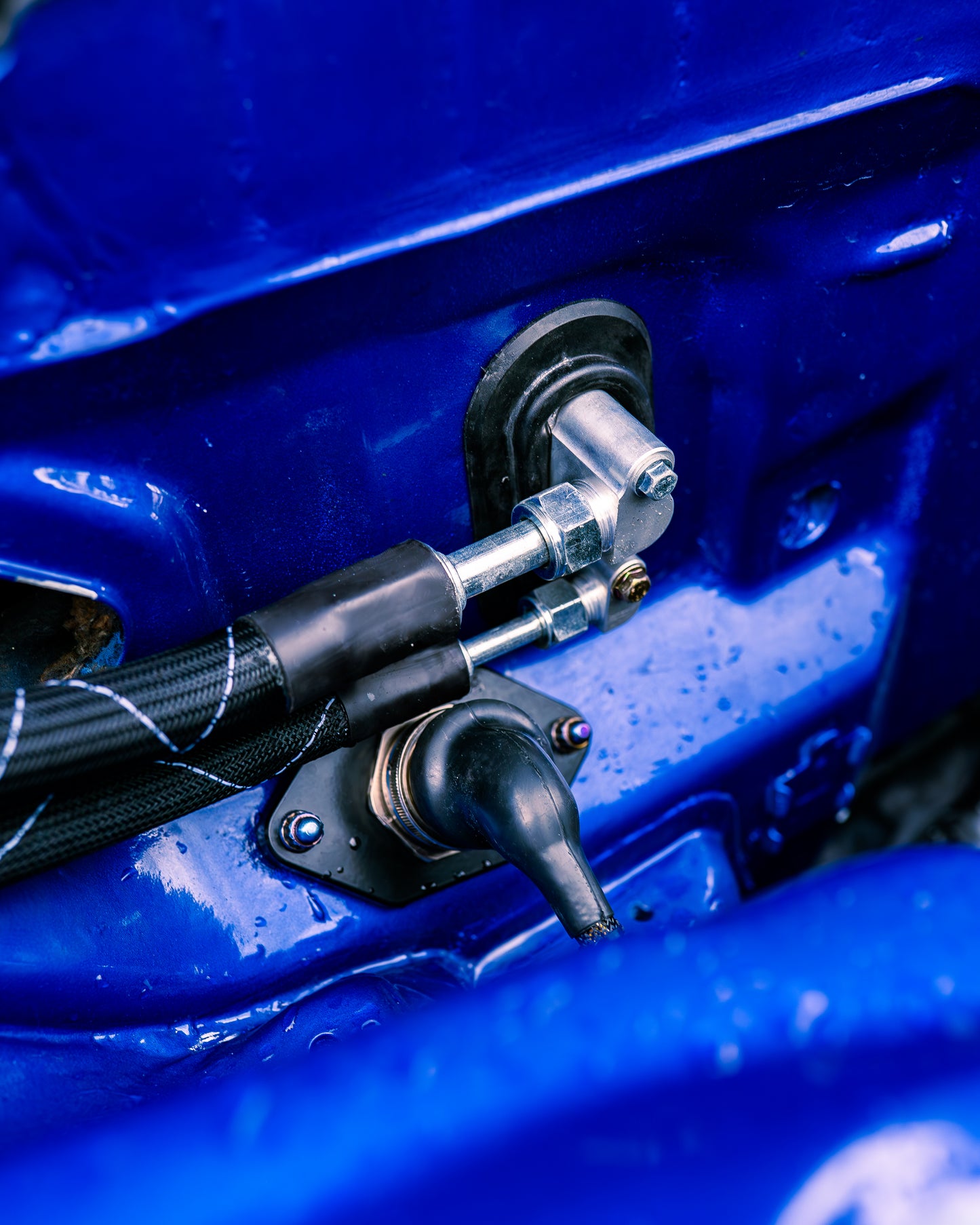

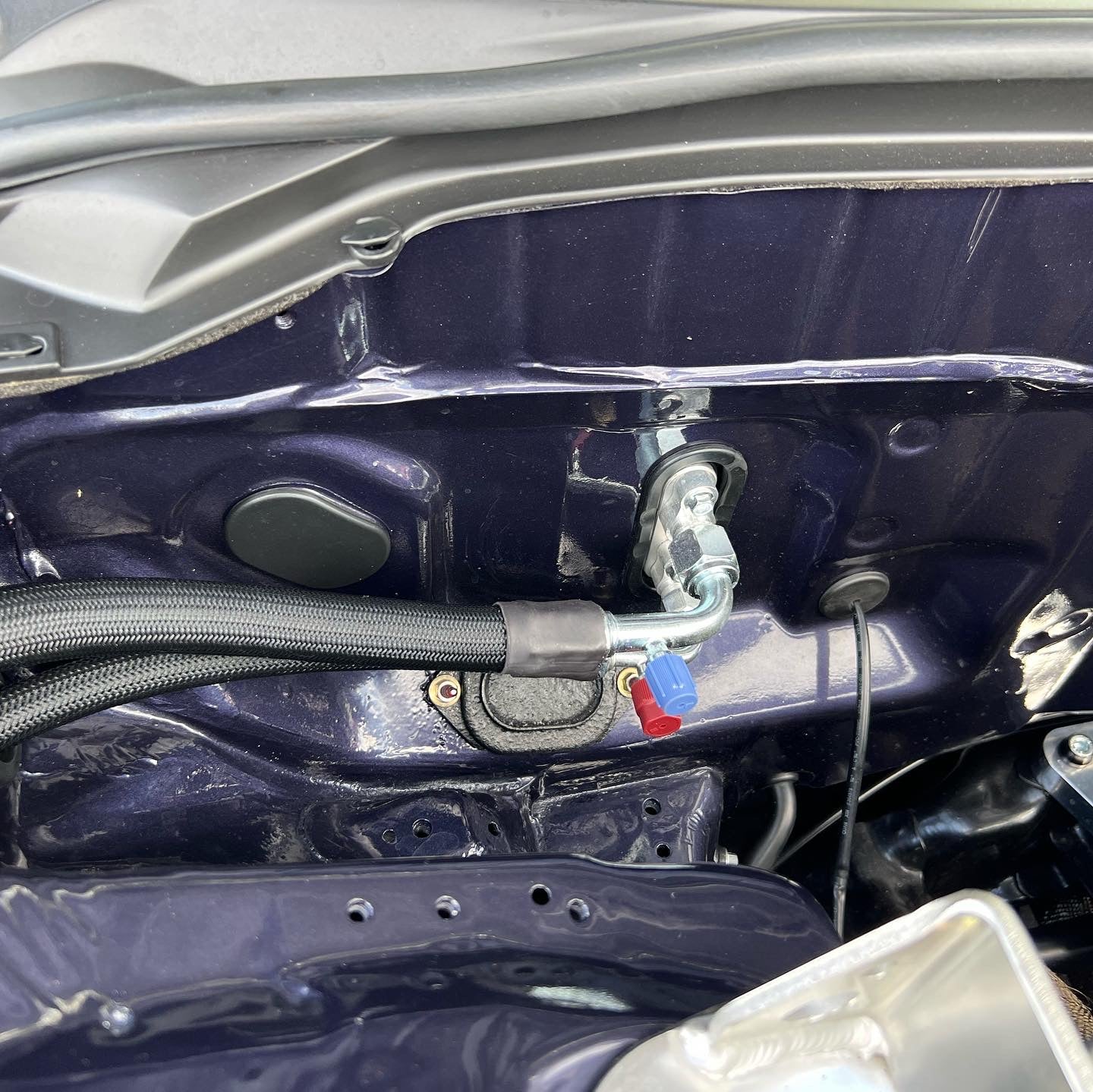

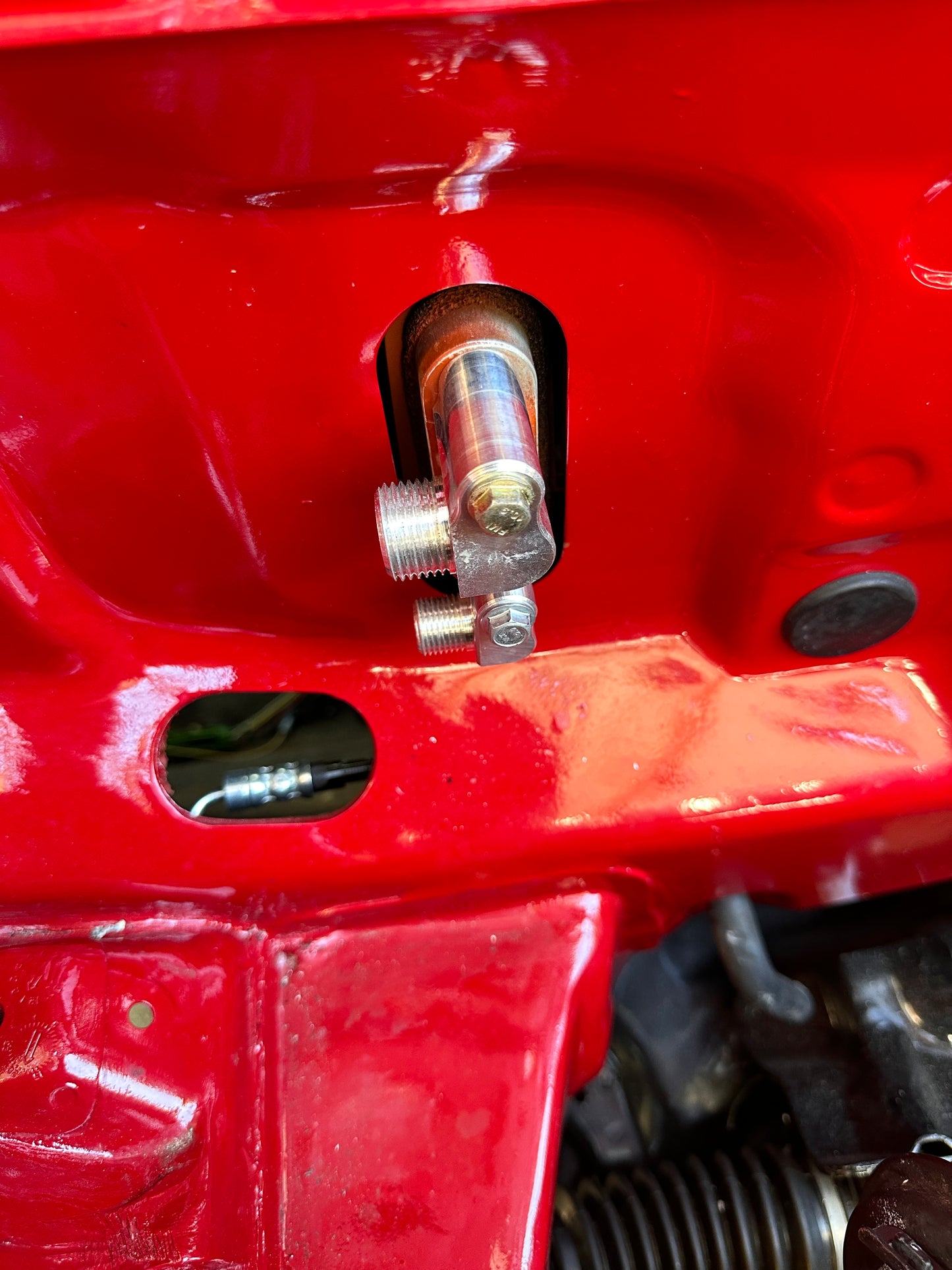

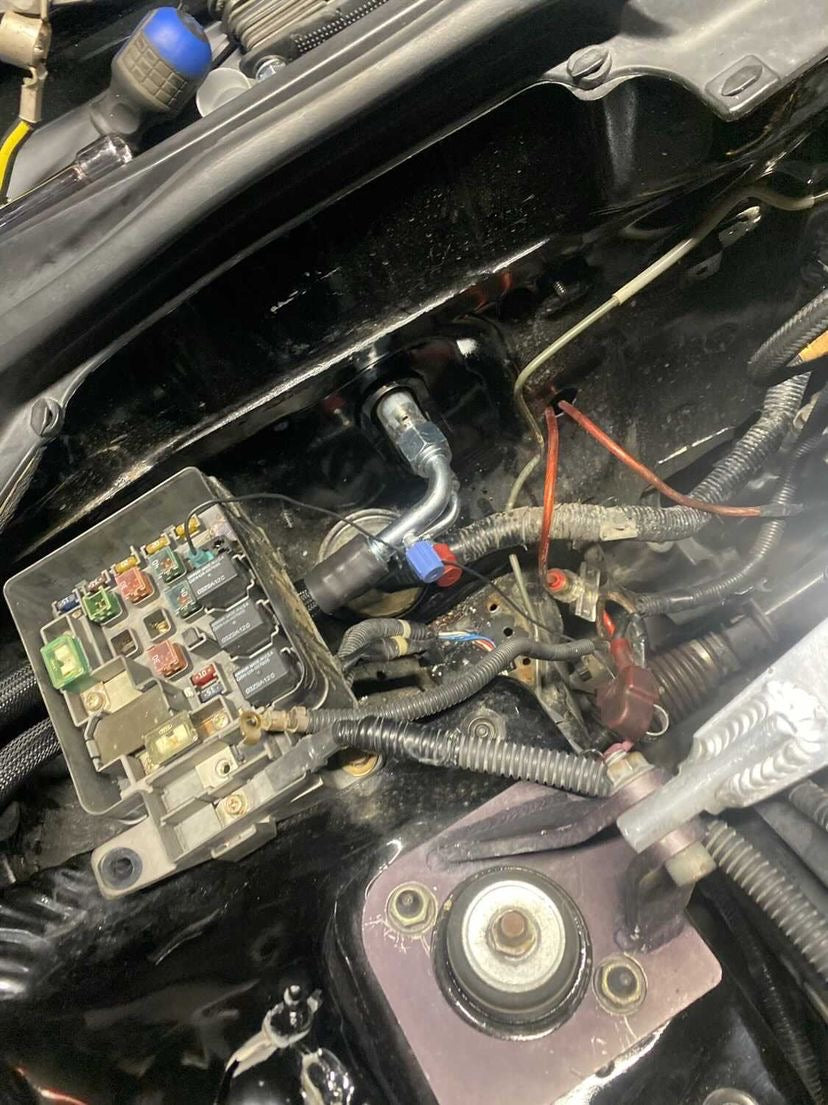

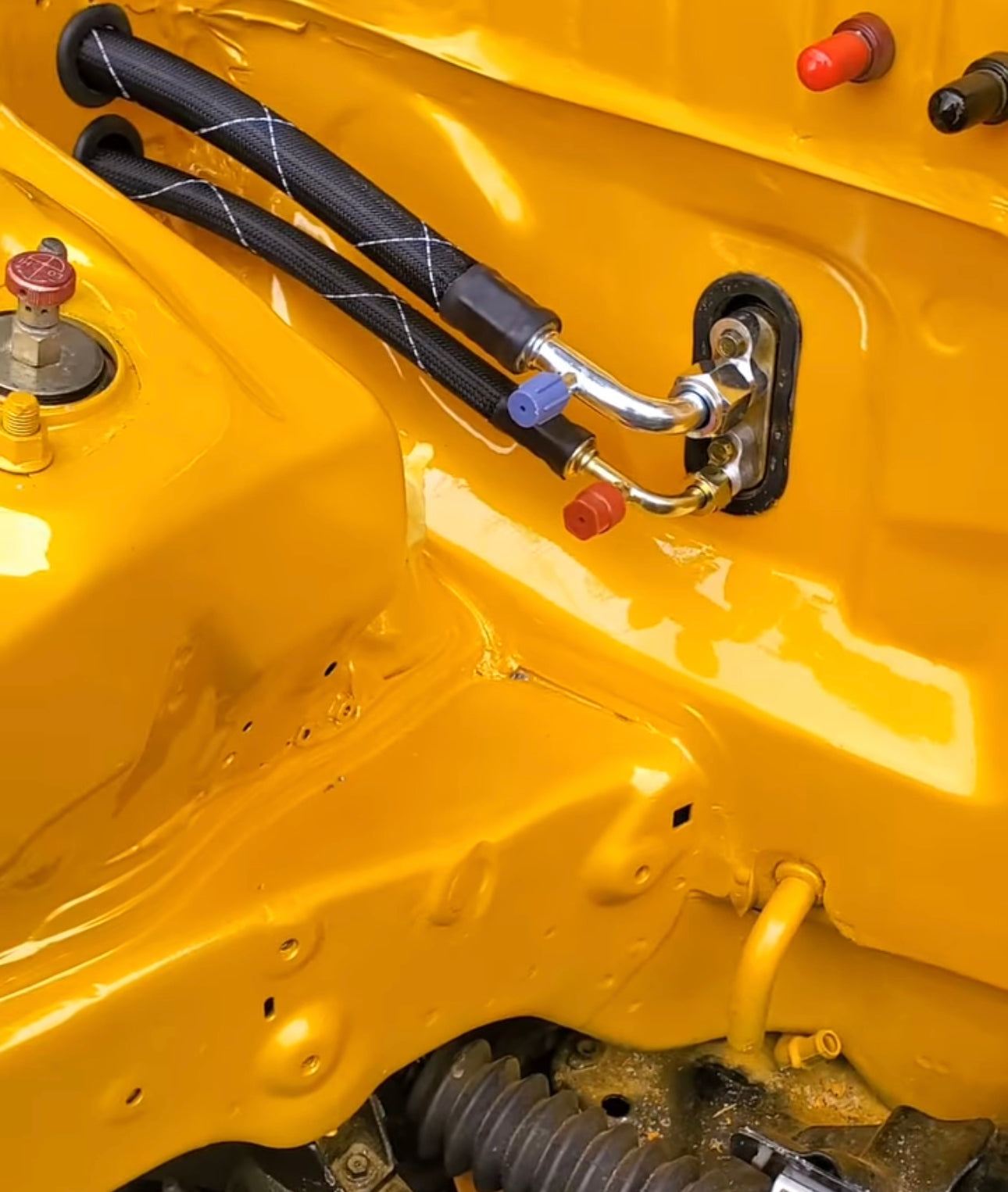

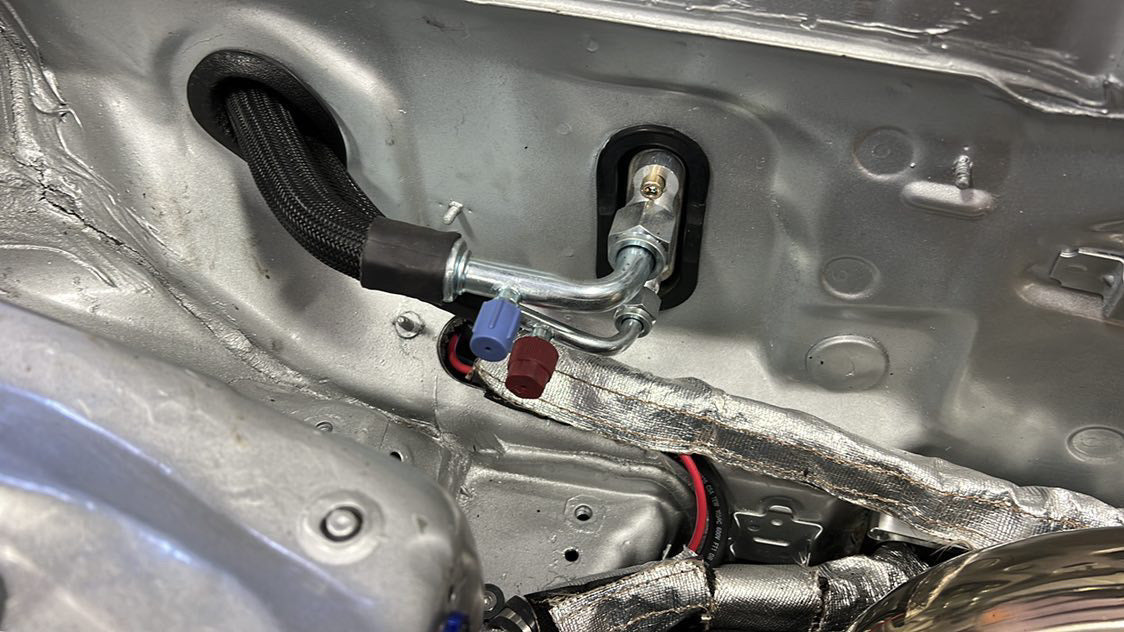

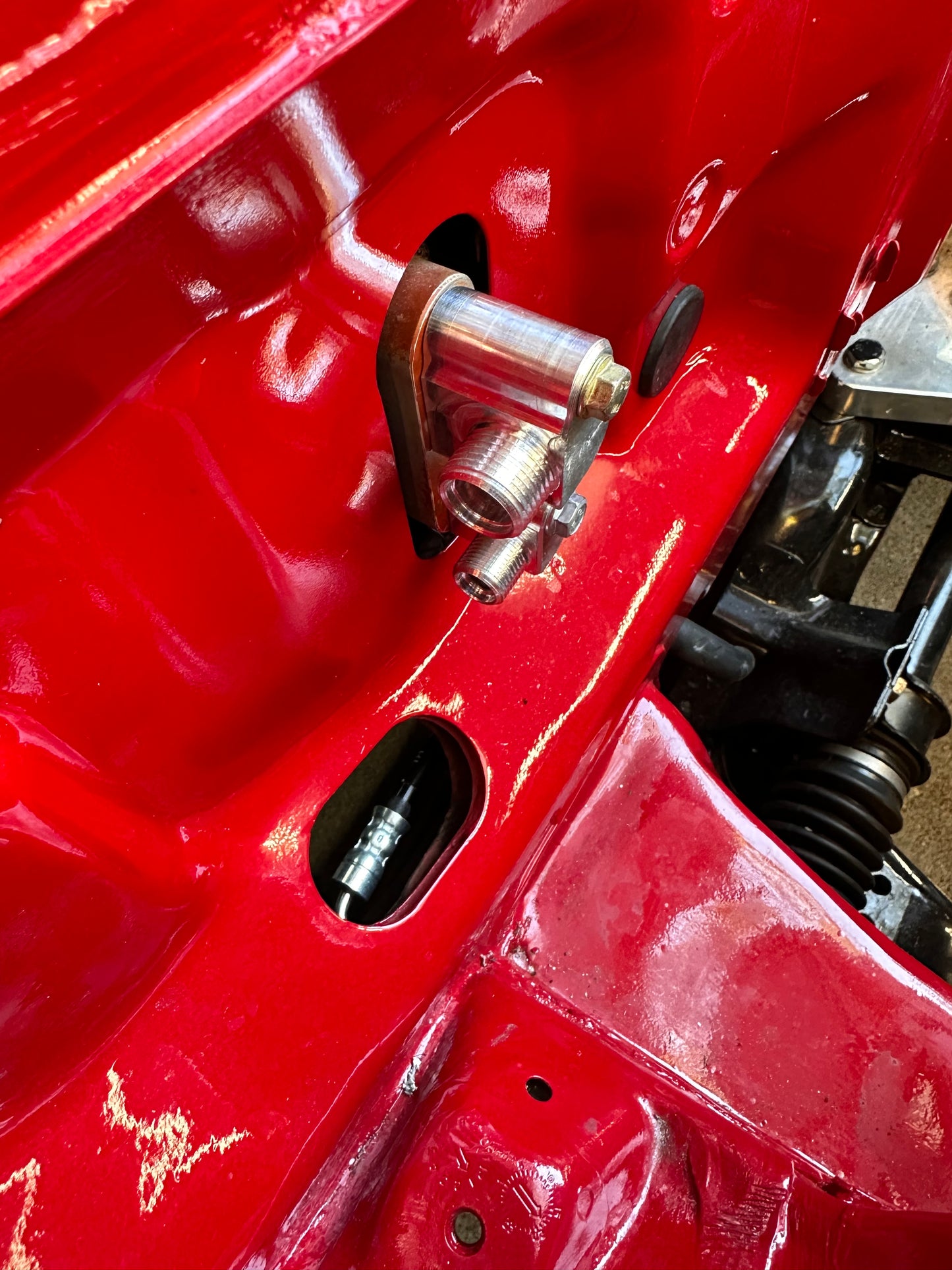

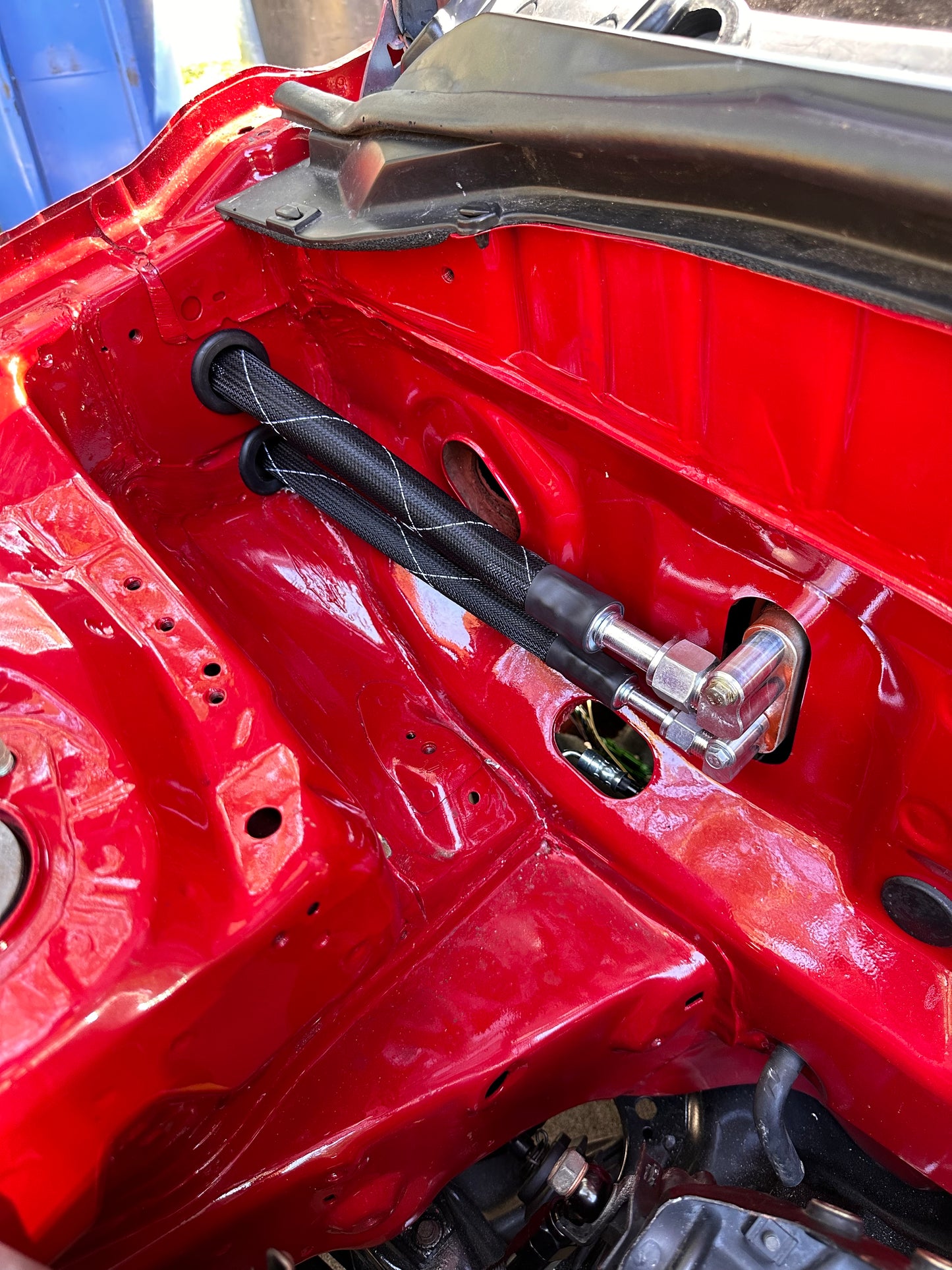

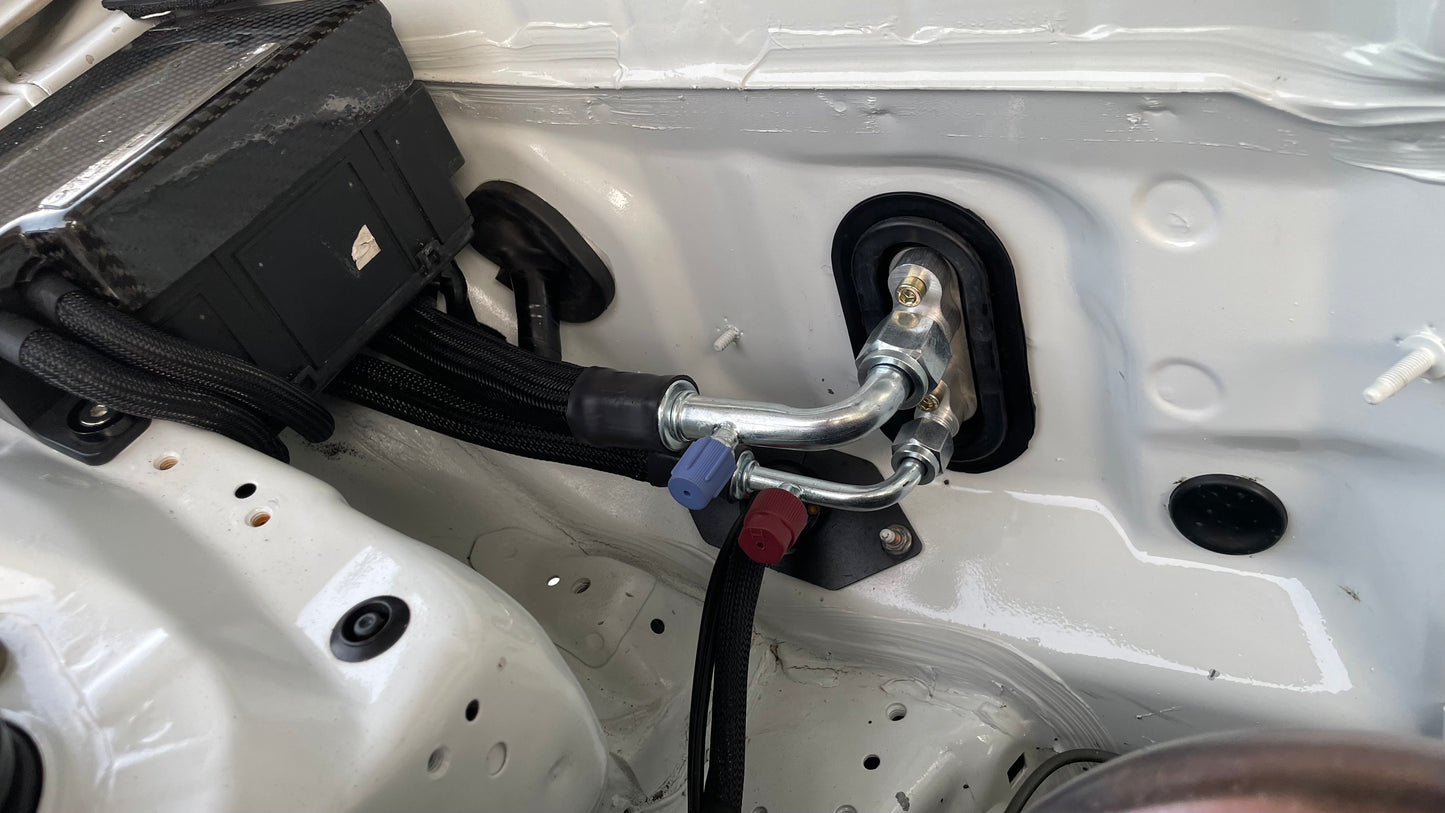

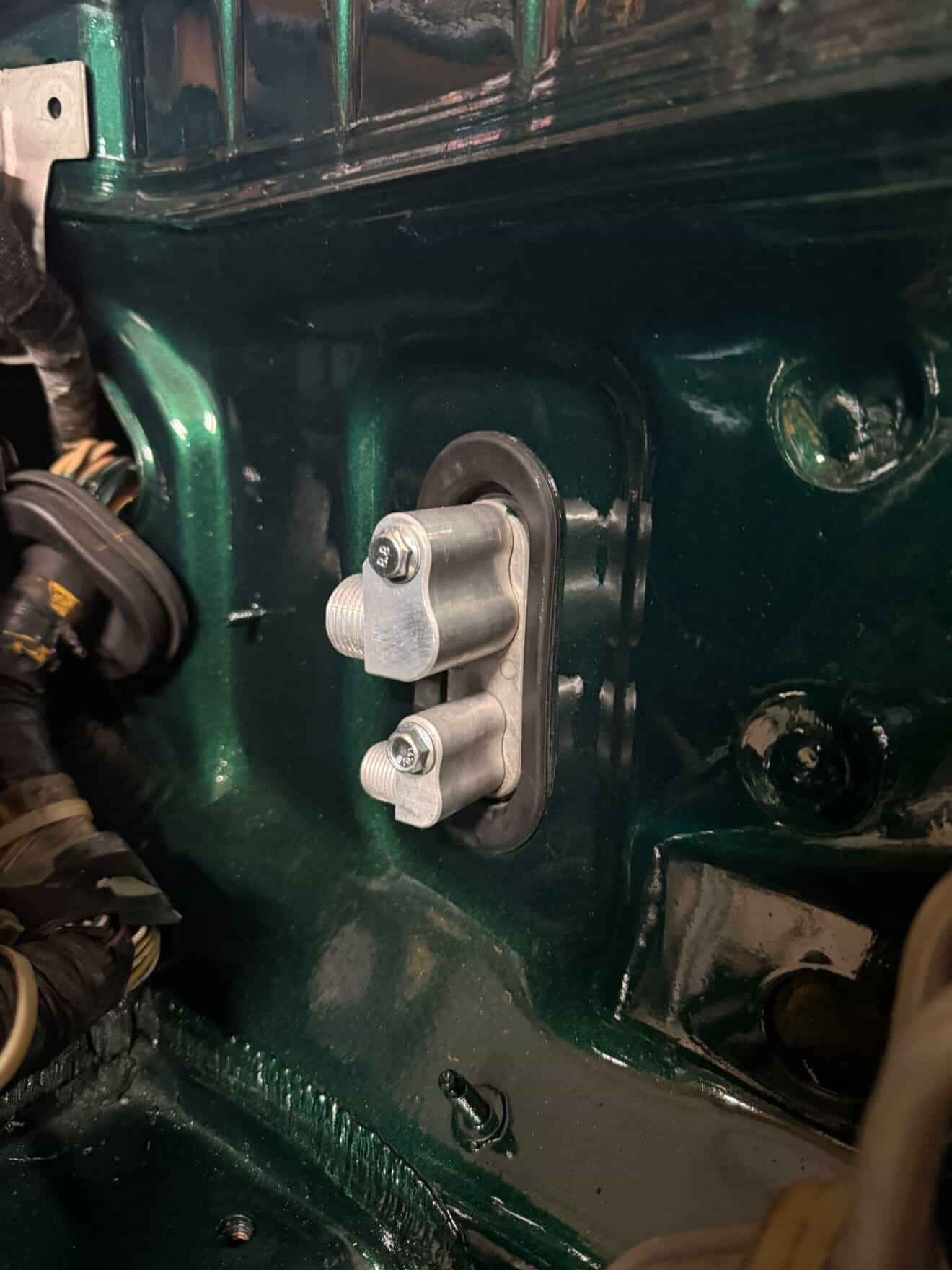

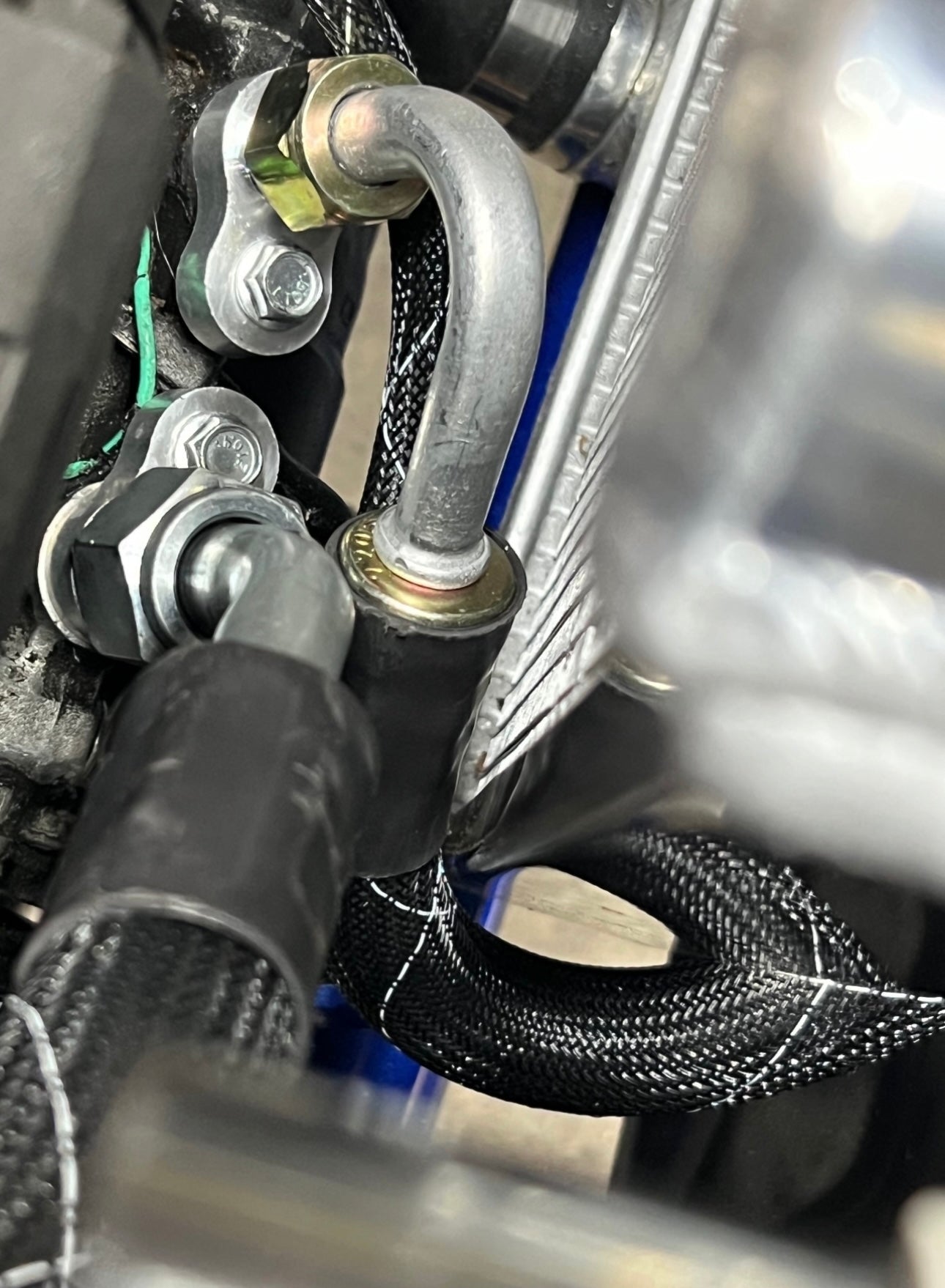

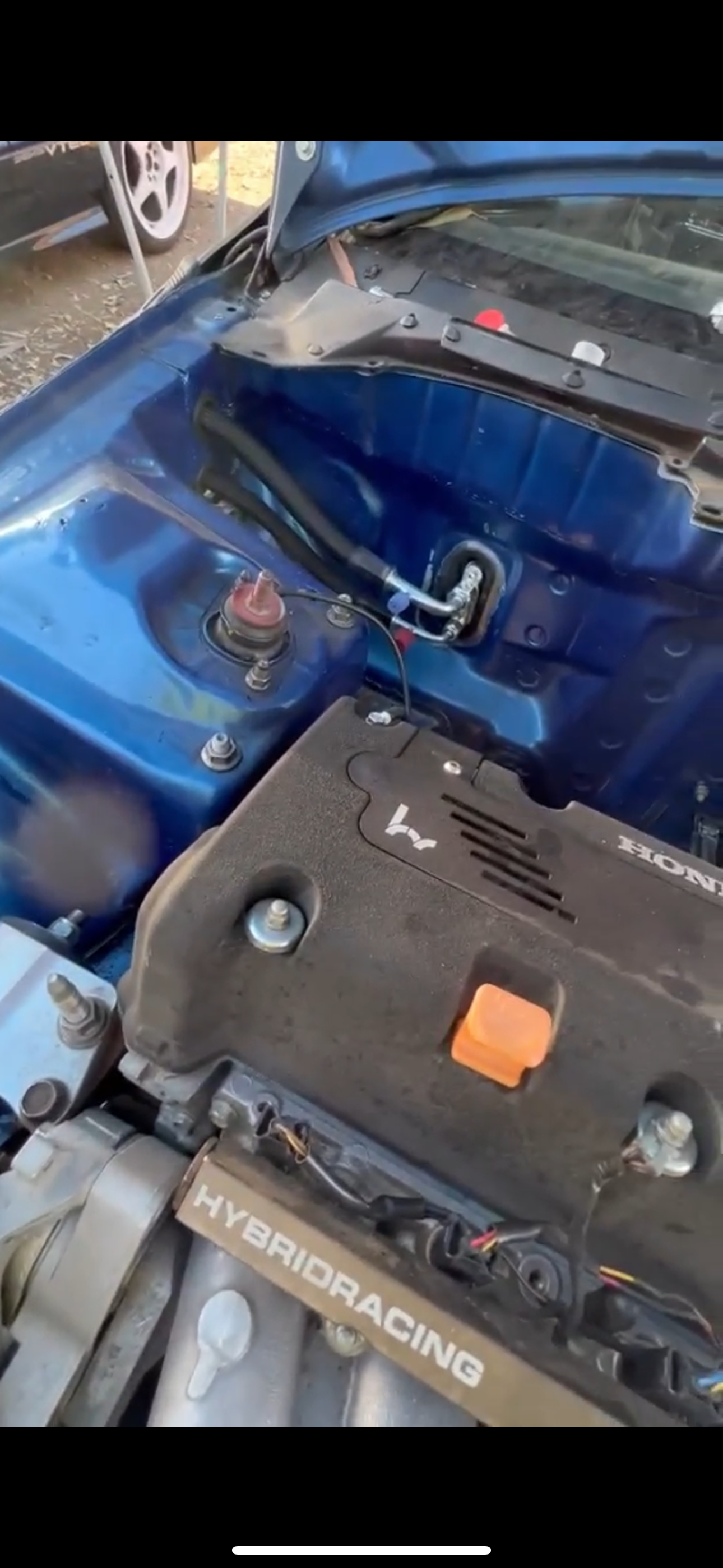

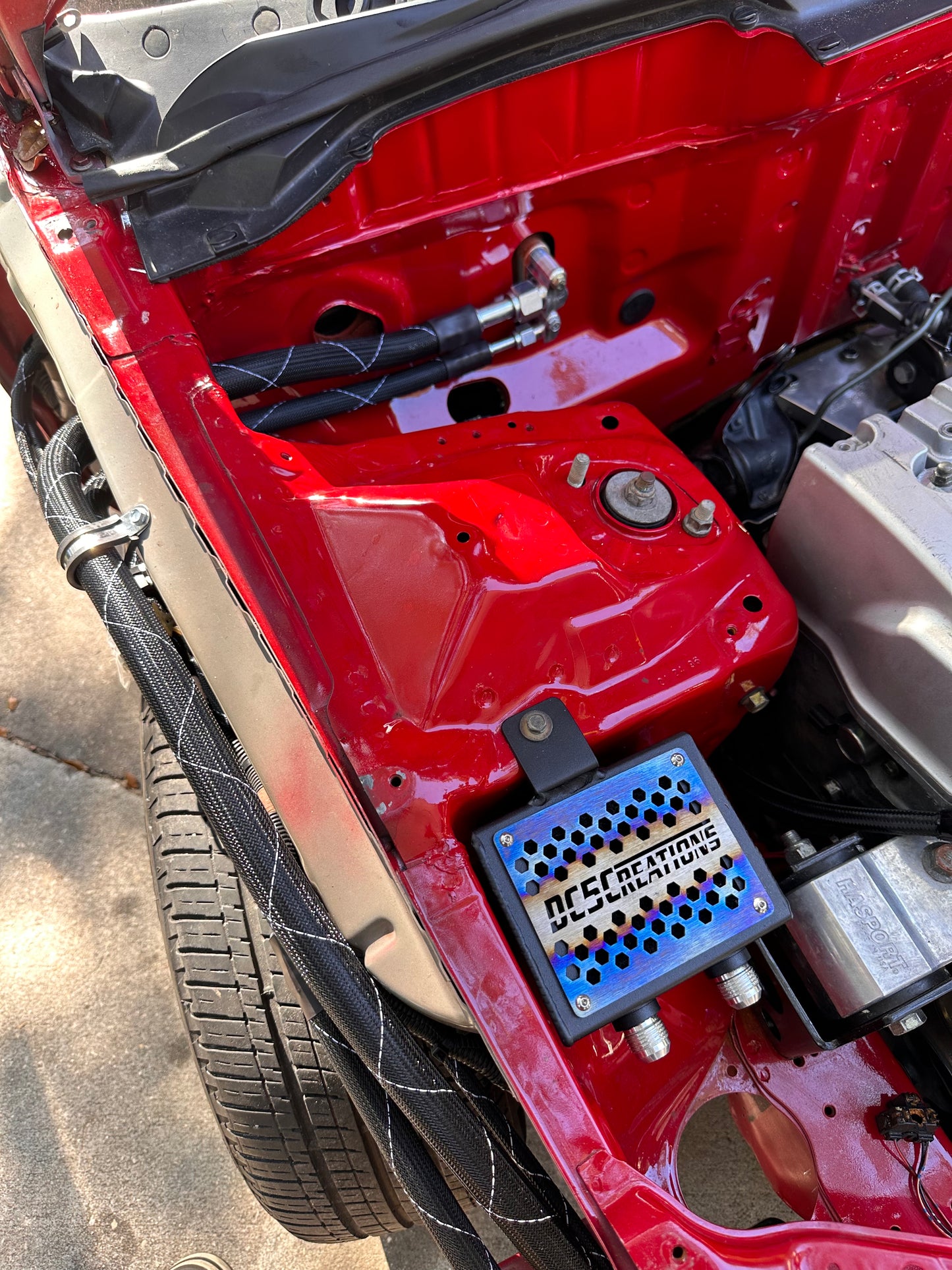

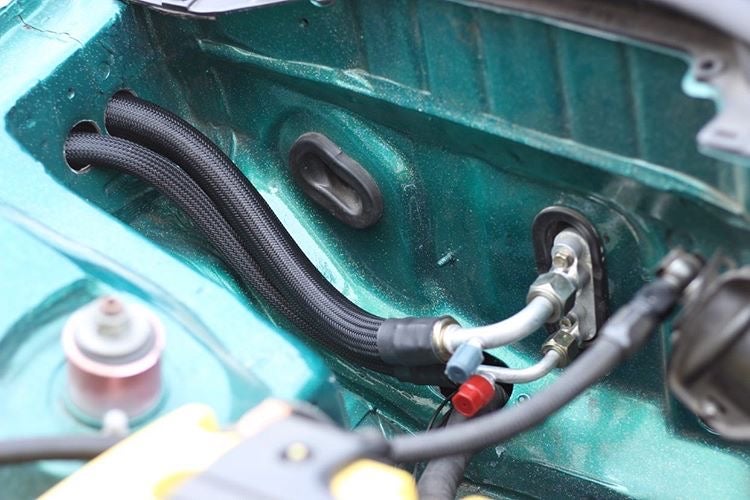

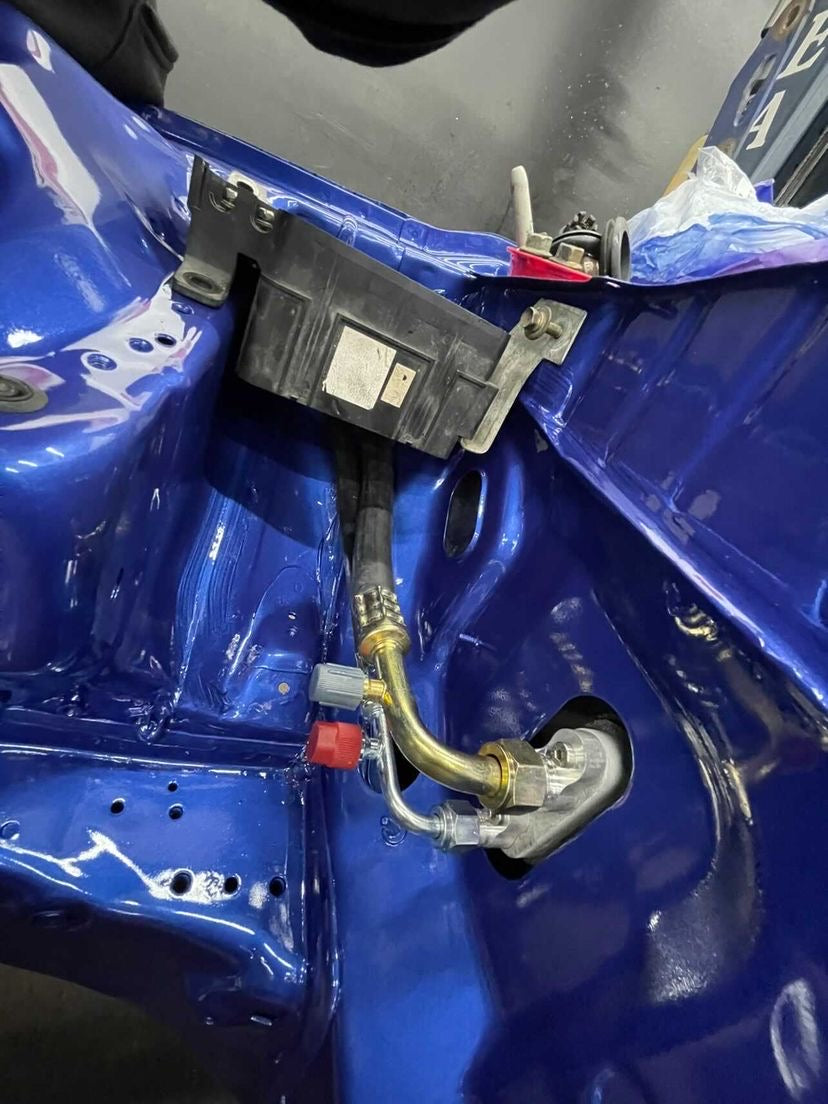

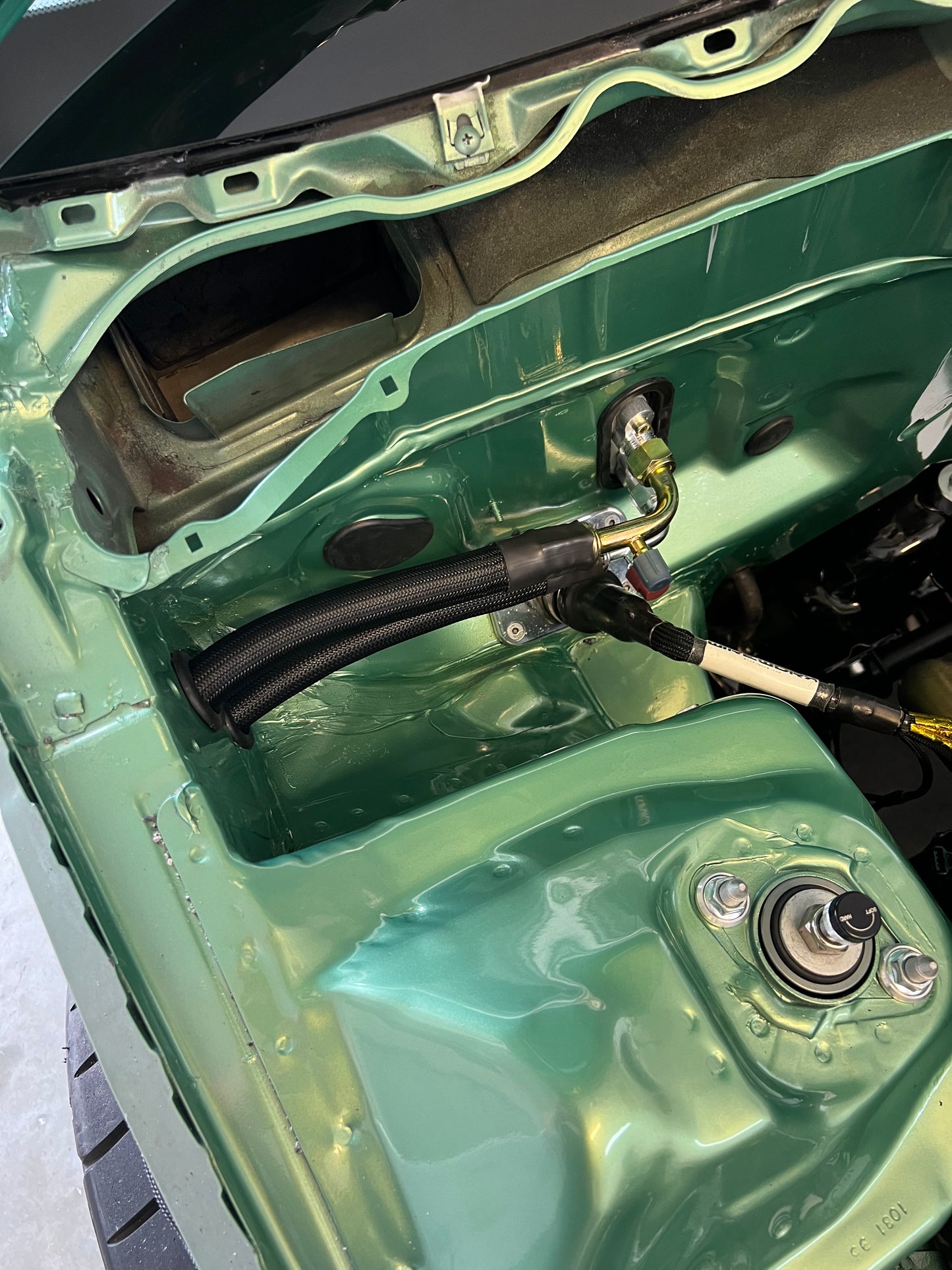

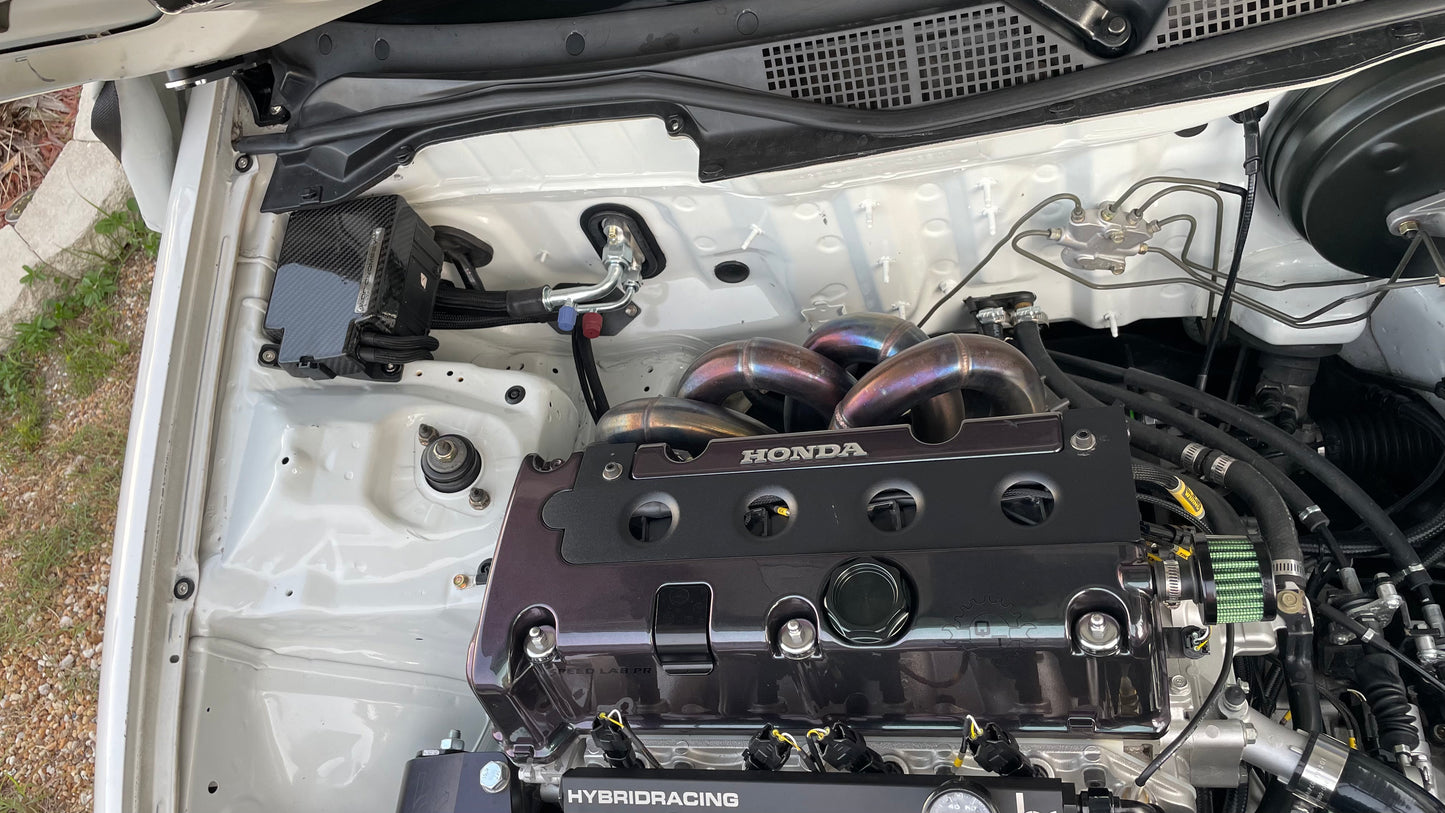

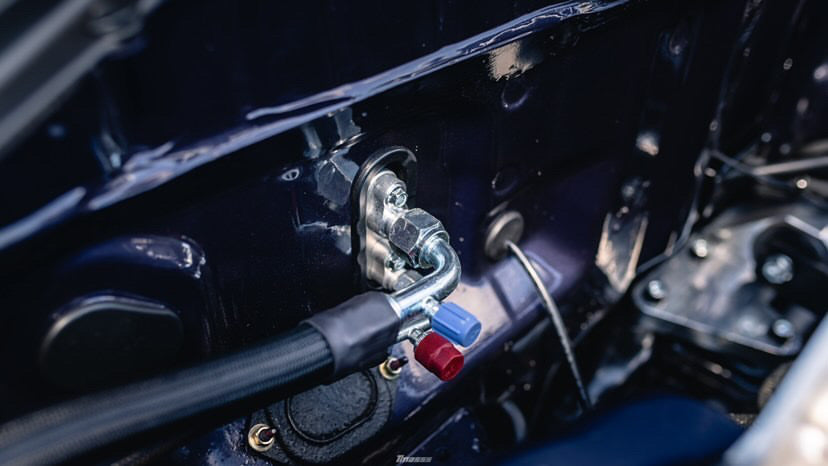

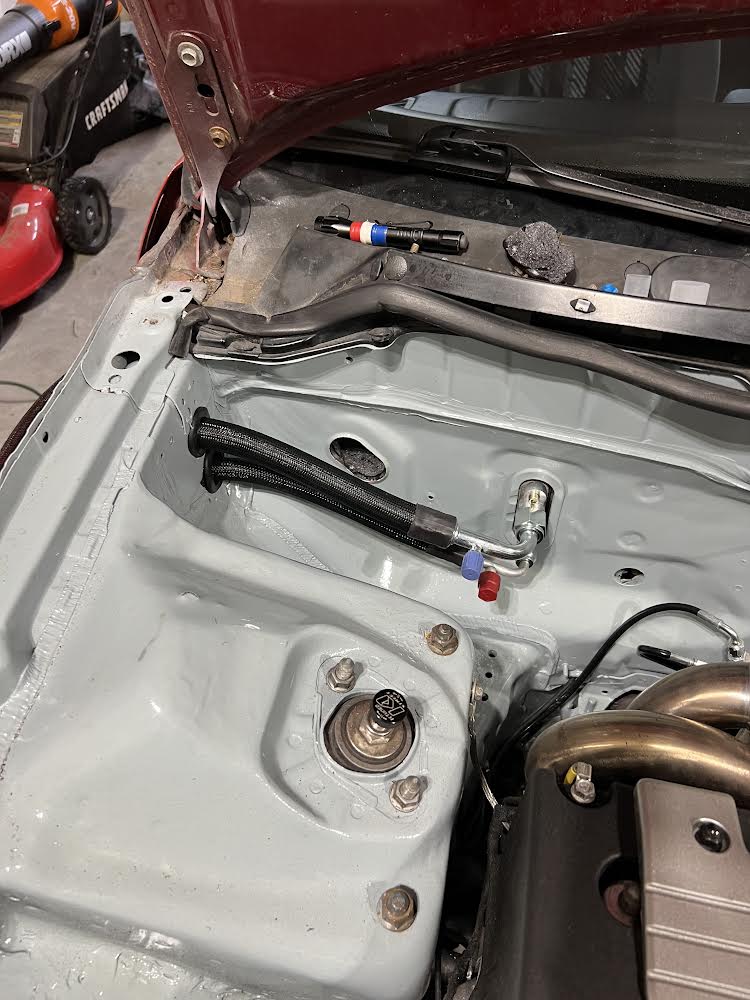

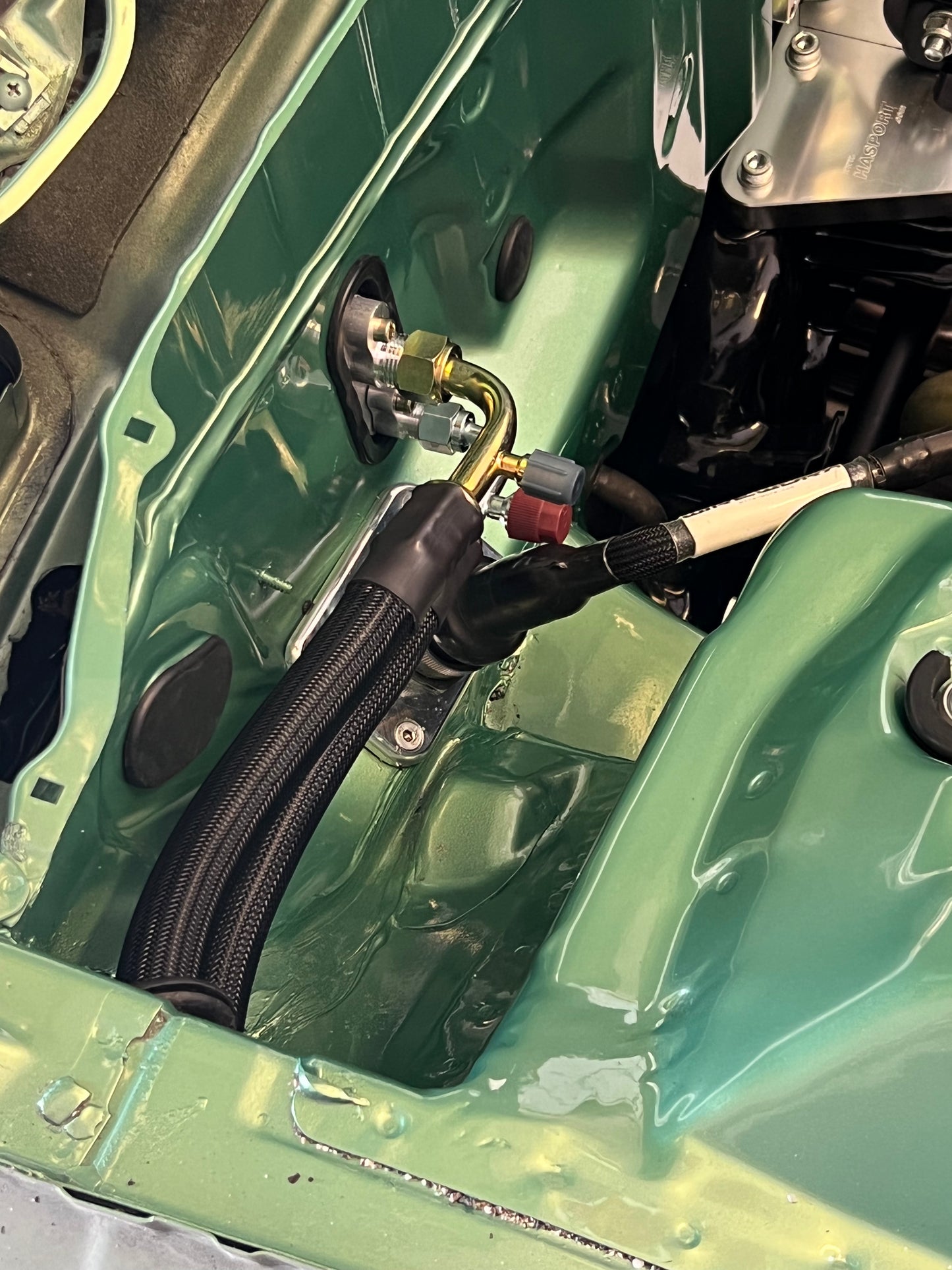

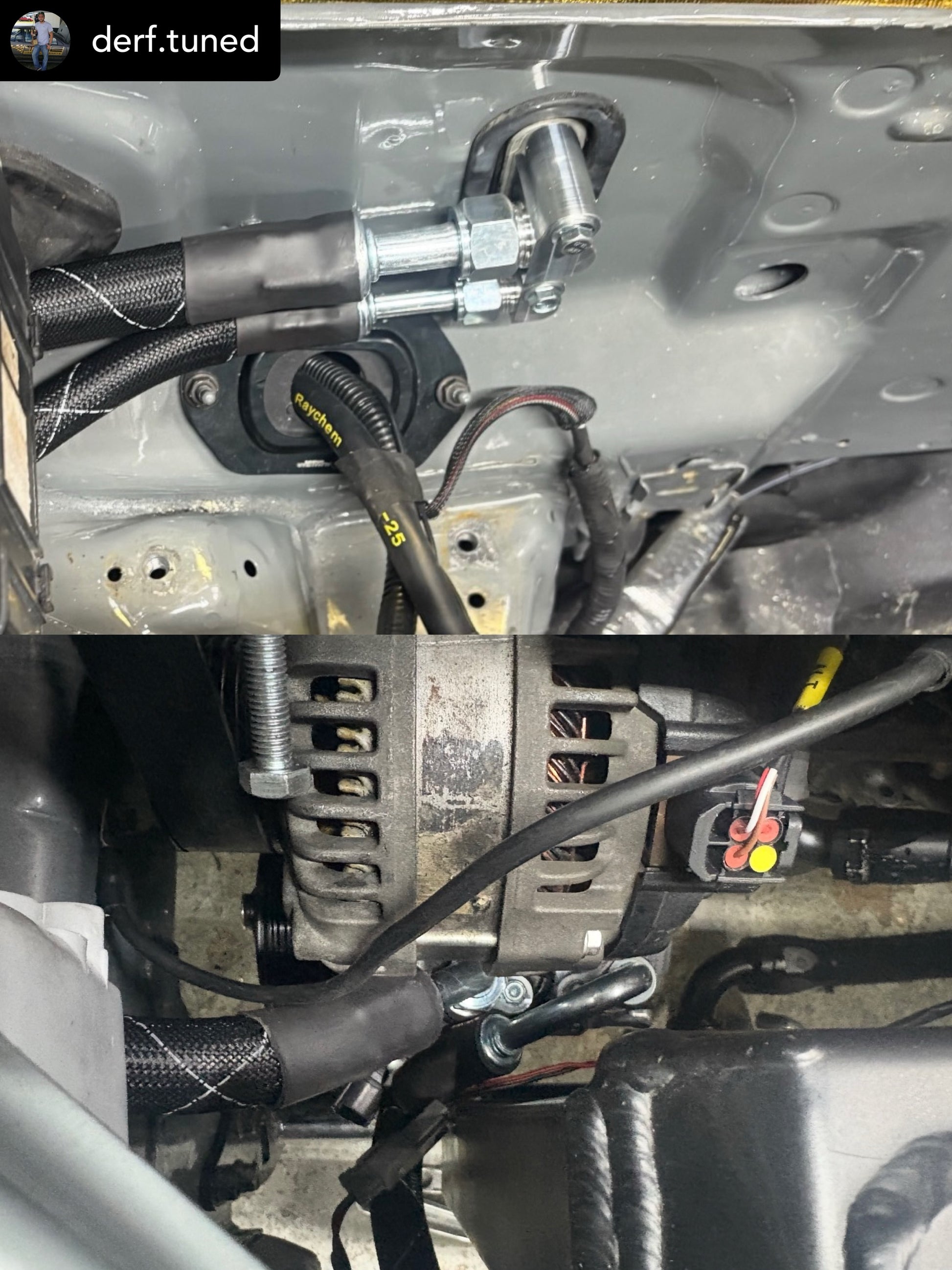

2x- Billet firewall fittings

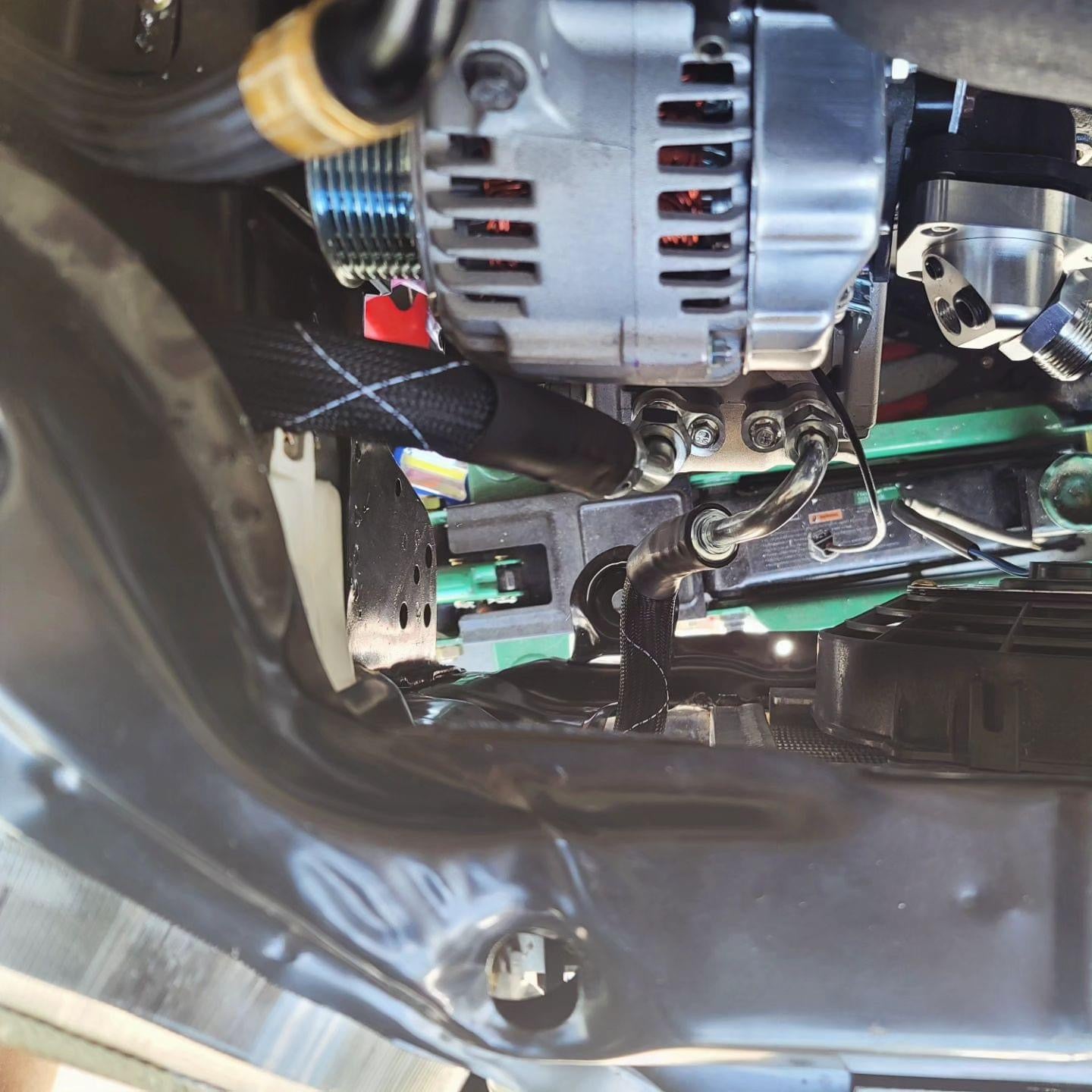

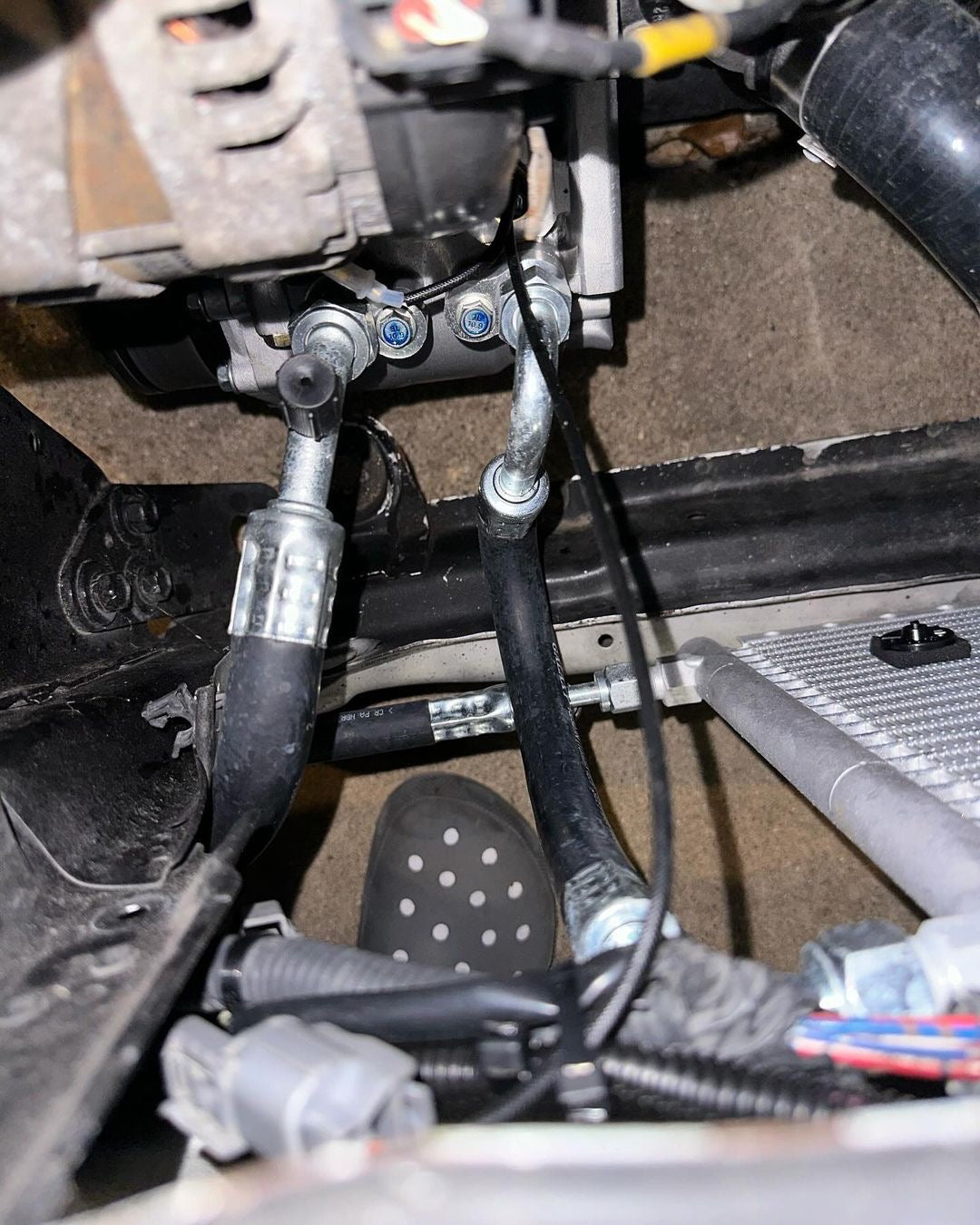

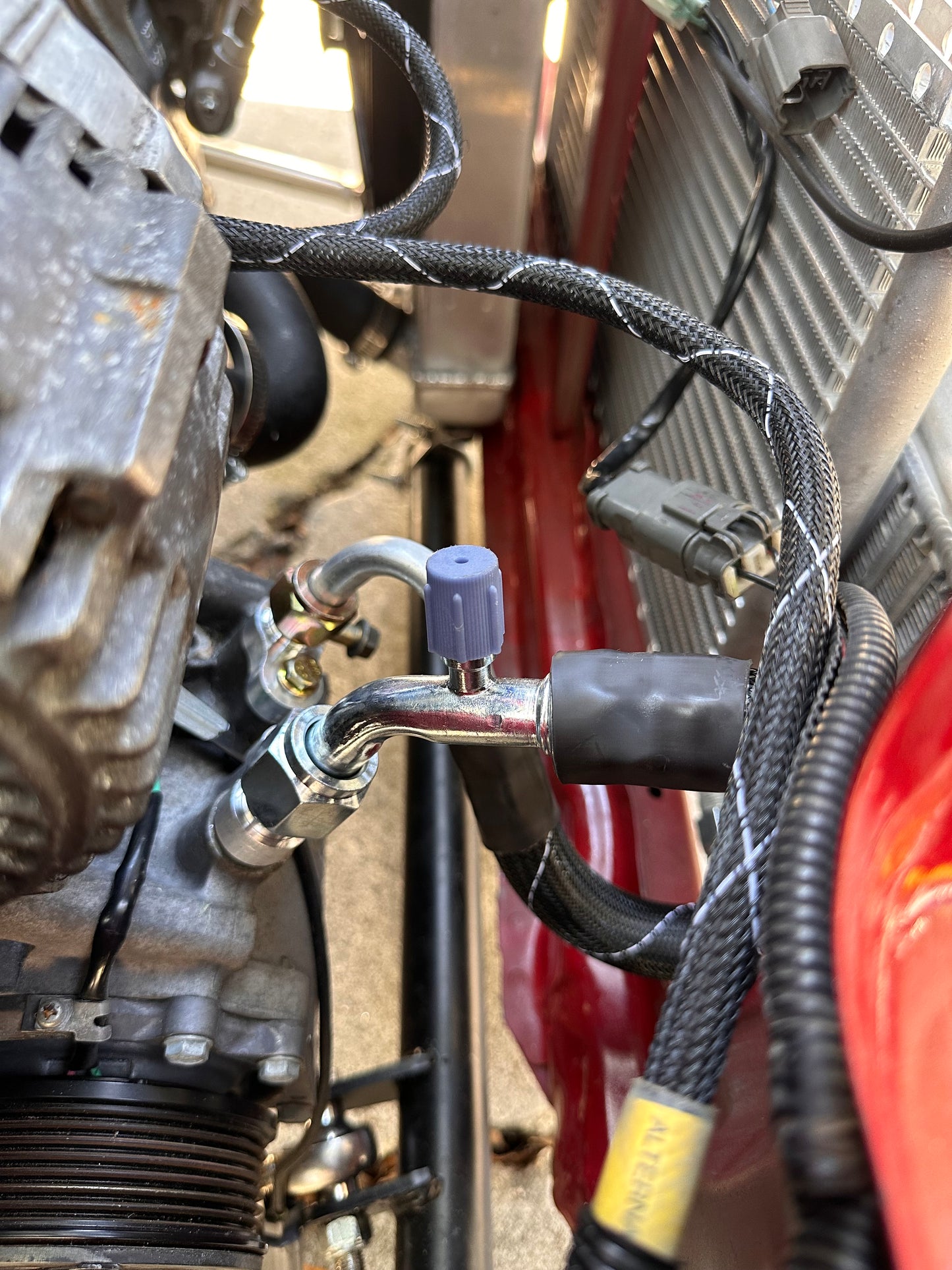

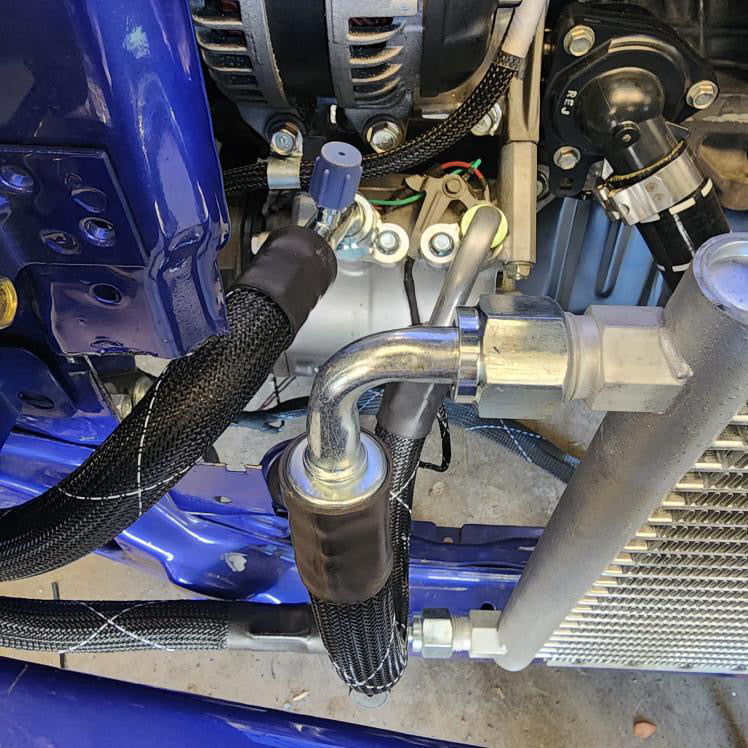

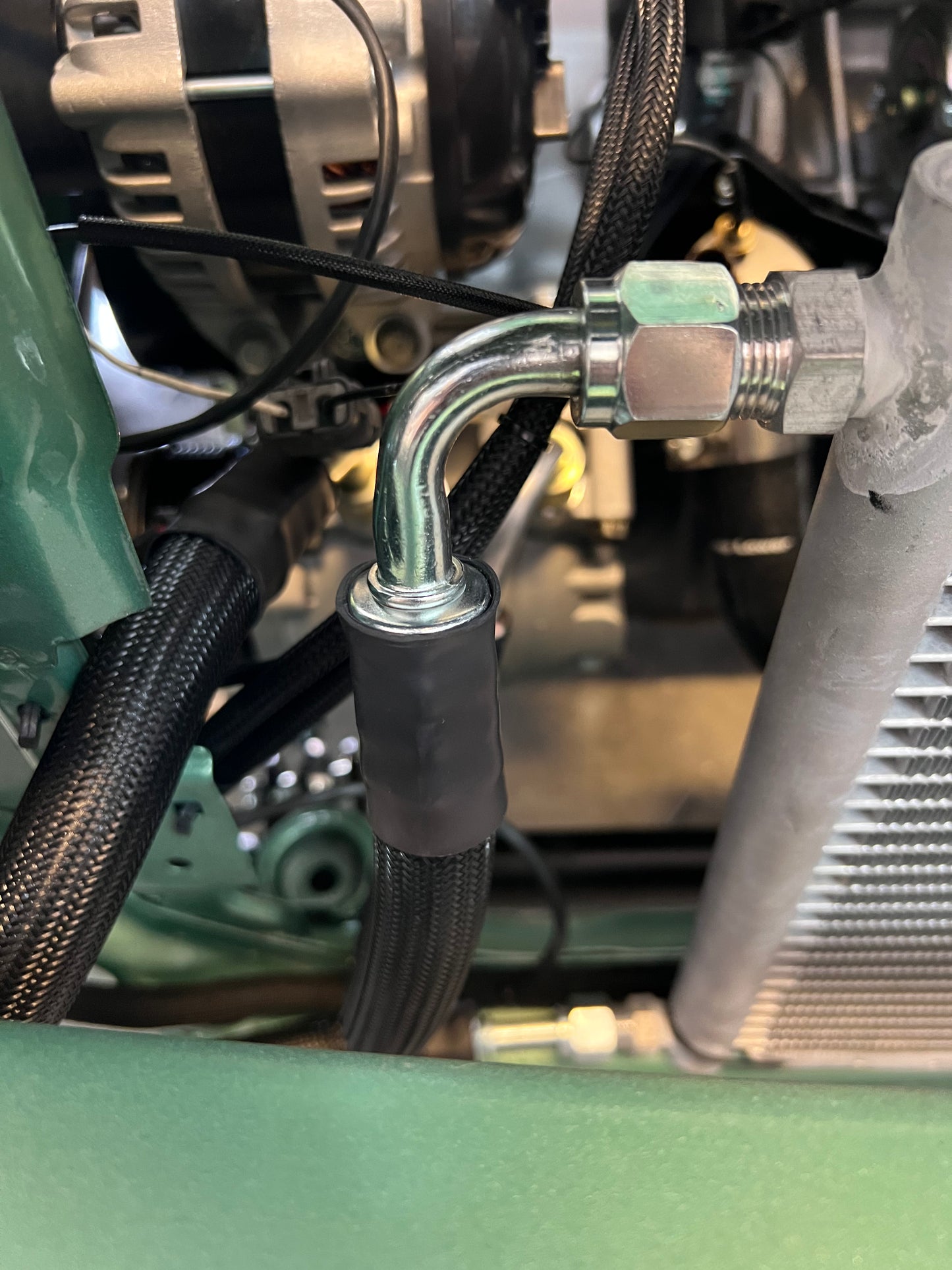

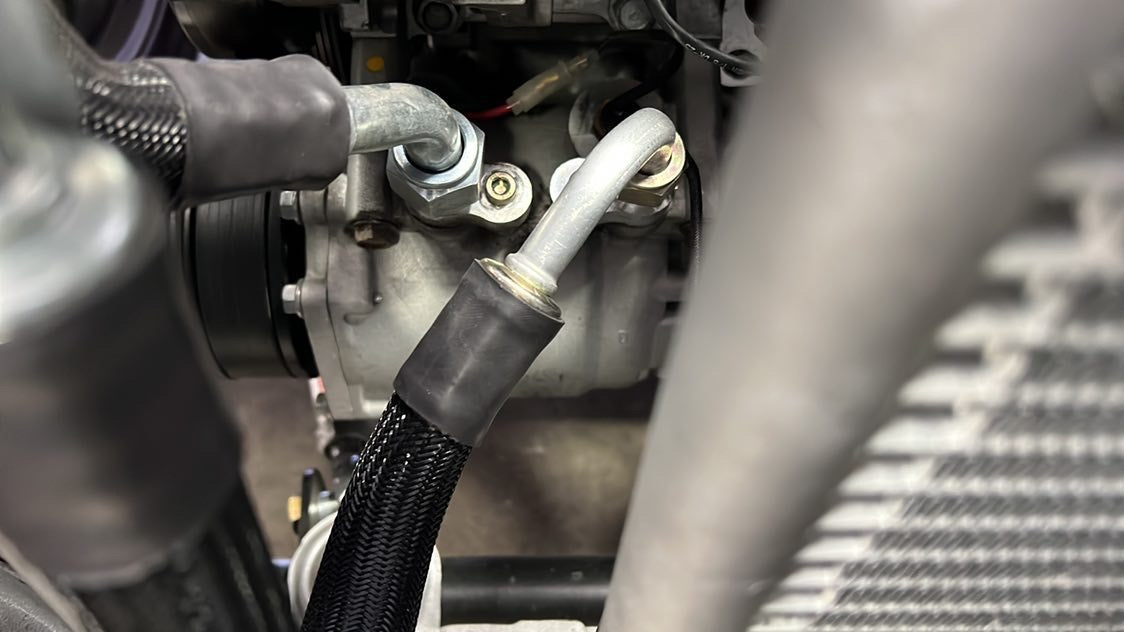

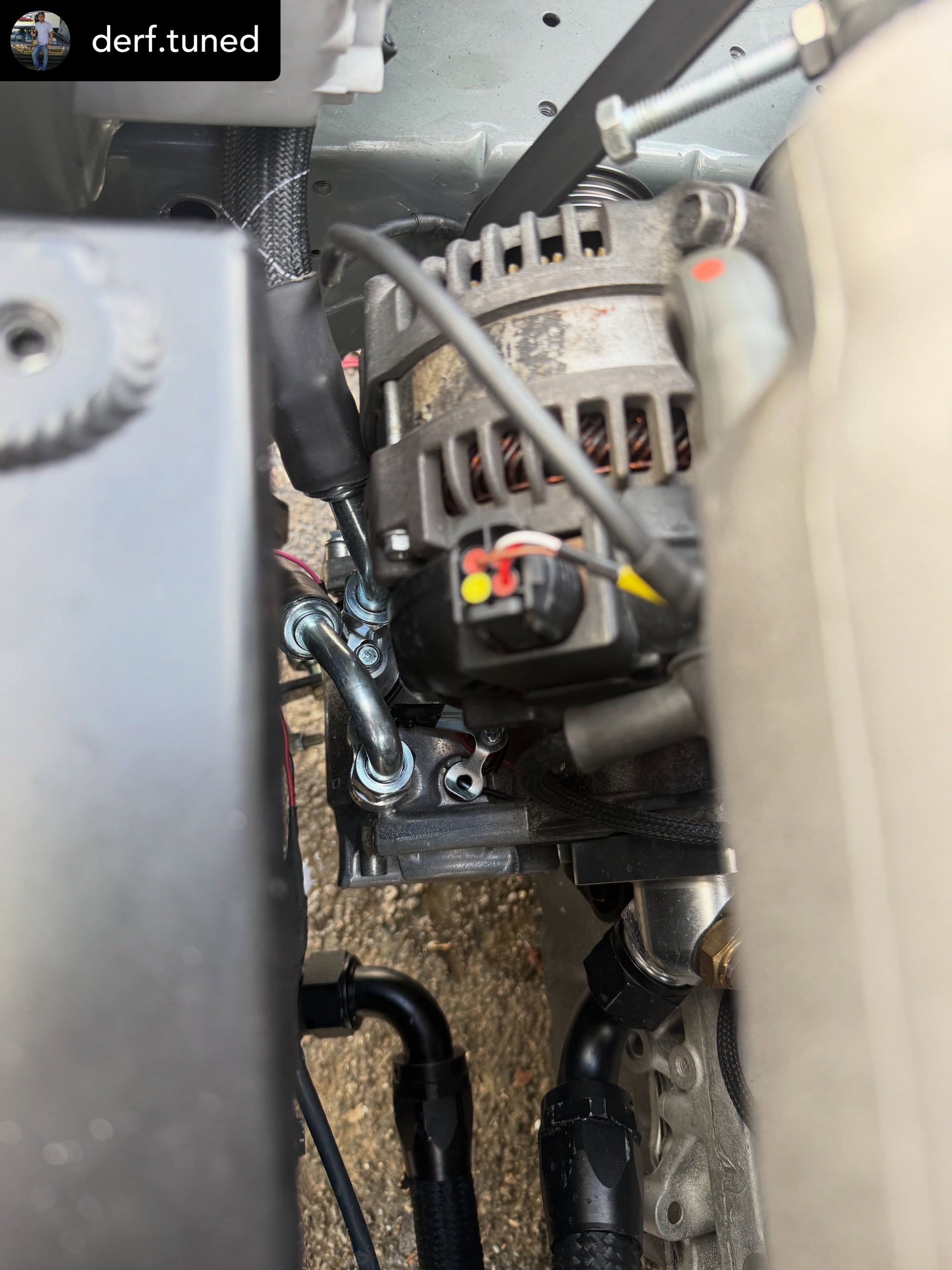

2x- Billet compressor fittings

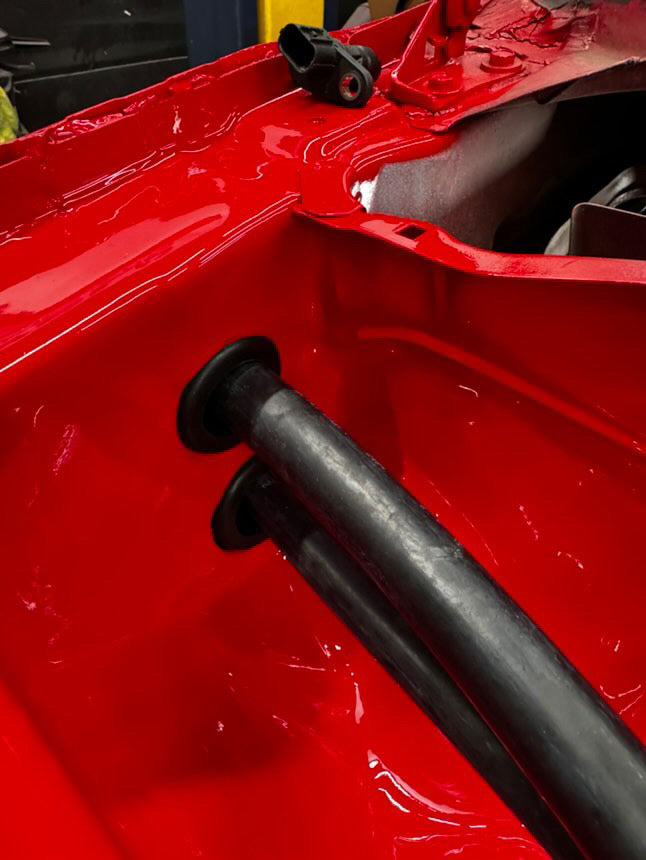

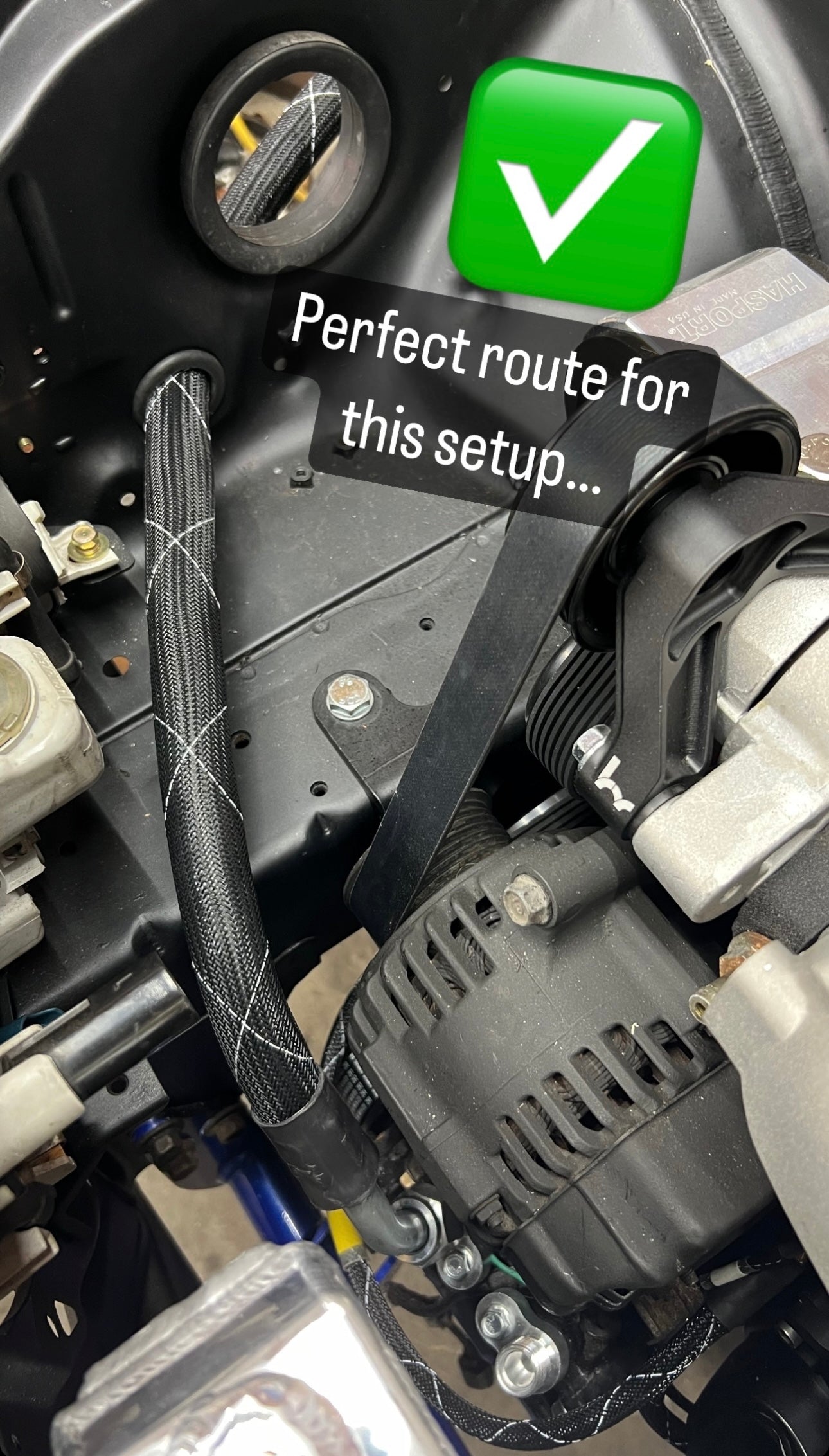

4x- Rubber grommets
4x- Bolts

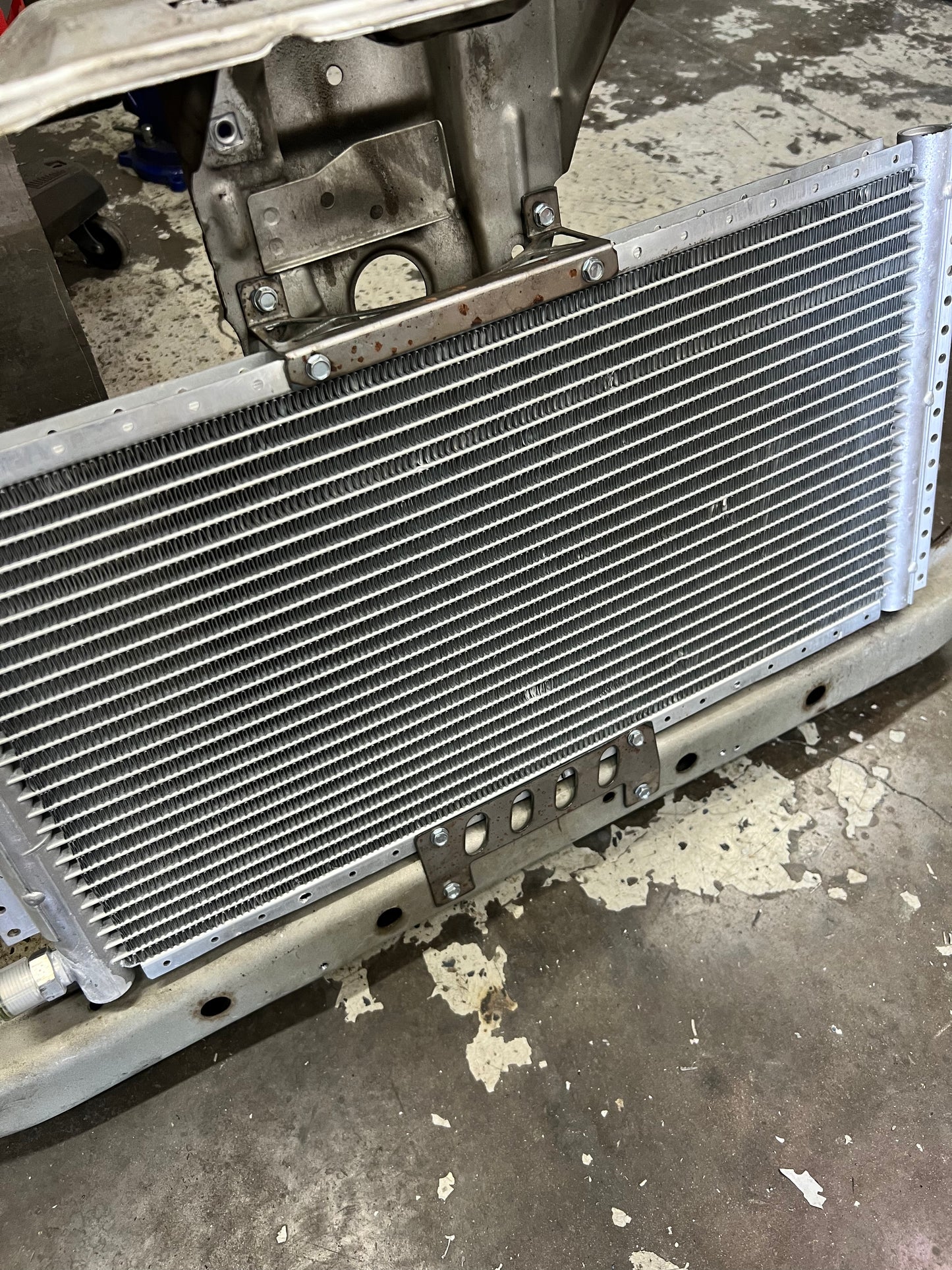

2x- condenser brackets

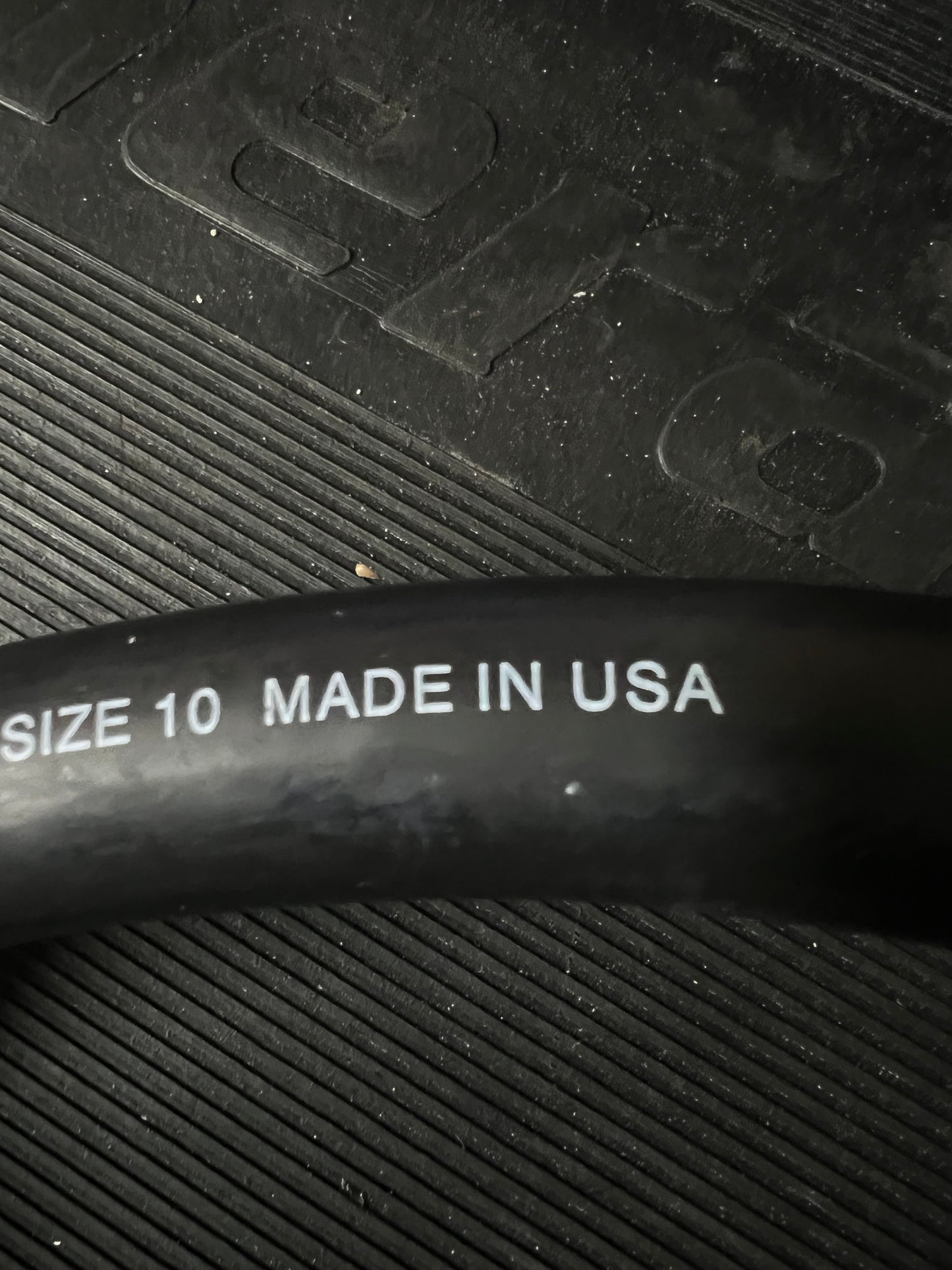

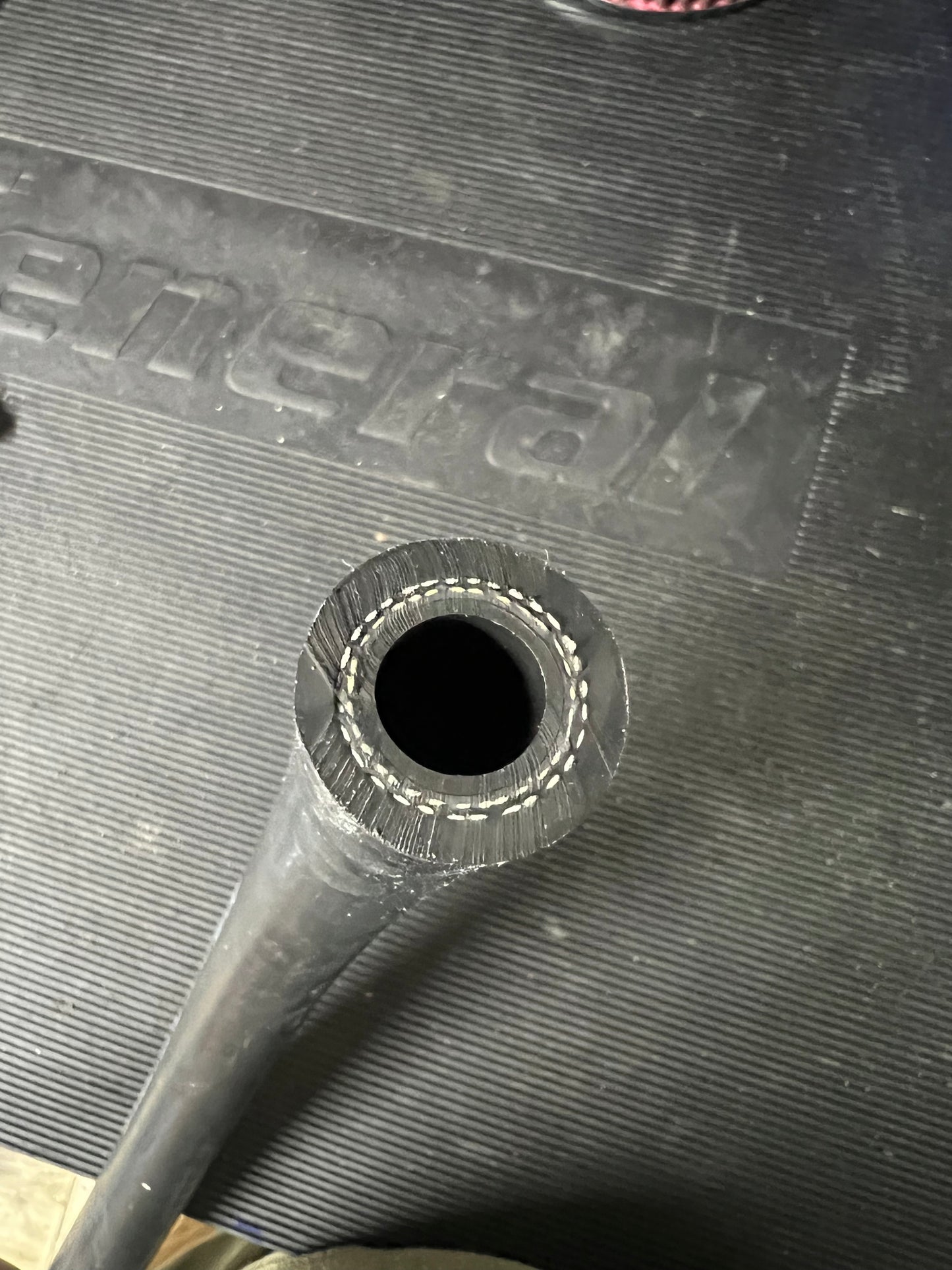

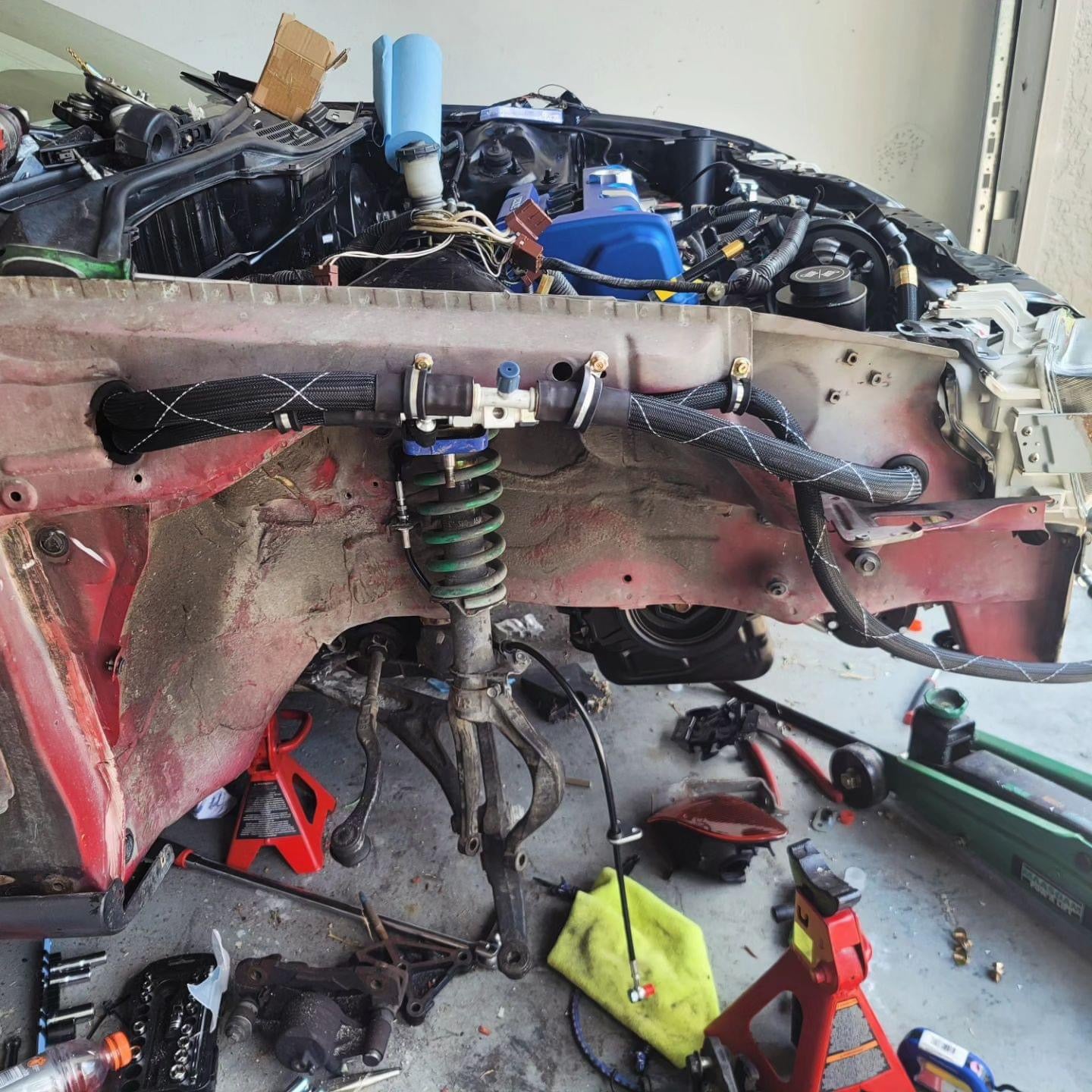

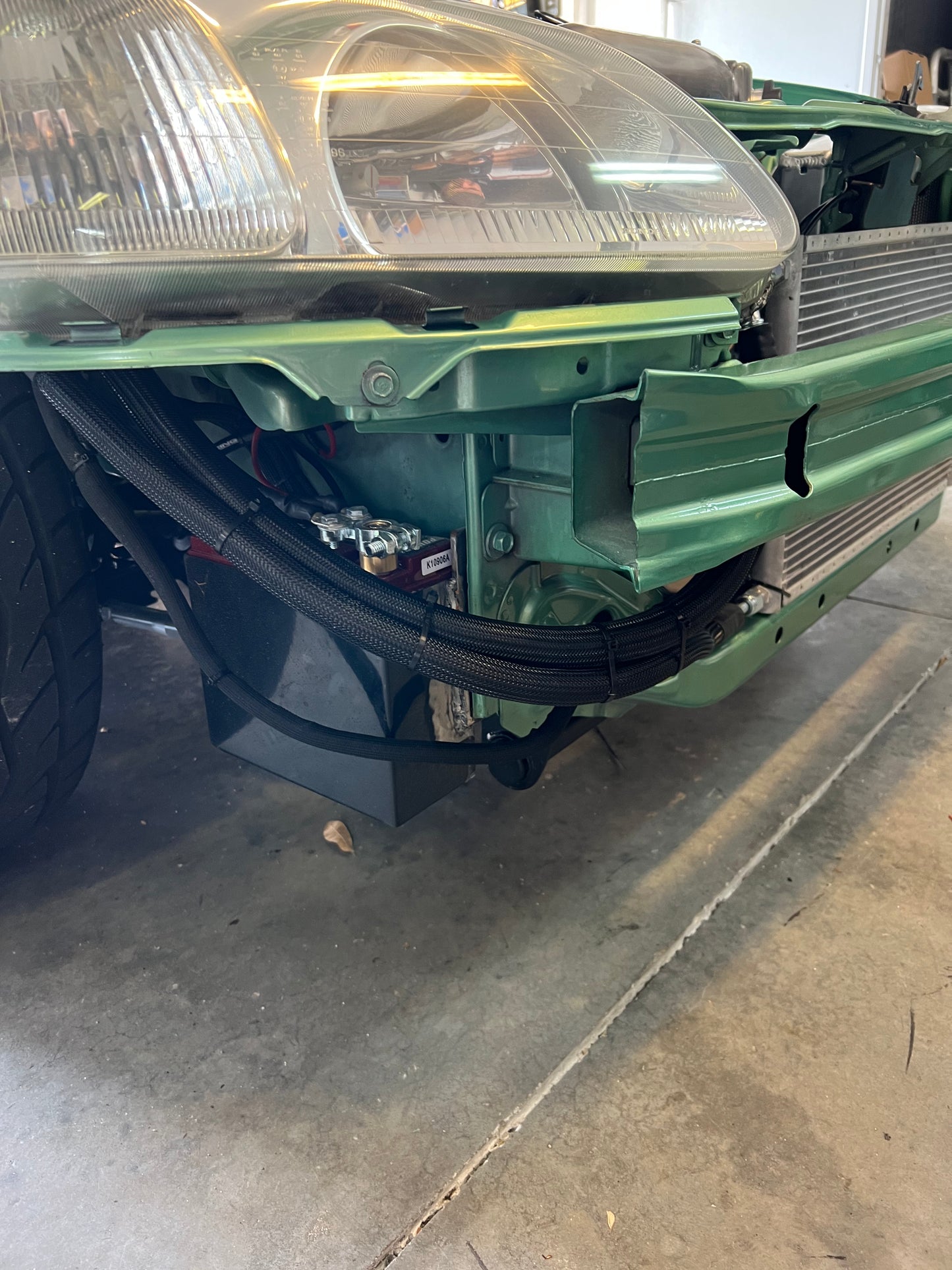

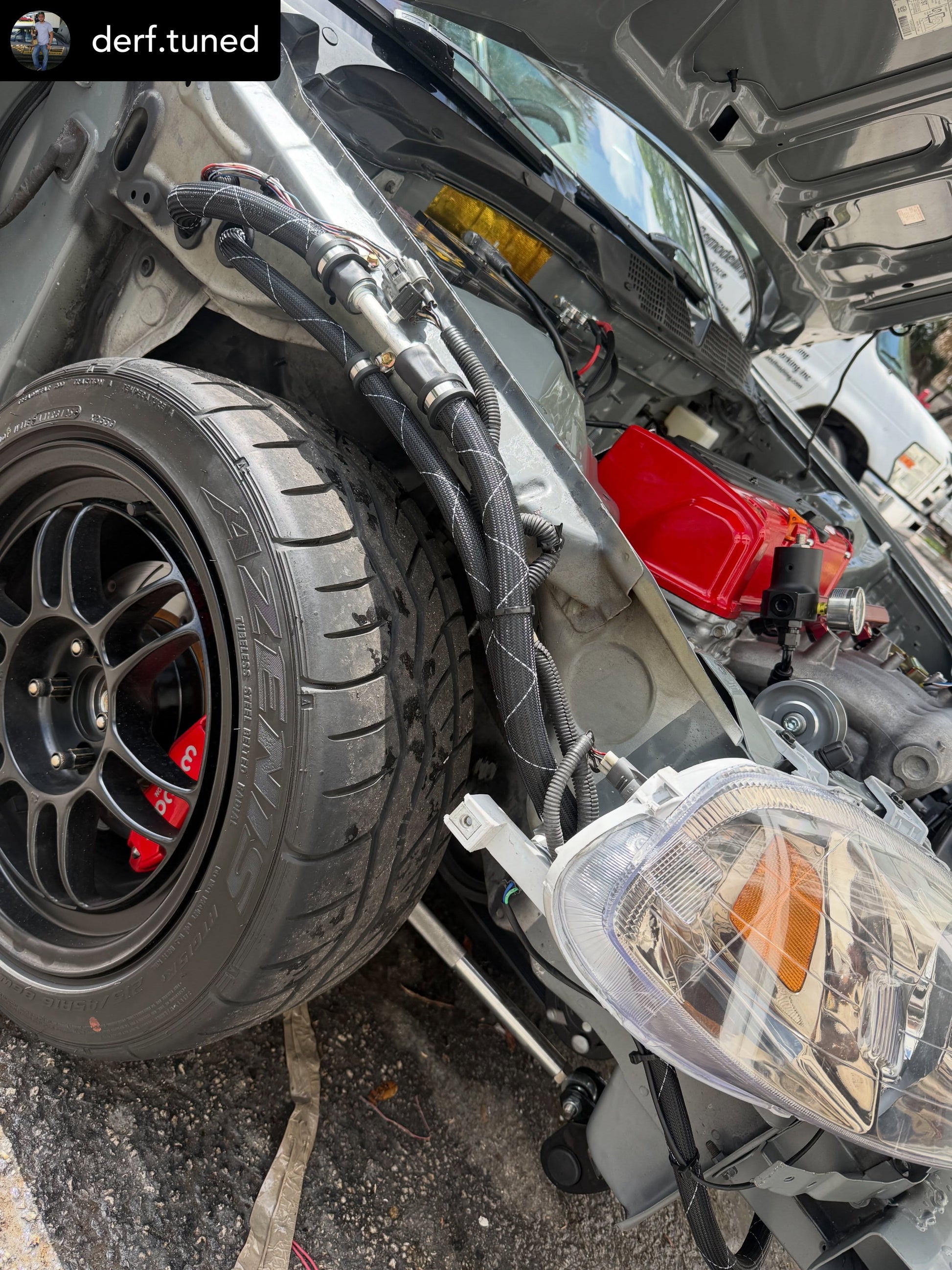

All our hoses are USA made. Each of our kits are pressure test it to confirm they are no leaks. Buy with confident.
