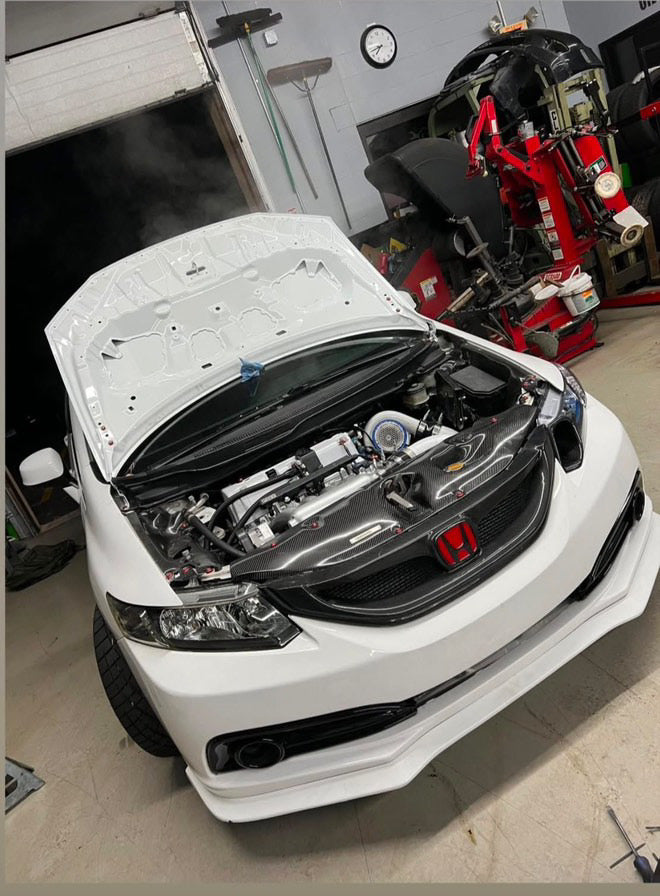

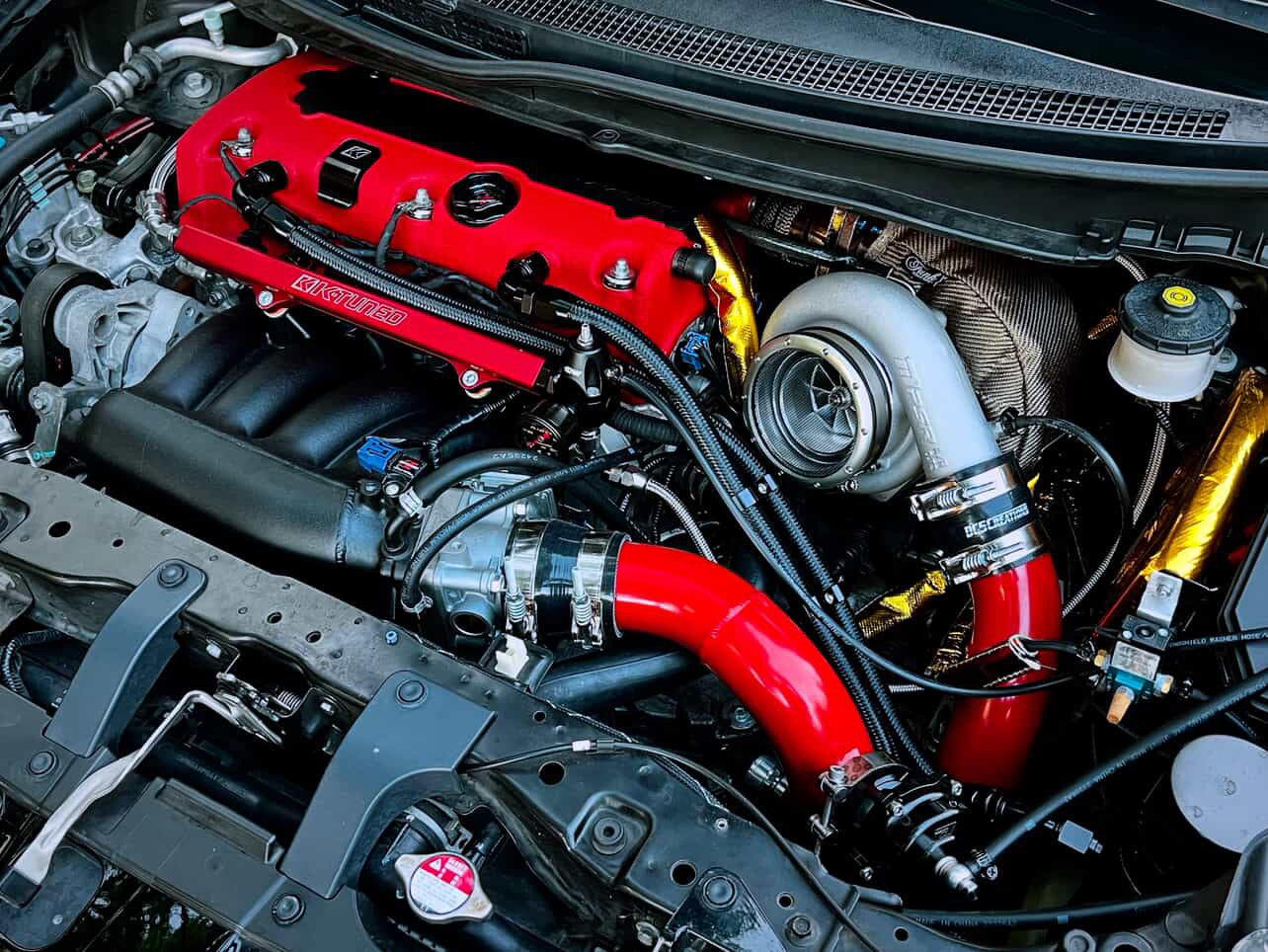

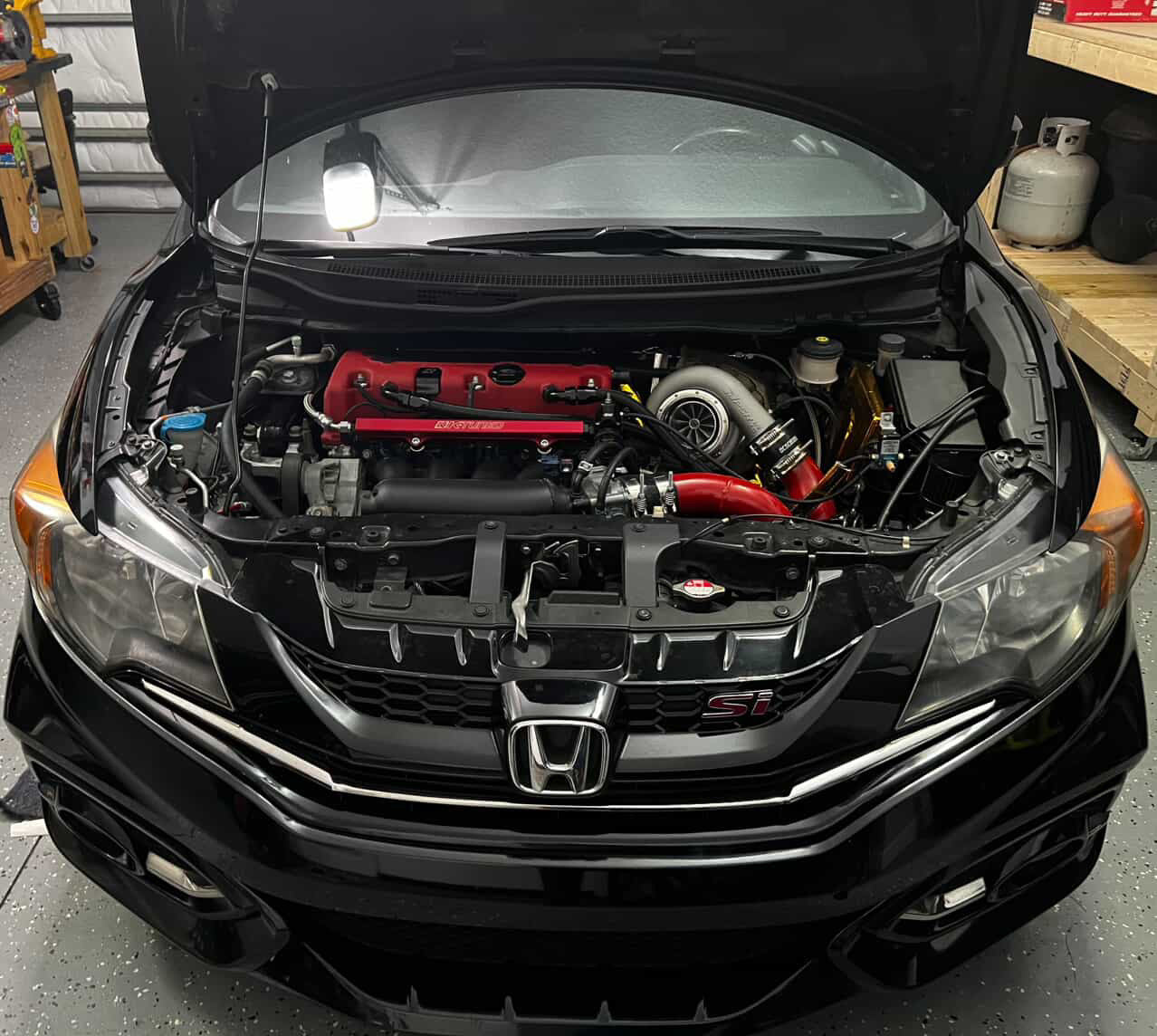

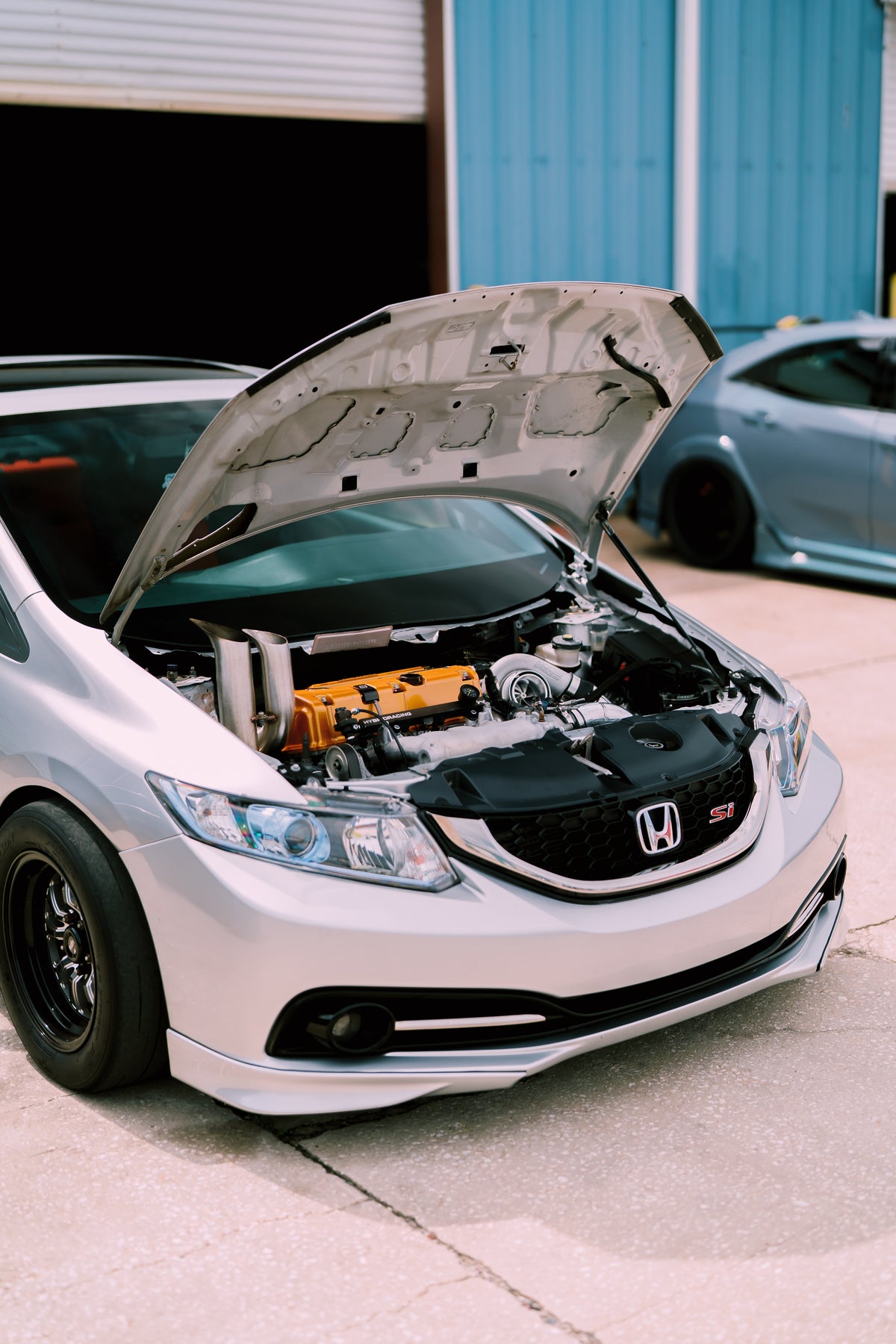

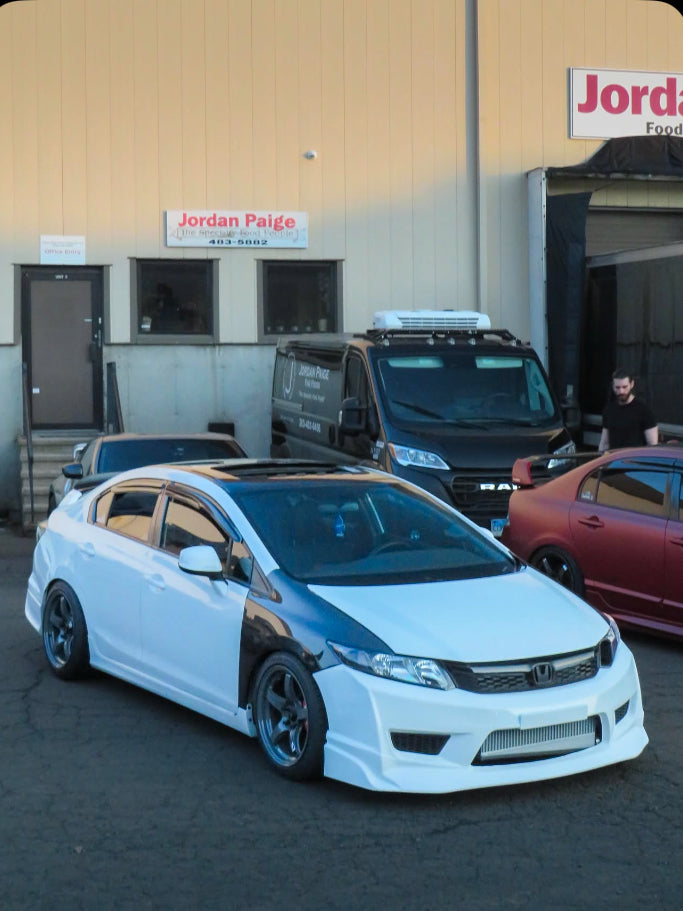

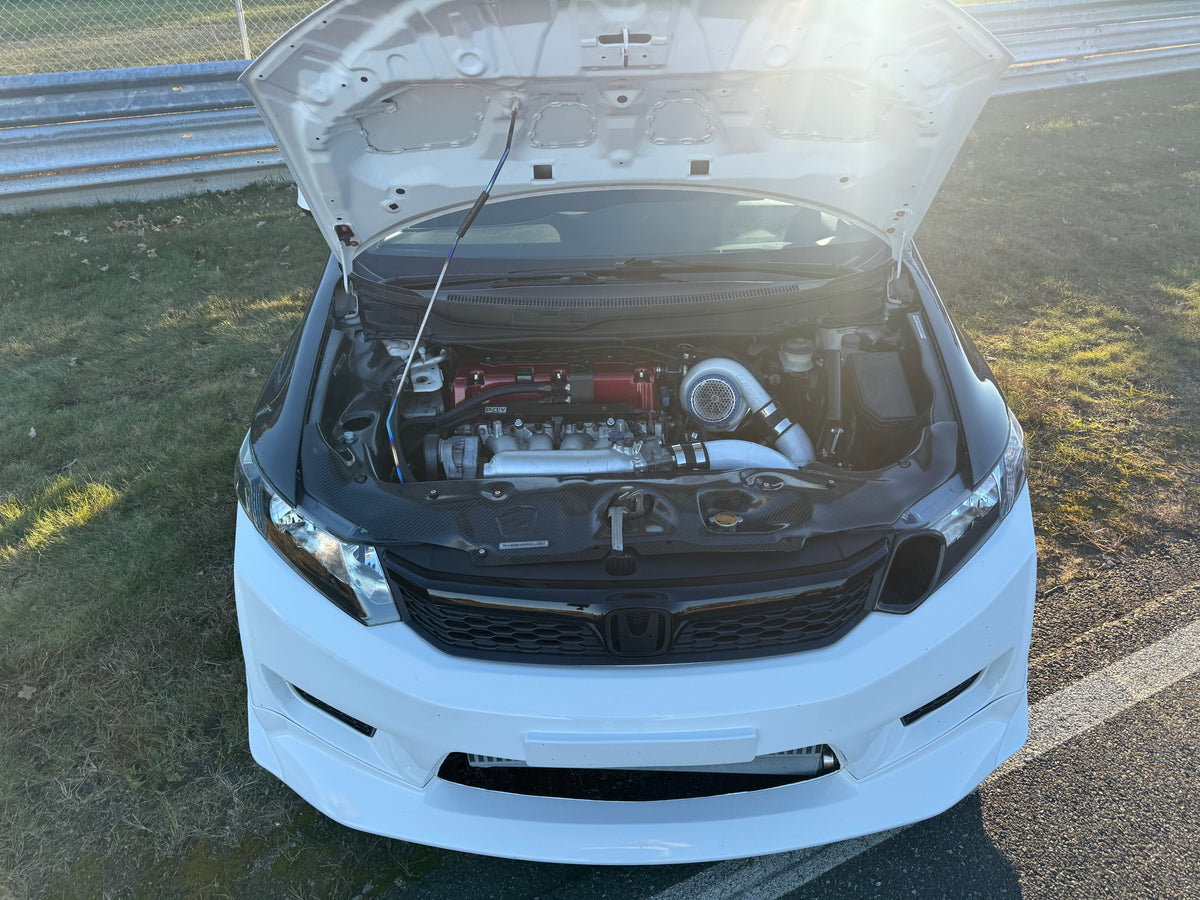

9TH Gen Turbo Kit

Please allow 10/14 business days for the complete kit to be shipped.

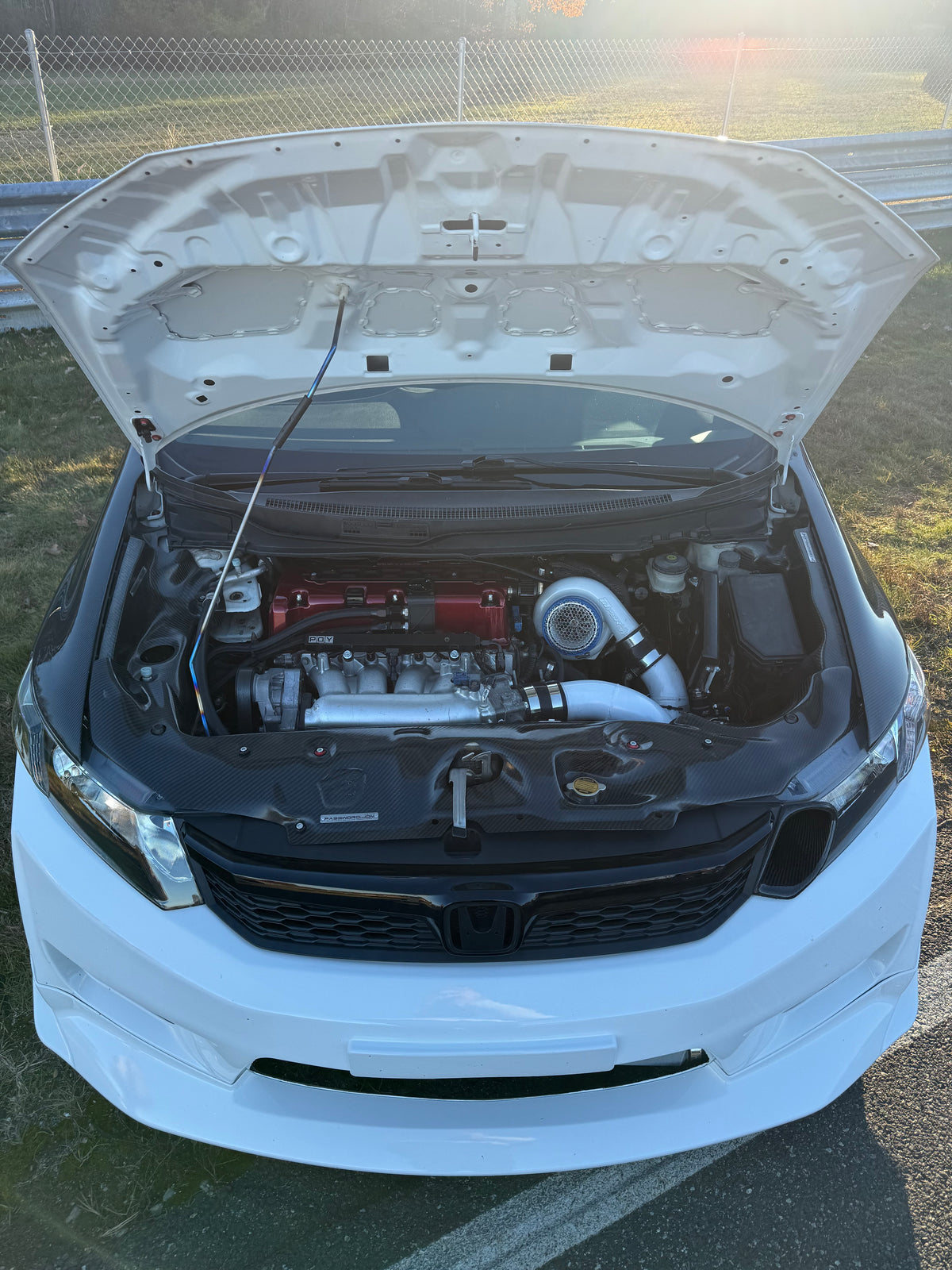

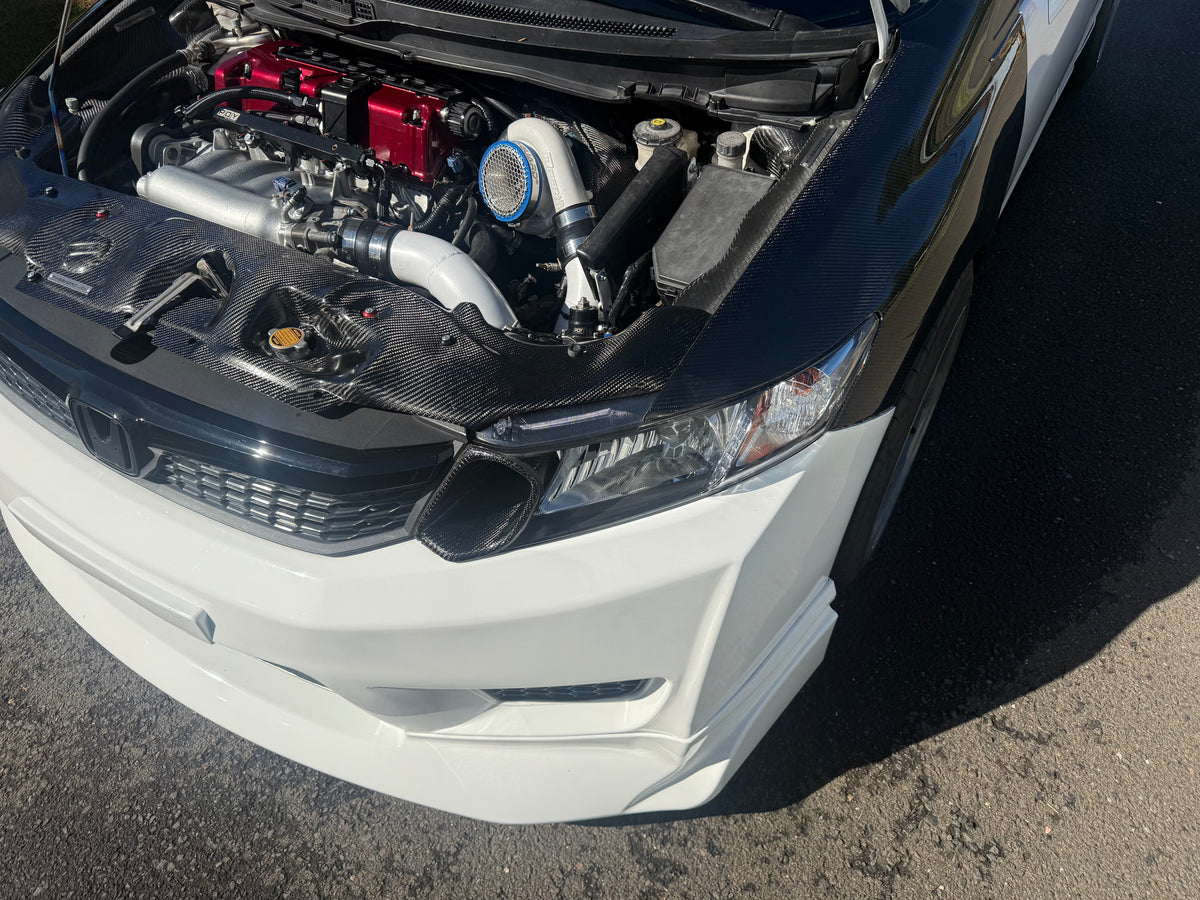

Introducing a turbo kit built to make 500-700HP on a K Series Engine!

The kit includes:

• Pulsar Dual ball bearing t3 gt3582
• Pulsar 45mm Wastegate
• Pulsar 50mm Blow Off Valve
• Pulsar Oil Drain flange 10an
• Dc5creations turbo Manifold T3

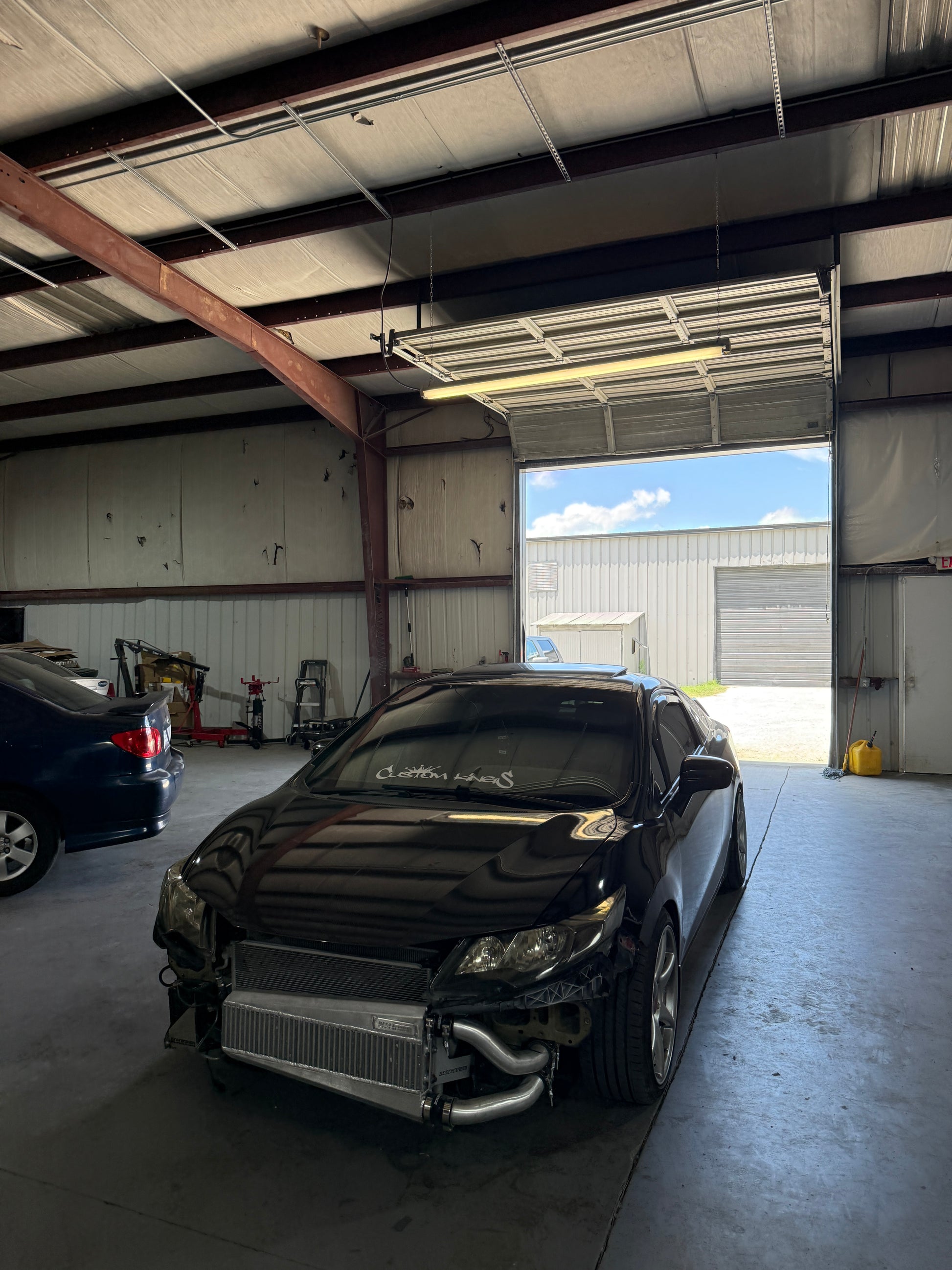

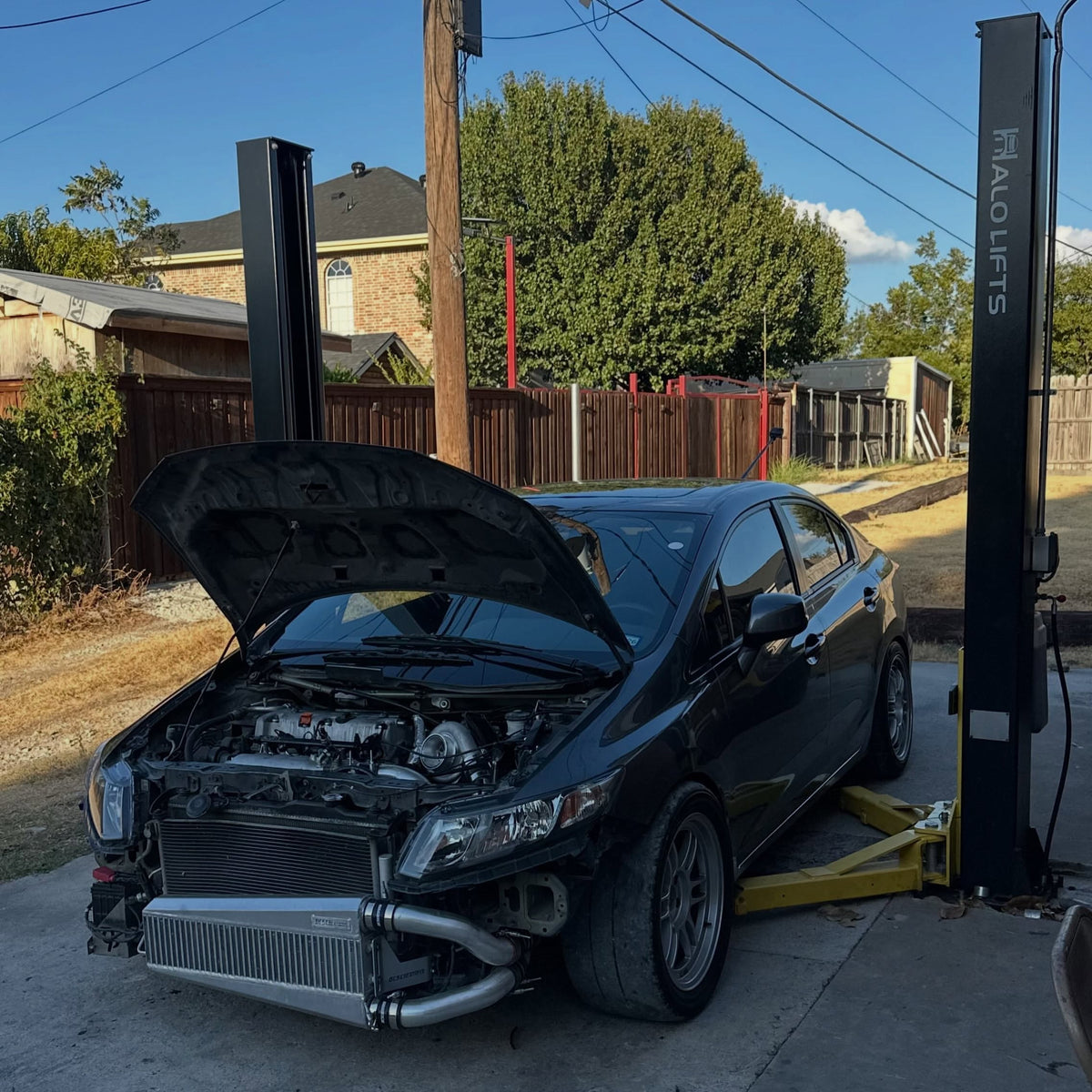

• Dc5creations Intercooler 600/800hp
• Dc5creations Intercooler mounts
• Turbo Oil feed line with fittings

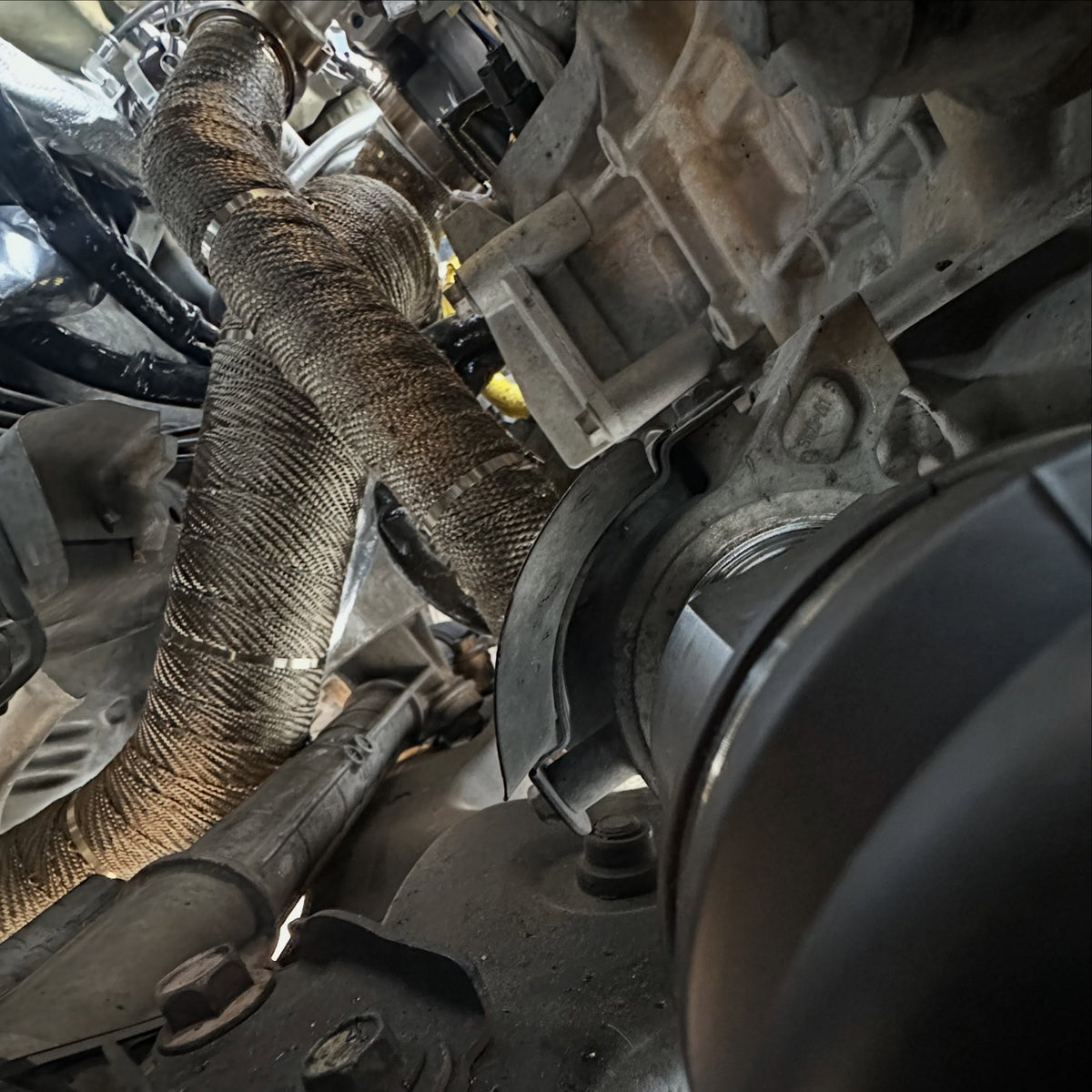

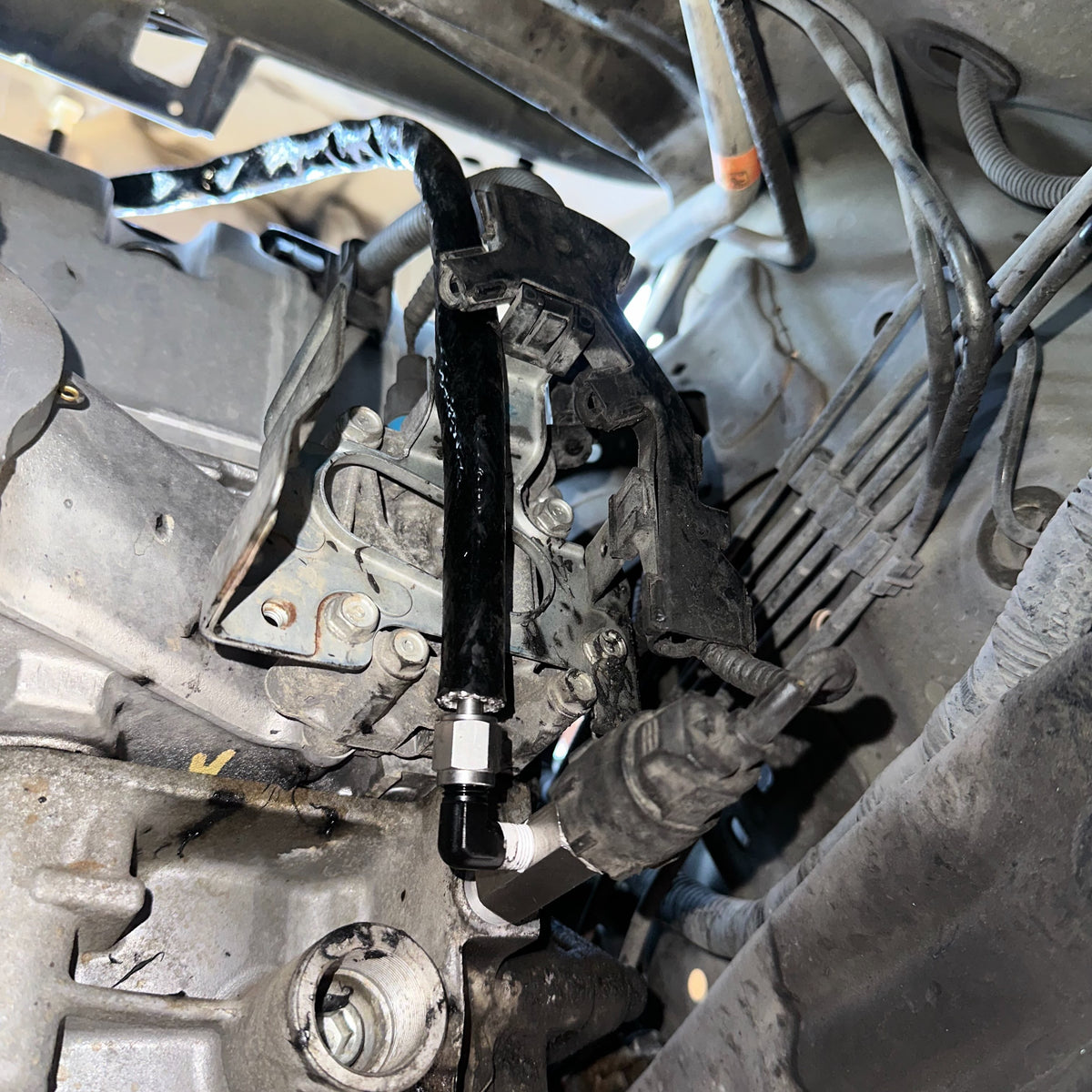

• Heat sleeve turbo drain Line with aluminum bung

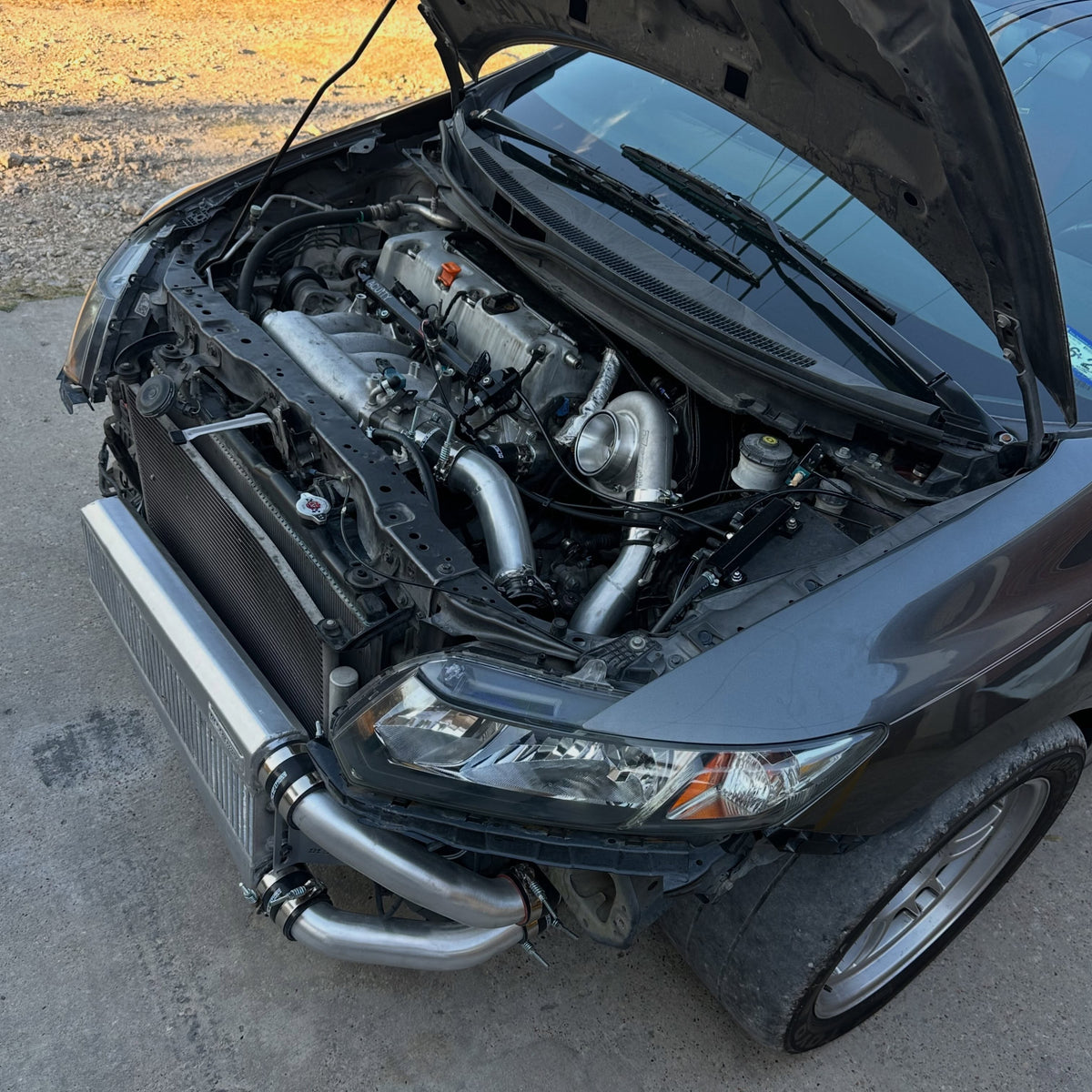

• Dc5creations intercooler piping 2.5 inch specific to this chassis: 4 aluminum piping, couplers and clamps
• Maf to Intake temp sensor harness
• Intake temp sensor Bung

separately- Wastegate dump tube or up tube. Downpipe or Hood exist pipes

Items you will need to finished completing the kit . what we recommend that has work for us over the years.

1. Under 600hp clutch master fx400 clutch
2. Over 600hp clutch master 725 twin disk

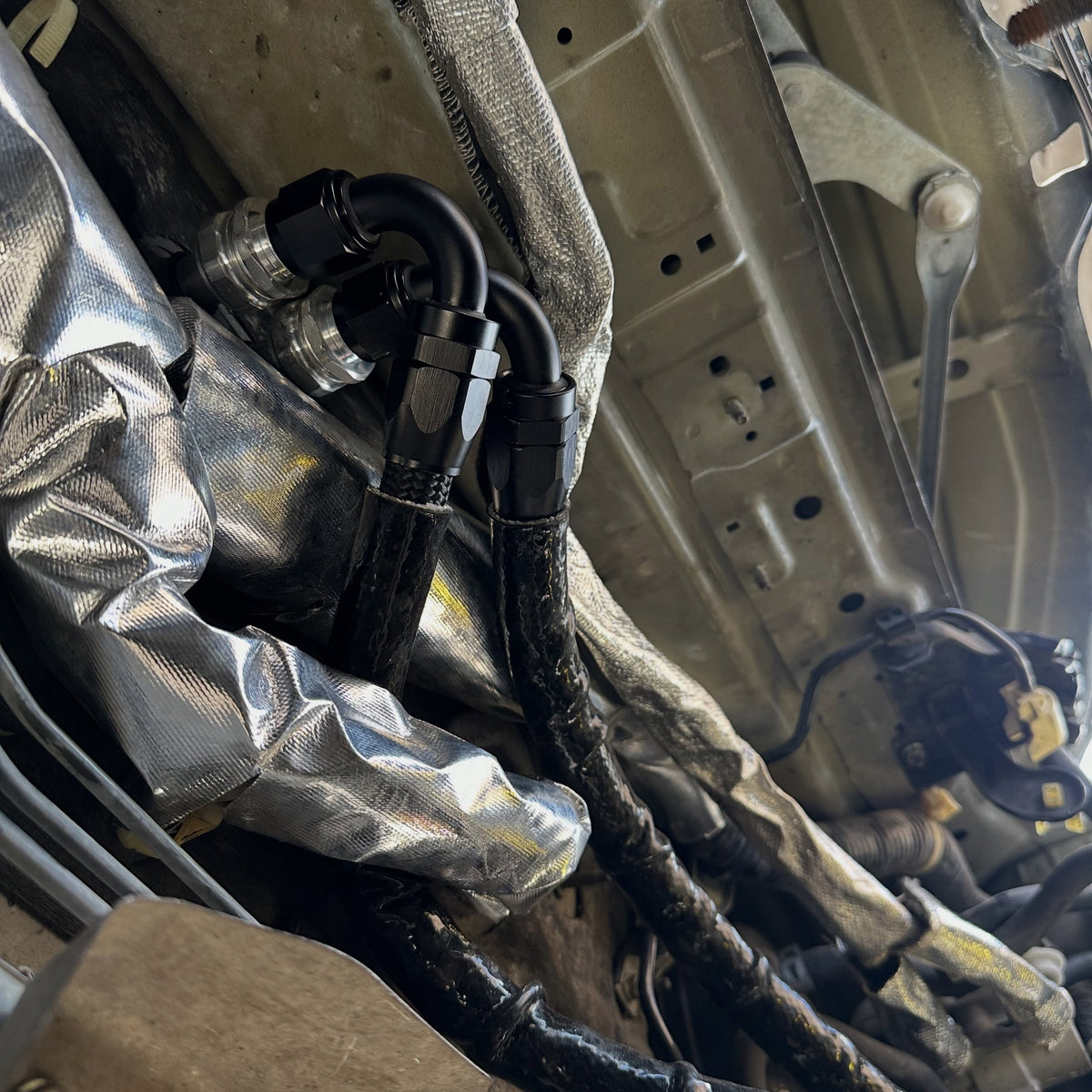

3. Fuel return and feed line.
4. 2150 injectors from FCI or alpha injectors better to have enough fuel and not worry. Can you go smaller ? Yes, but what has been successful for us.
5. 535 walbro Fuel pump. Can you go 450 definitely if you already have it but again one thing you don’t wanna do over and over is fuel system.
6. Catch can not needed but definitely helps
7. Battery MUST relocated

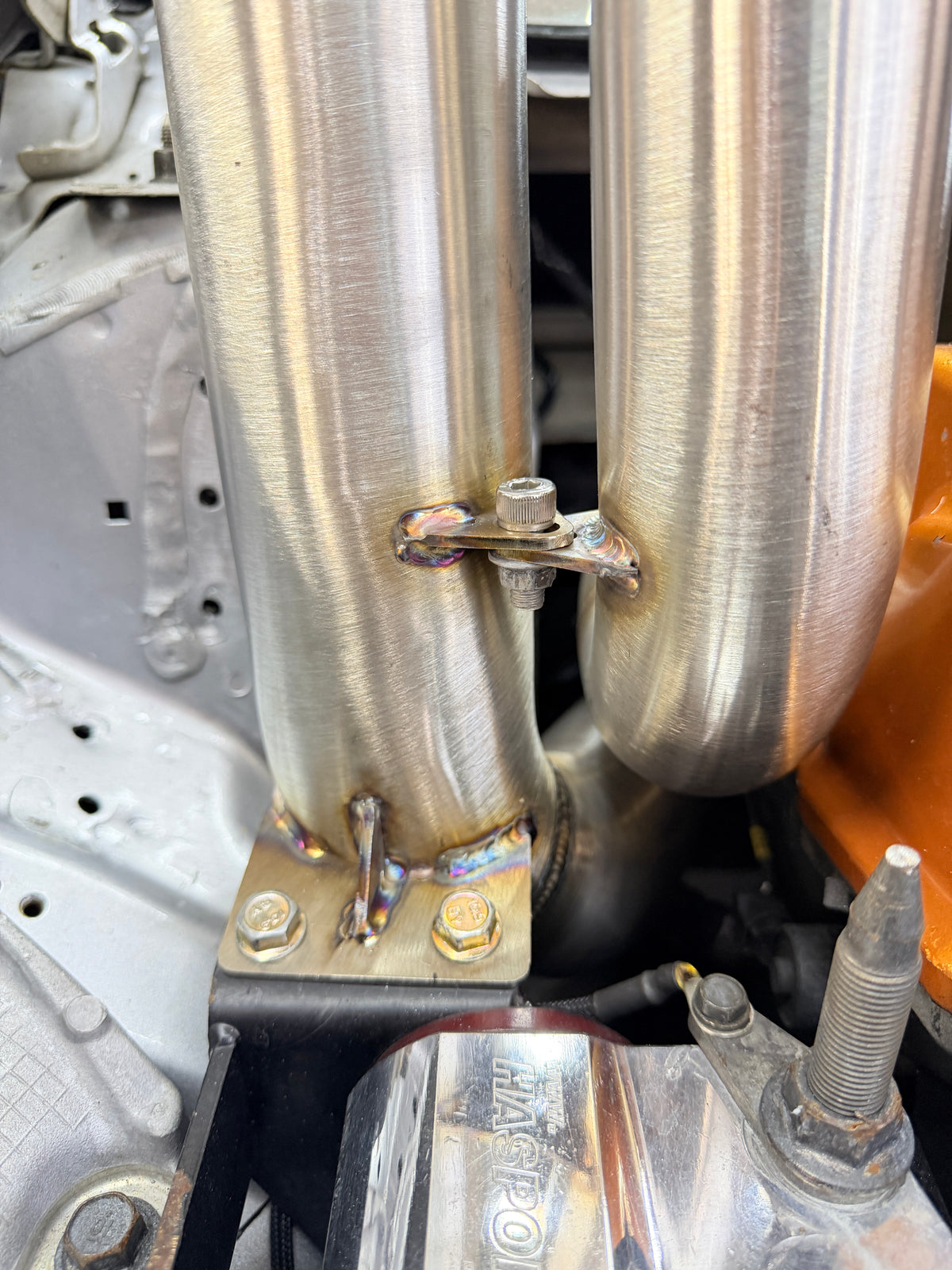

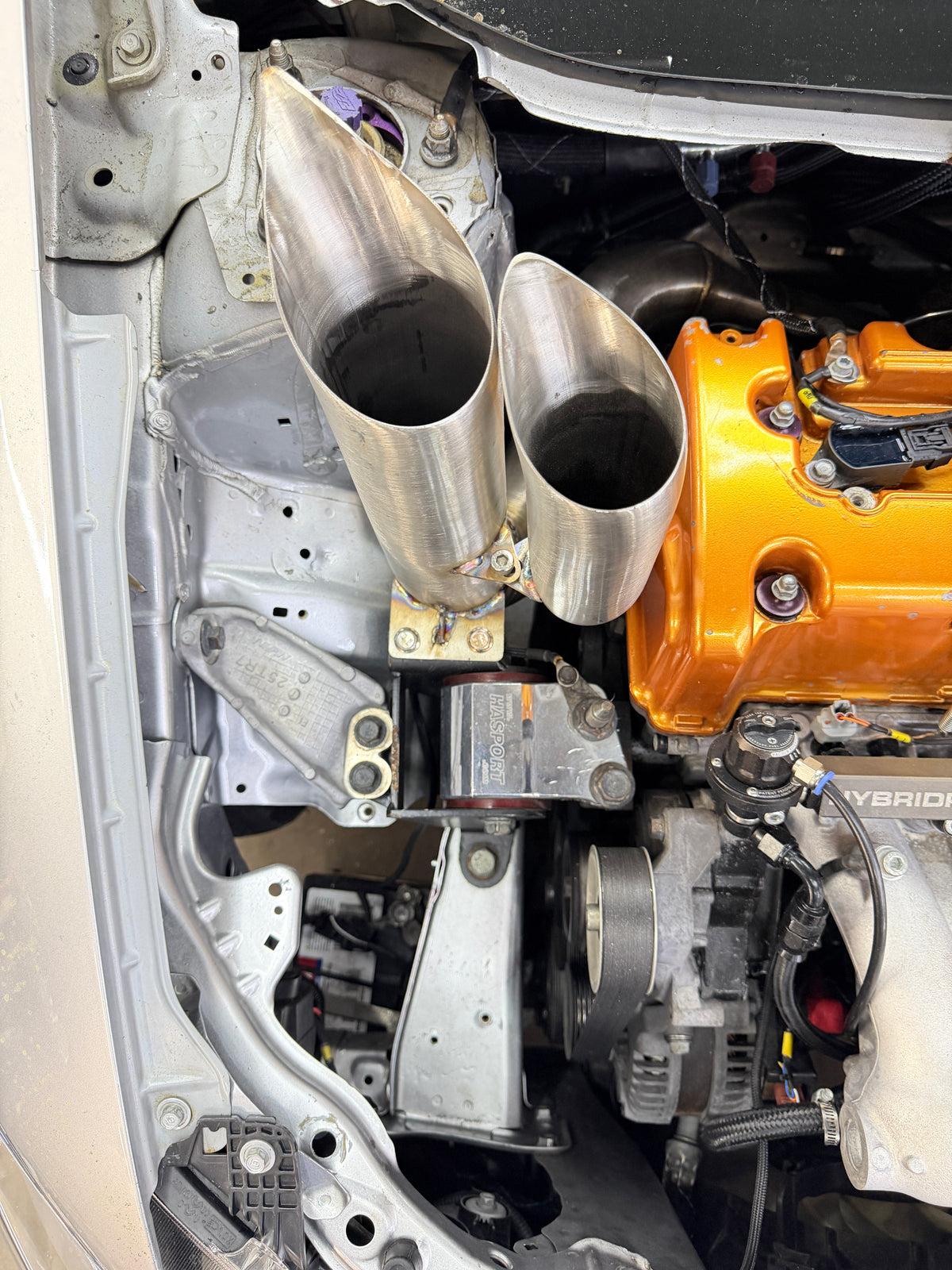

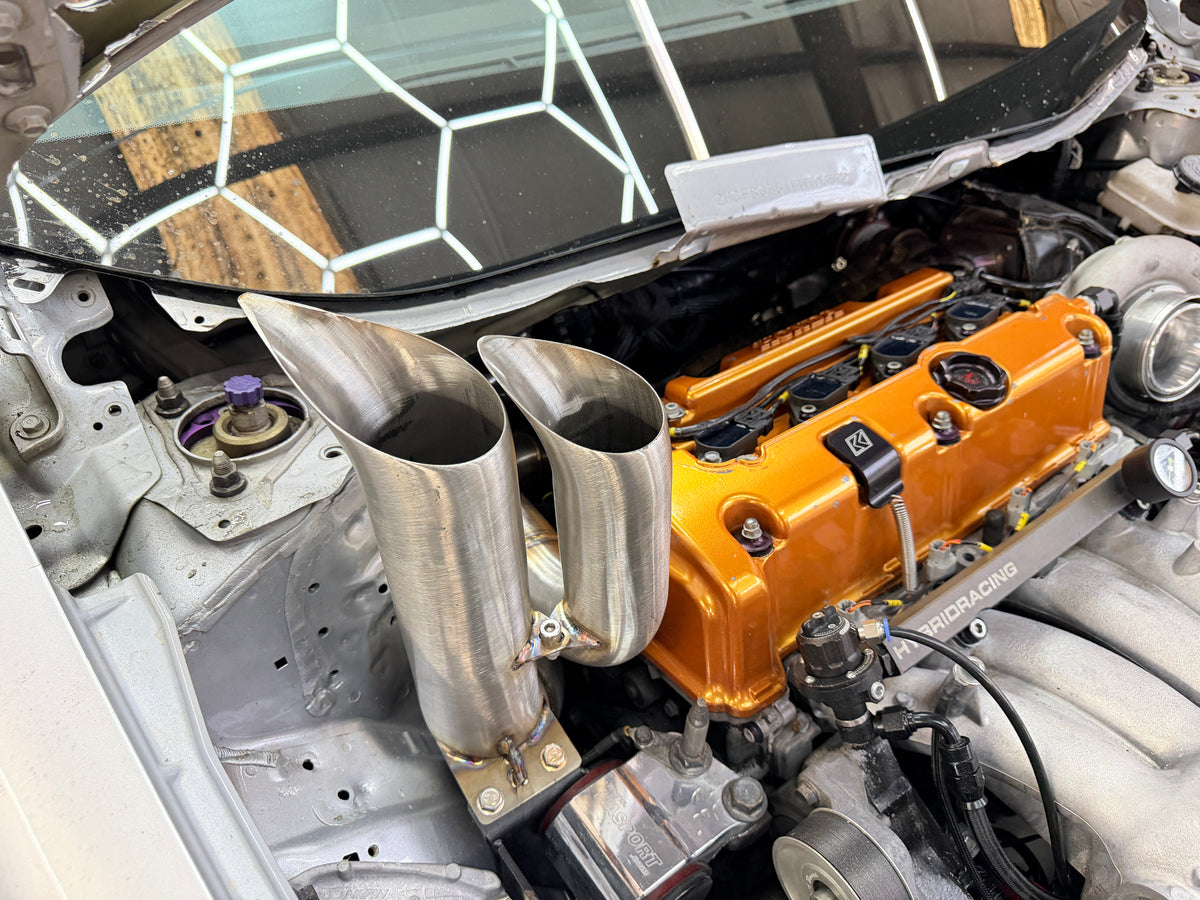

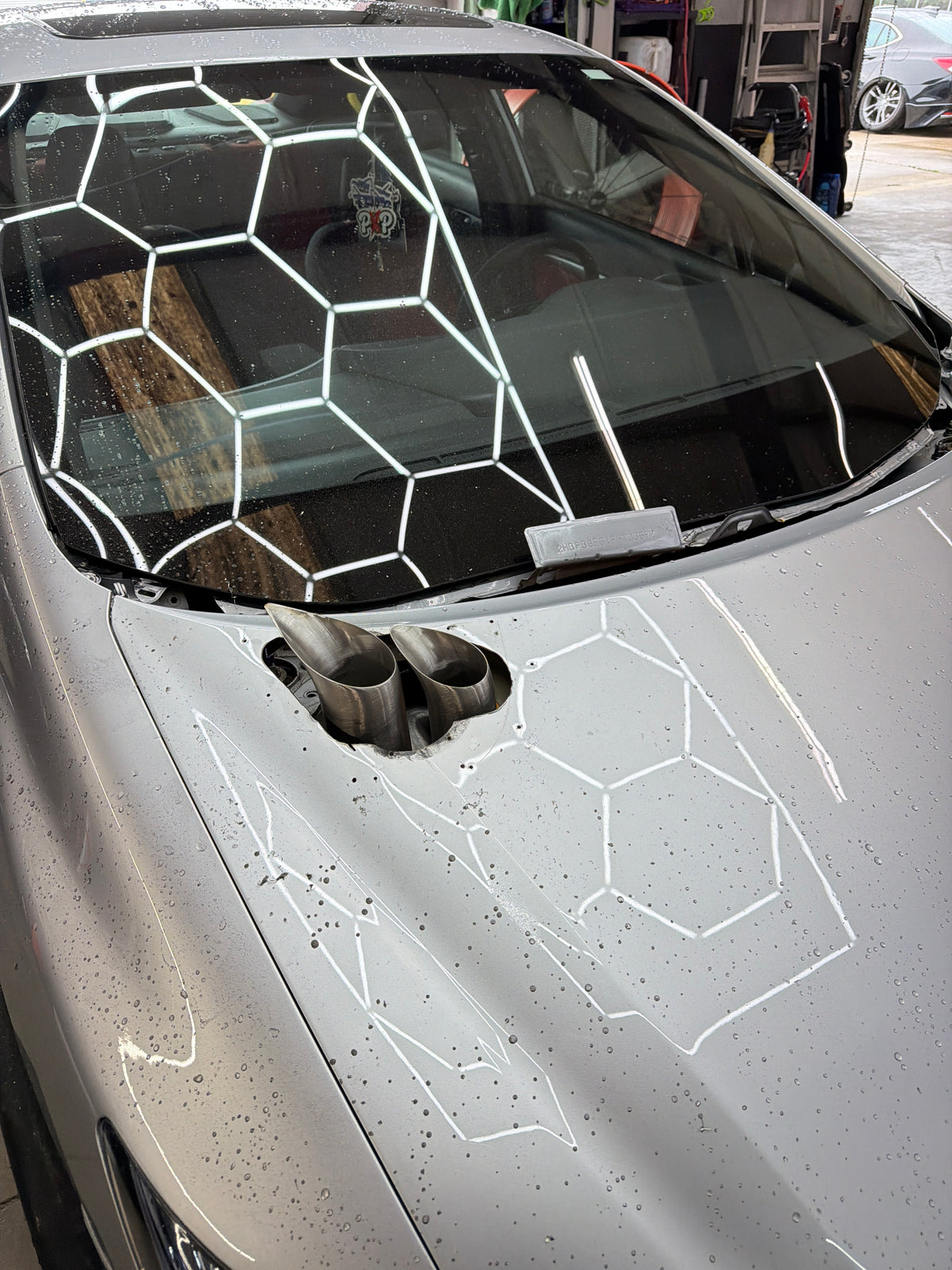

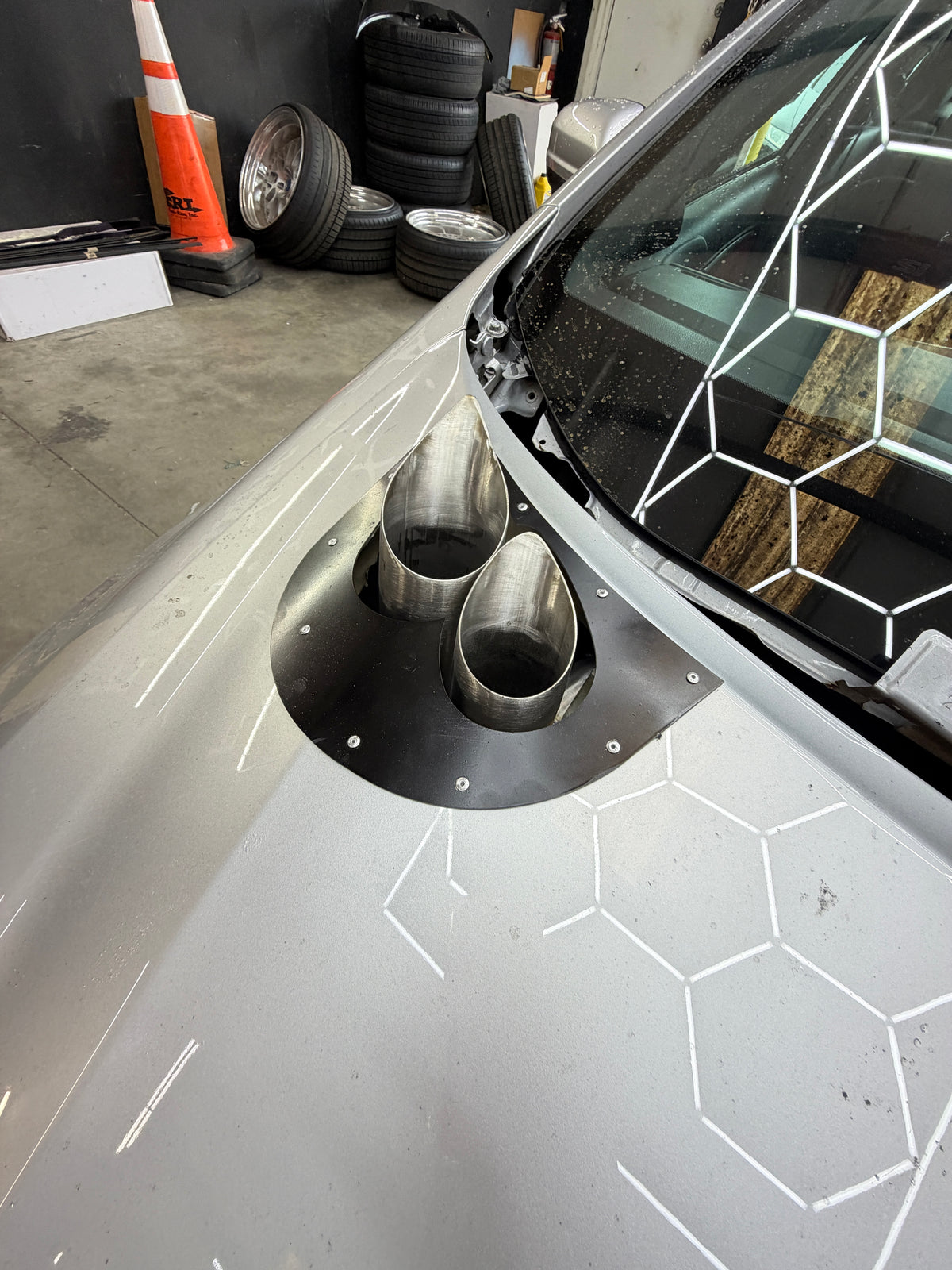

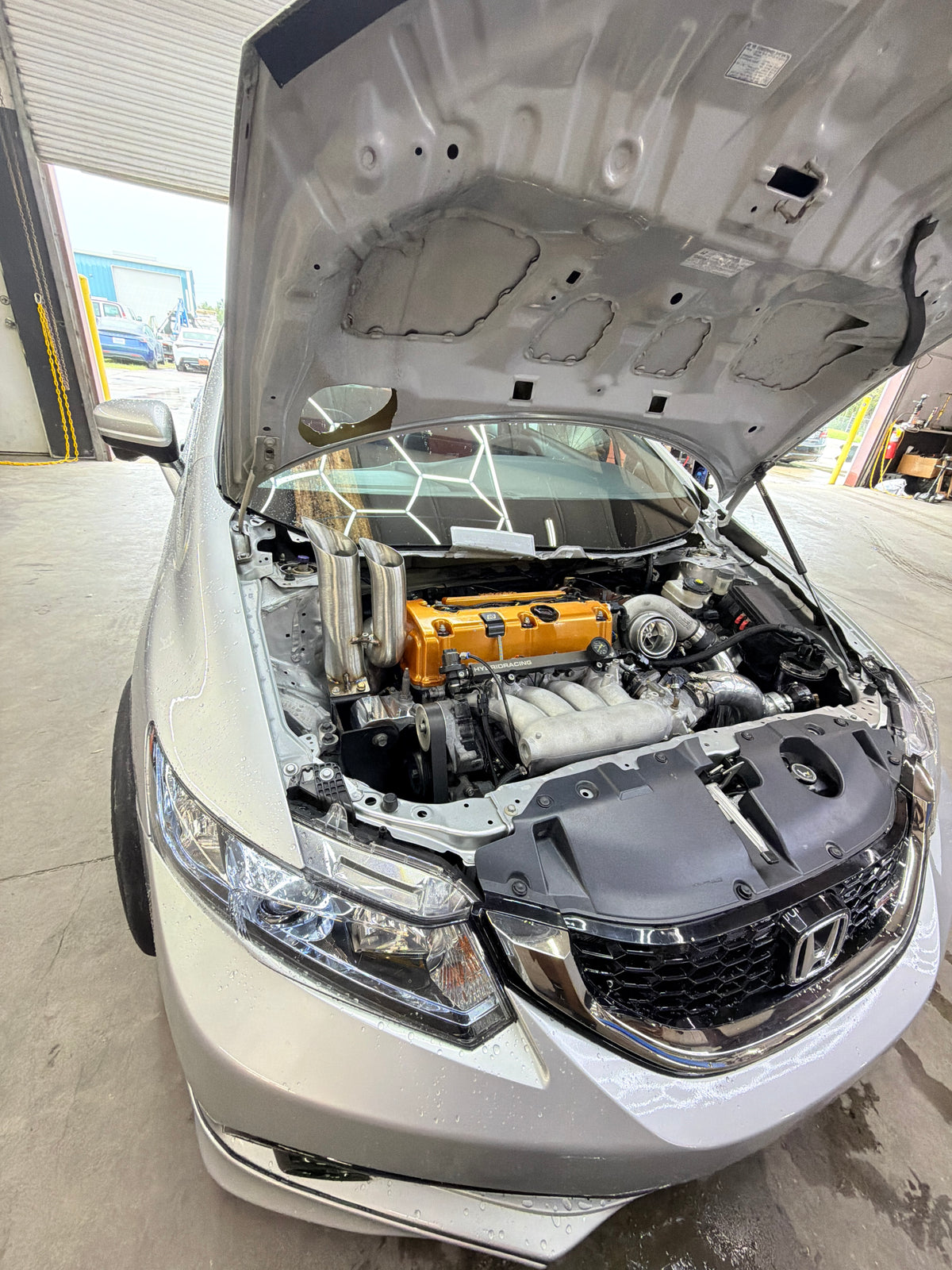

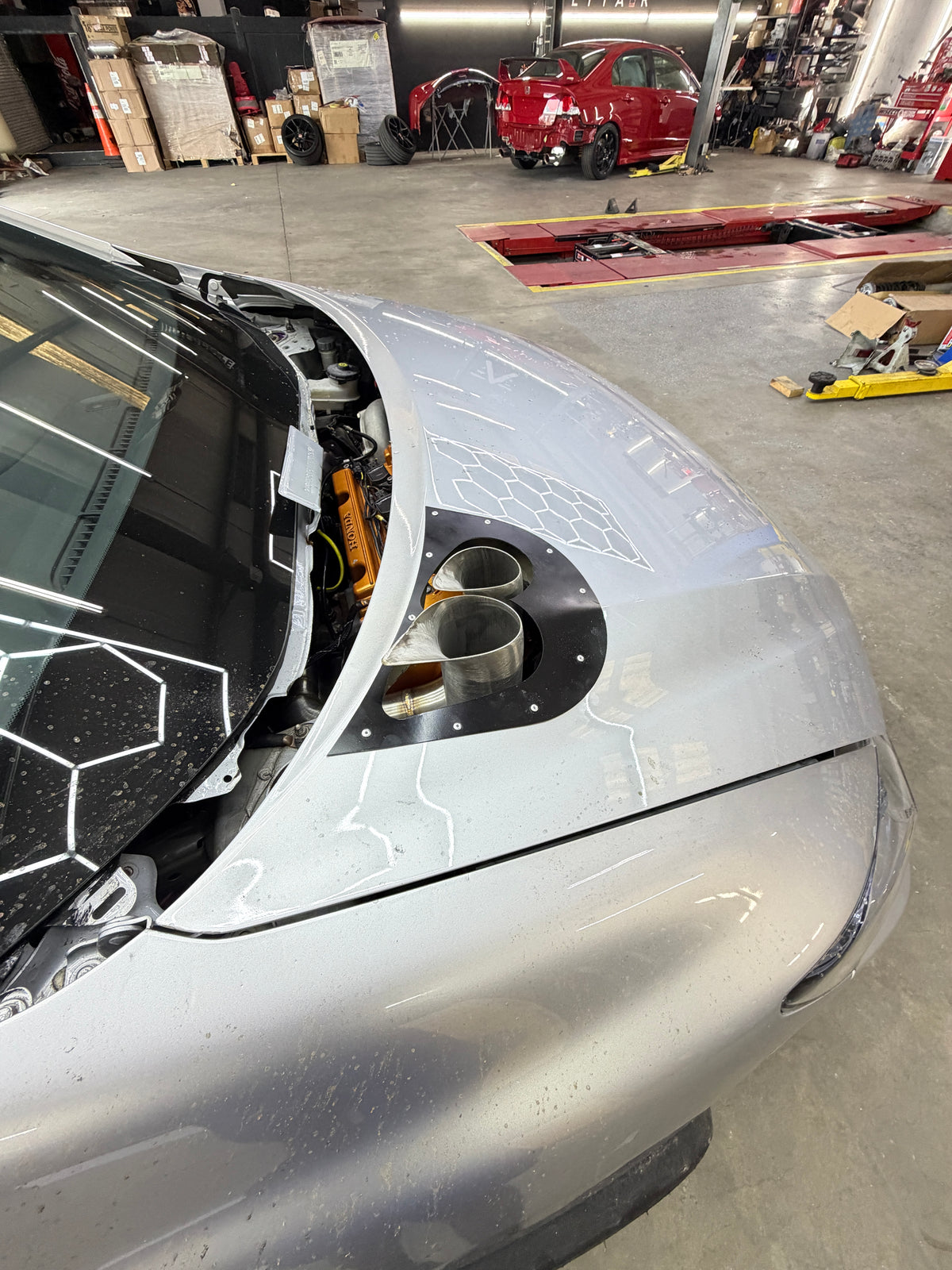

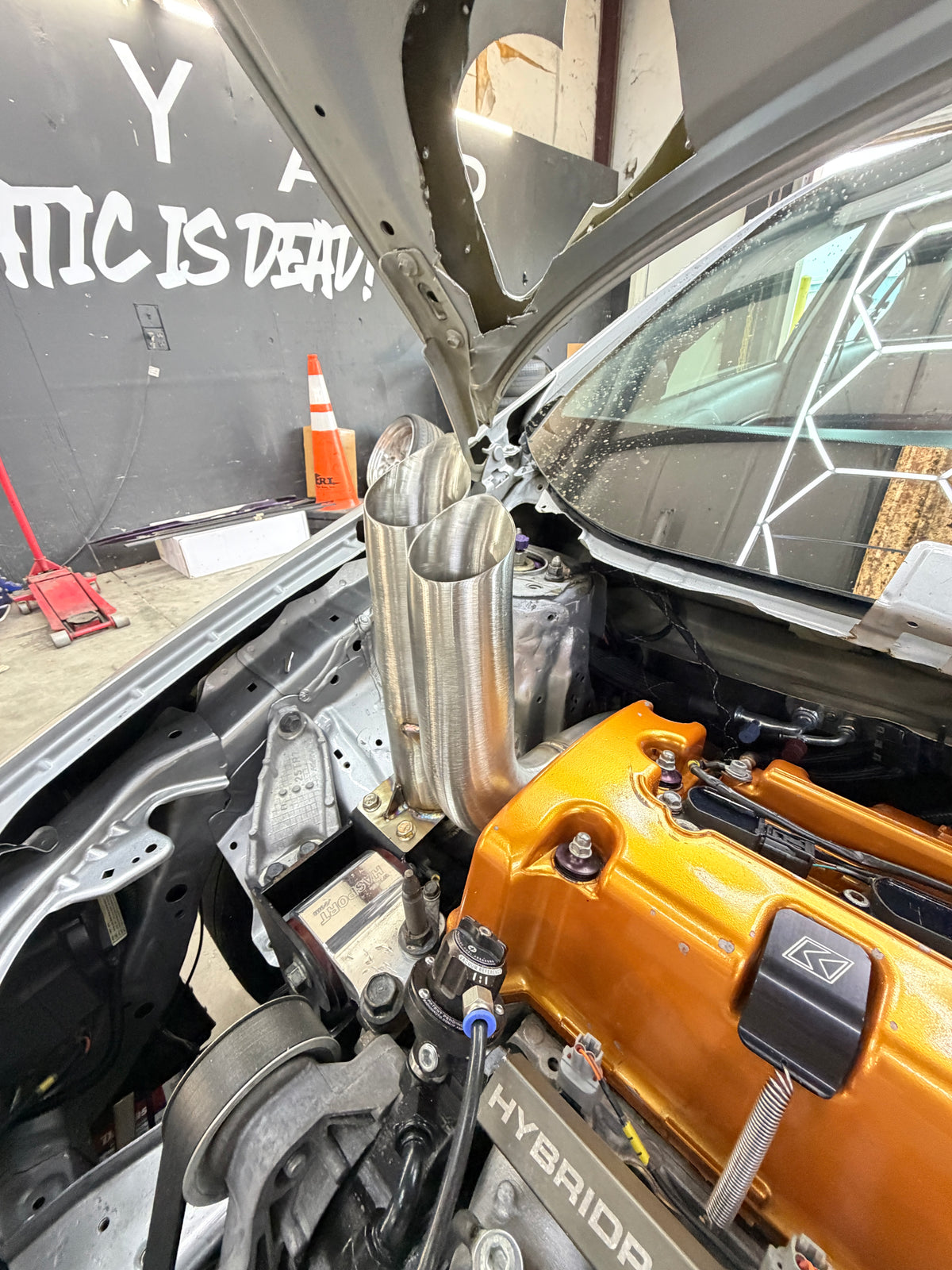

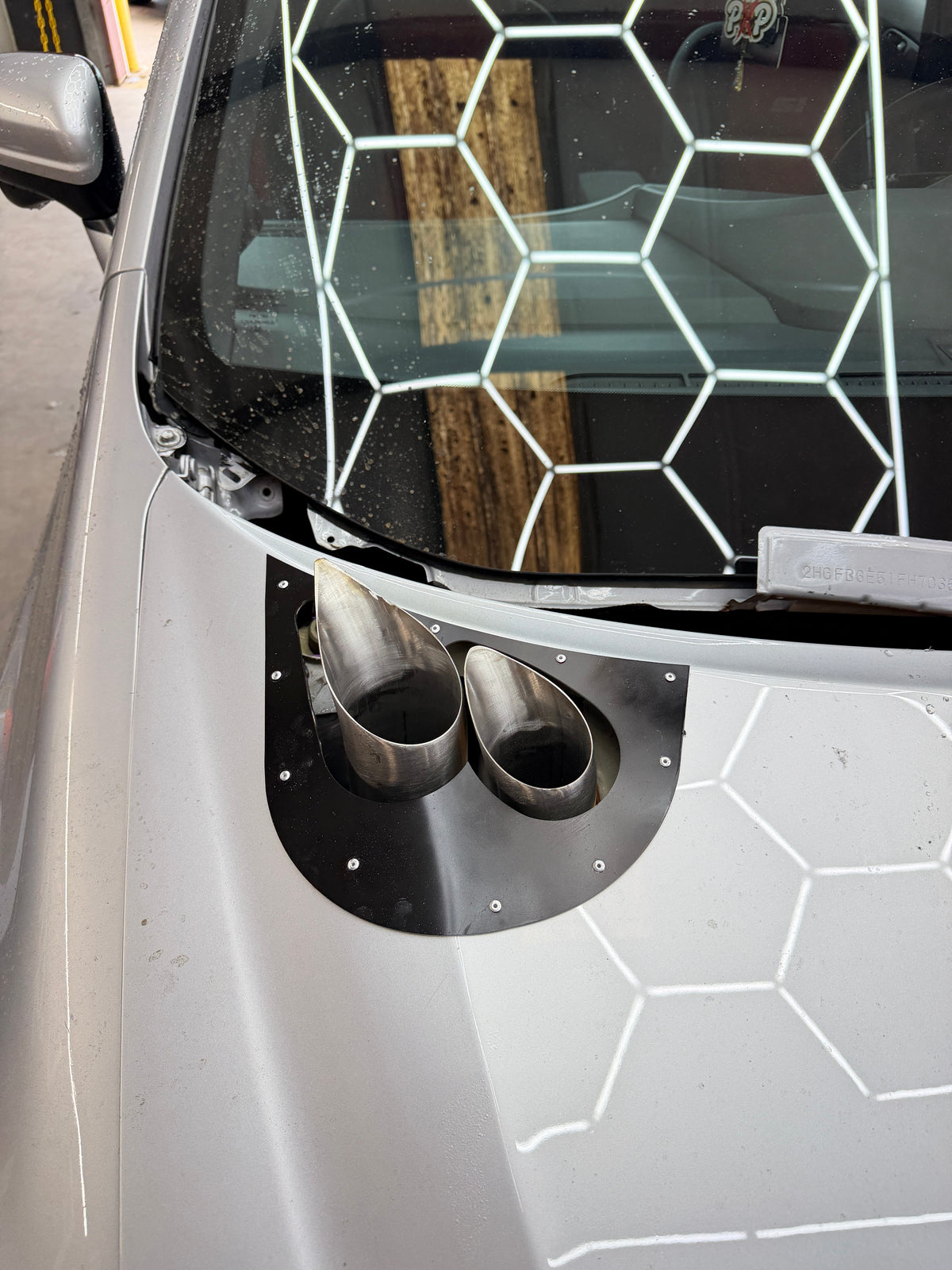

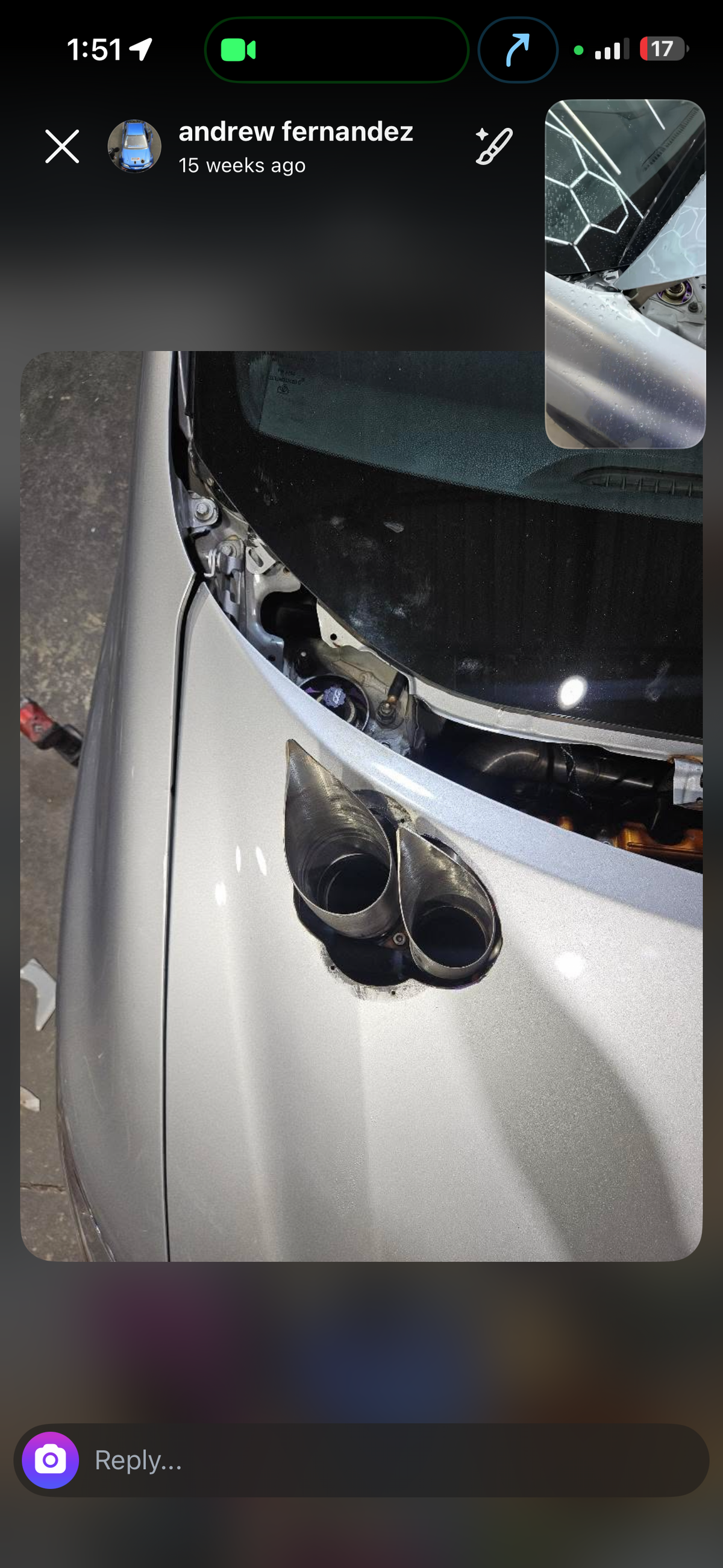

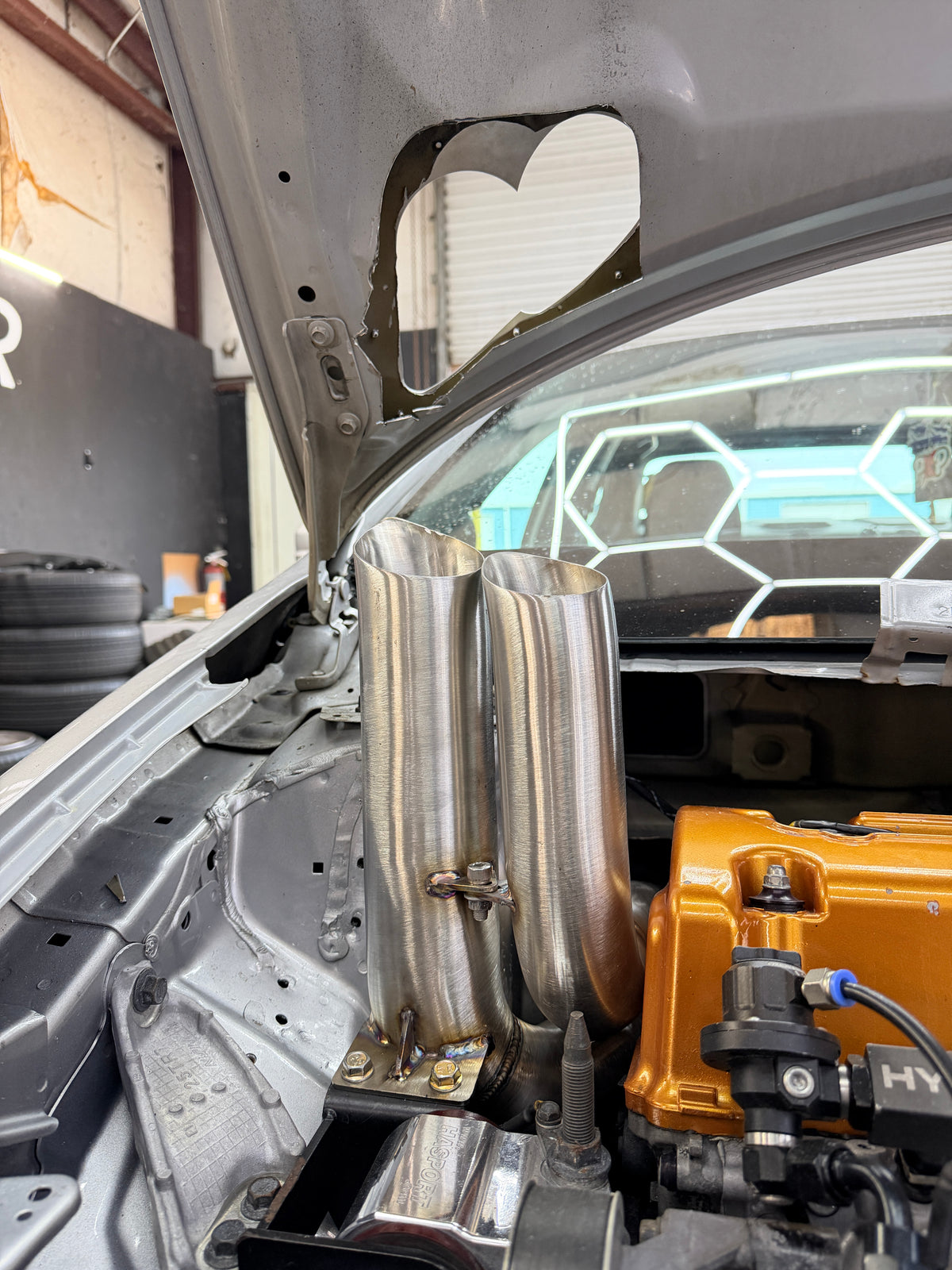

8. Doing hood Exist pipes required a lot of fabrication please look over the video before you place the order and up pipes description. Click here.
9. Intercooler piping will ONLY work with rbc manifold
10. Fuel Pump relay harness

Pulsar product are directly ship through them. Please allow 10-14 business days for all your items to be all delivered.
Pulsar items are Turbo, wastegate, blow off valve and drain bung.

OFF ROAD USE ONLY

ALL SALES ARE FINAL
